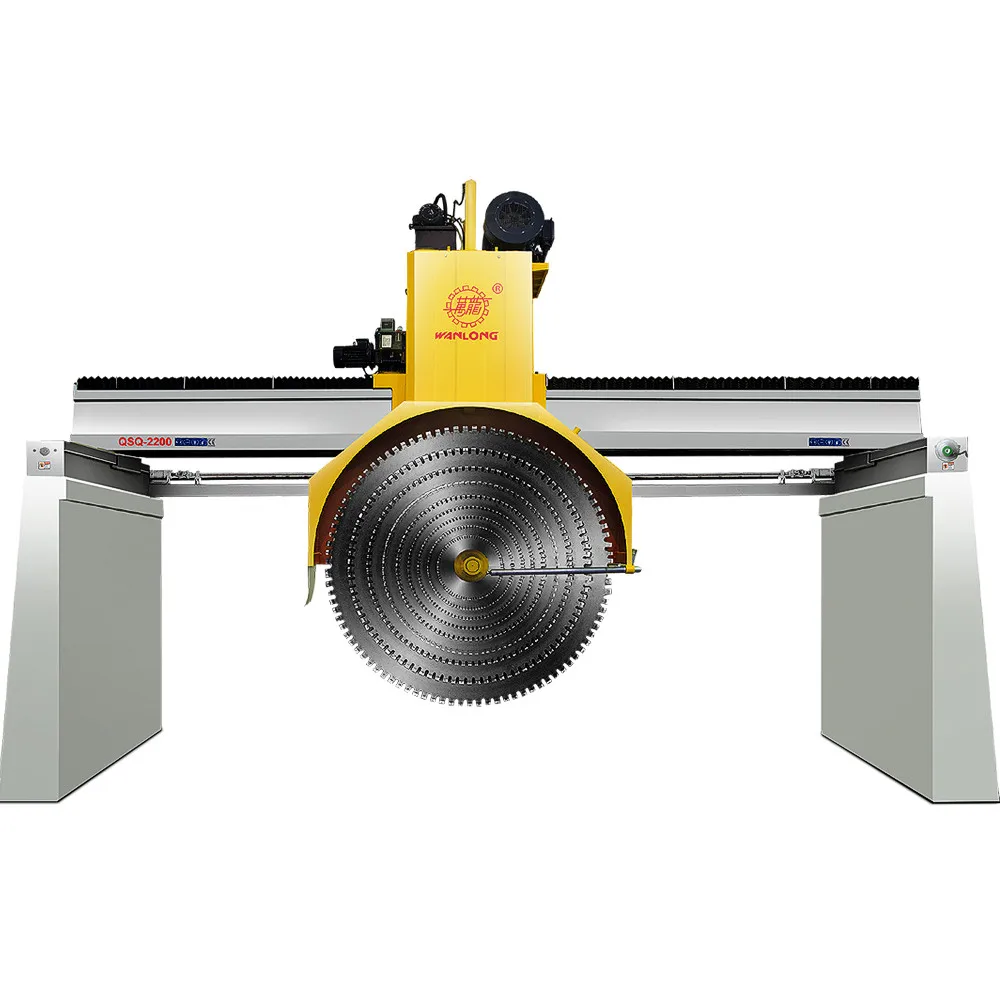

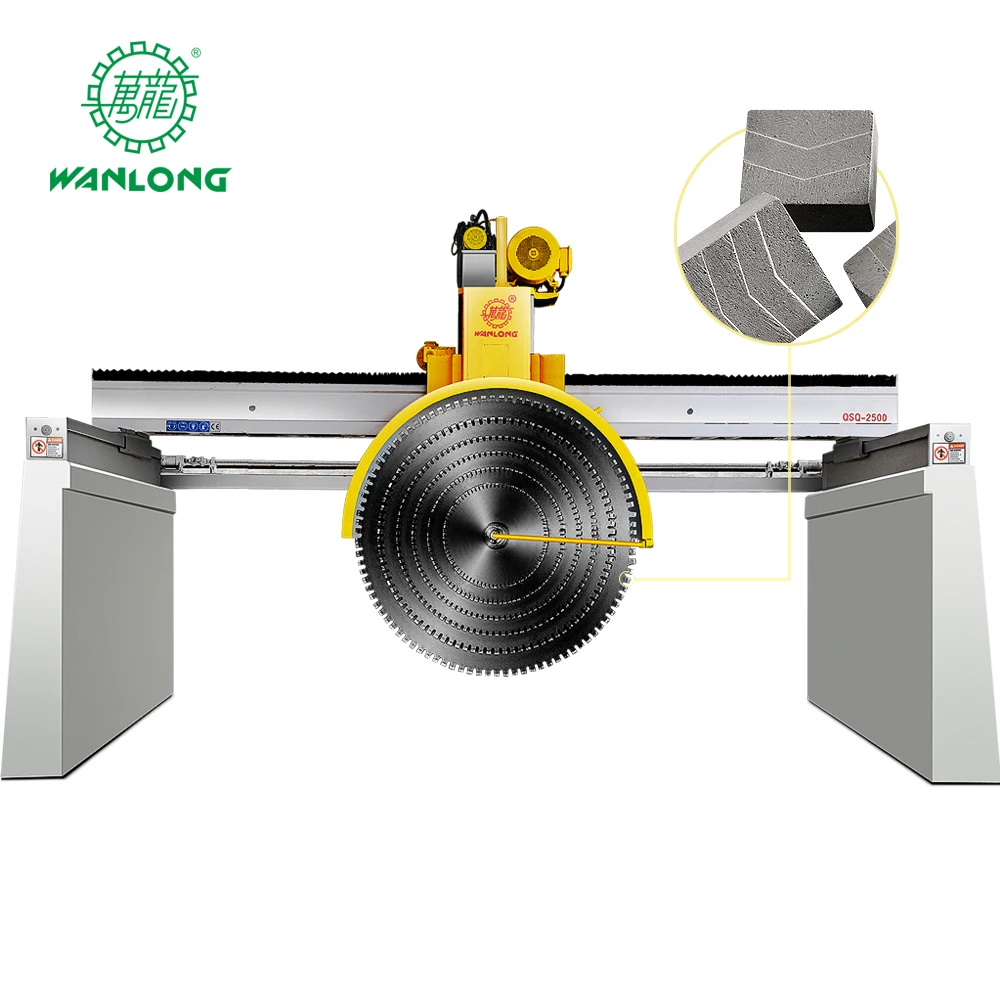

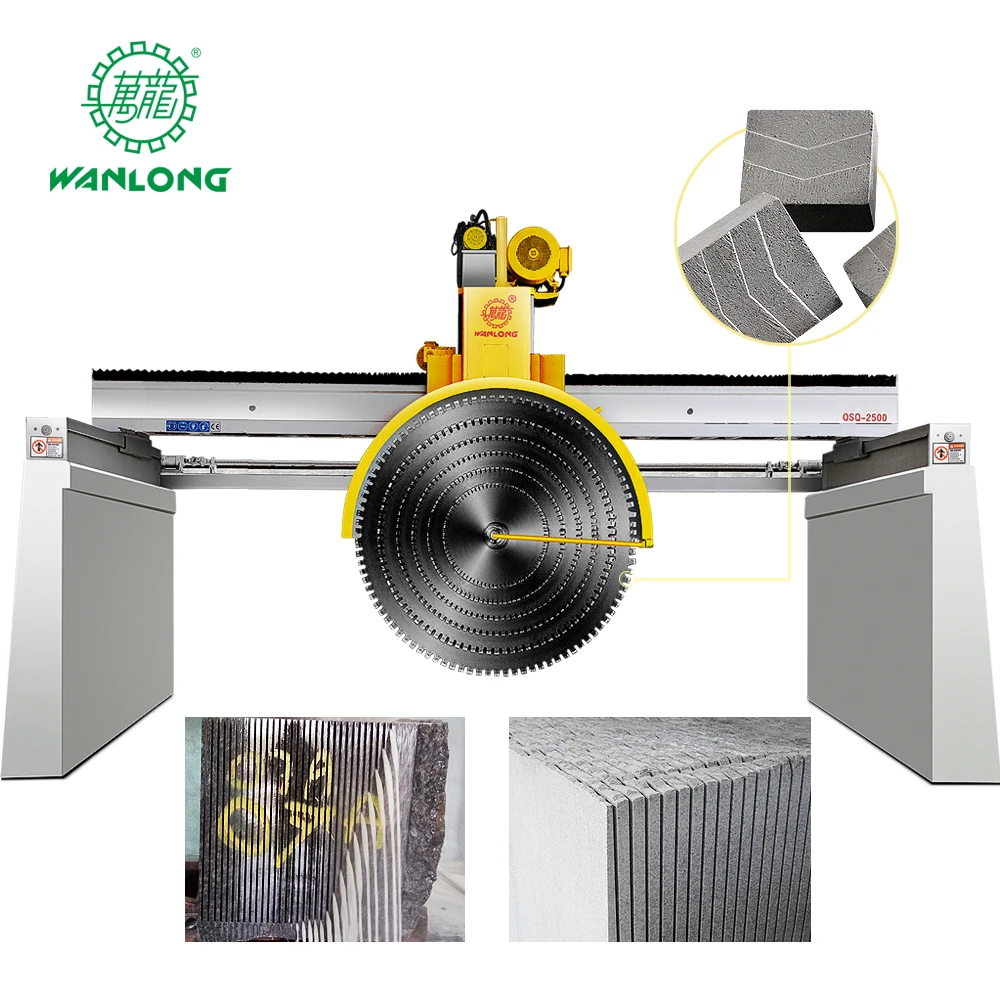

Top Quality WANLONG QSQ 2500B Hydraulic Granite Marble Multiblade Quarry Stone Block Cutting Machine for Egypt
- Category: >>>
- Supplier: Fujian Wanlong Diamond Tools Co. Ltd.
Share on (62509903727):
Product Overview
Description

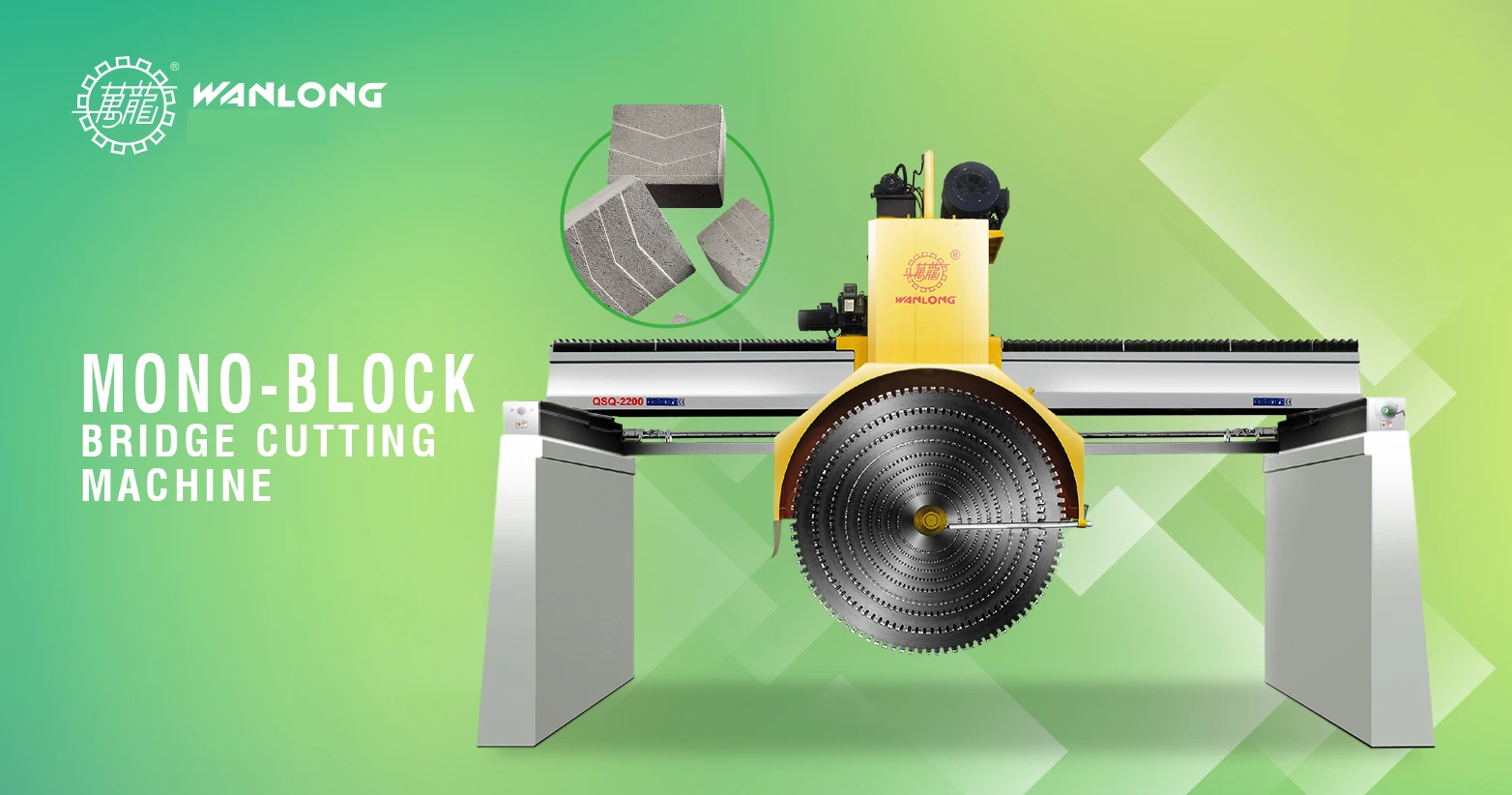

QSQ2200 2500 3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper, It is also flexible in modification for Single blade cutting.
Technical Parameter
Model | QSQ-2200 | QSQ-2500 | QSQ-3000 |
Max. blade diameter/mm | 2200 | 2500 | 3000 |
Max. cutting length/mm | 3200 | 3000 | 2500 |
Max. cutting width/mm | 1800 | 1800 | 1800 |
Max. cutting height/mm | 950 | 1100 | 1350 |
Max. No. of blades | 9 | 3 | 1 |
Main motor power/kw | 55 | 55 | 55 |
Power requirement | 3 Phs 380V 50Hz(other is available) | ||
Overall dimension (LxWxH)/mm | 7300X3800X5500 | 7300X3800X5500 | 7300X3800X6100 |
Total Weight/kg | 10,000 | 11,000 | 12,000 |
Product Features:

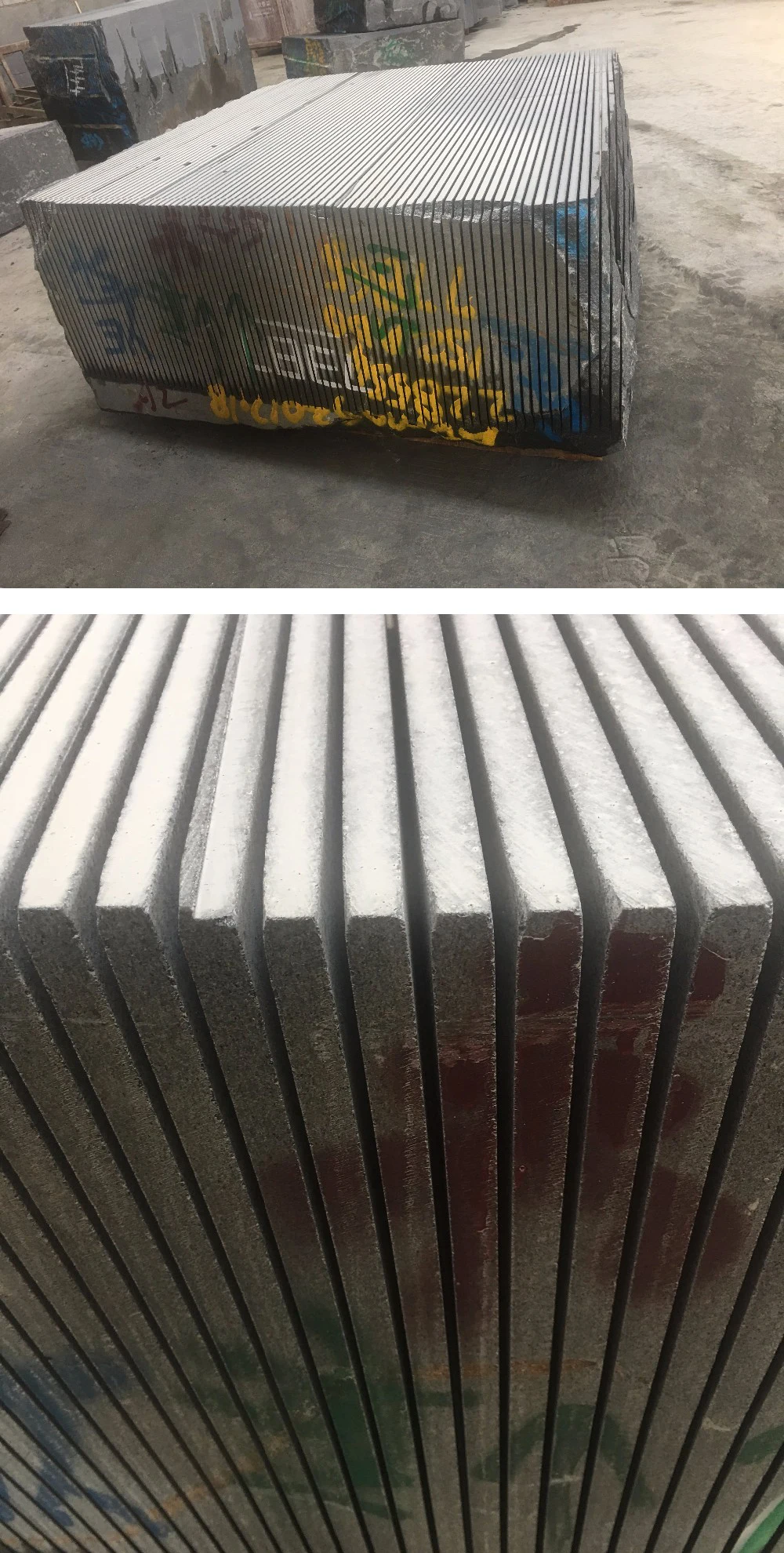

High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Encoder for X, Y, Z movement.
4. Strong cast iron HT200.
5. Double V-shape guide rails enhance the smooth cutting and movement.
6. Touch sensitive Panel Easy for worker to operate.
7. Locking system on vertical beam to protect the machine collaption.
8. Fast hydraulic lifting system.
9. 110sqm per 10 hours for medium hard granite.
Company Information
Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong’s technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years’ practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
