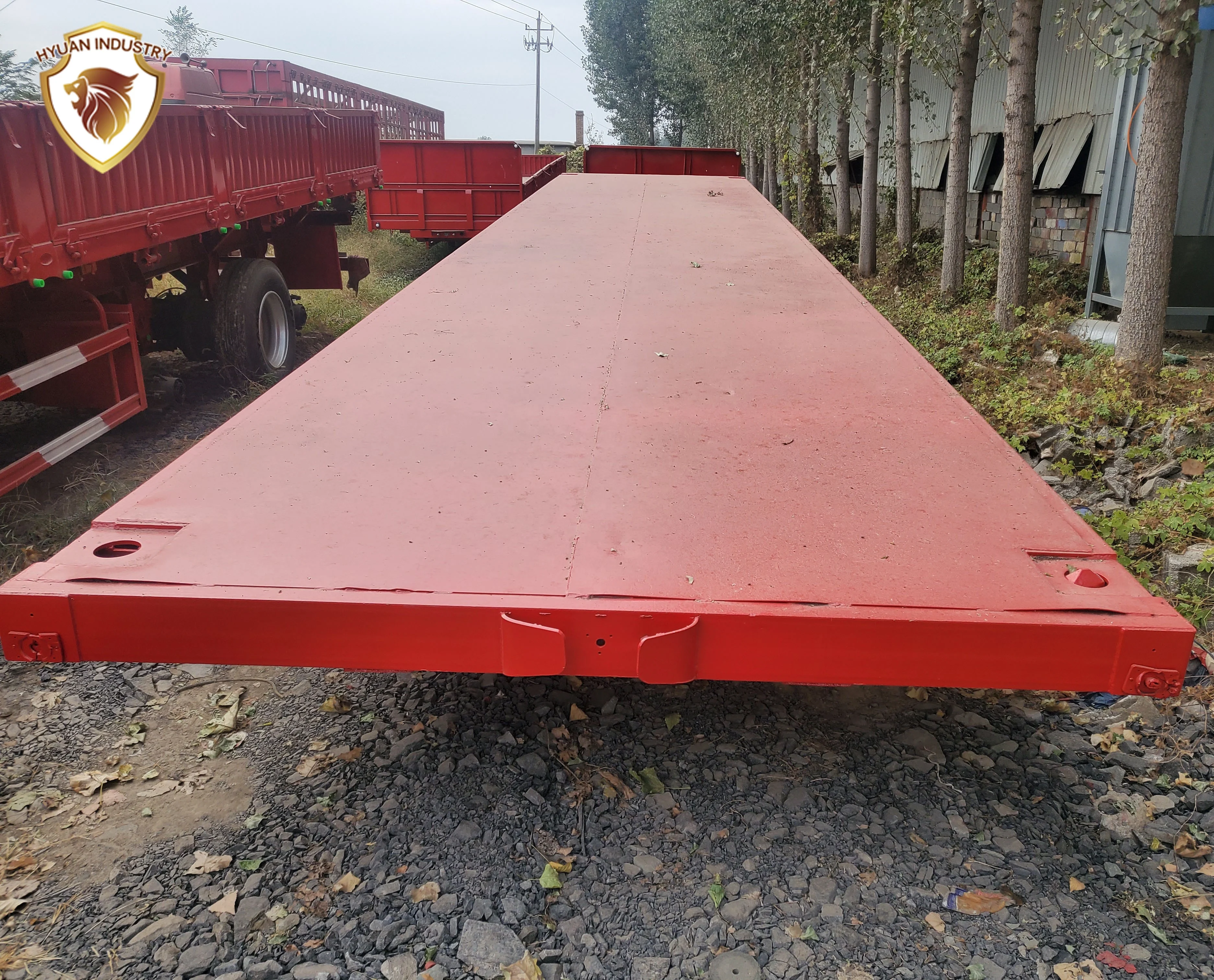

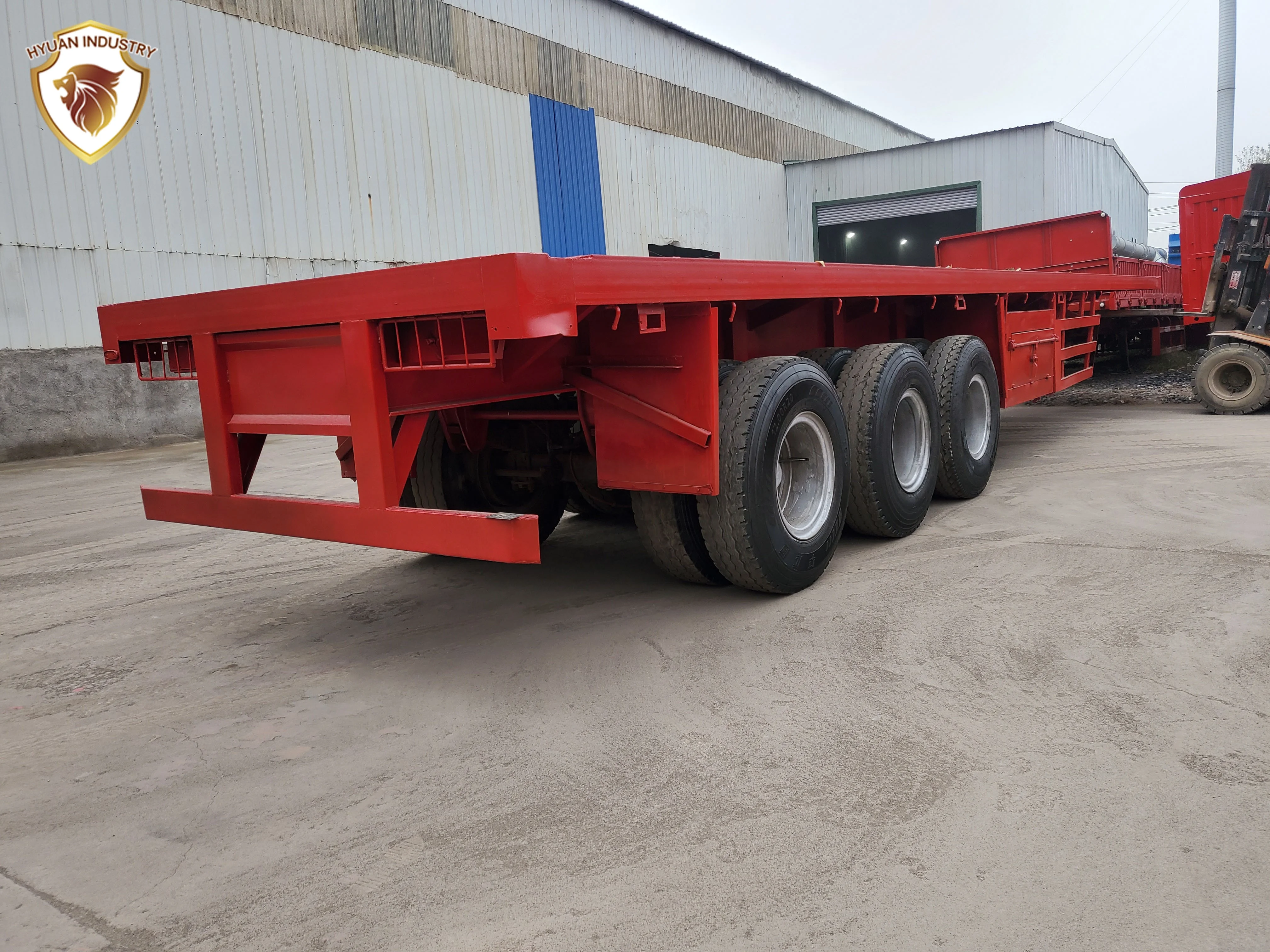

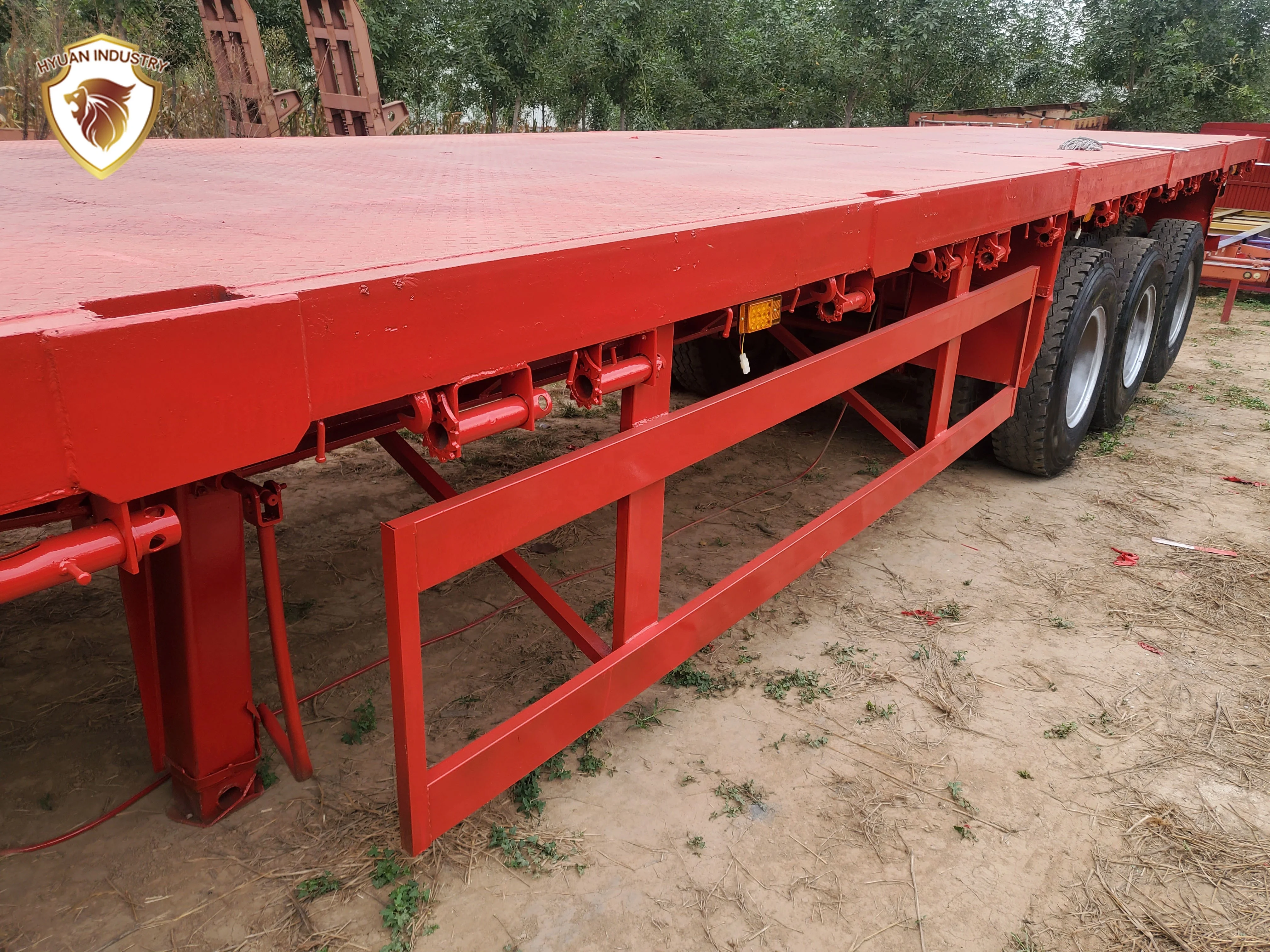

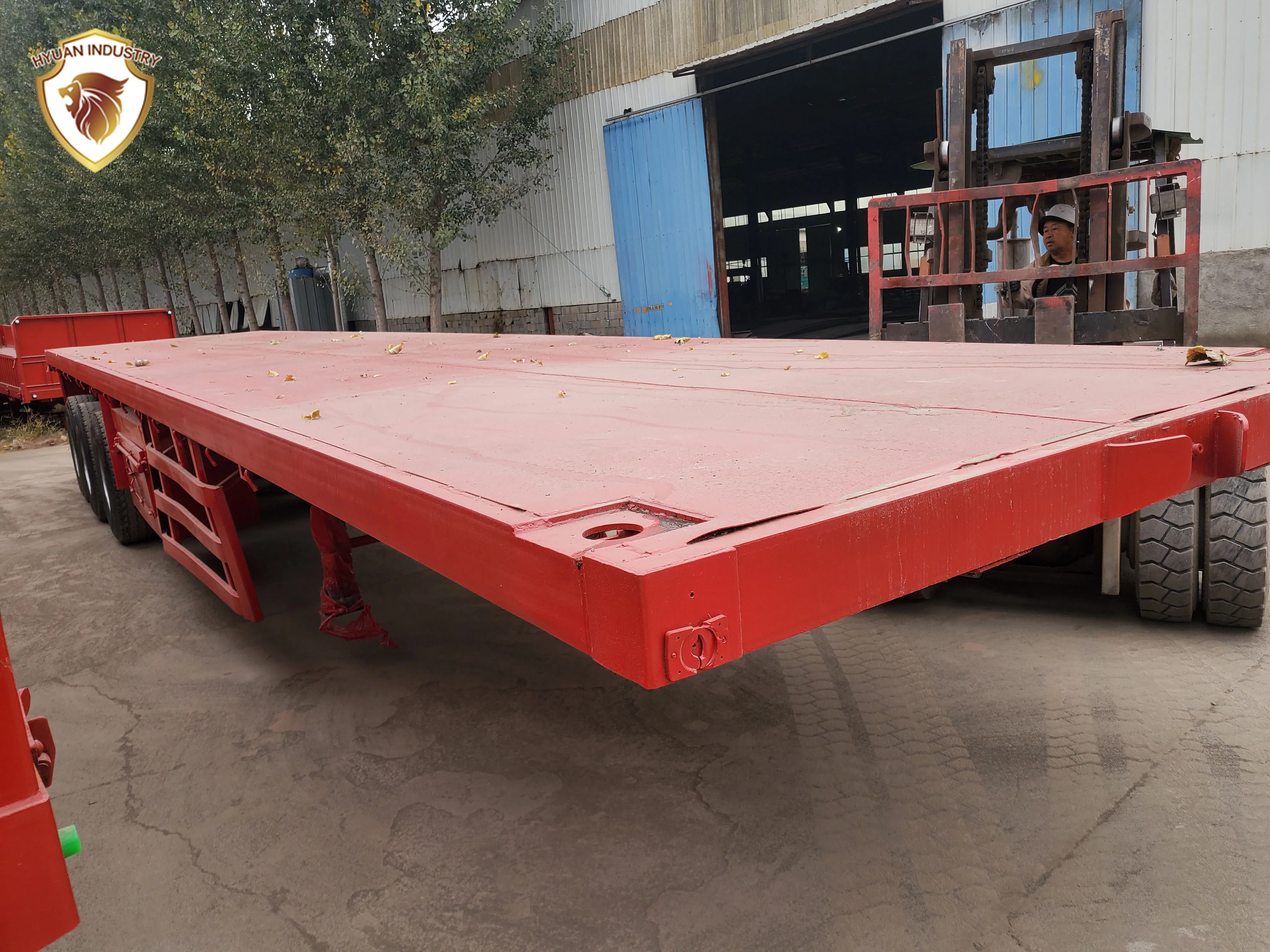

3 axle 20ft 40ft container used flatbed trailer
- Category: >>>
- Supplier: Hengyuan (liangshan) Commerce Trading Co. Ltd.
Share on (62510762850):
Product Overview
Description
3 axle 20ft 40ft container used flatbed trailer
Axle quantity: 2 axle 3 axle 4 axle
Axle brand: FUWA / BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Loading: 20tons -80tons
Dimension:7000MM-180000MM
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
Material: Carbon steel/aluminum/stainless steel material
Usage: bulk cargo, container, bottles transport
Product Description
HYUAN provide the flat bed trailer can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer. HYUAN production the flatbed trailer all configurations and accessories used domestic and aboard famous brand.
Name | HYUAN flatbed semi trailer |
Overall dimension | 12000*2500*1550mm (According to customer demand) |
Loading capacity | 30T 40T 45T 50T 60T |
Tare Weight | 6.5-10T |
Axle | 2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua |
Rim | 8.00-20/8.5-20/8.8-20 China Brand |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
Suspension | Mechanical suspension(German Type or America Type) or Air suspension |
Spring leaf | 90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional) |
Wheel base(mm) | 6880+1310+1310. |
Kingpin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
Brake chamber | 6 double brake chamber |
Landing gear | JOST/FUWA/Yahua brand 28T(two speed or single speed) |
Twist Locks | Four ,Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
Platform plate | 3mm Checkered steel plate |
Brake system | Dual Line braking system |
Electrical system | 24V,7 pin socket,One set 7-core standard Cable |
Valve | WABCO/KANGJIAN valve |
Tool box | 1set standard tool box( waterproof type) |
Spare tire carrier | 1 pieces( Patent type) |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
1.The parameters of the above products are just common configurations, not absolute.The specific configuration of the product will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and ways of cooperation, we are always welcome.
3.The final price of all products is determined by the product configuration you choose.Therefore, if you are interested in purchasing products, please contact us in time.
Detailed Images

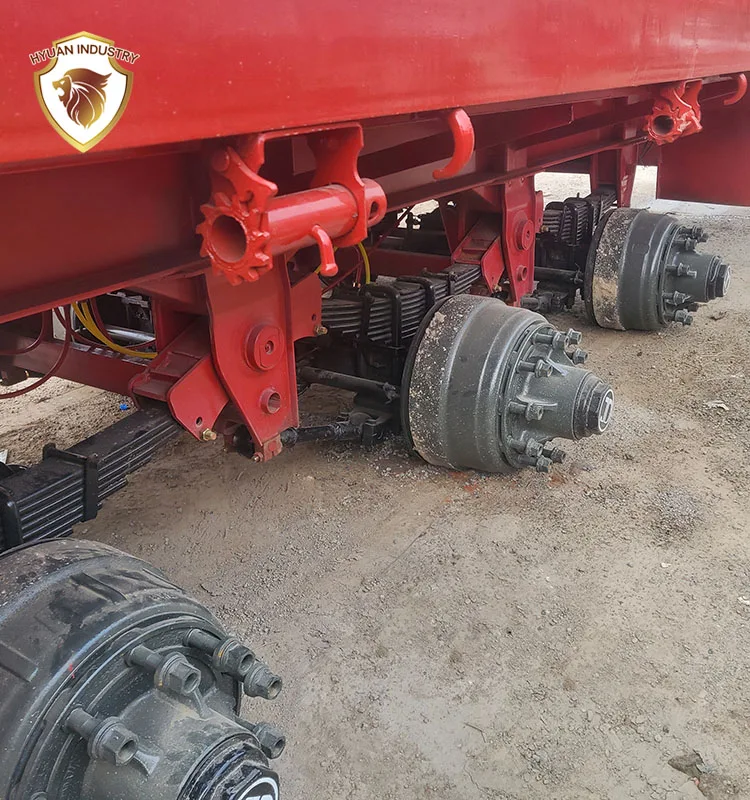

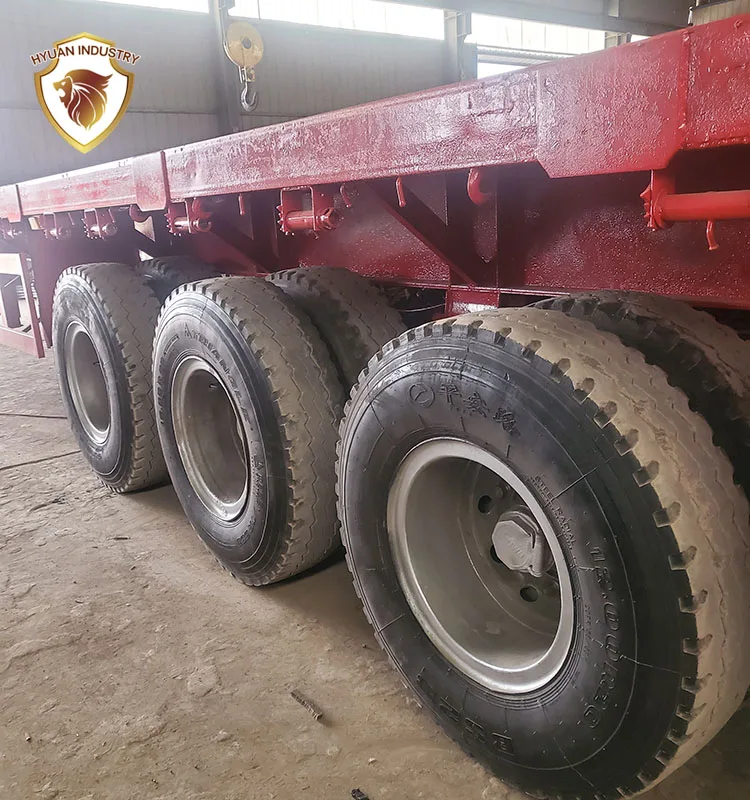

According your needs,we can choose BPW axle or FUWA axle,air suspension or leaf spring suspension.We adopt 6 big double air chamber.According to your needs,we can choose 4,8,or 12 container twist locks.

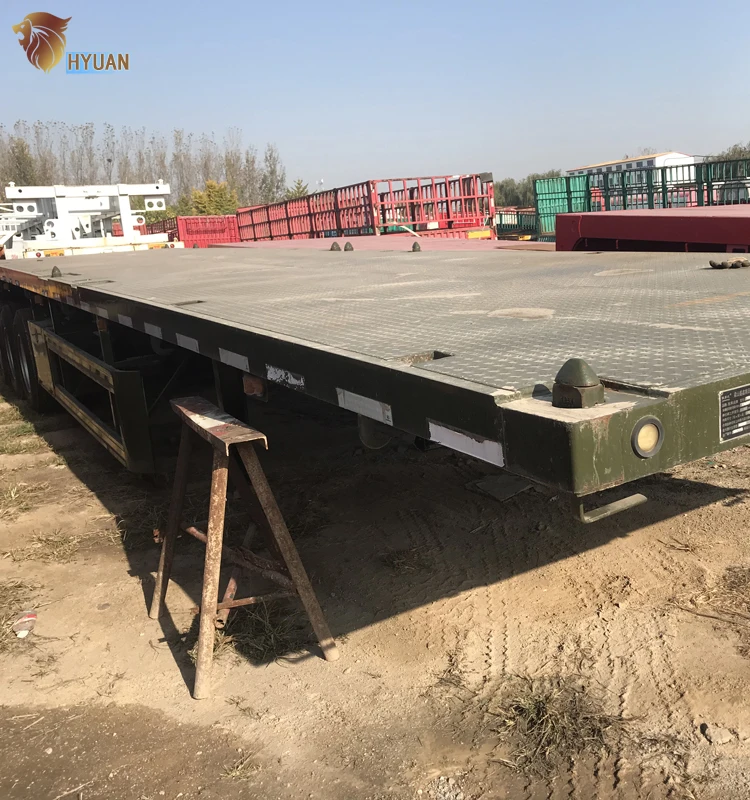

This is the situation in the customer's use process. The evaluation is very good.
1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.
5. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.
More detailed please send email to us or call us, We will meet the acme of perfection to serve and provide more details , price ,catalog, drawing ,video for you !
Click here for more information,thanks
Our Services
1.Years of production experience, good at controlling product quality. Choosing us, you choose professional supplier.
2.The good faith management is our philosophy, and welcome visits our company at any time.
3.According to your order, we provide suitable trailer.
4.We also provide rational packing and shipping program , let shipment save money and security.
Just trust us, you will get a satisfactory answer.
We sincerely invite customers to come to our factory and check products, we will also be with customers to taste the local food, visit the local attractions, our aim is to give customers a best truck trailer programs and a comfortable travel.

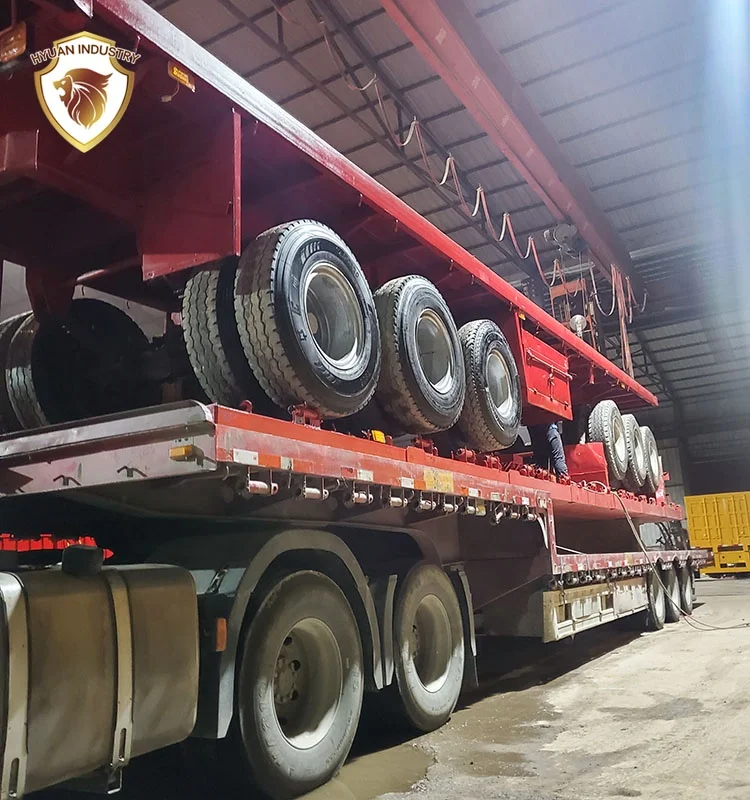

Packaging & Shipping
Carrying the full range of professional services for you, we have a high standard of mechanical equipment and automation equipment, strong r&d and service team, the company professional for customer demand to provide feasible Suggestions and solutions, dedicated to provide each customer with the best quality product transportation.
Related Products
FAQ
Q: Are you a manufacturer?
A:Yes, we have been in special vehicle vehicle manufacturing for over 30 years. We are not just a factory, as we have sales team and our own offices that all your requirements and inquires will be replied in time.
Q: What’s your MOQ?
A: One unit trailer or truck. We suggest two trailers one time to save the freight.
Q: Can you satisfy my special requirement?
A: Definitely! We are direct manufacturer and we can discuss the parcticable plan and produce it as your request.
Q: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade assurance, and the deposit will given to Alibaba.
