Product Overview

Description

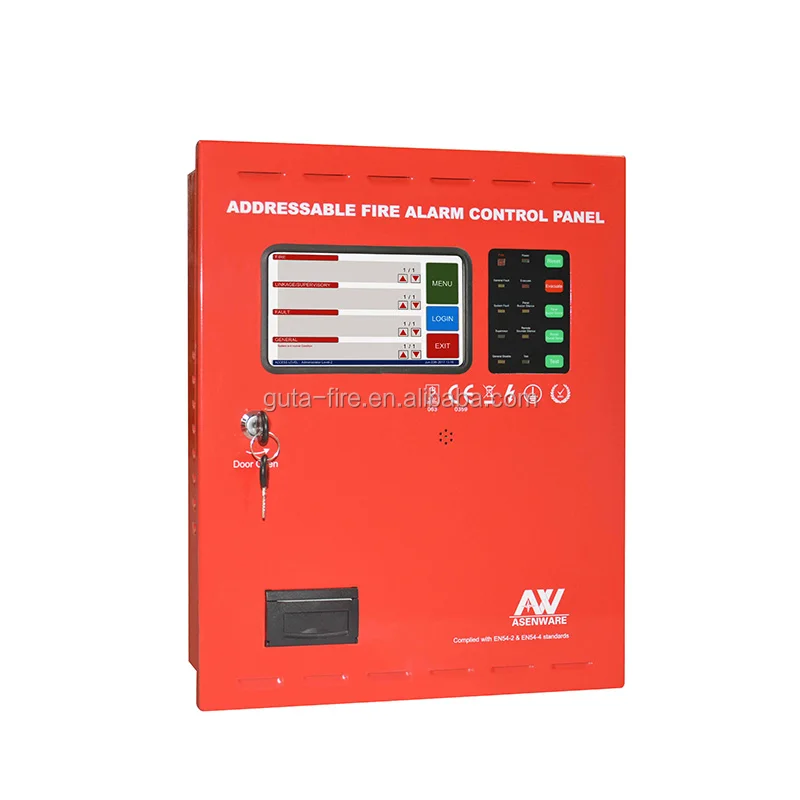

Asenware high quality Addressable Fire Alarm panel AW-FP100


Product Description




Model No.
AW-FP100
D/C
1712
Detectors
500MAX
Work Voltage
220V AC
Battery
12V/5Ah*2
24V DC Output Current
Max 3A*2
Frequency
50/60Hz
Worek temperature
-10~55℃
Work Humidity
95%
Certificate
ISO9001/ROHS




Features
*7'' touchscreen LCD colored dispaly
*250 intelligent detectors or modules for one loop cirecuit
*up to 8 loop cards can be installed and configured
*user firendly,
*easy to install: 2 wires cable for install all devices+wireless addressable system
*Mini prienter
*Network available ( GSM/IP/Cloud/Modbus)
*Graphic remote monitor access system
*Can bus for panels network (max link 8 panels)
........




Related products


AW-D101
Addressable smoke detector
Operating voltage: 18-28V DC
Standby current: ≤ 2.5mA
Alarm current: ≤ 3mA
Smoke sensitivity: 0.18-0.3dB/m
AW-D102
Addressable heat detector
Operating voltage: 18-28V DC
Standby current: ≤ 2.5mA
Fix temperature alarm: 57℃(135 ℉)
Rate-of-rise alarm: 7.1℃/5S A2R
AW-D103
Addressable smoke and heat detector
Operating voltage: 18V-28V DC
Standby current: ≤ 2.5mA
Smoke sensitivity: 0.18-0.3dB/m
Fix temperature alarm: 57℃(135 ℉)
Rate-of-rise alarm: 7.1℃/5S A2R


AW-STD606A
Wireless battery heat detector
Operating voltage: 3V DC
Wireless mode: 433Mhz
Fix temperature alarm:57℃(135 ℉)
Rate of rise alarm: 7.1℃/5S A2R
AW-SST606A
Wireless smoke and heat detector
Operating voltage: 3V DC
Wireless mode: 433Mhz
Smoke sensitivity: 0.18-0.3dB/m
Fix temperature alarm:57℃(135 ℉)
Rate of rise alarm: 7.1℃/5S A2R
AW-SSD606A
Wireless battery smoke detector
Operating voltage: 3V DC
Wireless mode: 433Mhz
Alarm current: ≤ 100mA
Alarm level: ≥85dB/3m


AW-D109
Addressable alarm bell
Operating voltage: 18-28V DC
Standby current: ≤ 3mA
Alarm current: ≤ 50mA
Alarm SPL: ≥95dB
Size: Dia.150mm

AW-D106
Addressable strobe sounder
Operating voltage: 18-28V DC
Standby current: ≤ 3mA
Alarm current: ≤ 60mA
Alarm SPL: ≥100dB
Flash period: 1.0 second
AW-135A
Addressable manual call point
Operating voltage: 18-28V DC
Working current: ≤ 4mA
Ip rating: IP30
Green LED indicator: Nomal condition
Red LED indicator: Alarm condition


AW-PR101
Programmer
AW-D120
Addressable detector strobe sounder base
