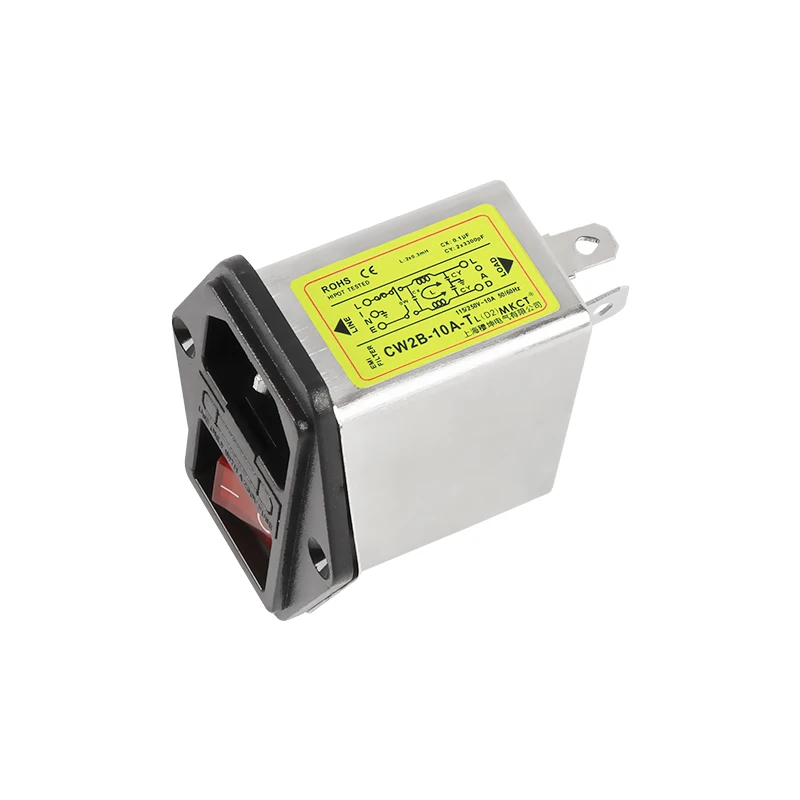

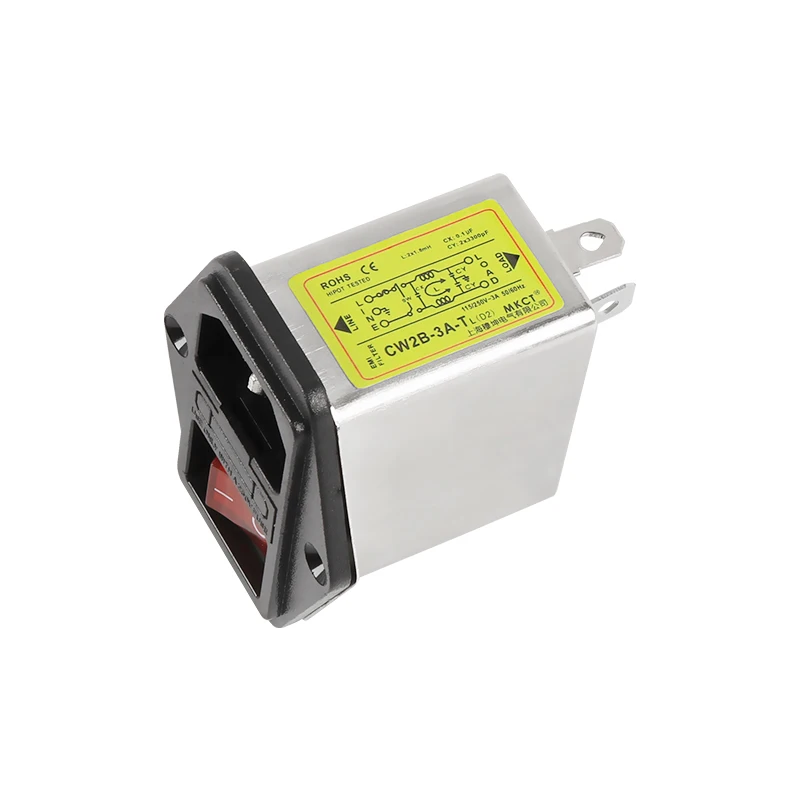

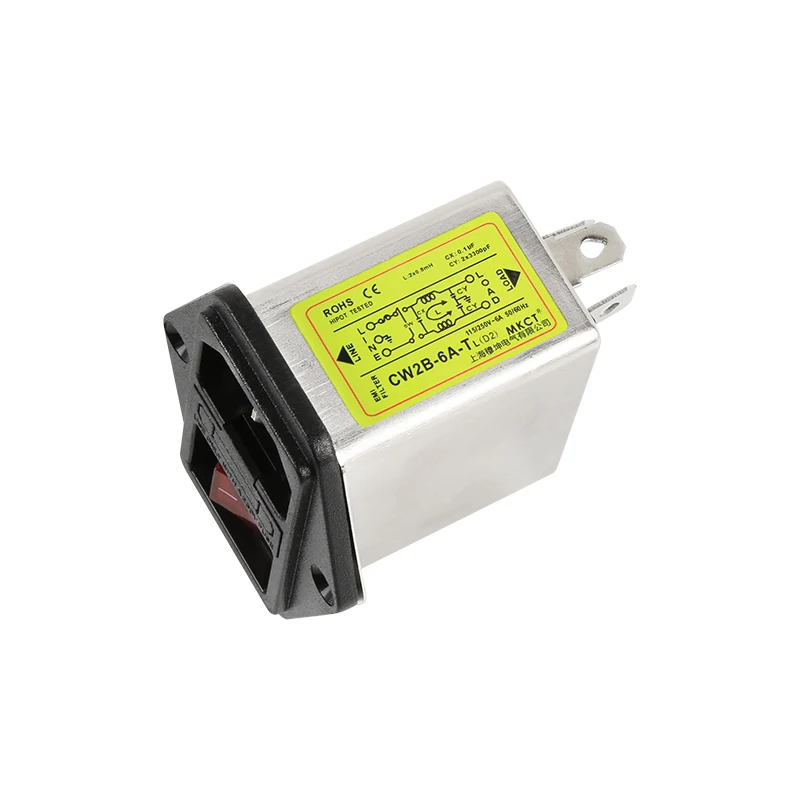

IEC Впускное отверстие с предохранителями освещенные фильтр переменного тока связи аудио 220VAC 50/60Hz 1A/3A/6A/10A сетевой фильтр с выключатель света

Product Overview

Description

Features and benefits

-IEC-inlet power entry filter, integrated design of module with switch and fuses.

-For measuring and mini-electronic instruments

-Good performance of interference suppression



Technical specifications

-Maximum continuous operating voltage:  250VAC

-Operating frequency:  50/60Hz

-Rated currents:1A – 10A @ 40℃ Max

-High potential test voltage(1 min):  Line to Line 1500VDC / Line to Ground 1500VAC

-Operation and storage temperature range:  -25℃~+85℃ (25/085/21)
