SC135 полномостовой датчик веса плоский микро датчик нагрузки 75 кг датчик нагрузки тонкий маленький плоский датчик нагрузки 300 кг
- Category: Sensors >>>
- Supplier: Shenzhen,Sensor,And,Control,Company,Limited
Share on:
Product Overview
Description

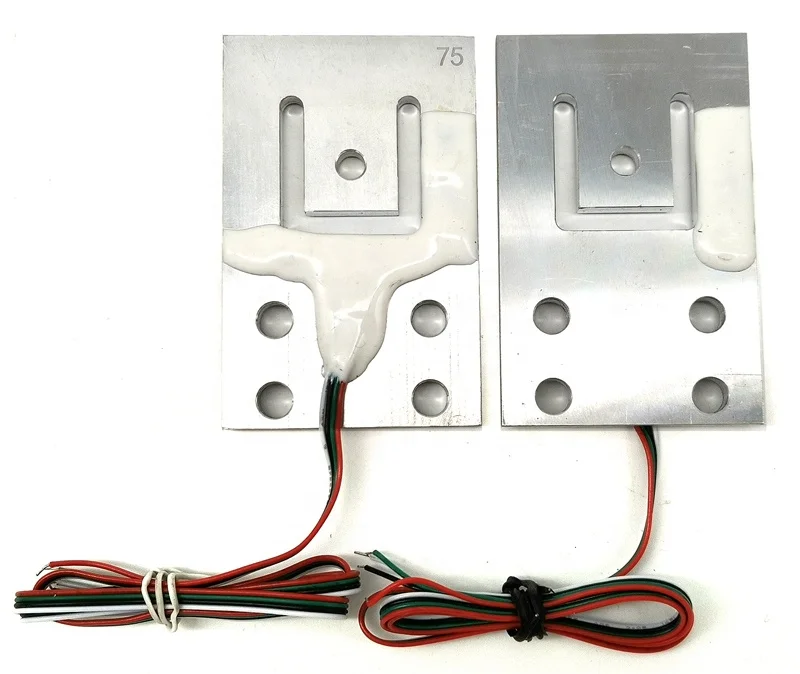

SC135 Full bridge weight sensor flat micro load cell 75kg load cell thin small flat weight sensor load cell 300kg
Product Description
Parameters
| Capacity Range | 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 300kg, 600kg |
| Rated Output | Refer to table above |
| Accuracy | 0.05%F.S. |
| Non-Linearity | ±0.05%F.S |
| Hysteresis | ±0.05%F.S. |
| Repeatability | ±0.05%F.S. |
| Creep | ±0.05.[(2min)%F.S ] |
| Zero Output | ± 0.1 mV/V |
| Temp.Effect on Zero | ±0.05 (%F.S./10℃) |
| Temp.Effect on Span | ±0.05 (%F.S./10℃) |
| Input Impedance | 1130 ± 20Ω |
| Output Impedance | 1000 ± 10Ω |
| Insulation Resistance | ≥2000MΩ (50VDC) |
| Temp. Compensation Range | 0-+40℃ |
| Operating Temp.Range | -10℃~+40℃ |
| Recommended Excitation Voltage | 5-10VDC |
| Safe Overload | 120% |
| Ultimate Overload | 150% |
| Cable Length | ø0.8mm, 30kg/75kg:40cm long, 150kg/300kg:15cm long |
| Protection Class | IP65 |
| Connection | Excitation: Red+, Black-. Signal: Green +, White- |
Load cell Accessorie

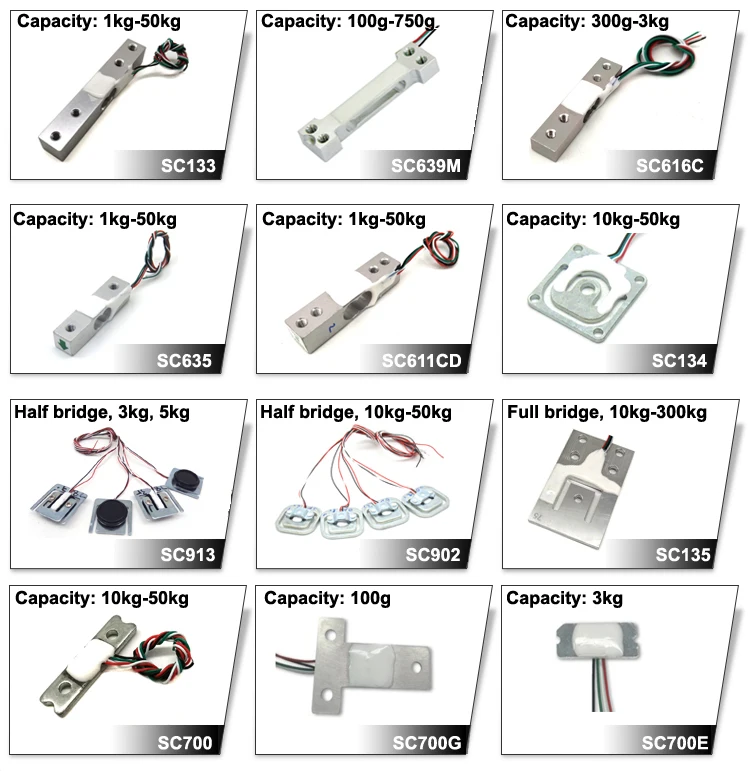

Related Products
