Аналоговый сигнальный изолятор, 1 вход, 1 выход, 0 10 В, пассивное автоматическое управление, аналоговый входной преобразователь сигнала

Product Overview

Description

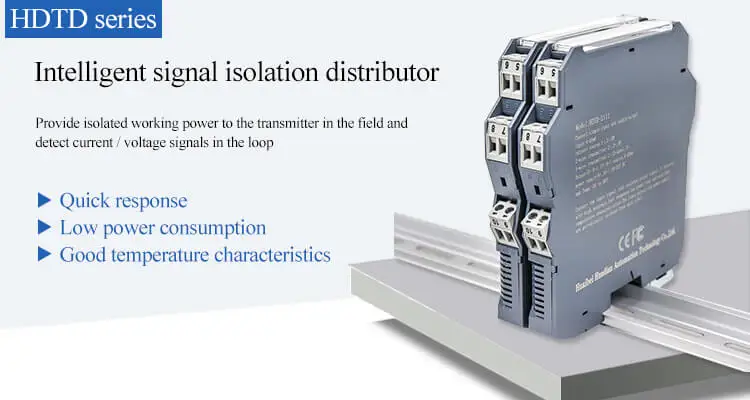

     The HDTD full intelligent distribution signal transformer provides isolated power supply to the field two-wire, three-wire transmitter, and detects the current signal in a circuit meanwhile. It transmits the input current or voltage signal to isolated current or voltage signal in a circuit or two isolated circuits, and the input, output, and power supply are galvanic-ally isolated from each other.

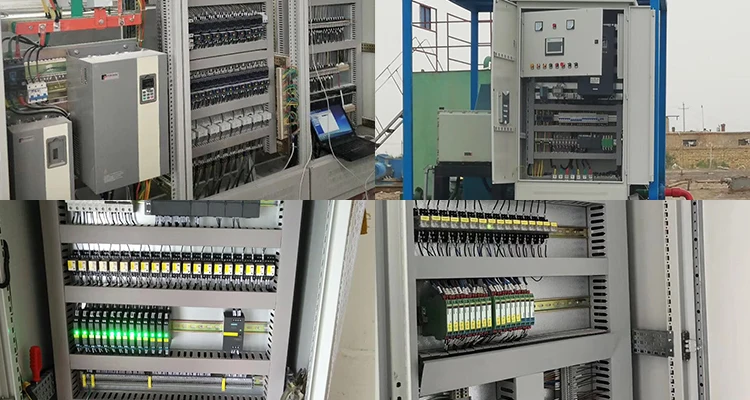

     It can be used together with modular instrumentation and DCS, PLC and other systems,to offer signal isolation, signal conversion, signal distribution, signal processing and other functions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability.

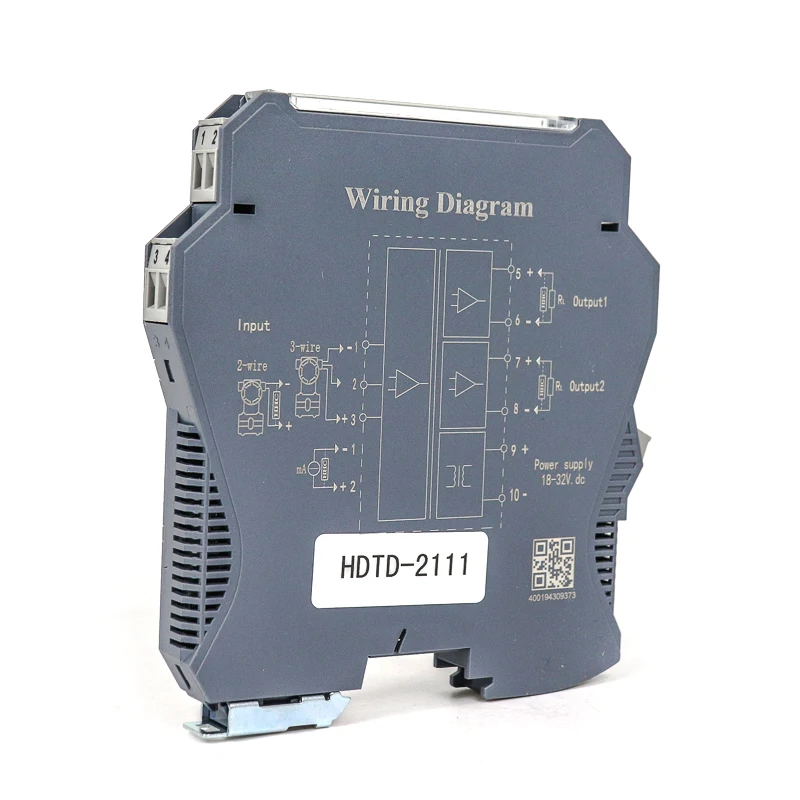

     This product has many varieties, such as 1 in/1 out, 1 in/2 out, 1 in/4 out,2 in/2 out, with input/output magnetic isolation.



Input Signal	4-20mA, 1-5V,0-10V etc	Accuracy	0.1%FS
Output Signal	4-20mA, 1-5V,0-10V etc	Insulation intensity	3kv/50HZ, one min

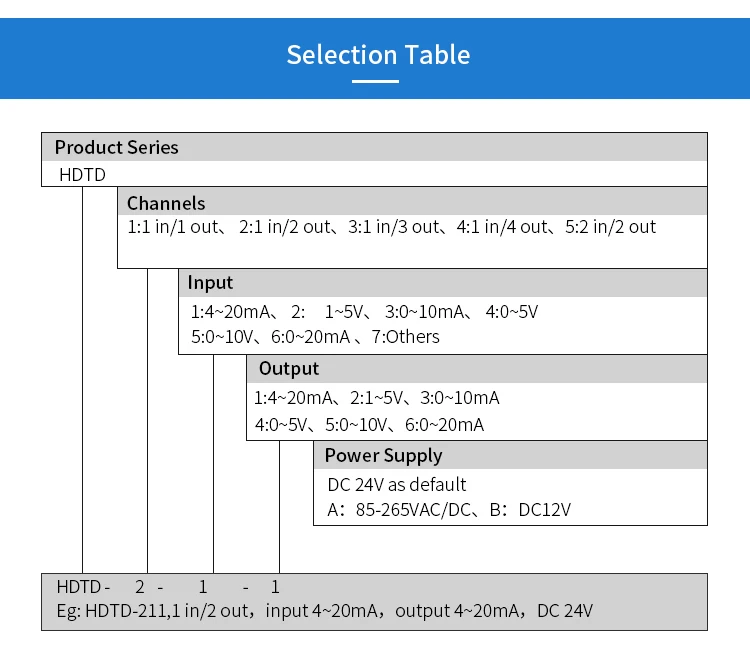

Channels	One in one out One in two out One In four out Two in two out	Temperature drift	40ppm/℃

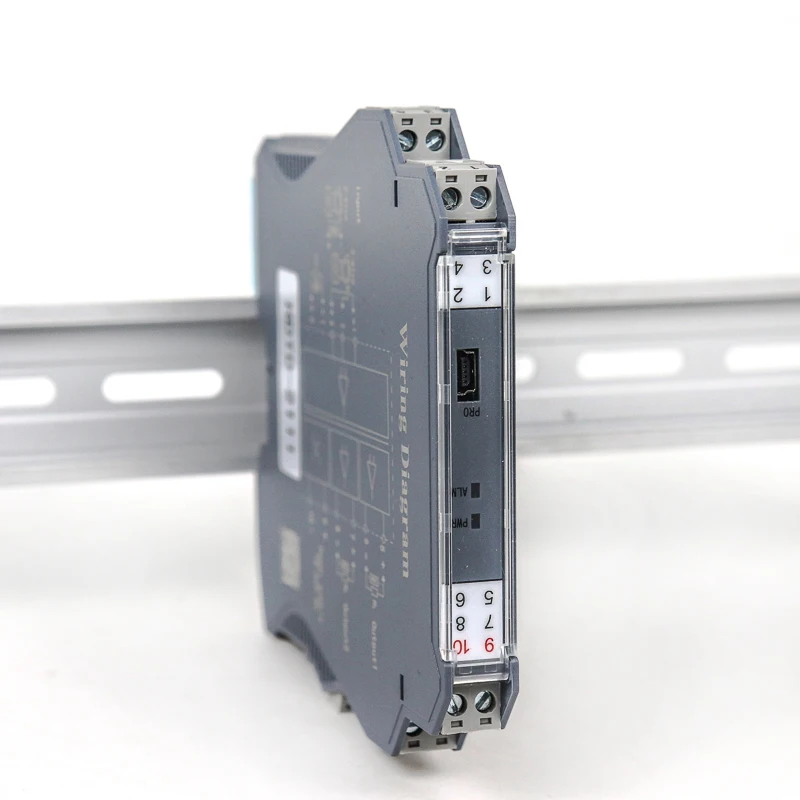

Installation	35mm DIN rail	Response time	100ms
Dimension	12.7*110*118.9mm; 17.7*110*118.9mm	Characteristics	Active or passive output switchable
Power supply :	DC18-32V	Linearity	0.1%

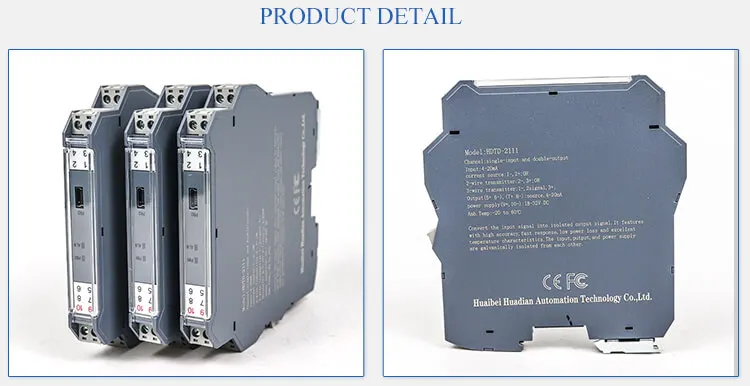

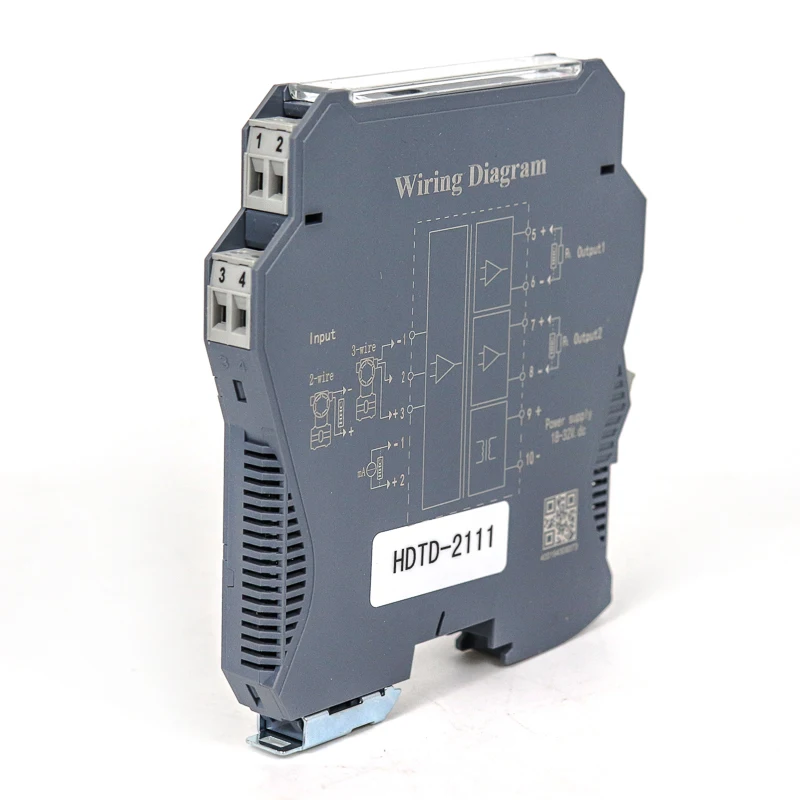

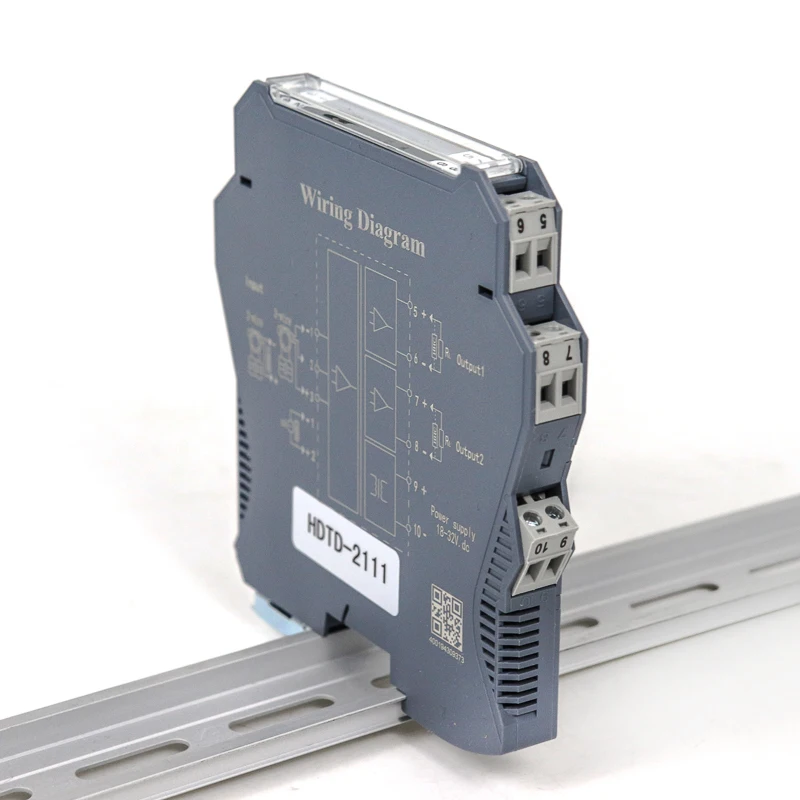

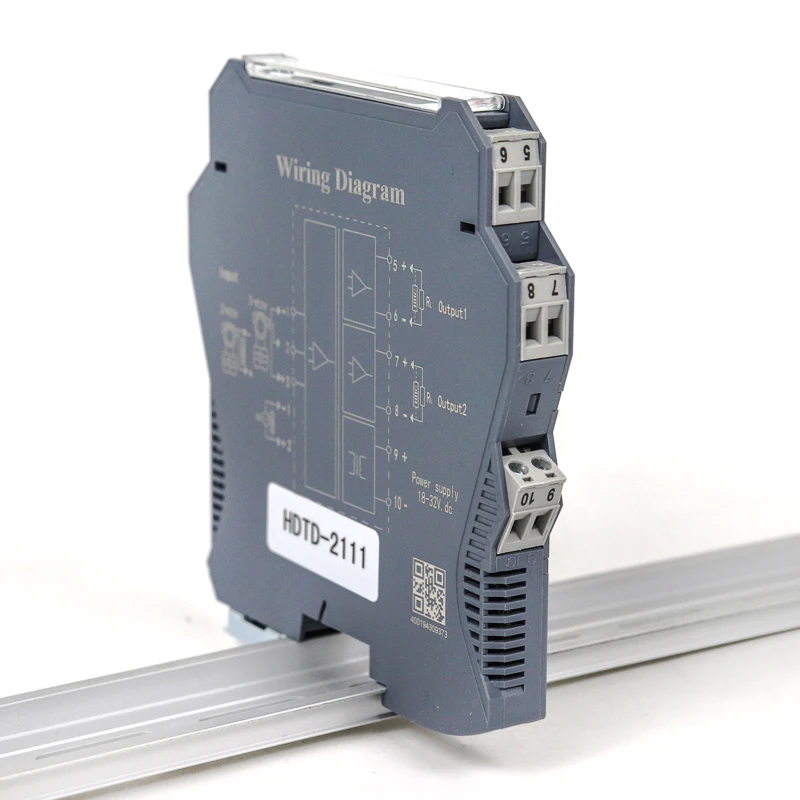

Details images
