JinRi Crystallizer Quick Melting Tank for Butter Oil Sugar Chocolate
JinRi Crystallizer Quick Melting Tank for Butter Oil Sugar Chocolate
JinRi Crystallizer Quick Melting Tank for Butter Oil Sugar Chocolate

JinRi Crystallizer Quick Melting Tank for Butter Oil Sugar Chocolate

Share on (62514163963):


Price:

Quantity:


Product Overview

Description


Products Description
specification
Inner tank diameter（Фmm）
Jacket diameter（mm）
Heat preservation layer（Фmm）
Motor power（kw）
Blending rotation
speed
30
300
350
450
0.6-1.1
60-120
50
400
450
550
0.6-1.1
60-120
100
500
550
650
1.1-1.5
60-120
150
550
600
700
2.2
60-120
200
600
650
750
2.2
60-120
300
700
750
850
2.2
60-120
500
800
900
1000
2.2
60-120
800
1000
1100
1200
4
60-120
1000
1000
1100
1200
4
60-120
1500
1100
1200
1300
4
60-120
2000
1250
1350
1450
4
60-120
2500
1400
1500
1600
7.5
90-120
3000
1500
1600
1700
7.5
90-120
3500
1400
1500
1600
7.5
90-120
4000
1600
1700
1800
7.5
60-120
5000
1900
2000
2100
7.5
60-120
6000
1900
2000
2100
15
100-120
8000
2000
2100
2200
15
100-120
summary
- The crystallizing tank is made of imported 316L or 304 stainless steel. The internal wall adopts electrolytic mirror polishing or mechanical polishing . The external wall adopts 304 completely welding structure for heat preservation. The exterior surface adopts mirror polishing or matte polishing
- A 0.2um ventilation hydrophobic filter is installed on the crystallizing tank
- The crystallizing tank can endure 121℃ high temperature sterilization, equipped with sanitary pressure meter
-The outside connection of the tank body adopts sanitary rapid open connector
-The crystallizing tank is equipped with temperature monitoring device ,2 sight glasses ,cleaning ball and nitrogen inlet
-The shaft seal adopts special sanitary mechanical seal (John Crane and Burgman) to guaantee the material is out of pollution
Aseptic sampling valve and aseptic tank bottom valve
-The crystallizing tank can adopt frequency conversion speed control device and the rotation speed of blending shaft has wide regulation range

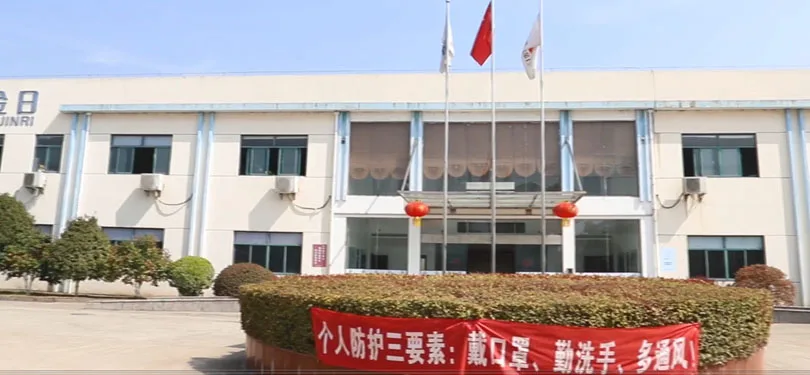

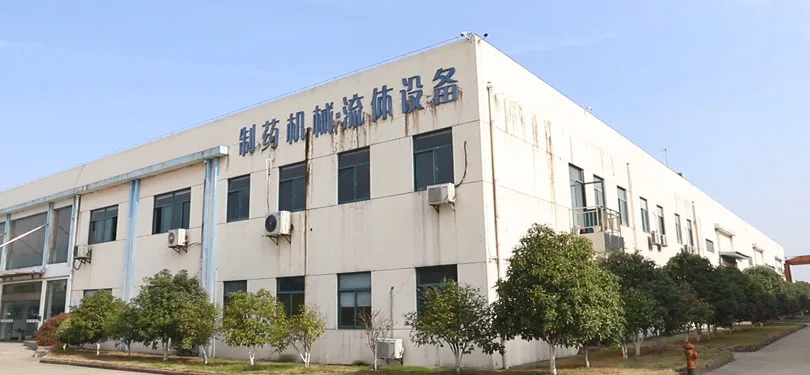

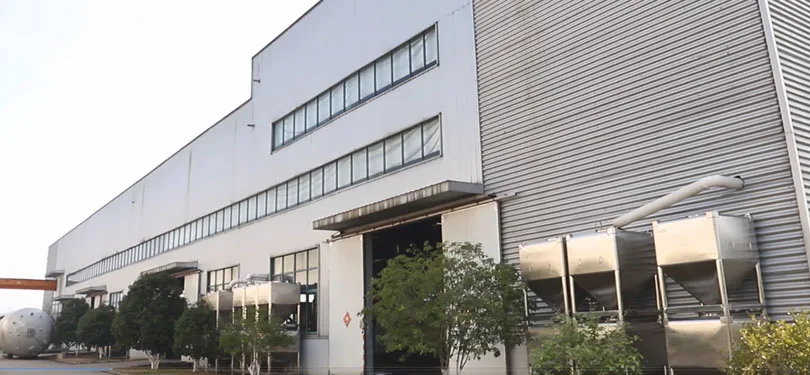

Company Profile

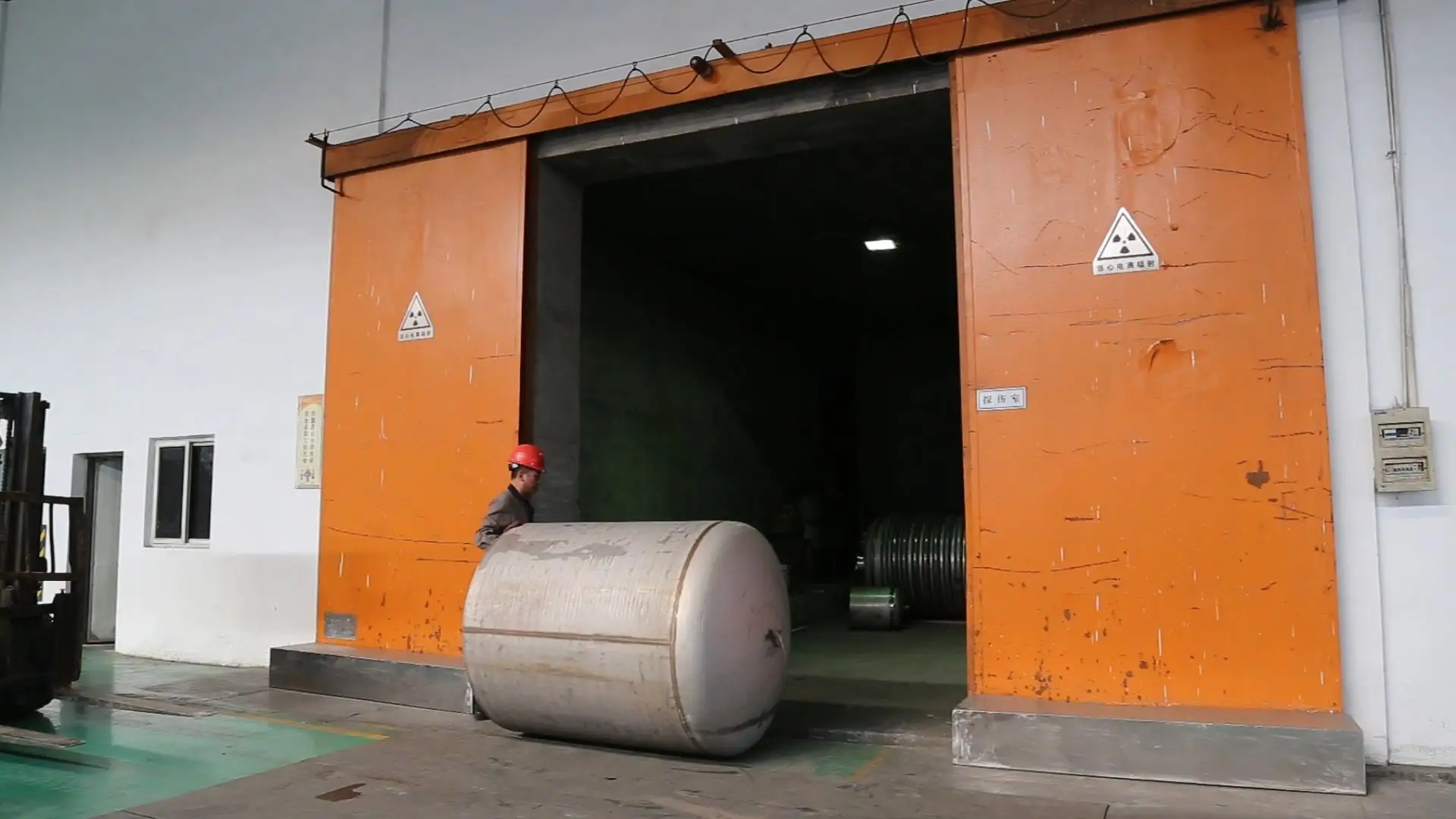

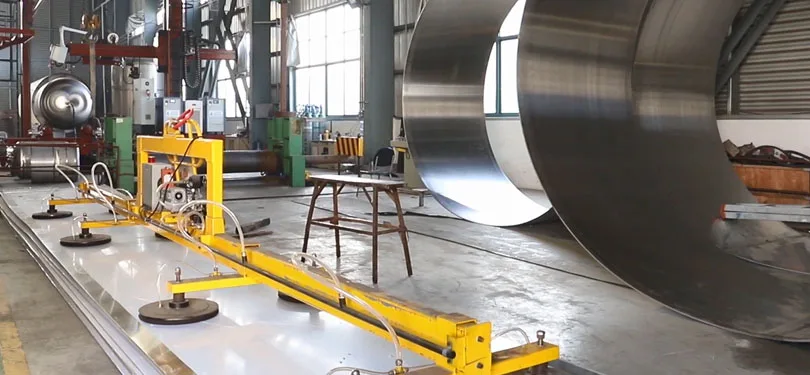

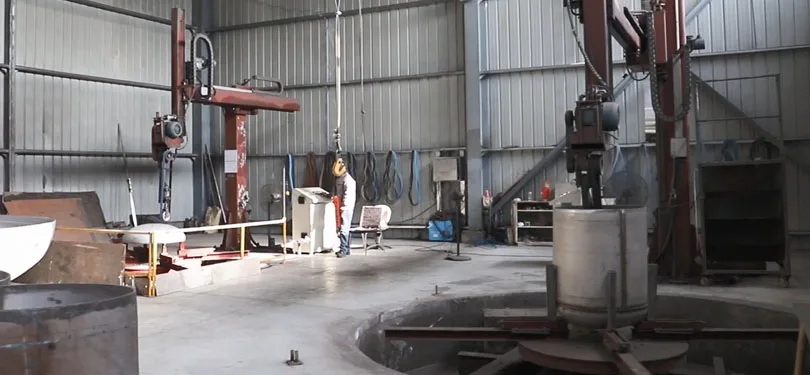

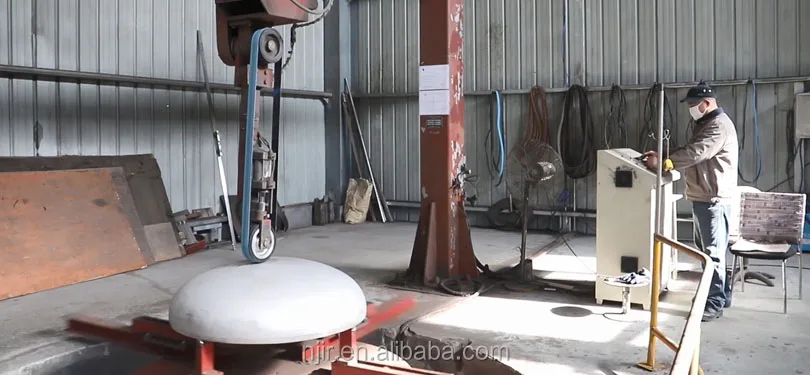

Manufacturing Technique

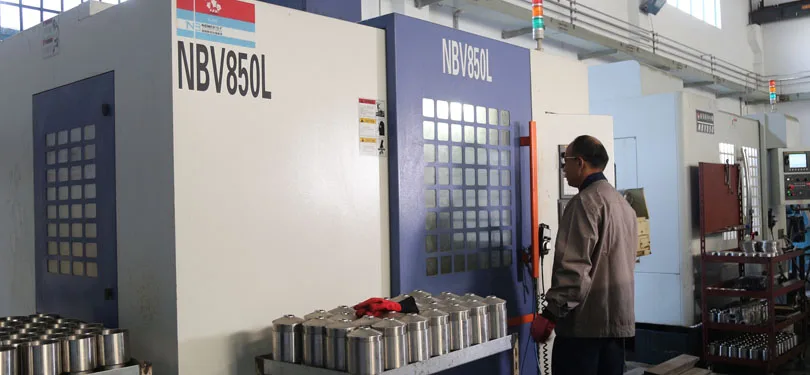

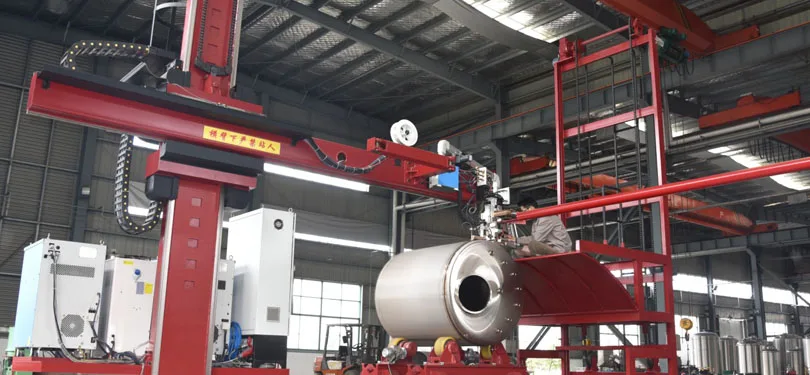

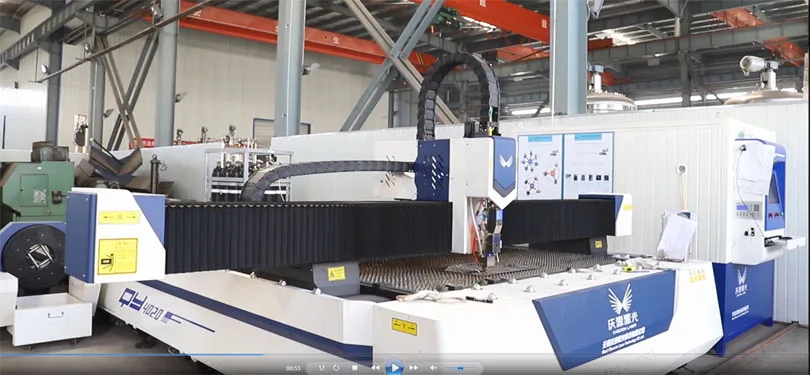

With the high precision CNC machine tools and advanced machining technique, our company can guarantee the stability and reliability of products, which is an essential element of long-term business development and Jinri reputation. Product quality originates from advanced manufacturing methods and fine products conception comes from continuous innovation, which could be ensured by our experienced professionals and R&D team.

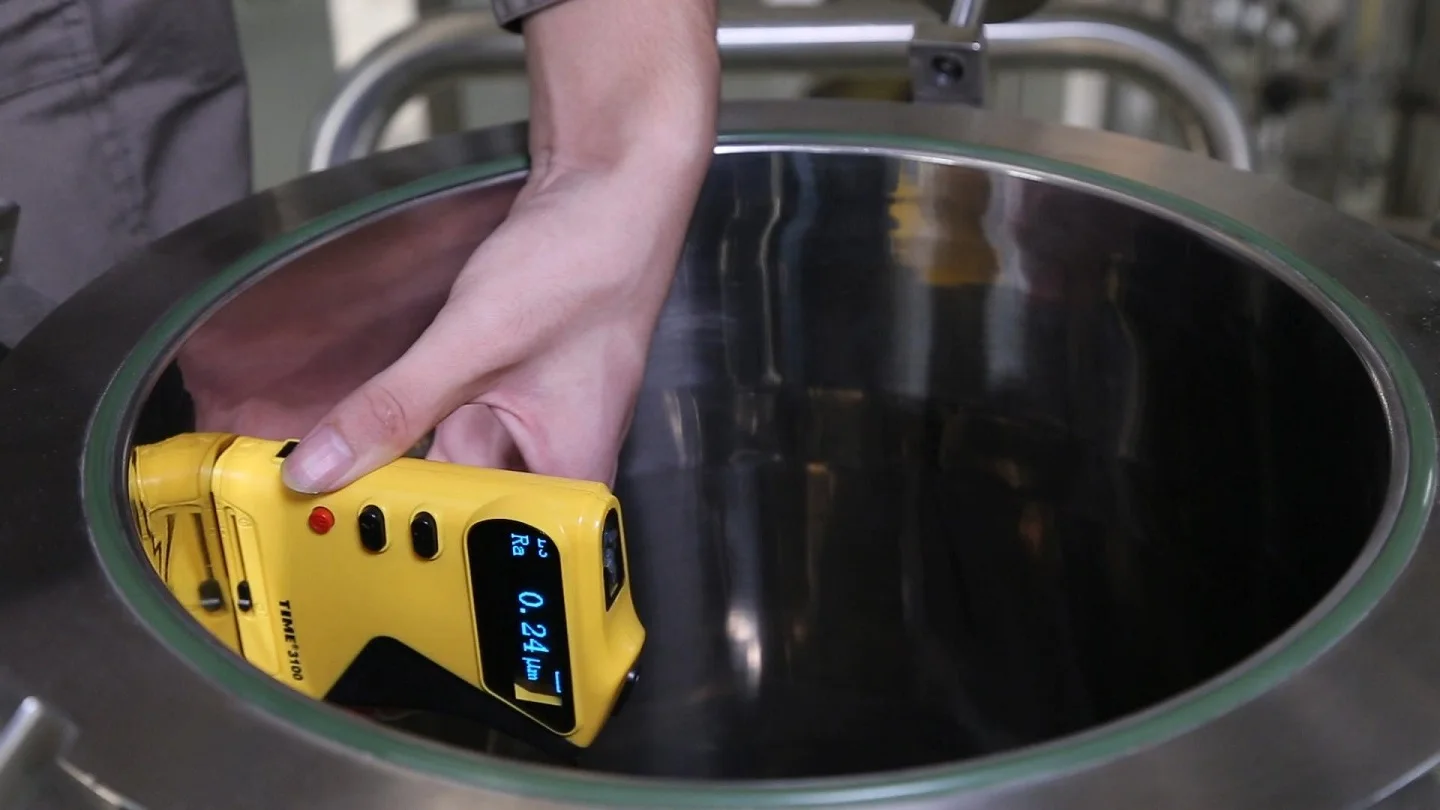

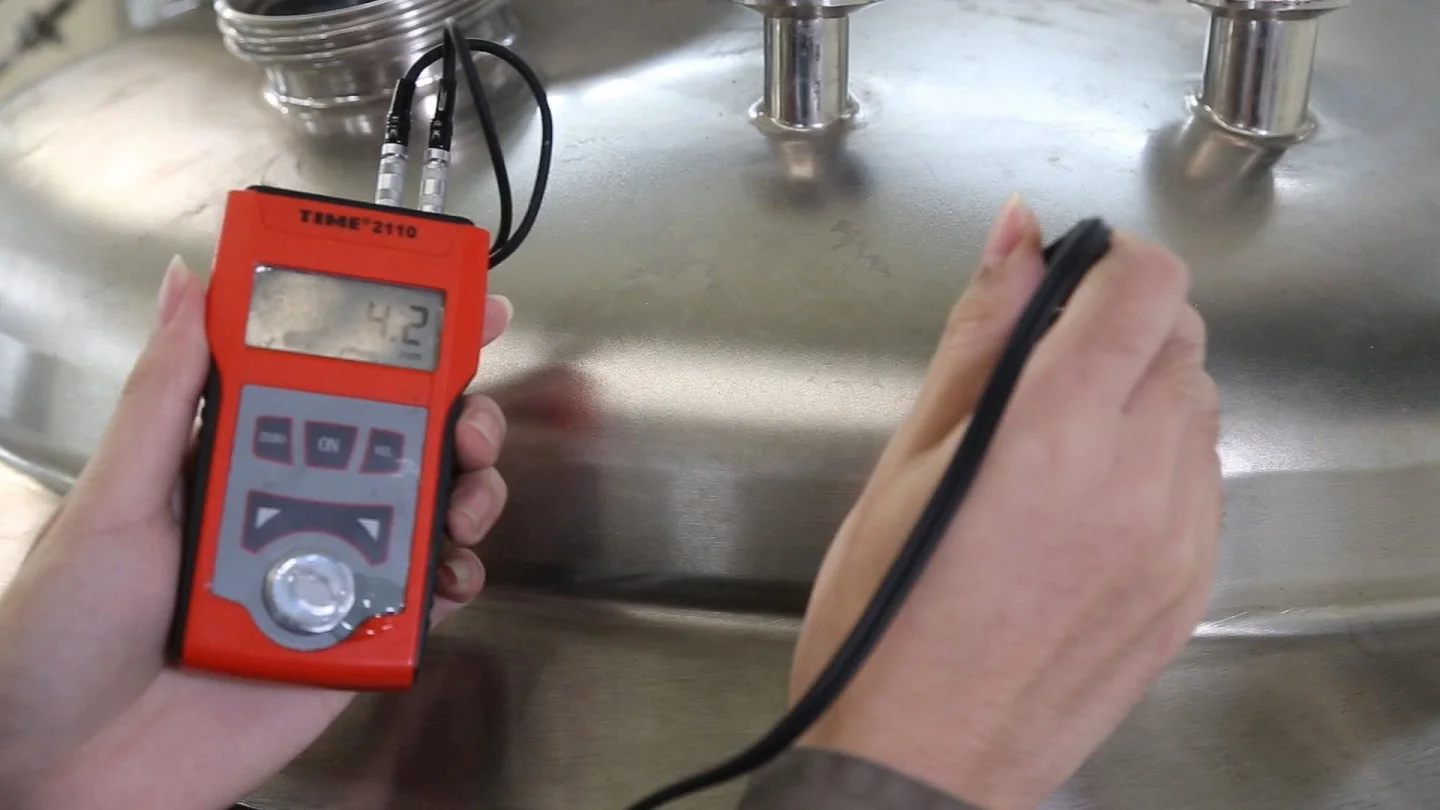

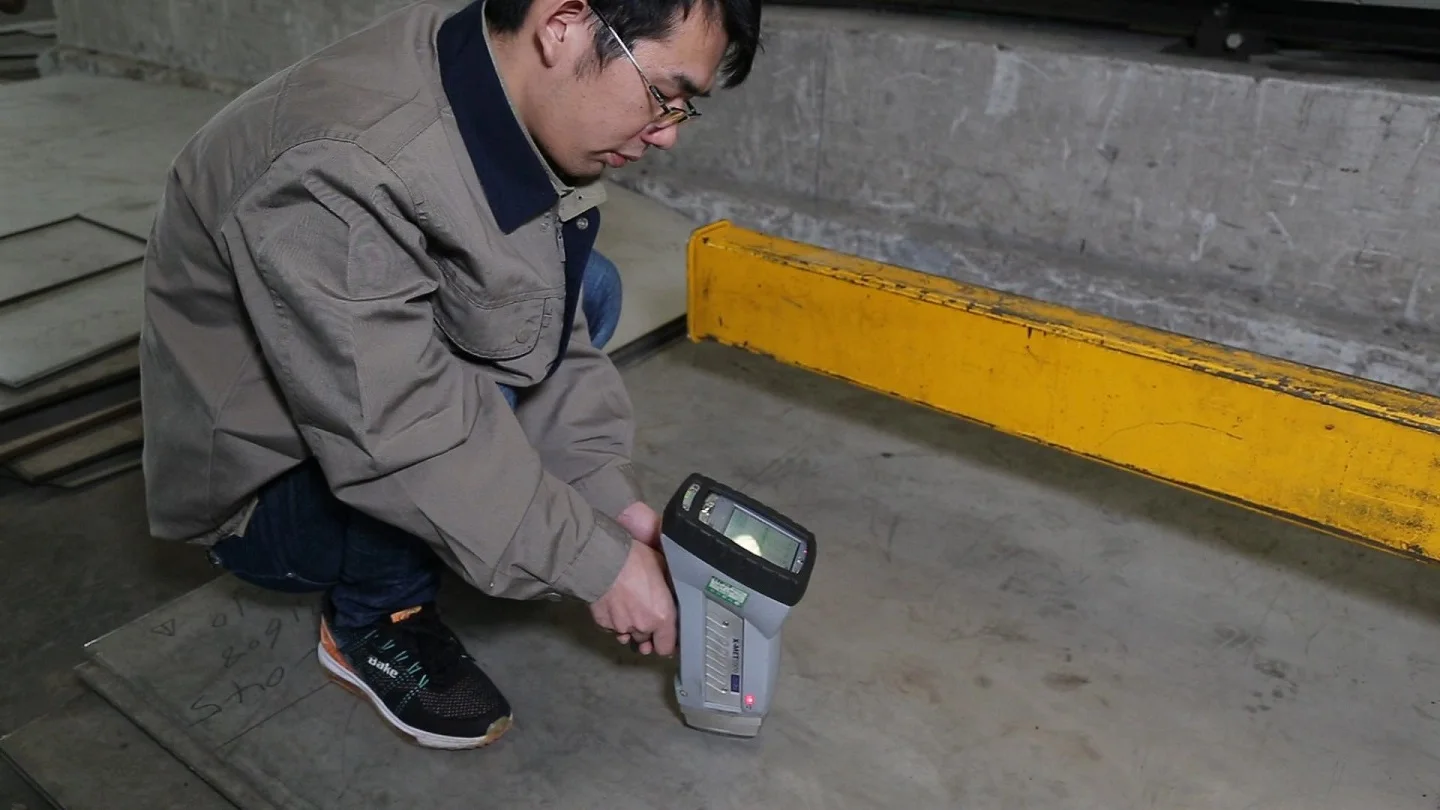

Jinri adopts the advanced inspection and testing facilities to carry out quality control from casting blanks to final products.All castings are subject to precise appearance and size inspections according to relevant standards. The strict procedure inspection is implemented before the final shipment throughout the whole production process, that each product undergoes strict inspection according to customer special requirements and international.

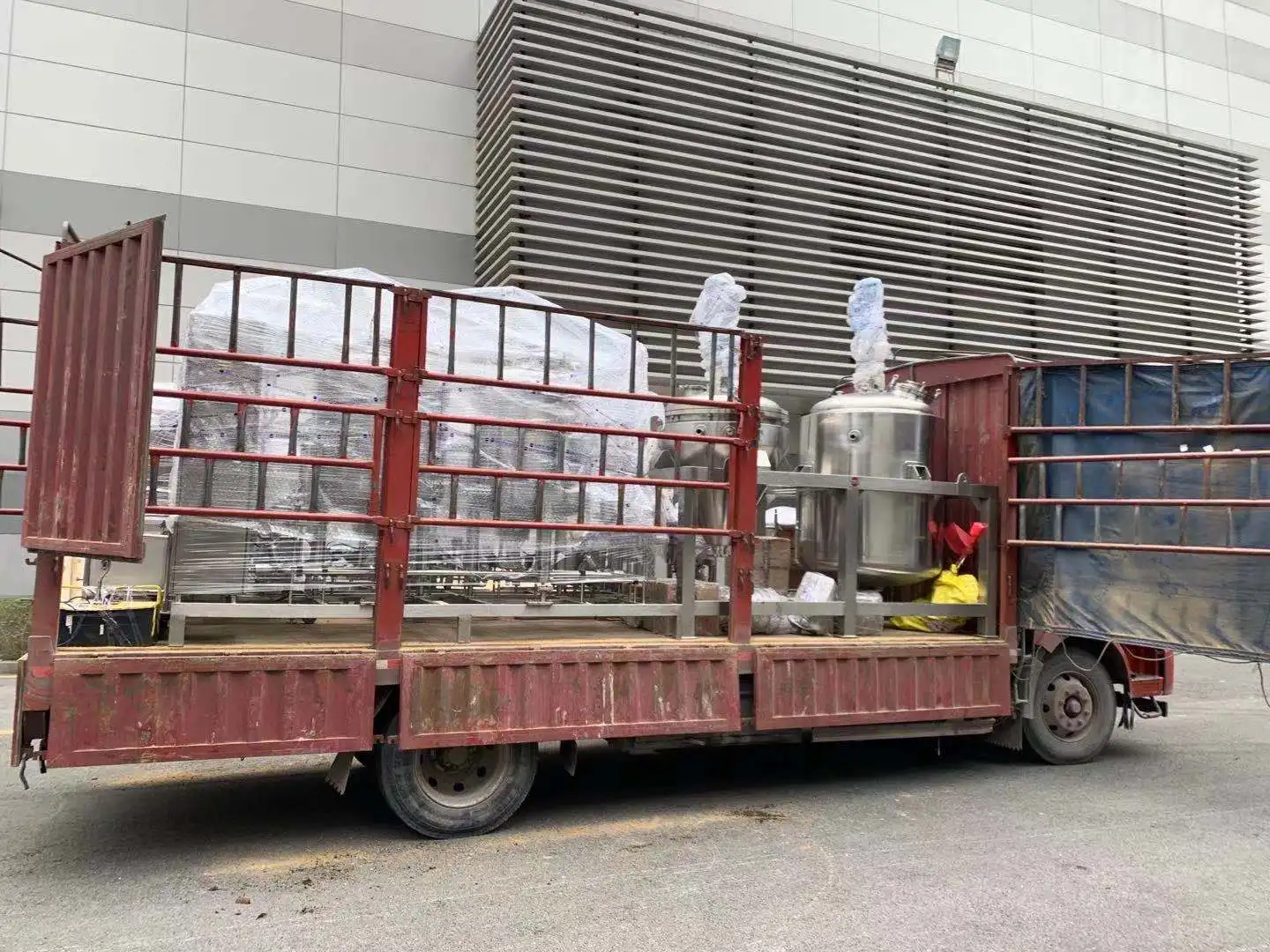

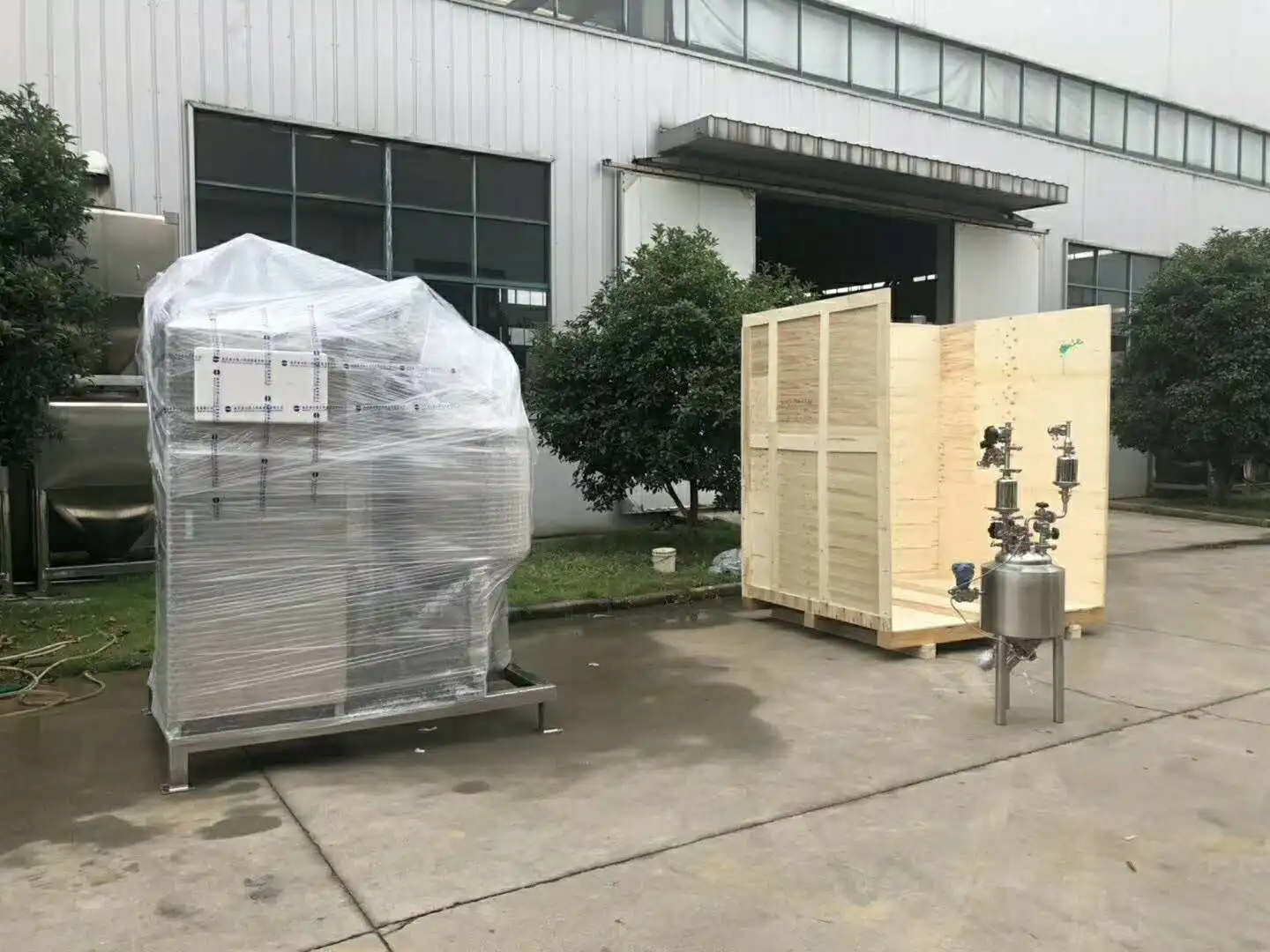

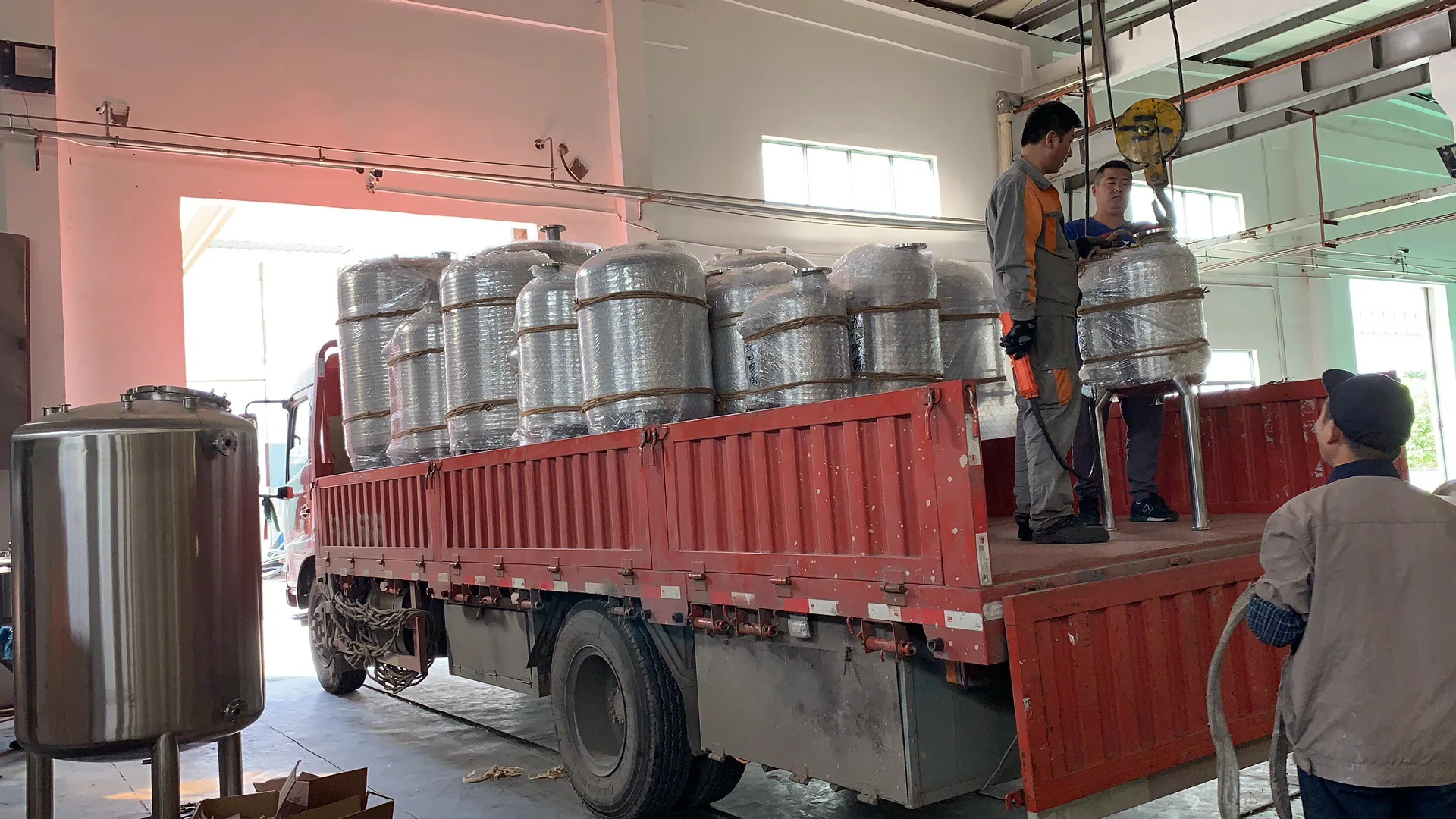

Product packaging
Certifications
Exhibition
FAQ
FAQ
Q1:When can I get the quotation?
A1: Please share your URS to us ,and than we custimized a solution for you

Q2:NJR Engineers design vessels and equipment in accordance with several codes and standards, which include:
ASME Section VIII, Division I
ASME BPE
CE/PED for Europe
MOM – Singapore
CRN – Canada
API 620 and API 650
ASME B31.3 Process Piping
National Board “R” Repair Stamp
IBC, International Building Code
ASCE 7
