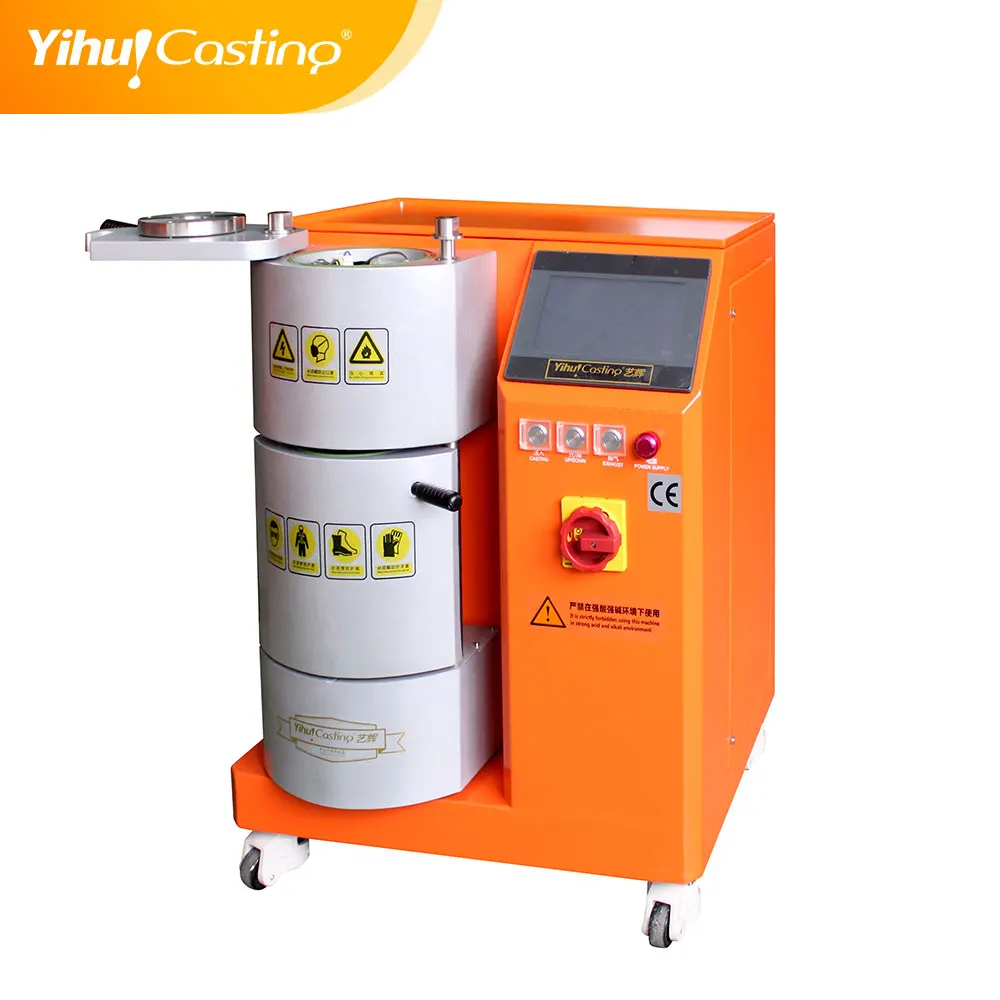

Small jewelry casting machine,digital mini vacuum casting machine

Product Overview

Description

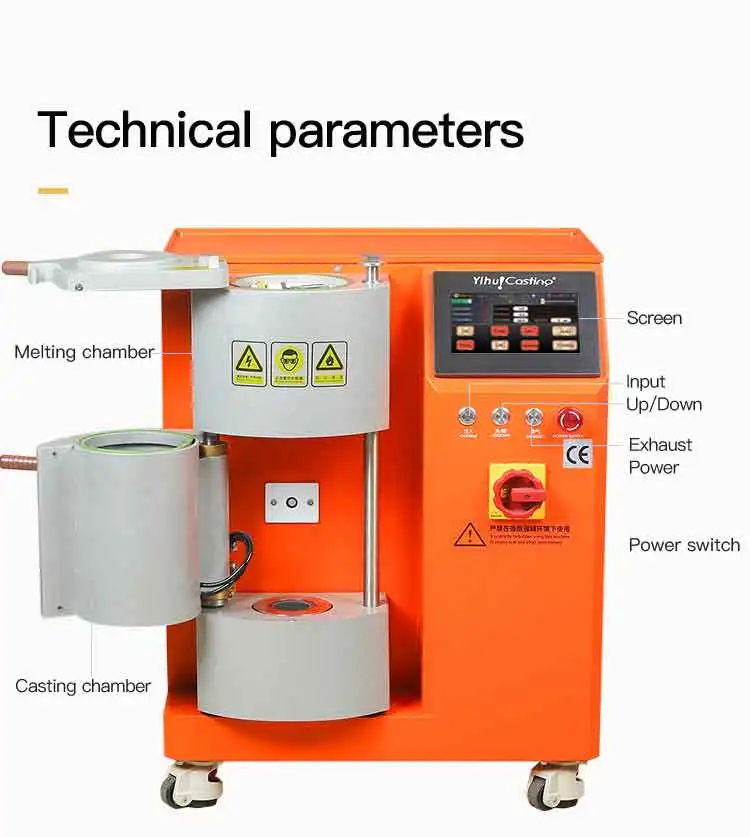

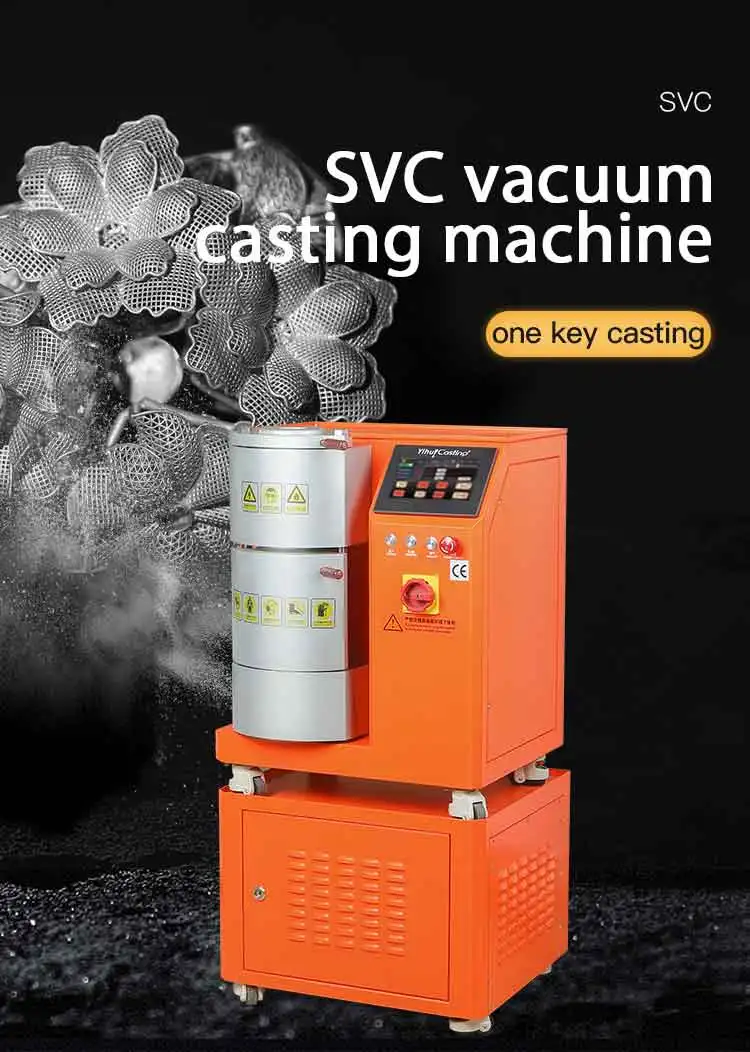

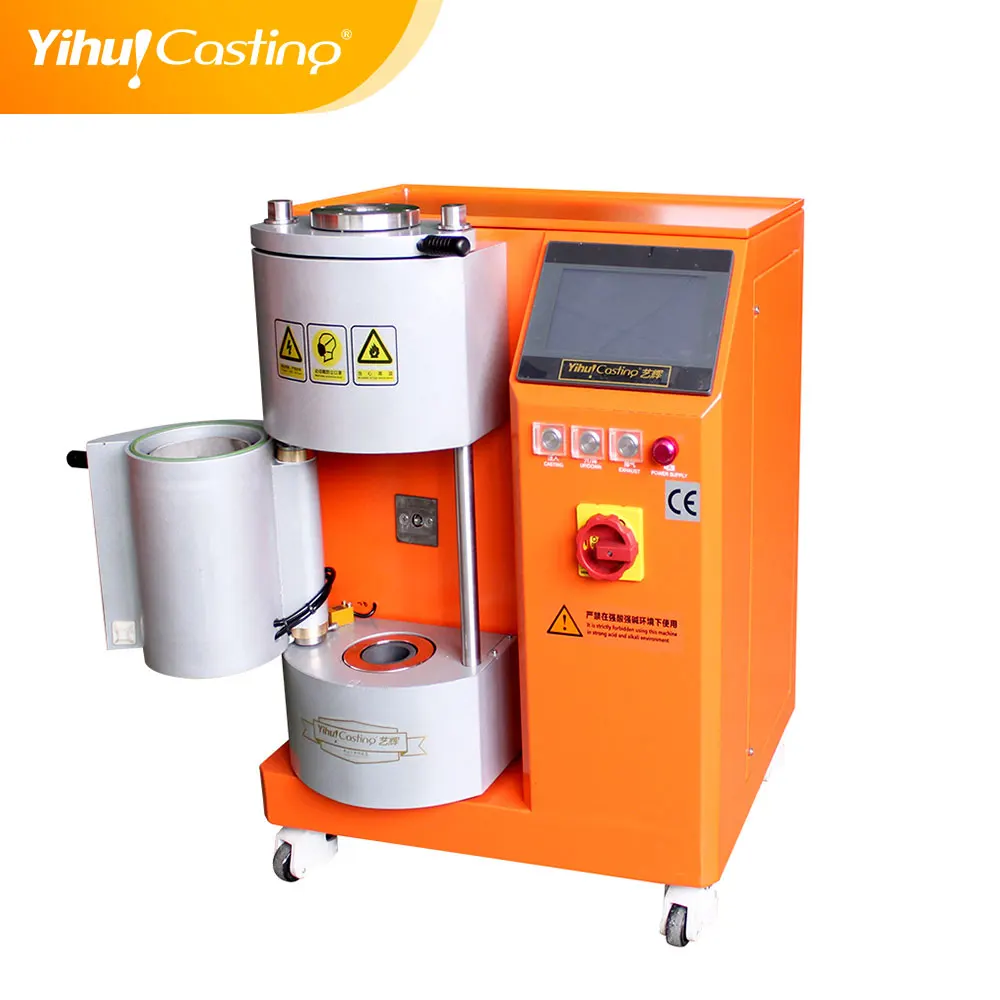

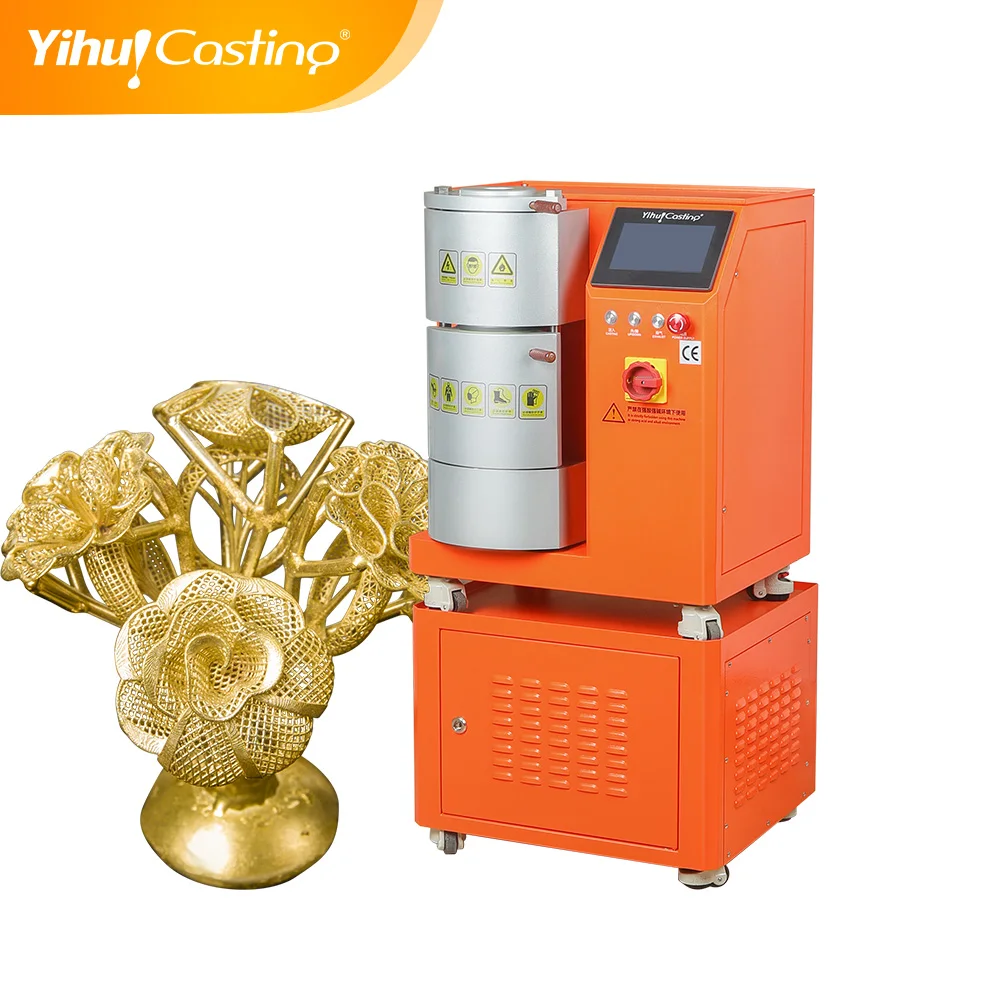

           Small jewelry casting machine,digital mini vacuum casting machine

.........................

Model:  Z.M.CM.SVC

Power supply: 50Hz/60Hz

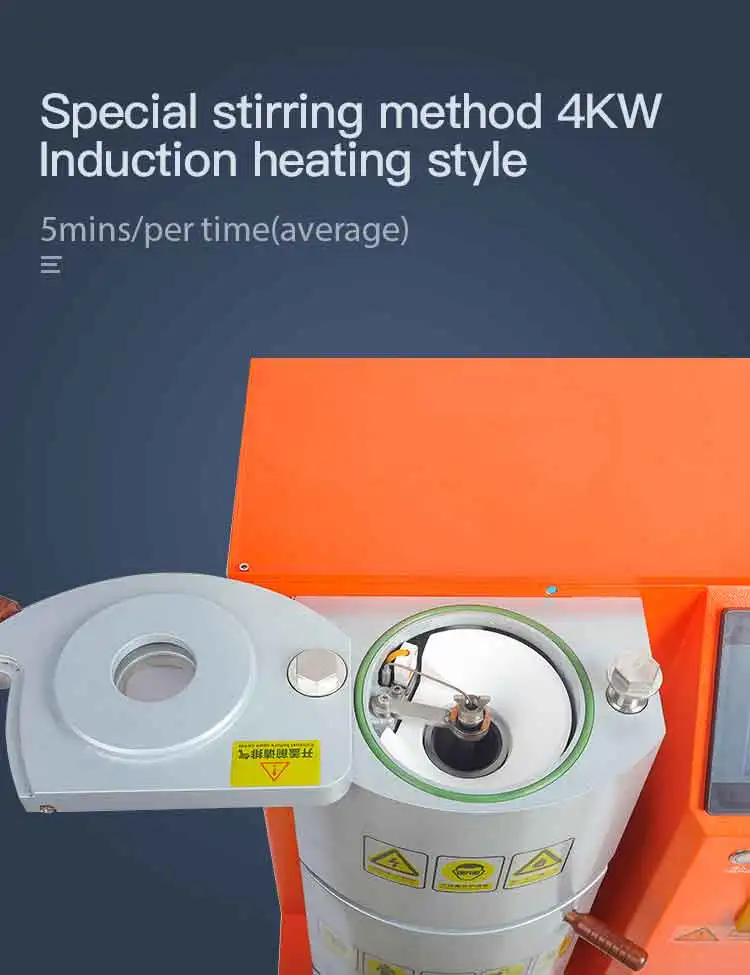

Output power:  4KW

Suitable metal: Gold, silver, copper

Melting capacity: 1kg

Temp range: Standard K type 1150℃, R type 1300℃

Max air pressure: 0.2Mpa

Protective air: Argon gas or Nitrogen gas

Cooling system: Water cooling

Casting method: Vacuum pressure casting

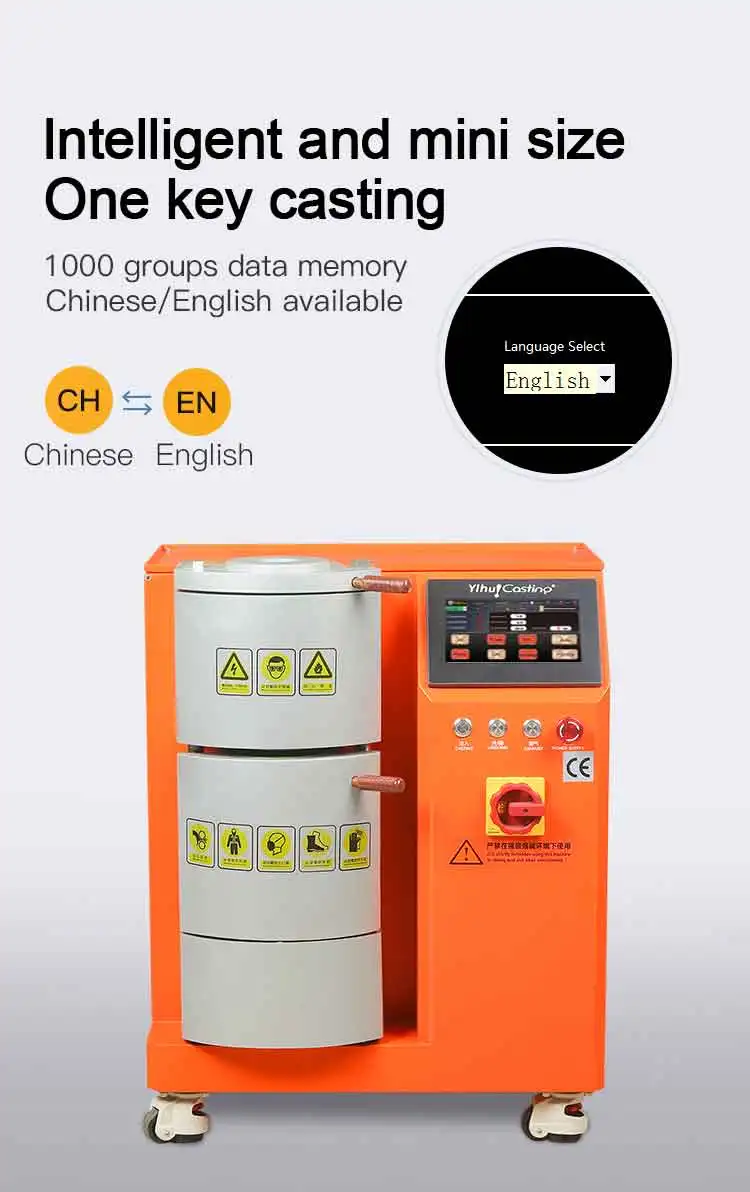

Abnormal warning: Self-diagnostic LED display

Working temp: 5℃-40℃

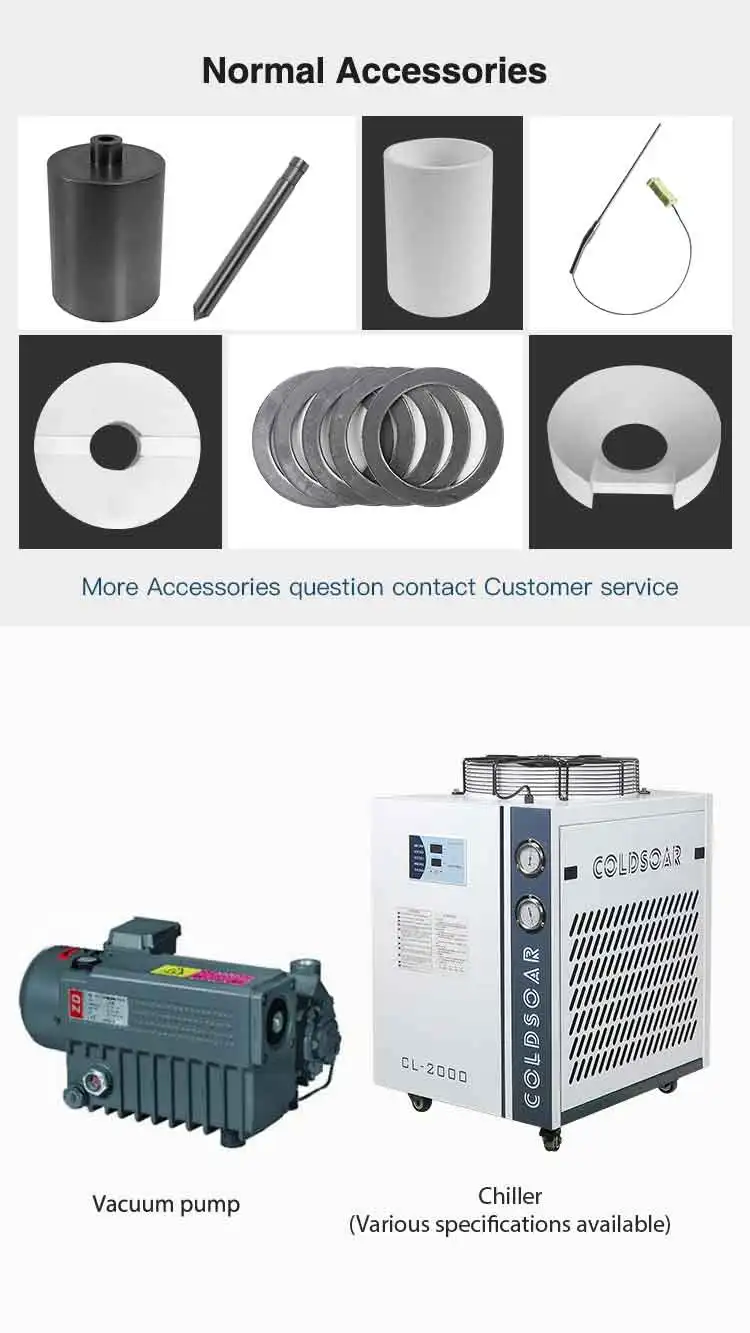

Vacuum setting: Match the vacuum pump more than 8L

Water supply: 10℃-30℃, and better use the water cooling more than 1P

Machine size:  680x540x480mm

Net weight: 95KG
