Высококачественная машина для распыления стекловолокна/машина для распыления гипса

Product Overview

Description

High Quality Fiberglass Resin Spray Machine/Plaster Spraying Machine

Introduction of fiberglass spray machine

The CNMC-CZ fiberglass spray equipment machine is used to apply the resin and fiber on work piece
surface simultaneously. It is the modern technology to save resin consumption and
labor cost compare to hand lay-up technology, which is widely used for FRP or GRP
product in mass production.

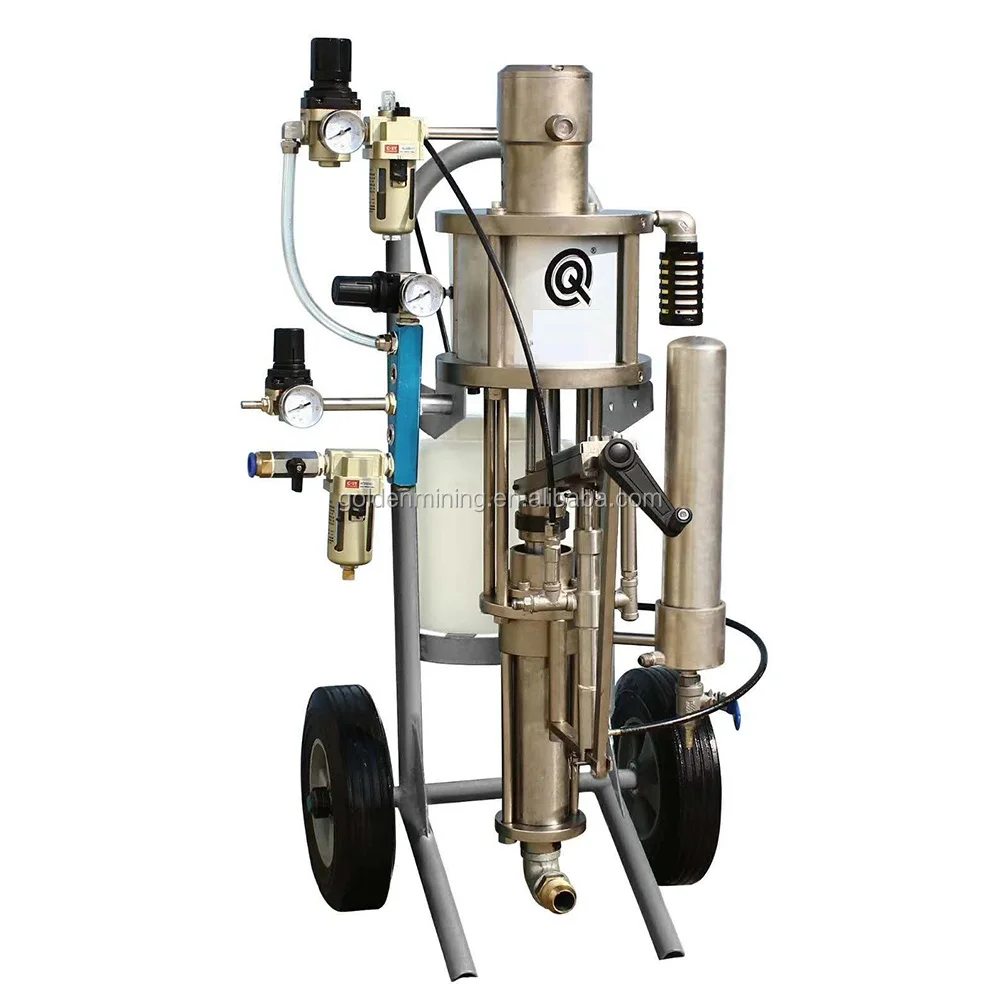

CNMC-CZ Fiberglass Spray Machine

Fiberglass spray machine cnmc-zj

Standard Nozzle: 1.4 mm

 2.5L-6L/min spray resin .

Operating Pressure: 45 to 60 PSI (3.0 to 4.0 bar)

Pattern Width:  (200 to 500 mm)

Air Consumption: Above 23cfm .

Heavy Duty Pressure Feed Paint Tank Specifications:

Clamp on Lid with Gasket

Fluid pressure regulator with gauge

 Paint Tank Operating Pressure: Optimal 25-30 PSI

 Hose Assembly: 15 meters Hoses

 Air inlet: 16mm Fluid inlet: 3/8"

 Air Pressure Relief Valve for Safety

Standard Nozzle	1.4 mm 2.5L-6L/min spray resin
Operating Pressure	45 to 60 PSI (3.0 to 4.0 bar)
Pattern Width	200 to 500 mm
Air Consumption	Above 23cfm
Paint Tank Operating Pressure	Optimal 25-30 PSI
Hose Assembly	15 meters Hoses
Air inlet	16mm Fluid inlet: 3/8"



Gravity Fed Catalyst System

Keeps the catalyst pump primed

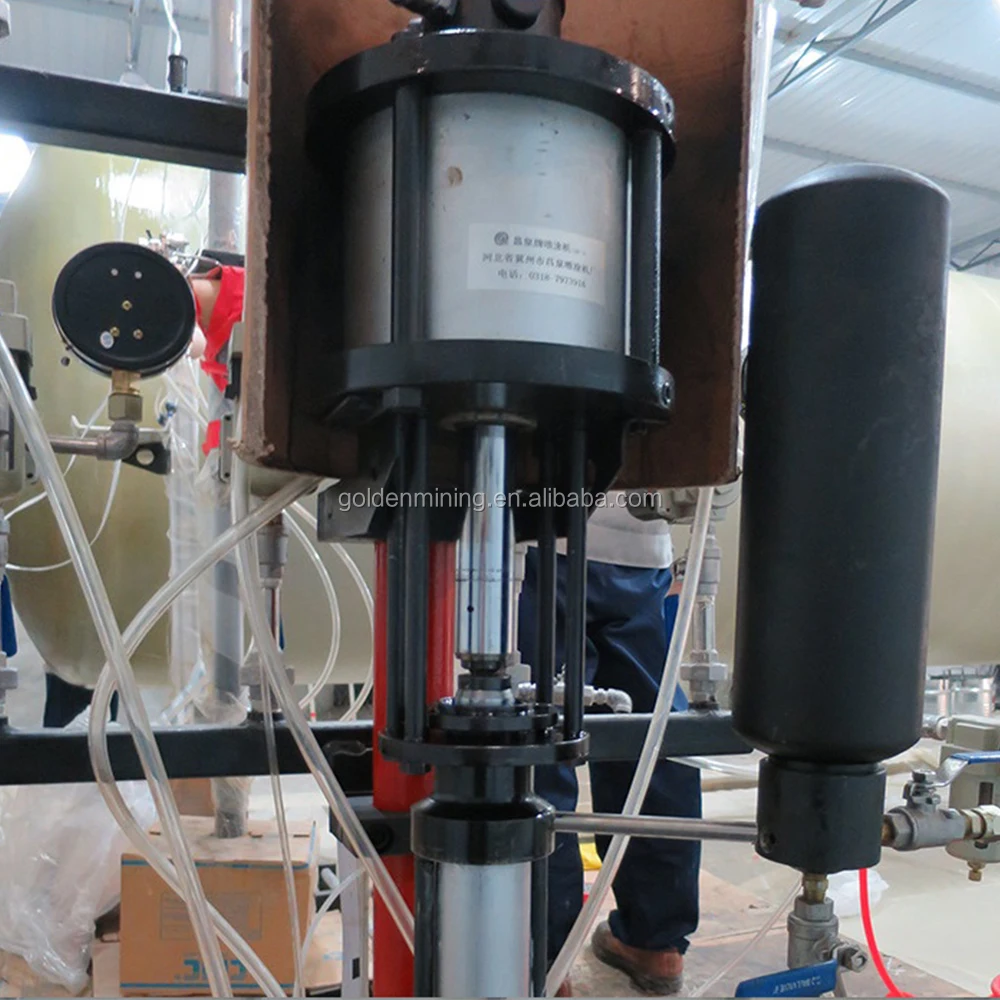

Air Motor

Shortened stroke on pump for better pattern
Industry proven for reliability

Balanced Air Motor

Provides same output pressure on upstroke and downstroke
Results in more consistent spray pattern
Stable, Lightweight Cart

Easy to maneuver
