China RP403 300t Paving Capacity Tar Paving
- Category: Pavers >>>
- Supplier: Xuzhou Focus Industry Group Co. Ltd.
Share on (62518003609):
Product Overview
Description
Asphalt Concrete Road Paver XCMg RP403 with Best Price

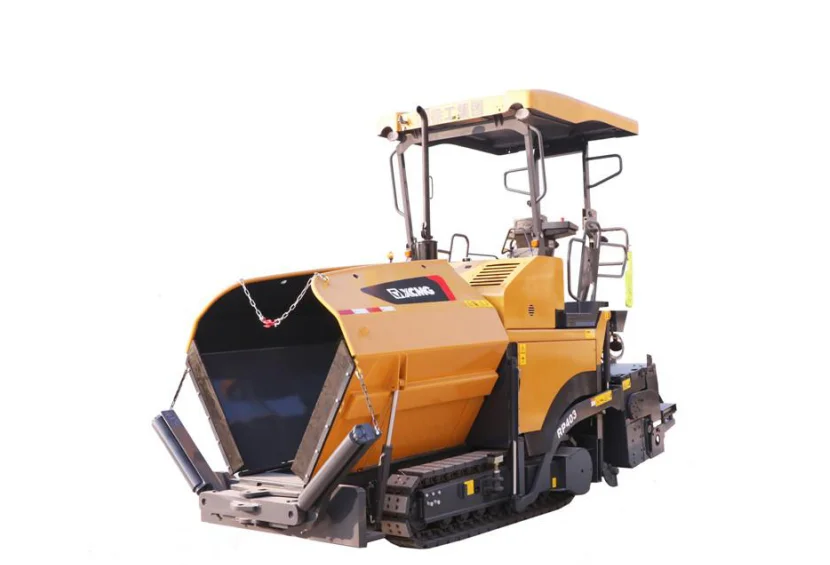

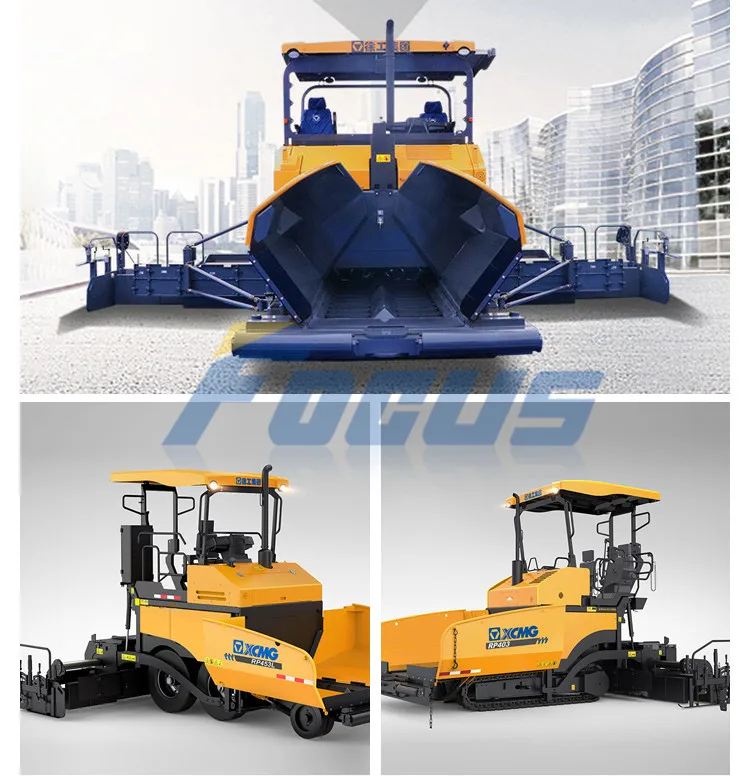

XCMG paver RP403
Main parameters:
Productivity capacity 300t/h
Max paving width 4.2m
Operating weight:12000kg
Dimension(L×W×H): 5535×1800×3580mm
Shipping volume: 12ton
Main configuration:
Engine Deutz BF4M2012C (75kW)
Imported hydraulic,electric parts
Hydraulic telescopic screed (electric heating)
Automatic leveling
Unit | Parameters | |
Max. paving width | m | 4.2 |
Max. paving thickness | mm | 200 |
Paving speed | m/min | 30 |
Travel speed | km/h | 3.6 |
Theoretical Productivity | t/h | 300 |
Hopper Capacity | t | 12 |
Gradeability | % | 20 |
Pavement evenness | mm/3m | 2 |
Transverse levelling accuracy | % | ±0.03 |
Centre crown ratio | % | 0~+3 |
Engine model |
| BF4M2012C |
Engine power | kW | 75 |
Engine speed | r/min | 2200 |
Machine weight | t | 12 |
Dimension | mm | 5535×1800×3580 |
Vibrator speed | r/min | 0~1470 |
Screed heating |
| electric heating |
Auger and conveyor control |
| Automatic Control by Ultrasonic Sensors |
Automatic levelling control |
| Simulation control of electronic automatic leveler |
