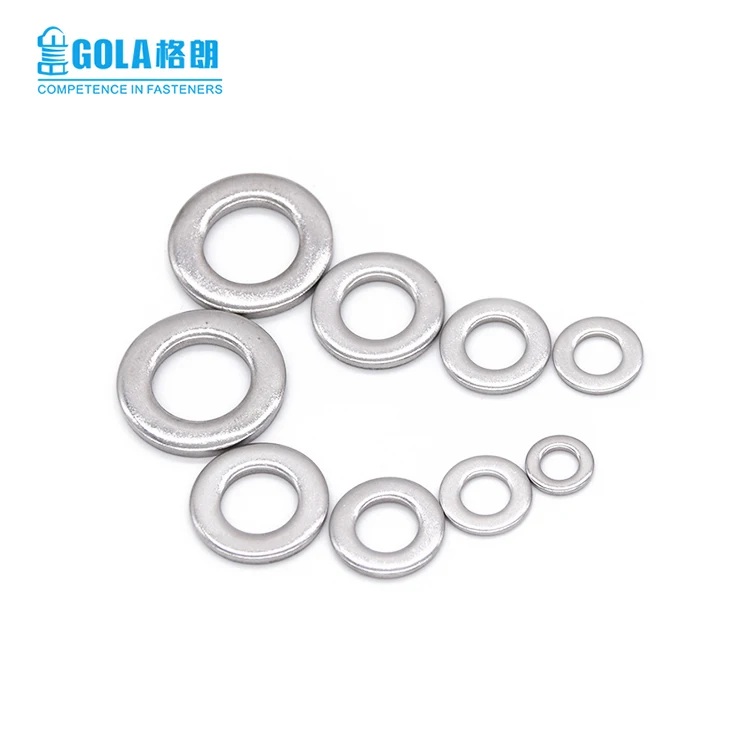

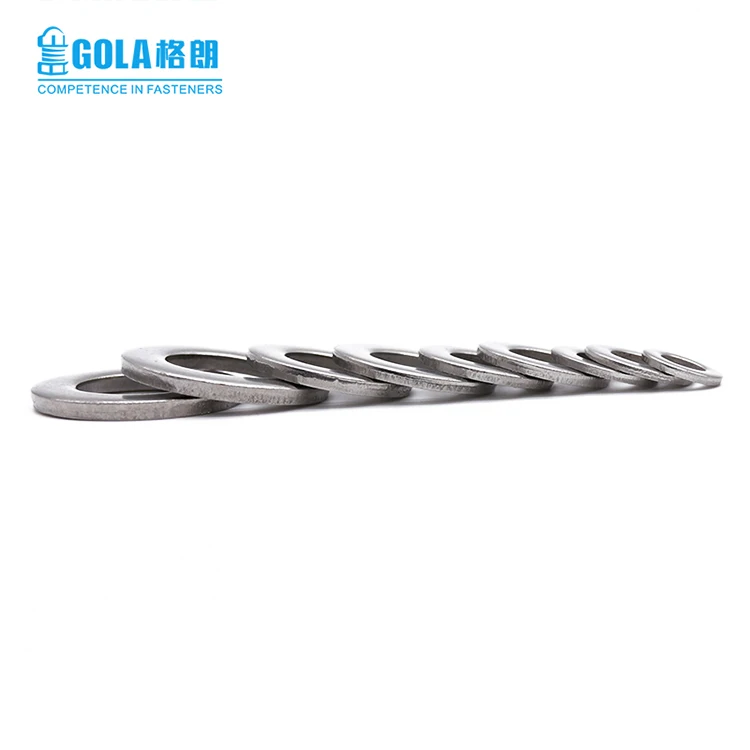

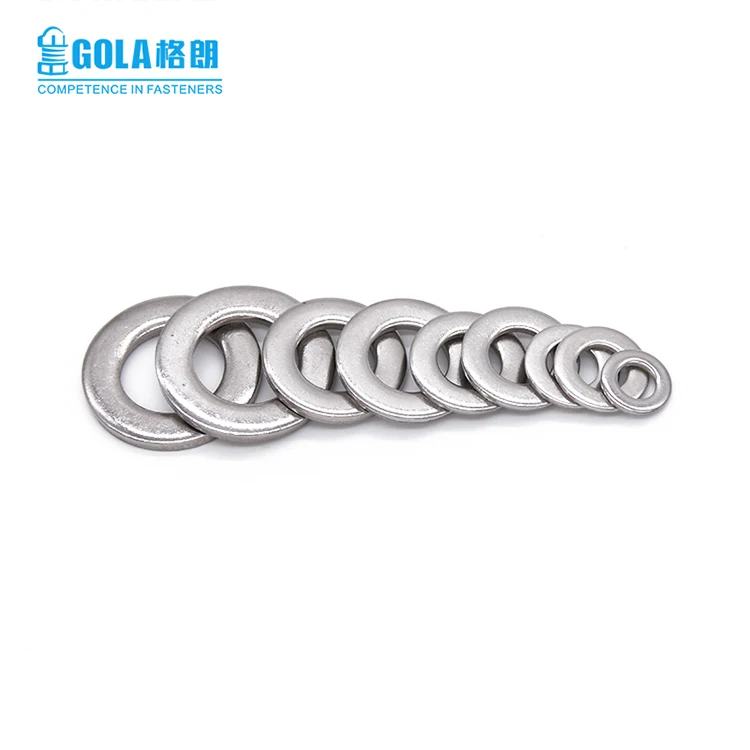

DIN125A gi washer galvanized flat washer
US $0.05-$0.10
Share on (62518169484):
Product | Flat Washer |
Material | SS304, SS316 |
Standard | DIN, GB/T, ANSI |
Size | M6 M8 M10 M12 M14 M16 M20 |
Finish | Nature |
Package | Carton( 6 packs in one carton, and weight is around 22-25kg) |
Lead time | 5 to 15 working days |
Customize | Available |
MOQ | No MOQ for standard item, negotiable for customized item. |

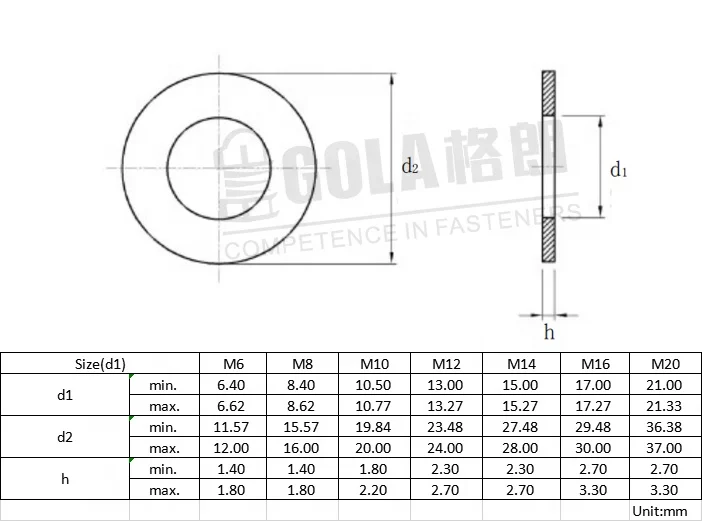

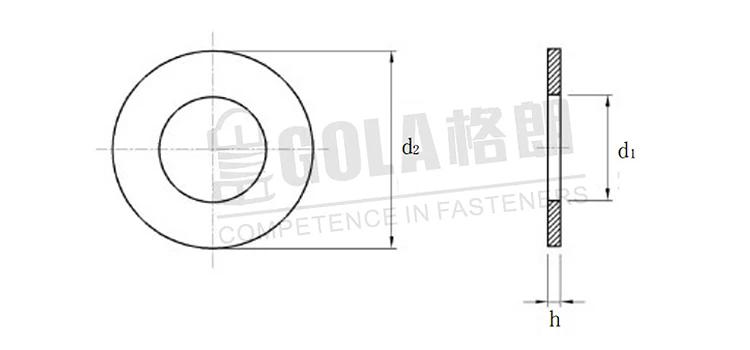

Size(d1) | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||
d1 | min. | 6.40 | 8.40 | 10.50 | 13.00 | 15.00 | 17.00 | 21.00 | |
max. | 6.62 | 8.62 | 10.77 | 13.27 | 15.27 | 17.27 | 21.33 | ||
d2 | min. | 11.57 | 15.57 | 19.84 | 23.48 | 27.48 | 29.48 | 36.38 | |
max. | 12.00 | 16.00 | 20.00 | 24.00 | 28.00 | 30.00 | 37.00 | ||
h | min. | 1.40 | 1.40 | 1.80 | 2.30 | 2.30 | 2.70 | 2.70 | |
max. | 1.80 | 1.80 | 2.20 | 2.70 | 2.70 | 3.30 | 3.30 | ||





ITEM | CHEMICAL ELEMENTS COMPOSITION | ||||||||||||||
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) | ||||||||
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||||||||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16-18 | 2.0-3.0 | |||||||
