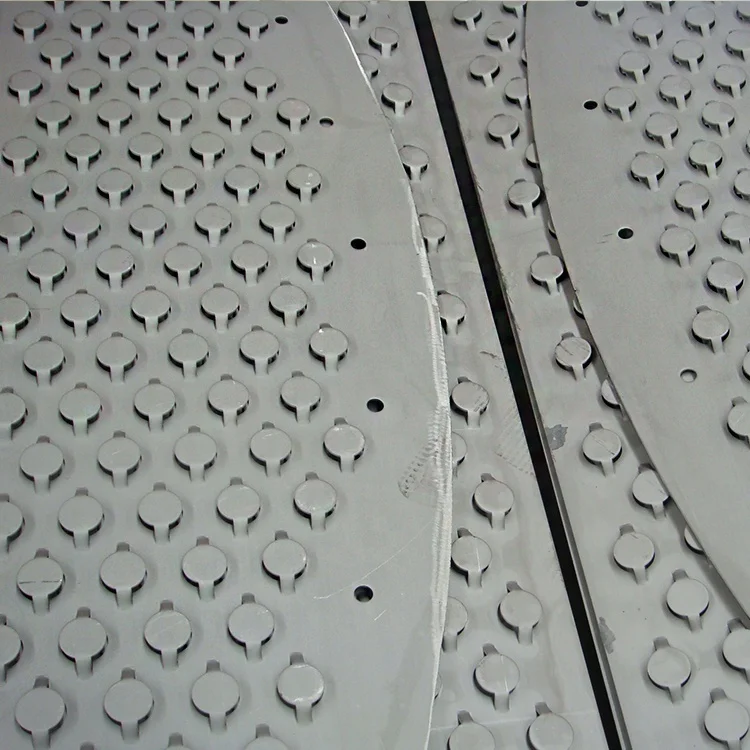

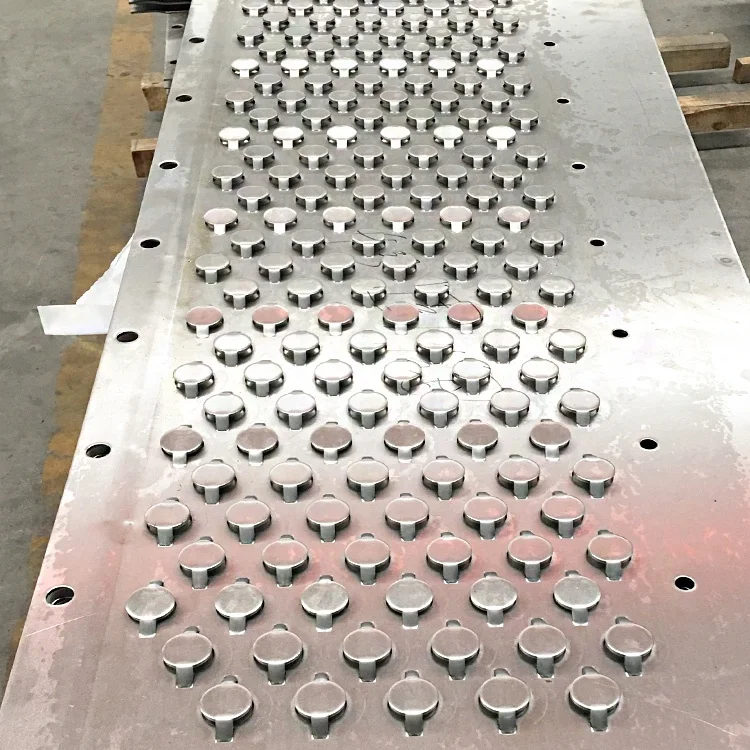

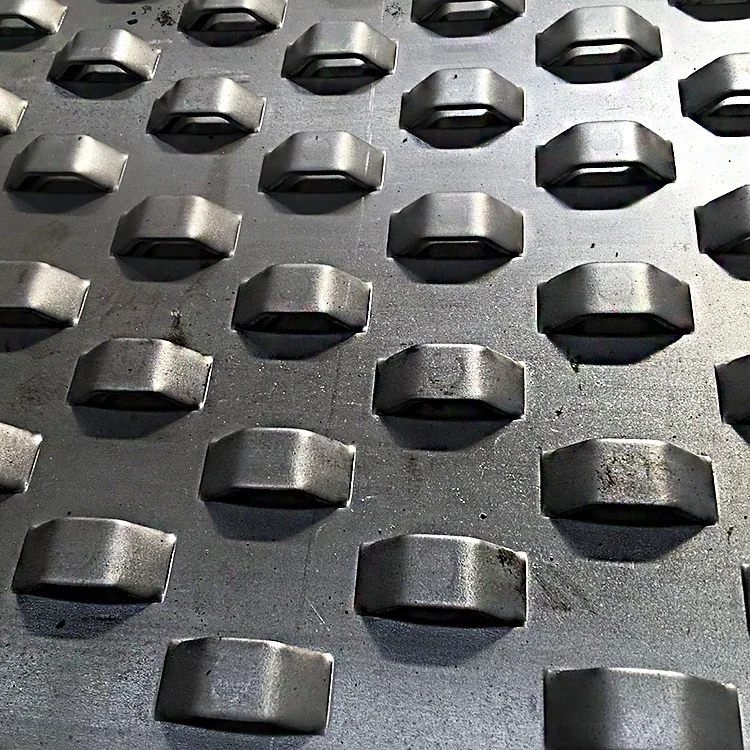

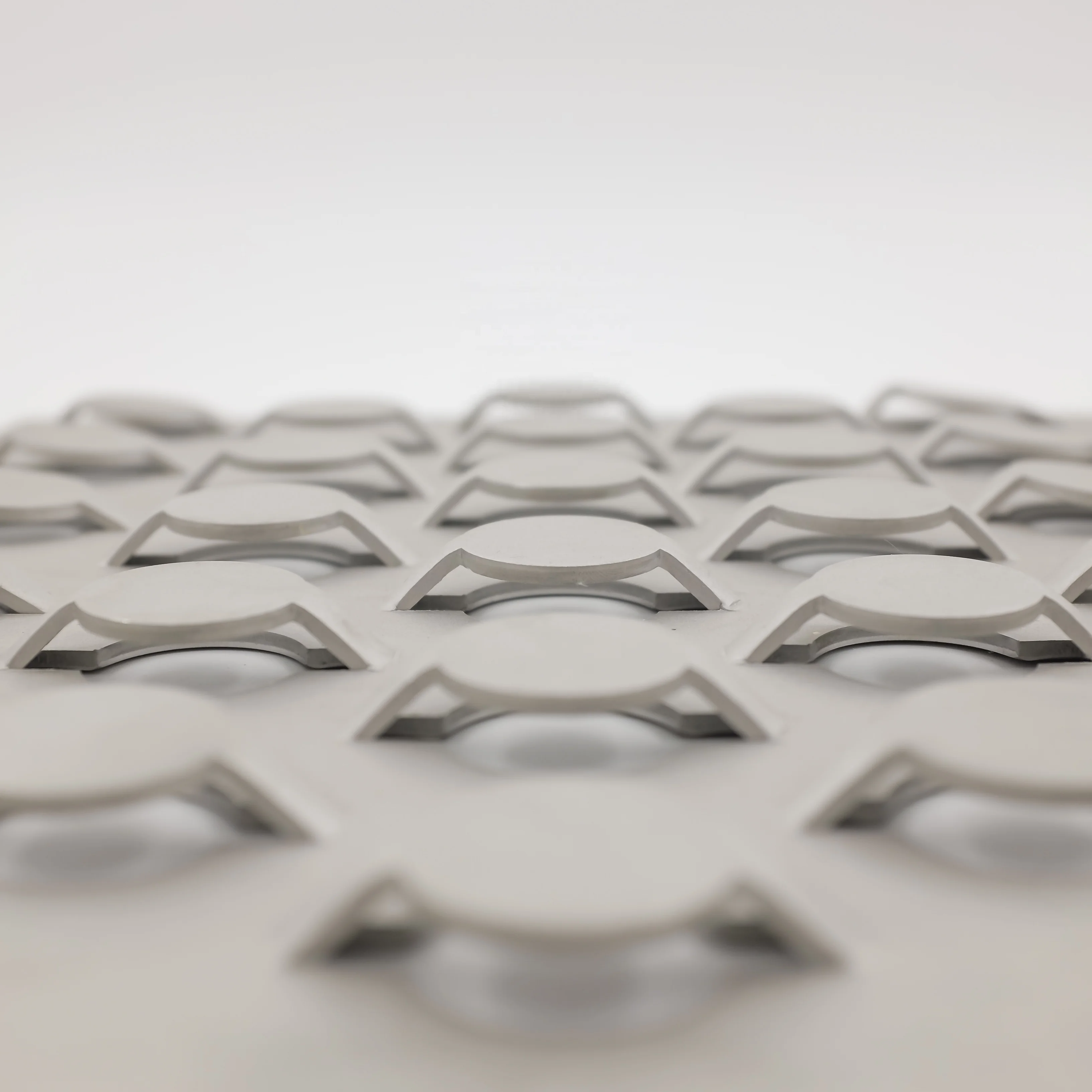

Stainless Steel 304 316L Fixed Valve Tray for Distillation Column
- Category: Chemical Machine Parts >>>
- Supplier: Nantong Sutong Separation Technology Co. Ltd.
Share on (62518870045):
Product Overview
Description
Product Description
Product Application
Function of valve tray:
Valve tray has valve holes opened and valve element equipped available to ride up and down within some proper scope. The circulation area between the floating valve and tray could be adjusted automatically along with the changes in gas load, so its available to maintain stable operations within a broad scope of gas loads. Gas may be blown out horizontally from the tray, so that the gas-liquid contact is of long time, the entrainment is small, and the fall of liquid level is also relatively small. Compared with bubble cap tray, floating valve tray has bigger processing capacity, lower pressure drop, and higher tray efficiency.Features of floating valve tray:
Great capacity of production, operating flexibility, high efficiency plate tower, the gas pressure drop and liquid surface gap is small, low cost.
Type: Model F1 float valve tray, ADV float valve tray, U float valve tray , the diamond float valve tray , trapezoidal float valve ,Cross float valve
Description of valve tray :
F1 float valve: At present, F1 float valve is most extensively used, and includes light valve and heavy valve. Valve element and three valve legs are made as a whole, and around the valve element are three Initiative Spacing Pieces which can keep some certain clearance between the valve element and tray plate when the valve element is closed up. The Initiative Spacing Pieces make the interface between the valve element and tray plate very small to prevent the valve element from sticking to the tray plate, so that the valve element can rise smoothly when the gas increases. The circumambience of valve element inclines downwards and strengthens the turbulence action in the gas-liquid contact.
Related Products
Stainless Steel Pall Ring
100% Response Rate
Polyhedral Ball Ring
100% Response Rate
Teller Rosette Tellerette
100% Response Rate
Material Detecting
Factory Acceptance
Customer: ALFA LAVAL
DEMARK/INDIAN/BRAZIL/COLOMBIA
Product Name: Structured packing
Liquid distributor
Demister
Bed limiter
Support gird
Brand: STT
Customer: MITSUBISHI, JAPAN
Product Name: Bubble cap trays
U type float valve trays
Random packings
Brand: STT
Customer: PERSTORP FORMOX, SWEDEN
Product Name: Bubble cap trays
Brand: STT
Customer: AIR LIQUID, QATAR
Product Name: Structured packings
Plastic random packings
Liquid distributor
Plastic Demister
Bed limiter
Hump Support
Brand: STT
Customer: EK, France
Product Name: Structured packings
Random packings
Liquid distributor
Bubble cap trays
Demister
Bed limiter
Hump Support
Brand: STT
Packing & Delivery
Project Achievements
Our Company
Company Introduction
Nantong Sutong Separation Technology Co., Ltd. (hereinafter: STT) is a company specialized in the design and manufacture of tower internals, packing, tower trays and the process of energy saving. Mainly develop the production, test and engineering service of mass transfer and separation in Chemical, Petrochemical, Refinery, Fertilizer and Environmental Protection areas. The relevant processes include rectification, absorb, extraction, regeneration, evaporation, stripping and waste water treatment of the tower separation, also including the design of dust filter and demister in the Environmental Protection. We can provide highly professional Engineering & Technology service, solve many difficult Engineering problems in different areas.
STT is a national High-tech company, the nominated supplier of Sinopec Group, the nominated company of National Technology Center of Chemical Engineering Design, the research and developing base and the only one nominated manufacturer of Nanjing University Separation Division, the nominated manufacturer of East China University of Science and Technology. We also established friendly cooperation with famous Design Institutes and Scientific Research Institute.
STT offer a complete technical consulting, engineering design, installation, commissioning test and key-delivered project, provide lifetime warranty to the undertaken project. We provide our clients the best priced tower packing, trays and tower internals with good quality, practical utility and high - efficiency. We can supply considerate service, and react quickly to the market for the research.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample support.
*Chemical process simulation, process calculation, hydraulic calculation, design of tower internals, reconstruction scheme and so on.
* View our Factory.
After-Sales Service
* Training how to instal or undertake the installation.
* Start up ans commissioning service.
* Engineers available to service overseas.
* Real-time failure diagnosis, onsite treatment, operation guidance.
