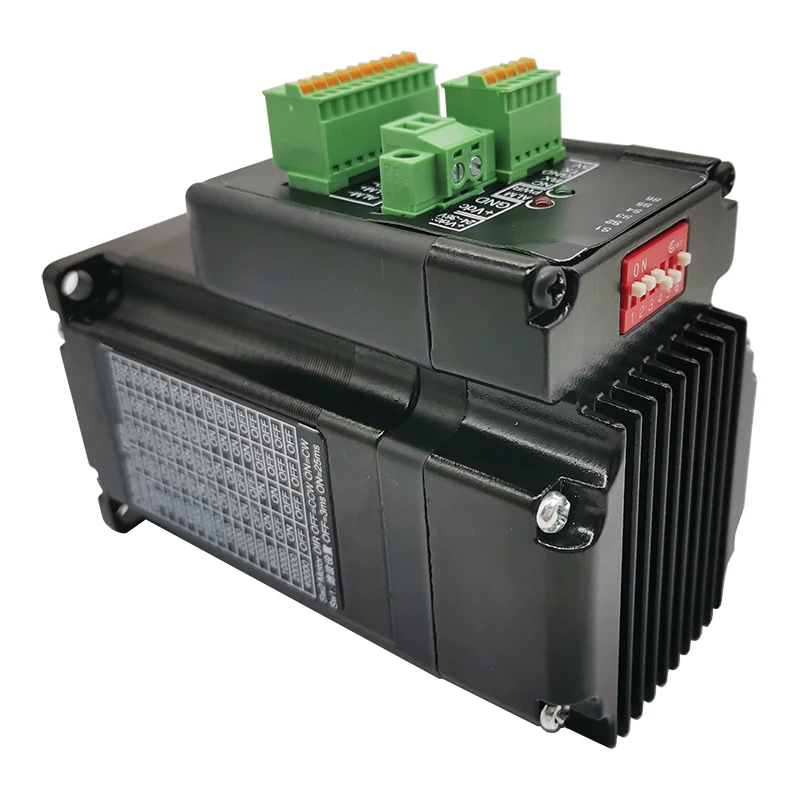

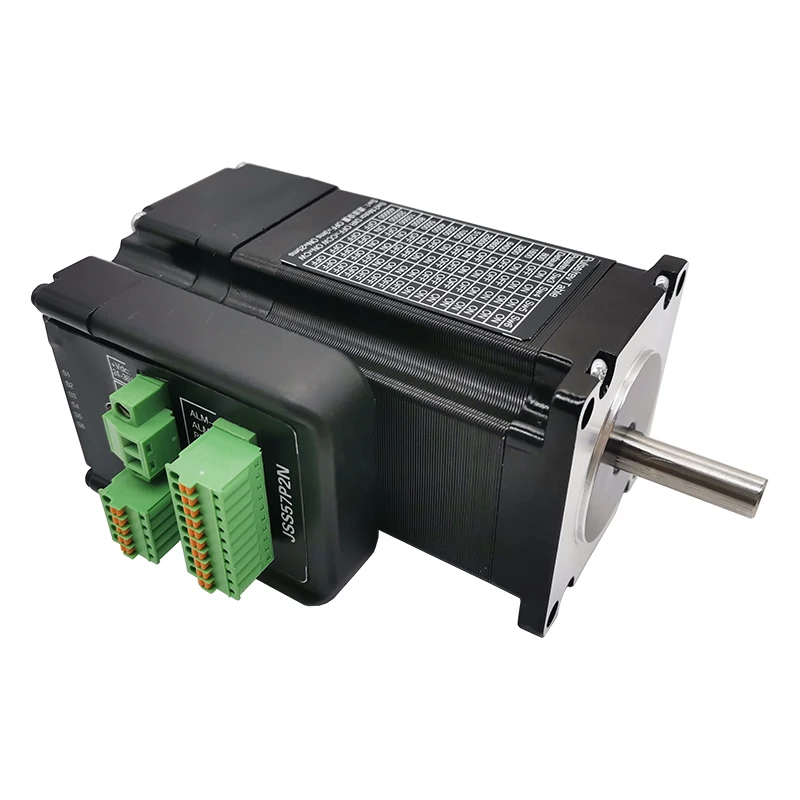

57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00

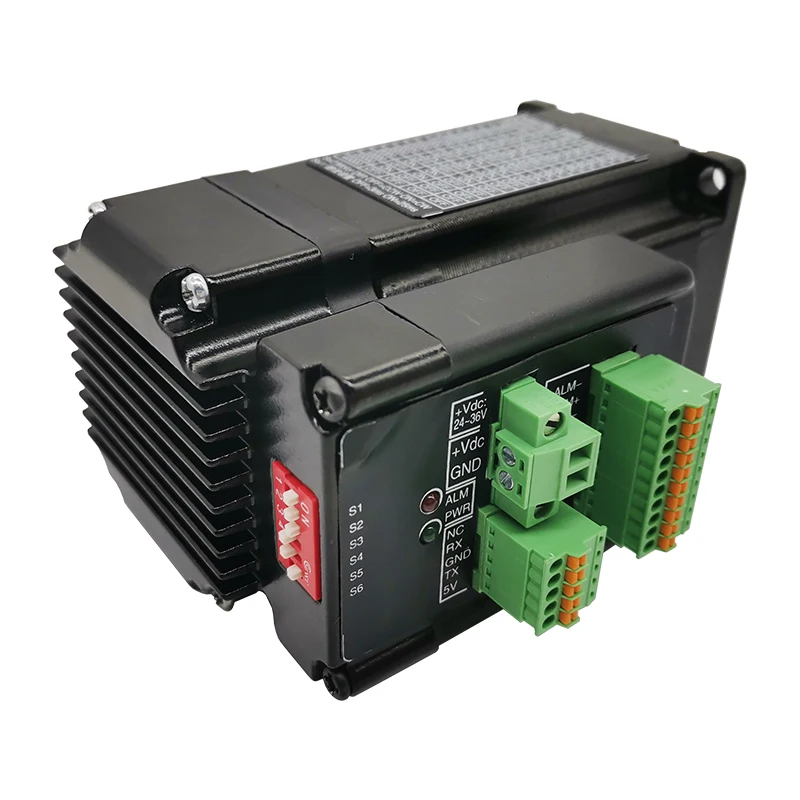

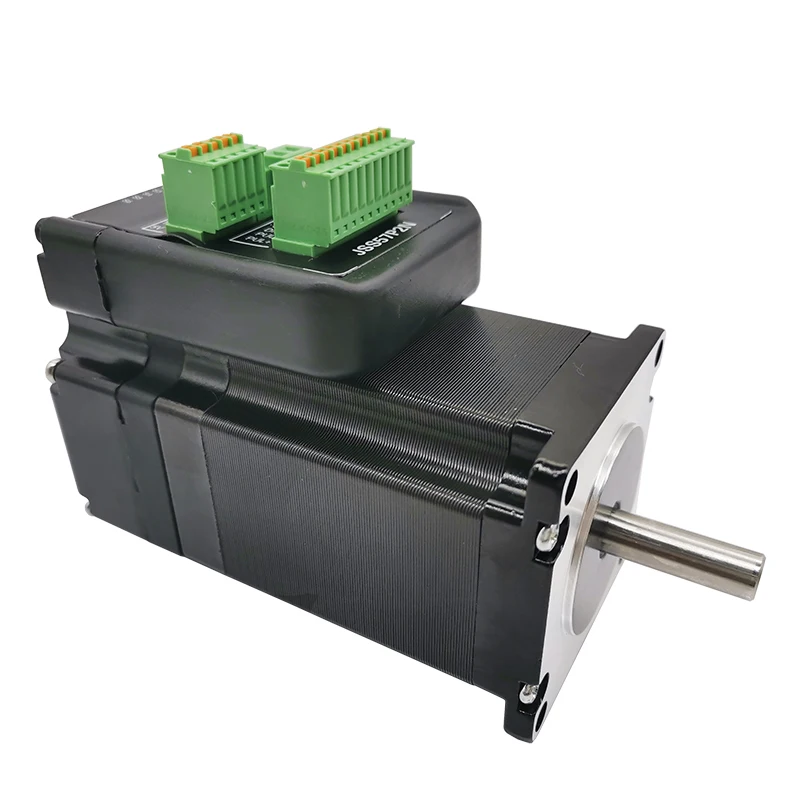

Hybryd Servo Stepper Motor nema 23 57mm 2N.m integrated closed loop stepper motor
- Category: Stepper Motor >>>
- Supplier: Changzhou Jinsanshi Mechatronics Co. Ltd.
Share on (62522347626):
Product Overview
Description
Nema 23 integrated step servo motor
1.Adopt advanced 32-bit motor control dedicated DSP chip and vector closed-loop control technology;;
2. The default work is in closed loop mode, no loss of step, and it also supports working in open loop mode.;
3. Increase the output torque and running speed of the motor;
4. The current level is intelligently adjusted according to the load, reducing the temperature rise of the motor, locking the current, and adjusting the closed-loop peak current.;
5. Adapt to various mechanical load conditions (including low-rigidity loads such as pulleys and pulleys) without adjusting the gain parameters;;
6. The position command smoothing filter can be set, the motor runs smoother, the vibration is lighter, and the acceleration and deceleration dynamic performance is improved.;
7. Zero-speed static capability without vibration after positioning;
8. Support single and double pulse input, pulse response frequency up to 200KHZ;
9. Support 15 fixed subdivisions, and support software to set any subdivision (200~65535);
10. Support modbus RTU protocol on RS232, position and speed control controlled by communication;
11. Support monitoring of motor operating conditions, including speed, position deviation, bus voltage, operating current, etc.
12. voltage range: DC+24V~48V;
13. With overcurrent, overvoltage, positional tolerance and other protection;

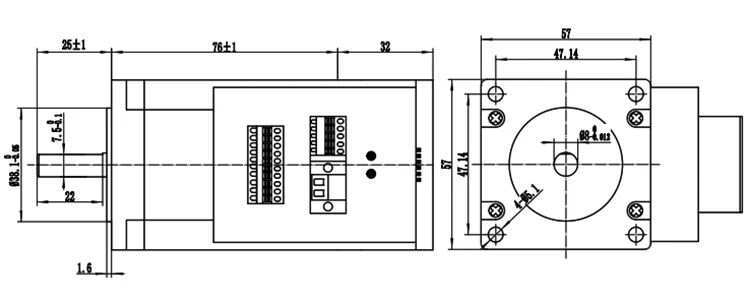

Motor drawing:
Microstep setting:
Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
Default(400) | on | on | on | on |
800 | off | on | on | on |
1600 | on | off | on | on |
3200 | off | off | on | on |
6400 | on | on | off | on |
12800 | off | on | off | on |
25600 | on | off | off | on |
51200 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
20000 | on | off | off | off |
40000 | off | off | off | off |

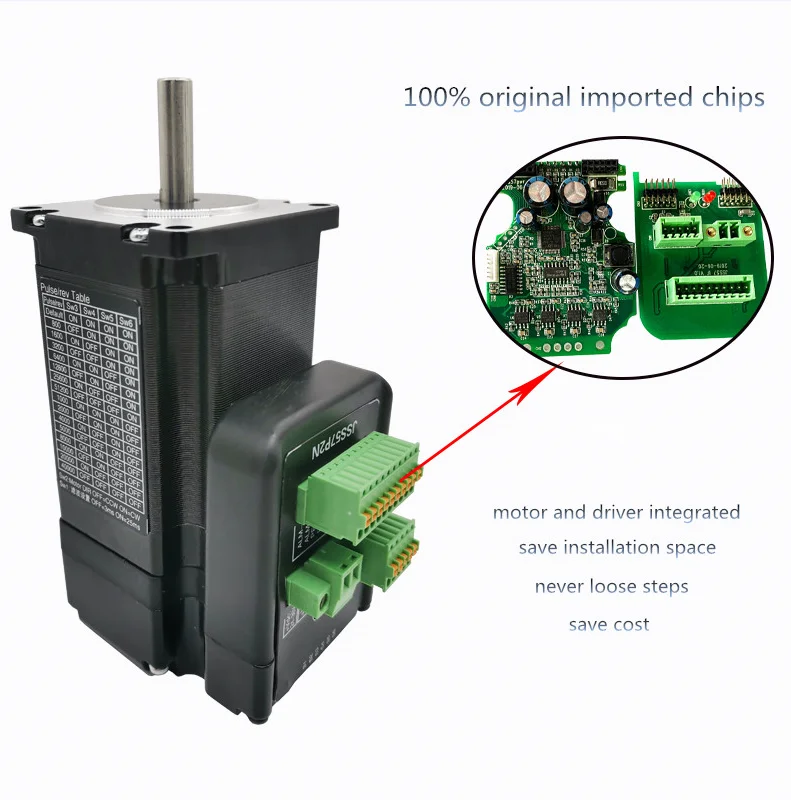

Product details:

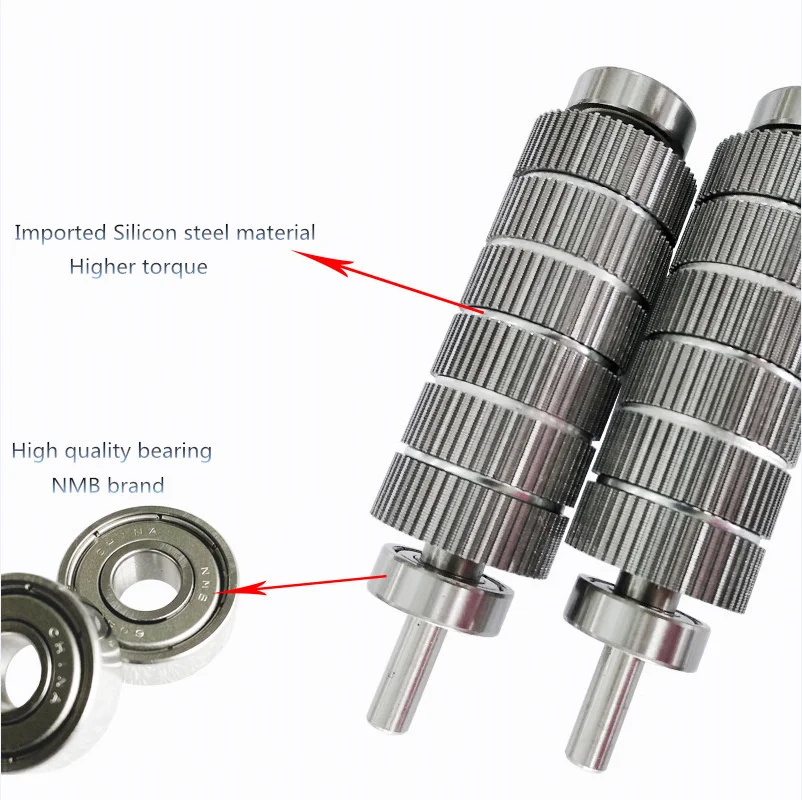

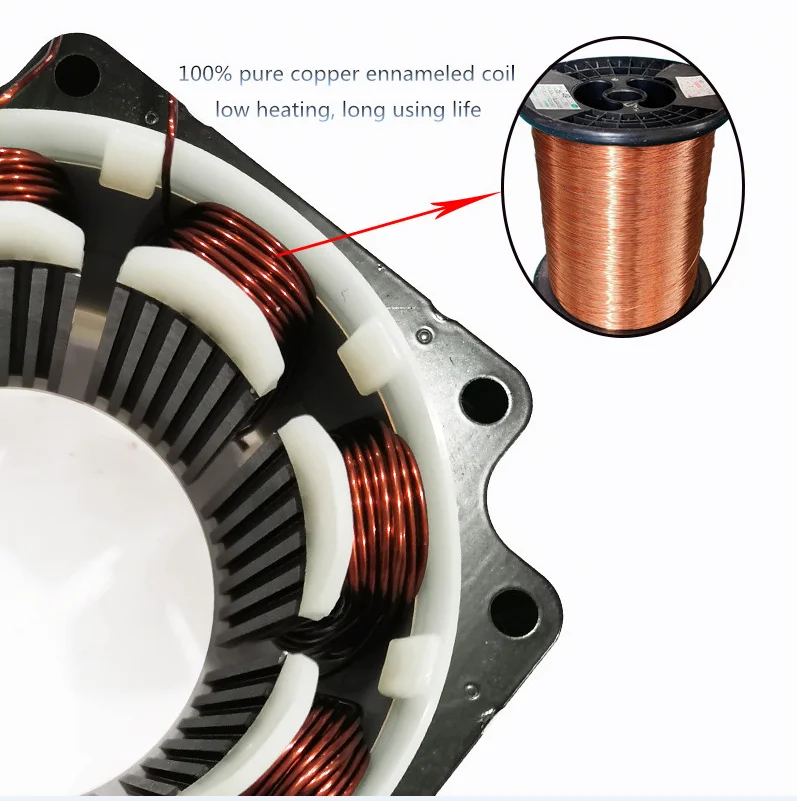

Advantages and raw materials:

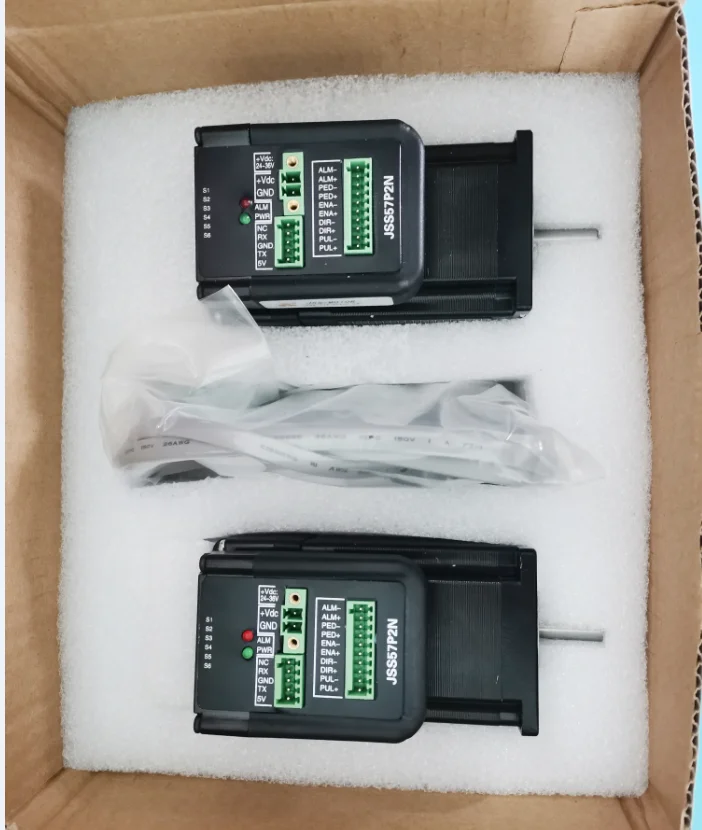

Packing:
Application:

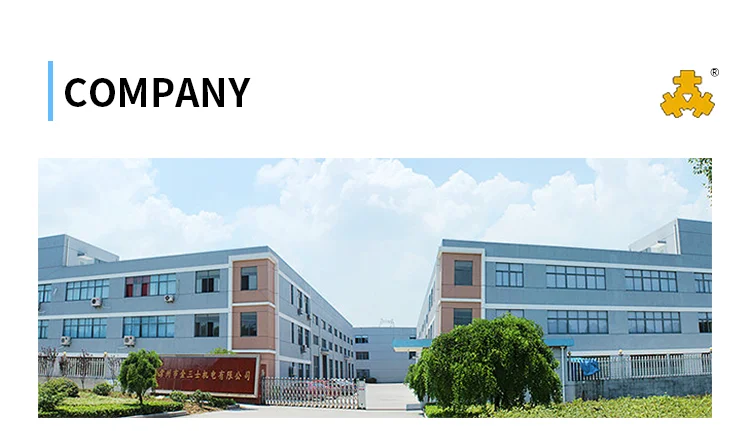

Company Information
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. We accept OEM and ODM orders! We have passed ISO9001 and have got the certification of CE and ROHS!
Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor,AC servo Motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..Our products are exported to all over the world, including Europe, South America, North America, Africa, South-east Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.
On the way of development, the principle of "fficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..Our products are exported to all over the world, including Europe, South America, North America, Africa, South-east Asia, etc.
We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.
On the way of development, the principle of "fficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
FAQ
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5. Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
