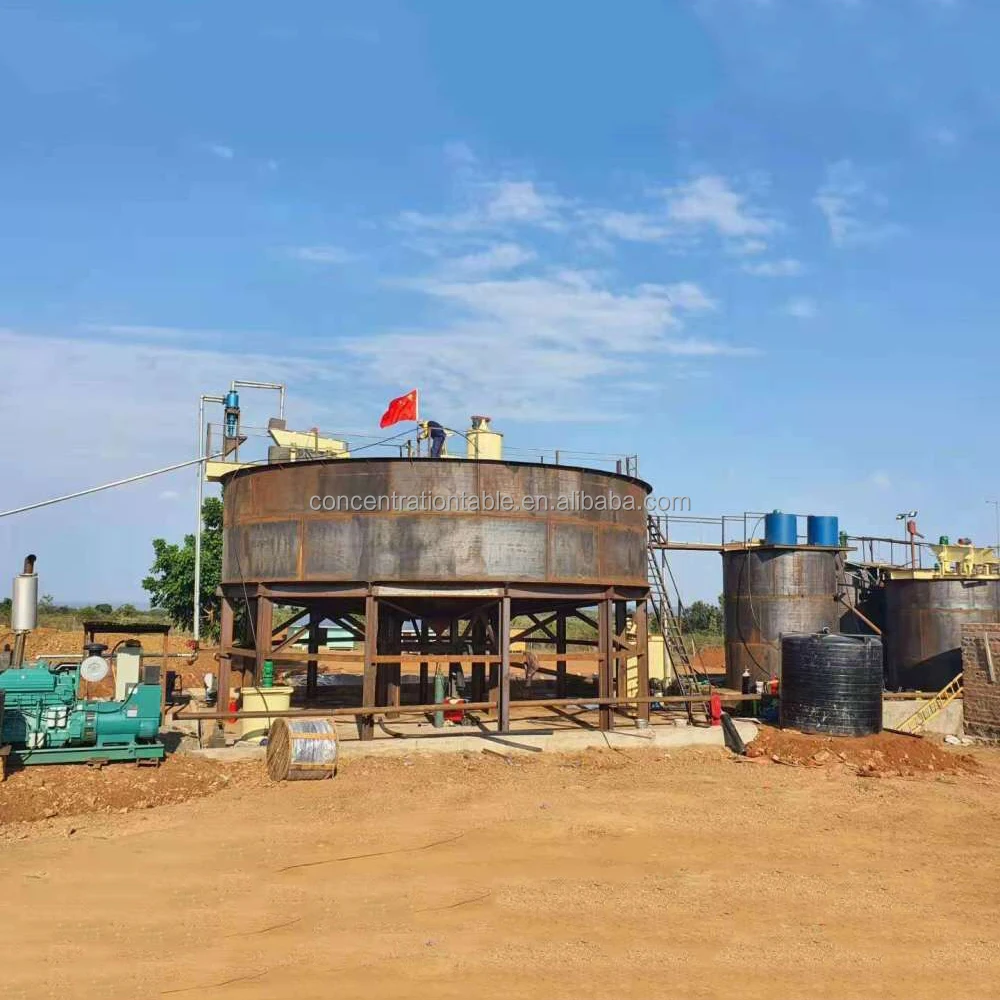

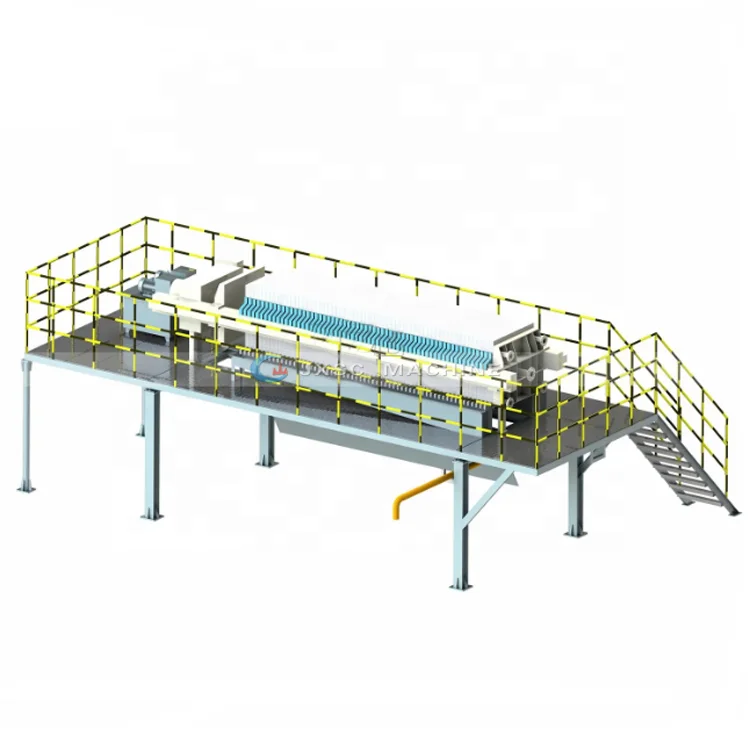

Tanzania Sudan gold cip gold processing plant

Tanzania Sudan gold cip gold processing plant

Category: Mineral Separator >>>
Supplier: Jiangxi Province County Mining Machinery Factory

Price:$12,000.00

Quantity:

Product Overview

Description

Product Description

100-1500 t/d Capacity Placer Gold Leaching Process Equipment CIL Mining Machine Alluvial CIP Gold Processing Plant for Sale

Metal recovery or concentration by adsorption on activated carbon has been the dominant process for gold extraction after leaching by cyanide in aerated alkaline slurry. The continuous processes of gold recovery by adsorption on activated carbon in agitated tanks, namely the carbon-in-pulp (CIP) and the carbon-in-leach (CIL)processes, have been widely used since the 1970s.

CIP production introduction:

Carbon-in-pulp (CIP) is the sequential leach then absorption of gold from ore. During the CIP stage, pulp flows through several agitated tanks where sodium cyanide and oxygen have been added to dissolve gold into solution. In the absorption stage, this solution flows through several agitated tanks containing activated carbon. Gold absorbs on to the activated carbon, which flows counter-current to the pulp, while screens separate the barren pulp from the gold-loaded carbon.

CIL process plant introduction

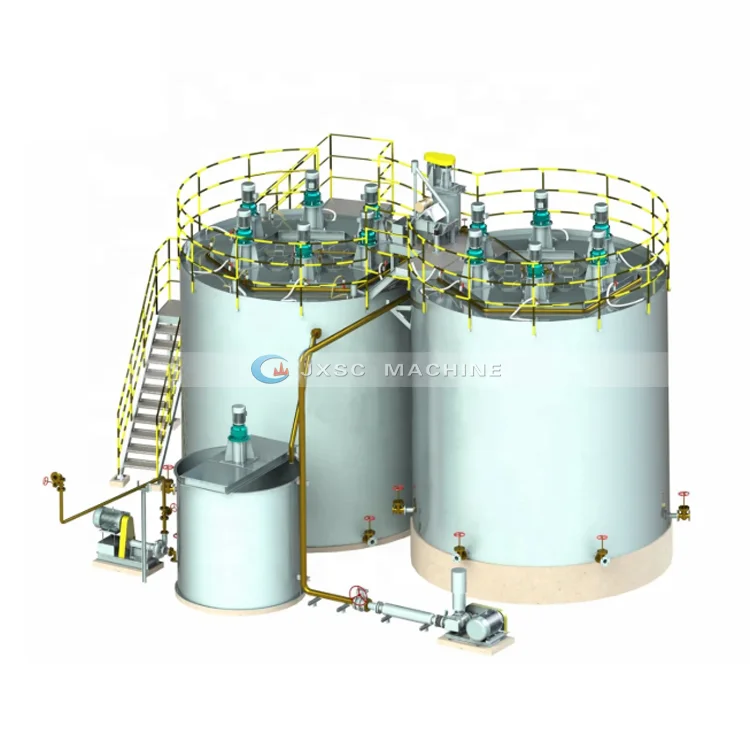

In the CIL (Carbon in Leach) or CIP (Carbon in Pulp) plants while the precious metals are being dissolved by the cyanide solution in the large volume tanks the dissolved metals are adsorbed by the active carbon. These processes are generally preferred for the relatively high grade and lower reserve ore types with very fine graded precious metals.

The major difference between the CIL and CIP processes is; during the CIL process both cyanide leaching and carbon adsorption take place in the same tanks but in the CIP process first leaching occurs in the first couple of tanks then carbon adsorption take place in the following tanks while leaching continues. In all of these tanks agitation and air sparging is available.

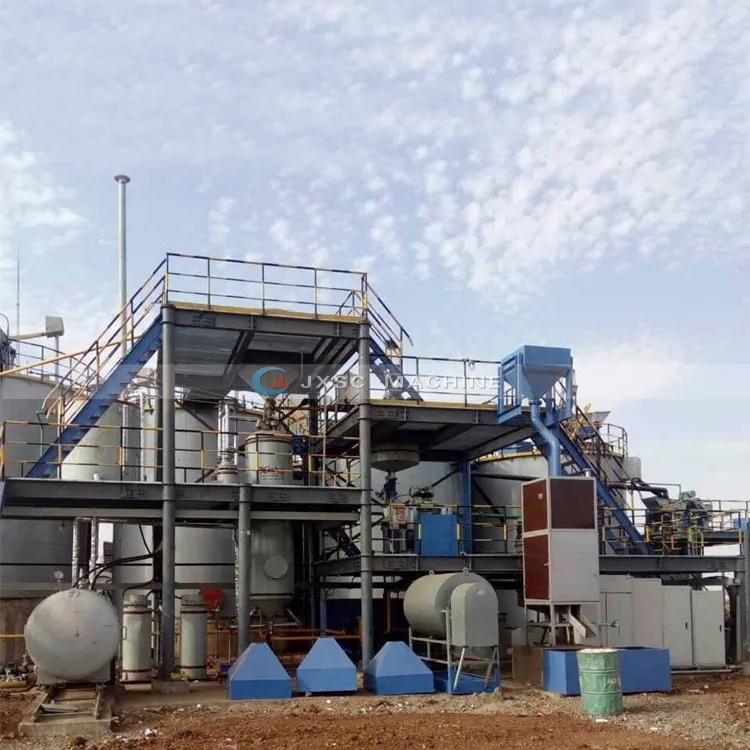

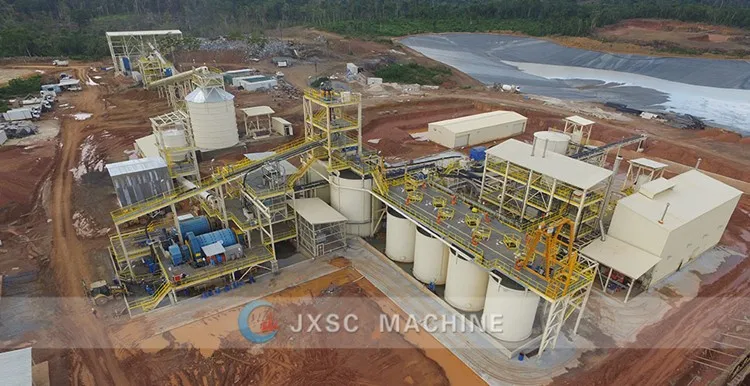

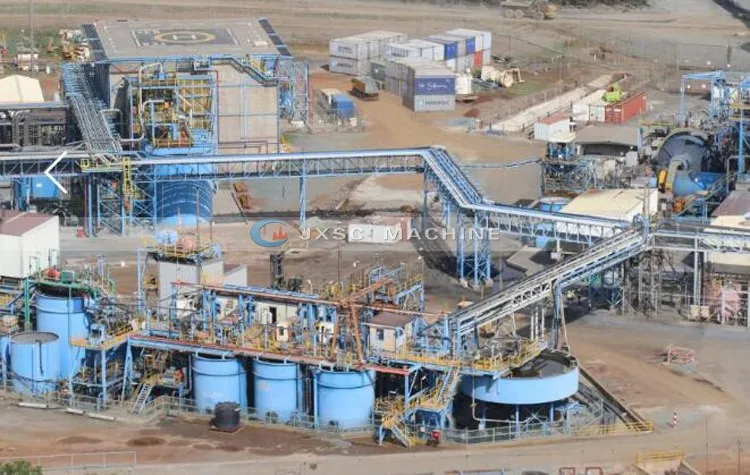

CIL & CIP Processing Plant Application:

Wanna Get Extended Warranty?

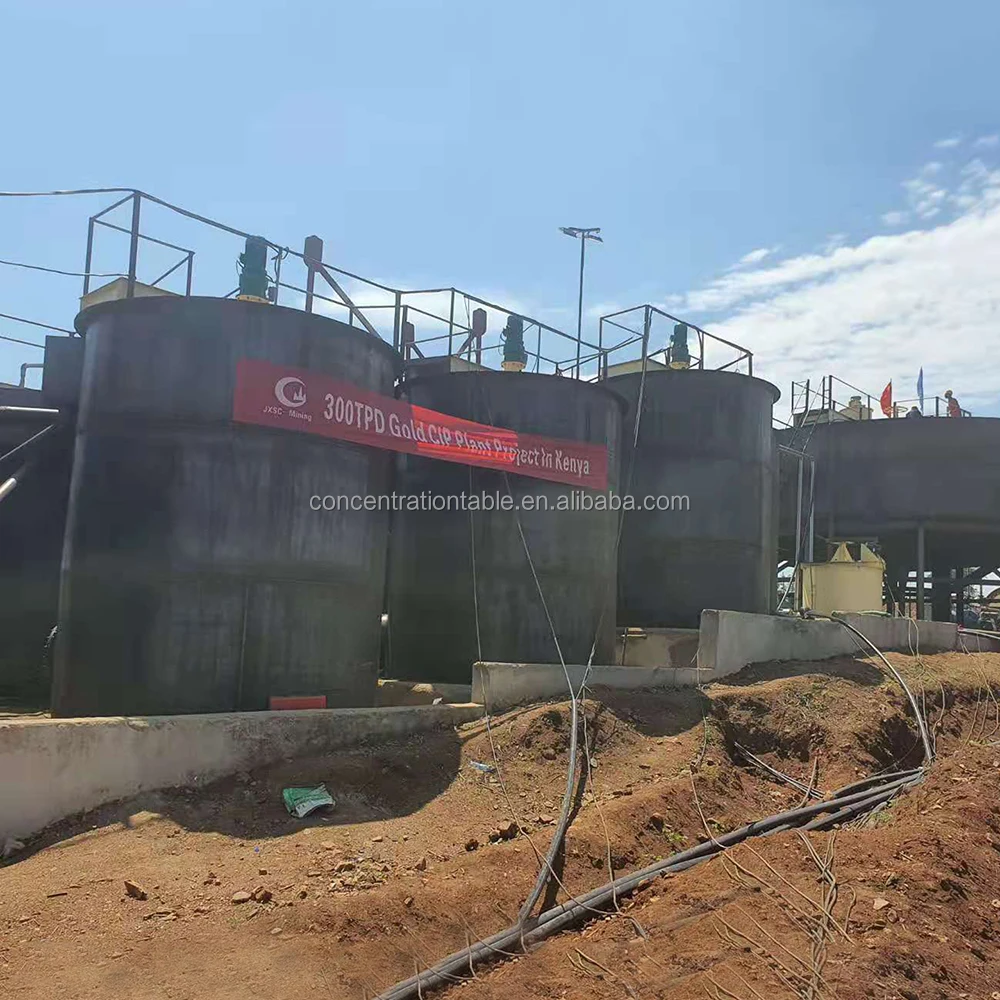

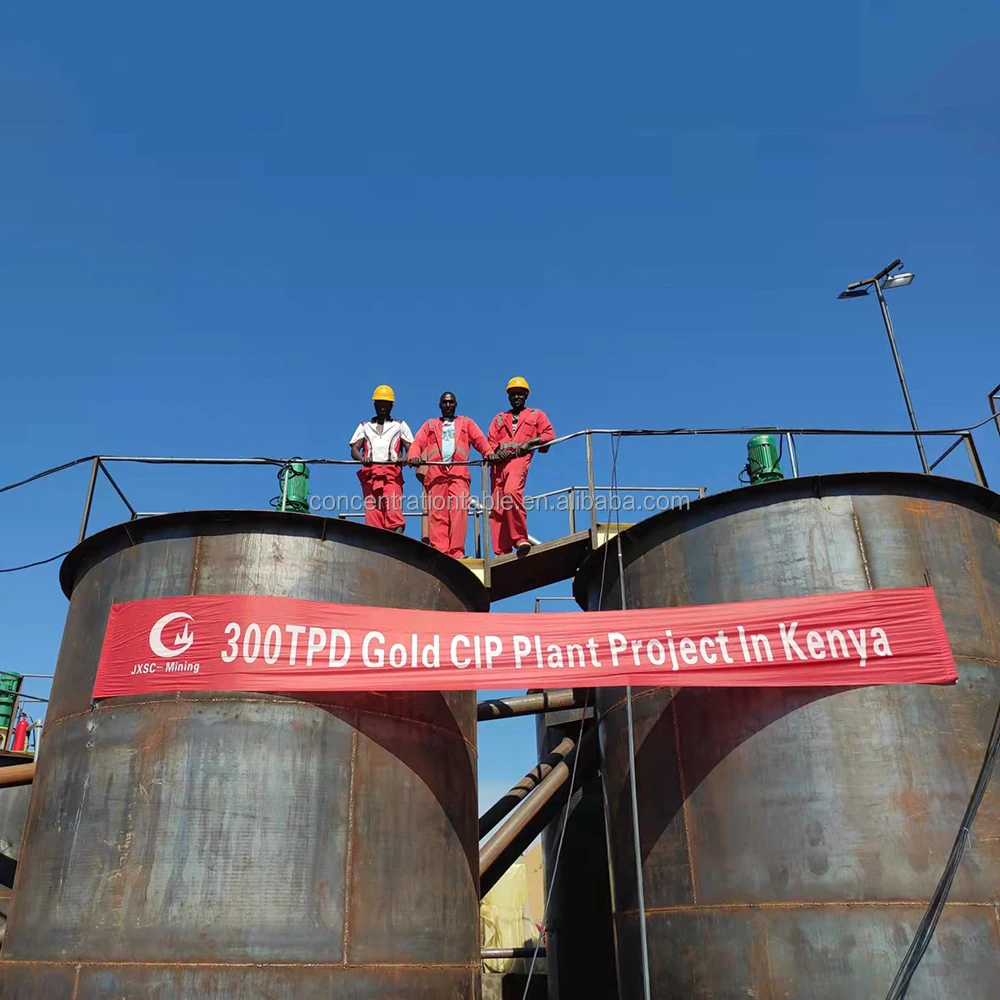

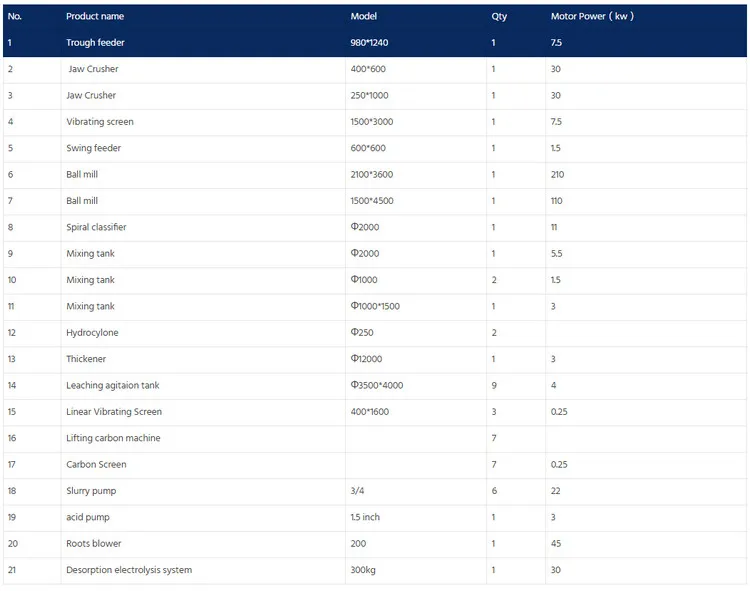

300T/P CIP Equipment list

Gold Carbon-in-pulp (CIP) production is the sequential leach, then absorption of gold from ore. During the CIP stage, pulp flows through several agitated tanks where sodium cyanide and oxygen have been added to dissolve gold into solution.

CIP process is suitable for the treatment of oxidized gold ore with low sulfur content and mud content. It is unsuitable for the gold ore with high grade silver as well. Generally, the proportion of gold and silver should not exceed 1:5. The best conditions for CIP process in China: PH=10-12, sodium cyanide concentration is not less than 0.015%, the particle size of activated carbon is 1.0-3.35mm, the best choice of carbon is coconut shell activated carbon, and the slurry concentration is 40-45%.

Crushing and Screening
Grinding and Classification
Thickening
Leaching
Adsorption
Desorption of Gold-loaded Carbon and Electro-deposition
There are several desorption methods. In China, the general application methods are Zadra desorption method, high temperature, and high-pressure desorption method (hereinafter referred to as HTHP method) and integral pressure desorption method (hereinafter referred to as IP method).

Technical Data

Model	Tank Spec. Diameter × Height (mm).	Effective Volume (m3)	Impeller Rotation Speed (r.p.m)	Impeller Diameter (mm)	Power (kW)	Tank Weight (kg)	Total Weight (kg)
LT2.0×2.5	2000×2500	6	52	909	2.2	1609	2190
LT2.5×3.15	2500×3150	13.14	52		2.2	935		2450	3180
LT3.0×3.15	3000×3150	18.93	43	1130	4	3530	4260
LT3.0×3.5	3000×3500	21		1130					3298	4400
LT3.15×3.55	3150×3550	24				1260		3510	4560
LT3.5×3.5	3500×3500	30	52	1310	5.5	3560	5110
LT3.55×4.0	3550×4000	33.6	43	1310	5.5			4320	5100
