Metal Trough Type Liquid Distributor
- Category: Chemical Machine Parts >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (62523235933):
Product Overview
Description
Products Description

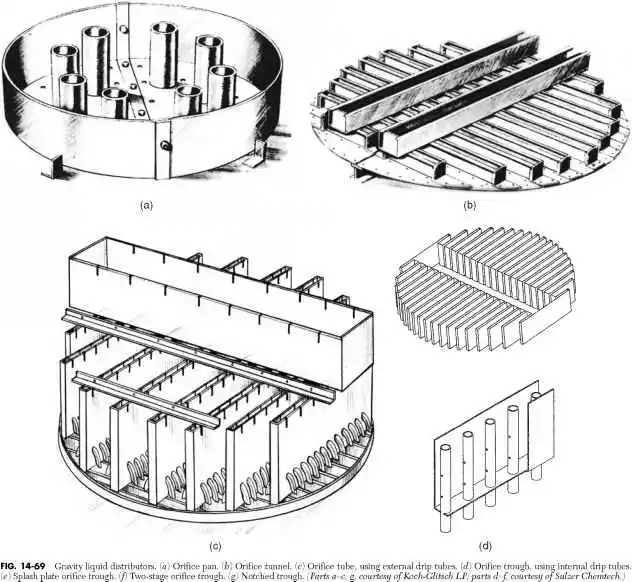

Trough Type Distributor
The Trough Type Distributor consists of long tunnels called troughs, and one or more parting boxes, for feeding liquid to the troughs. The parting box helps in controlling the feed velocity to the troughs and ensures proportional distribution of the liquid. The space between the troughs is available for vapor passage. Number and location of the parting boxes will depend on the column diameter. Orifices can be located either on the wall or on the base of the troughs. When orifices are located on the wall, conductor tubes are provided at the wall to guide the flow of liquid.
The Trough Type Distributor usually rests on a ledge/support ring. It can also be suspended from beams.The advantage of parting
box is the absence of joints, thus providing excellent liquid seal. Re distributors are not available in this model.
The Trough Type Distributor usually rests on a ledge/support ring. It can also be suspended from beams.The advantage of parting
box is the absence of joints, thus providing excellent liquid seal. Re distributors are not available in this model.
Main Features:
1.Make the liquid distributor from multipoint into infinite point. The distribution uniformity has an impressive promotion. Make the line distribution and surface diatribution come true.
2. Eakage blocking design.
3. Simple construction, Lower placeholder, Light weight, Easy installation.
1.Make the liquid distributor from multipoint into infinite point. The distribution uniformity has an impressive promotion. Make the line distribution and surface diatribution come true.
2. Eakage blocking design.
3. Simple construction, Lower placeholder, Light weight, Easy installation.

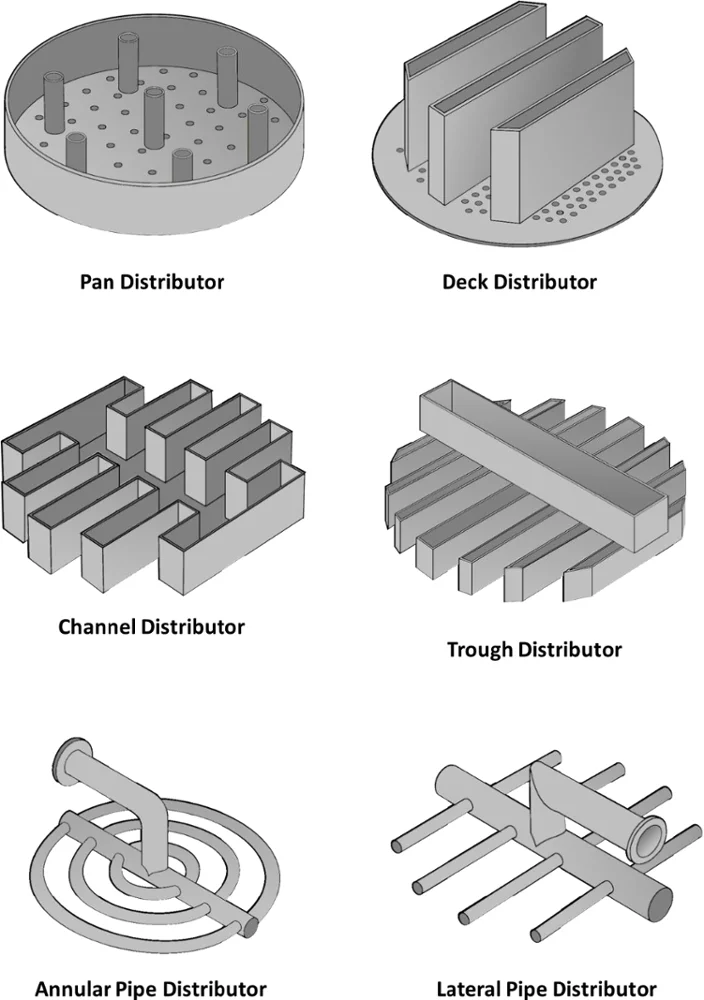

What types of liquid distributor for choice?
The liquid distributor has various types according to different standard and using conditions. Overall, it has four types.
* Spray nozzles. Hemispherical spray nozzle will distribute the liquids evenly to the random or structured packing bed. There are numerous small holes in 3–10 mm on the nozzle. It is suitable for the smaller diameter packed tower, which is smaller than 600mm.
* Perforated pipe distributor. Single row or double row perforated pipes will evenly distributed the liquid to the packing bed through perforated holes under the pipe. It is widely used in the medium liquid, reduced pressure distillation towers and wire gauze structured packing towers. It can be made into ladder shapes and ring shapes.

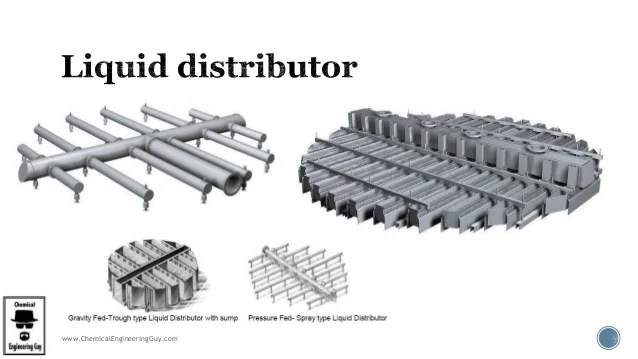

* Through distributor. It has through type and through-pan type, which is widely used in the heavy liquid and gas load, high viscosity liquid and liquid with suspended solid.
* Orifice distributor. It can be divided into perforated plate type and pan type. The liquid will flow down through perforated holes or overflow from the annulus between the distributor and the vessel. It is suitable for the small diameter tower, which is smaller than the 800 mm.
The liquid distributor has various types according to different standard and using conditions. Overall, it has four types.
* Spray nozzles. Hemispherical spray nozzle will distribute the liquids evenly to the random or structured packing bed. There are numerous small holes in 3–10 mm on the nozzle. It is suitable for the smaller diameter packed tower, which is smaller than 600mm.
* Perforated pipe distributor. Single row or double row perforated pipes will evenly distributed the liquid to the packing bed through perforated holes under the pipe. It is widely used in the medium liquid, reduced pressure distillation towers and wire gauze structured packing towers. It can be made into ladder shapes and ring shapes.
* Through distributor. It has through type and through-pan type, which is widely used in the heavy liquid and gas load, high viscosity liquid and liquid with suspended solid.
* Orifice distributor. It can be divided into perforated plate type and pan type. The liquid will flow down through perforated holes or overflow from the annulus between the distributor and the vessel. It is suitable for the small diameter tower, which is smaller than the 800 mm.
LD-01: Liquid distributor ensures uniform liquid distribution for high mass transfer efficiency.
LD-02: Perforated pipe liquid distributor.
LD-03: Through liquid distributor.
LD-04: Spray nozzle liquid distributor.
LD-05: Perforated type orifice liquid distributor.
Details Images
Product packaging
jumbo bag
carton box
woven bag
Certifications
FAQ
Company Profile
Pingxiang Nanxiang Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 16 years experience in Chemical Packing.
Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, random and structured chemical packing in ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmental application.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certificate, SGS report, and credible merchant of Alibaba. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven continents.
our company keeps living up to the belief of
“honest selling ,best quality ,people-orientation and benefits to customers” We are doing everything to offer our customers with best services and best products. We promise that we will be responsible all the way to the end once our services begin.
