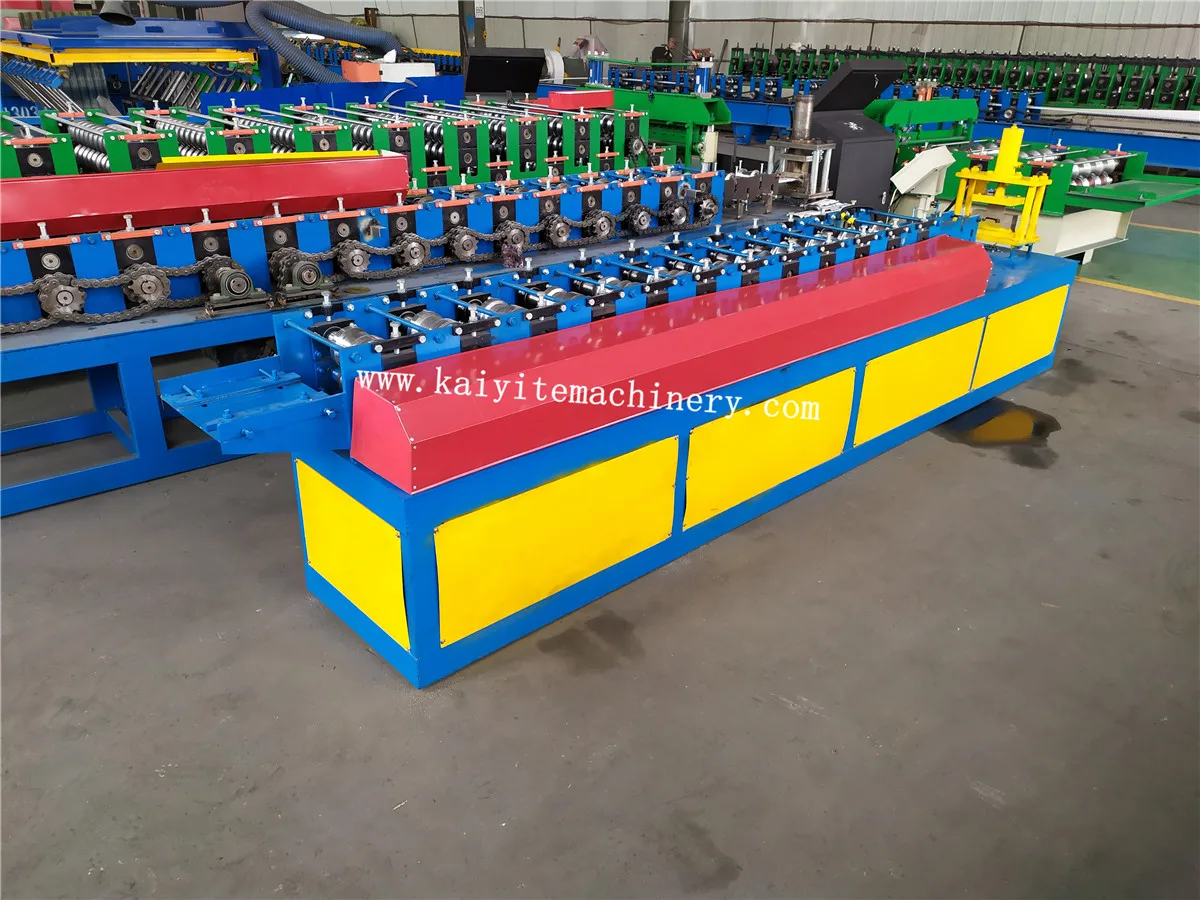

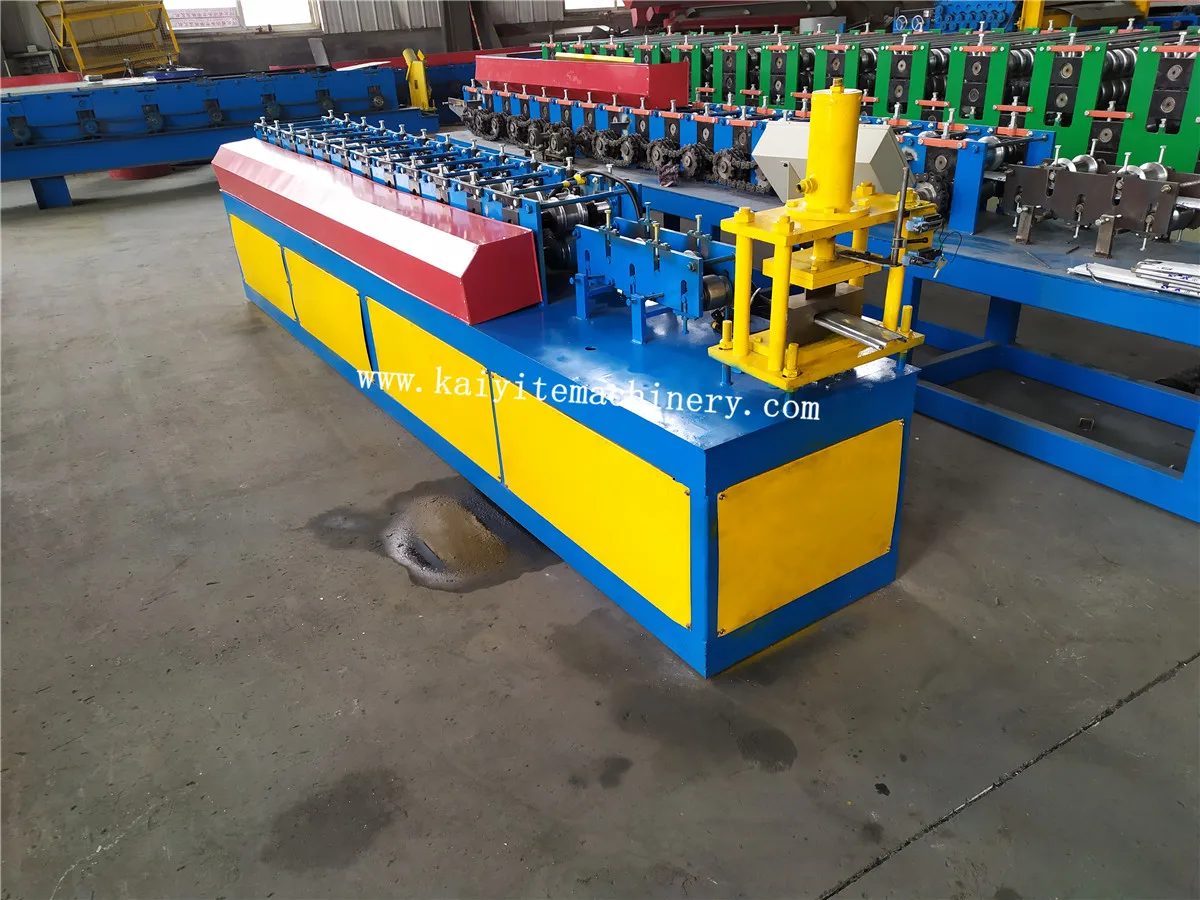

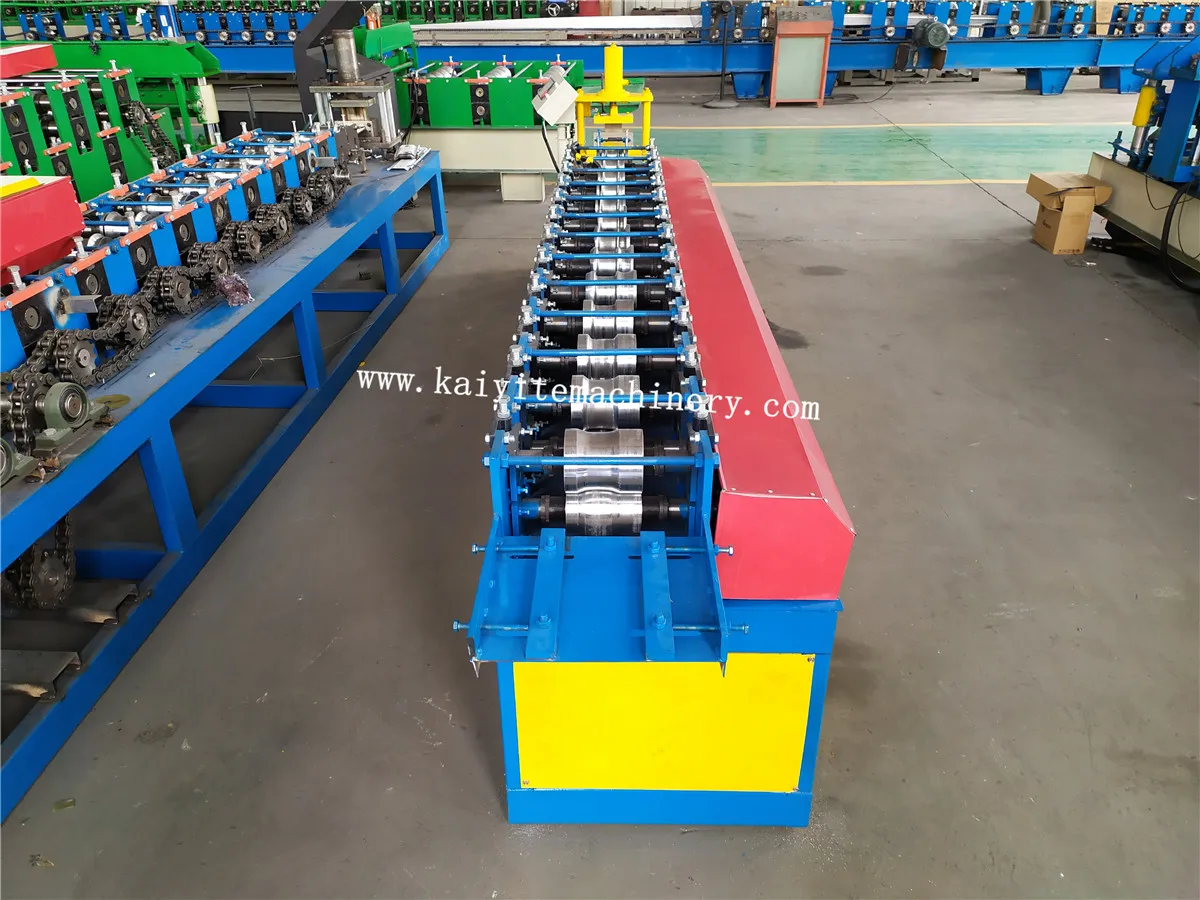

Rolling Door Roll Forming Machine/Roll up Door Slat Making Machine/Roller Shutter Door Strip Production Line
- Category: Window and Door Making Machine >>>
- Supplier: Botou Kaiyite Cold Bending Machinery Co. Ltd.
Share on (62523845372):
Product Overview
Description
Related Products

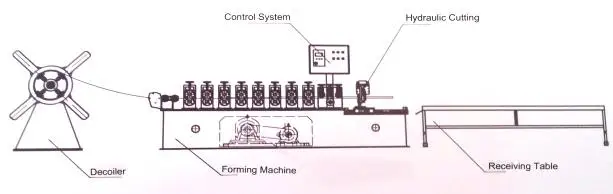

The working process.
Decoiler→Manual prectting→Material Guiding→Roll forming M/C→Hydraulic System→Post Cutting→Exit Rack
No. | Type | Specification | ||
1 | Raw Material | Type | Colored steel plate, Galvanized board, Aluminum plate ect | |
Feeding width | 122mm or According to client’s requirement | |||
Thickness | 0.7-0.8mm | |||
2 | Main Body | Forming roller station | 12 Stations | |
Straight roller station | 3 Stations ( Up layer 2 rollers , down layer 3 rollers ) | |||
Diameter of shaft | 40mm | |||
Shaft material | High grade 45# steel | |||
Roller material | High grade 45# steel , hard treatment and polishing ( plated chrome on surface ) | |||
Main body frame | Whole set of square pipe | |||
Frame thickenss | 14 mm | |||
Working speed | 8-15 m/min | |||
Size (L*W*H) | About 6800*850*1310mm | |||
Weight | About 2.5 tons | |||
3 | Power | Motor power | 3 kw | |
Hydraulic power | 3 kw | |||
Voltage | 380V 50Hz 3phases or Customerization | |||
Drving Way | By Gear | |||
4 | PLC Control System | Language | English and Chinese | |
Brand Of PLC | Delta brand ( Touch Screen ) | |||
Operation | Manual and Automatic ( Two Type ) | |||
Transducer | Delta brand | |||
5 | Cutting Device | Cutting Type | Hydraulic Cutting | |
Blade of Cutting | Cr12 , quenching treatment | |||
Cutting Tolerance | ± 1mm | |||

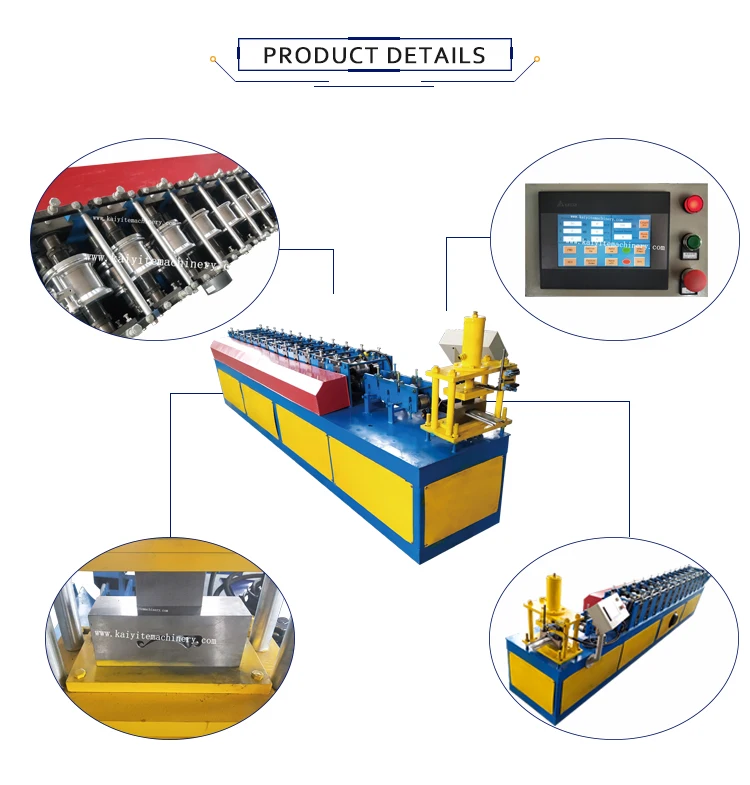

Product Description
This machine is very easy to operate.

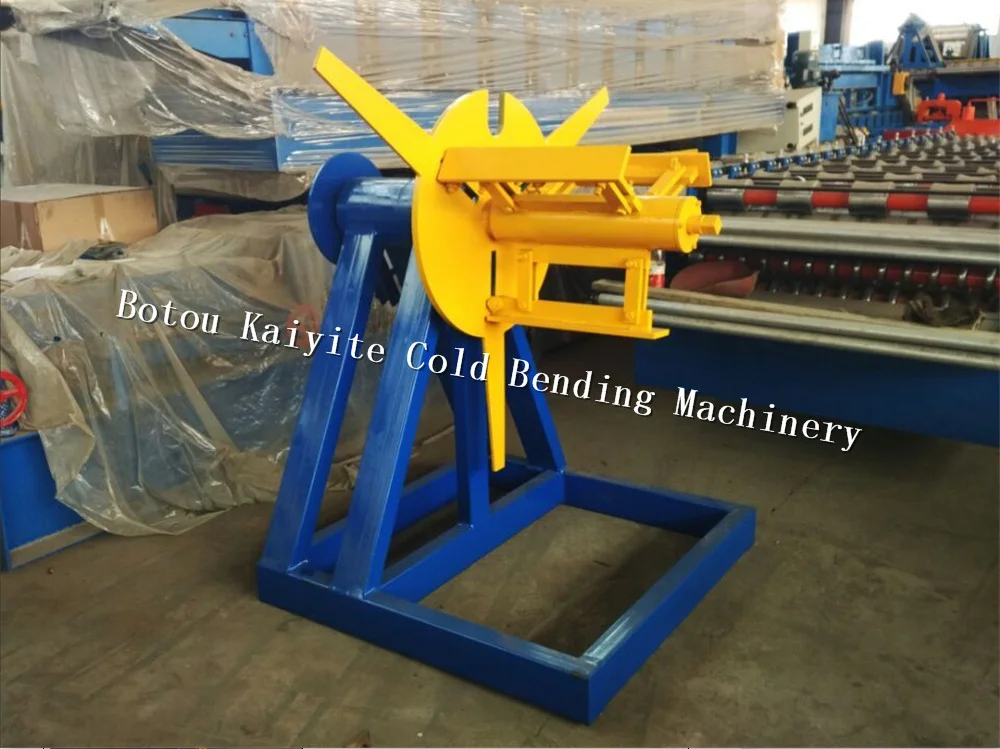

uncoiler
· Loading capacity ：
5T
· Inner diameter ：
470-530mm
· Steel coil width ：
914, 1000, 1220, 1250 mm.（
According to your actual drawing.
）
· Working speed ：
0-15m/min（
adjustable）
feeding table
· It is used to control the width and position of the steel sheet.
· The sheet is guided into the machine with the correct position to make sure the panel is neat and parallel.
mainframe
· Material ：350 H steel
· Feature ：more table, no shaking

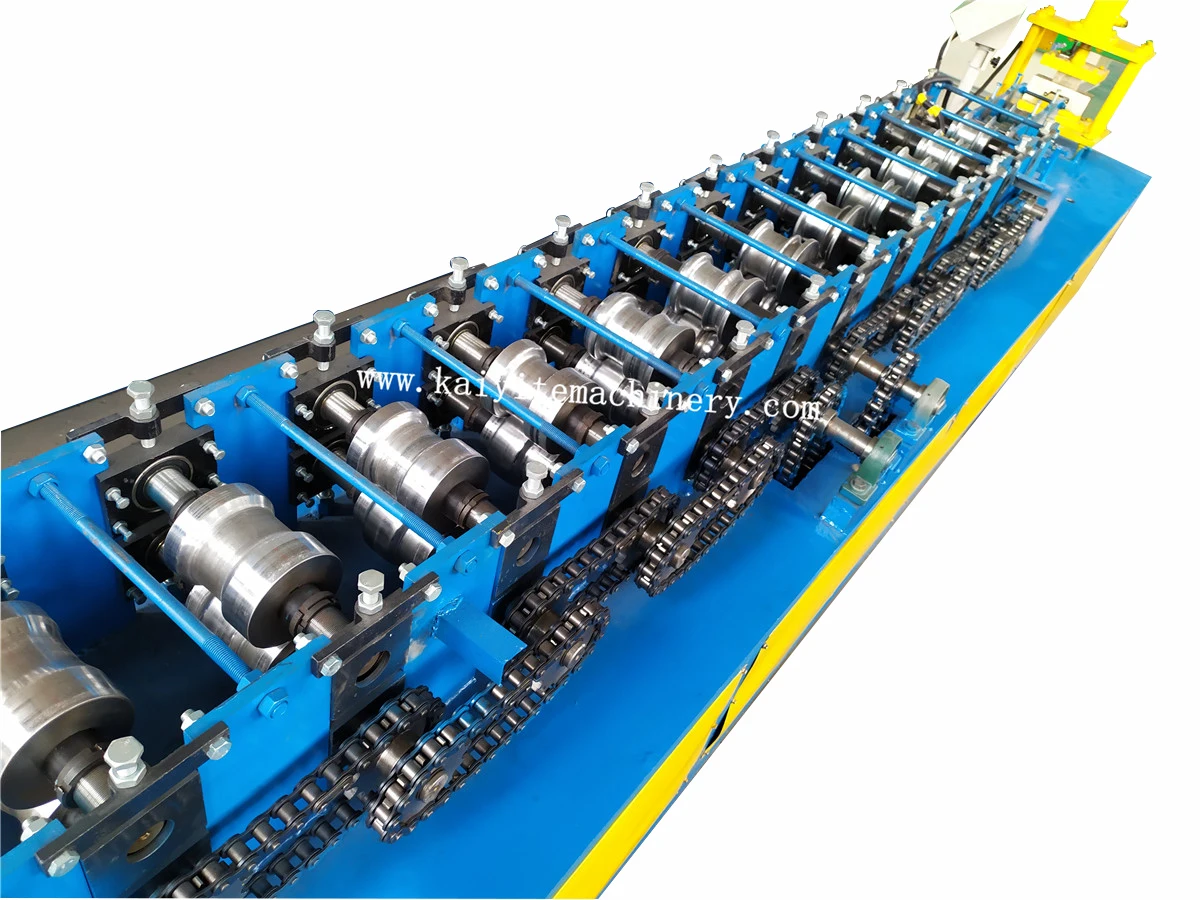

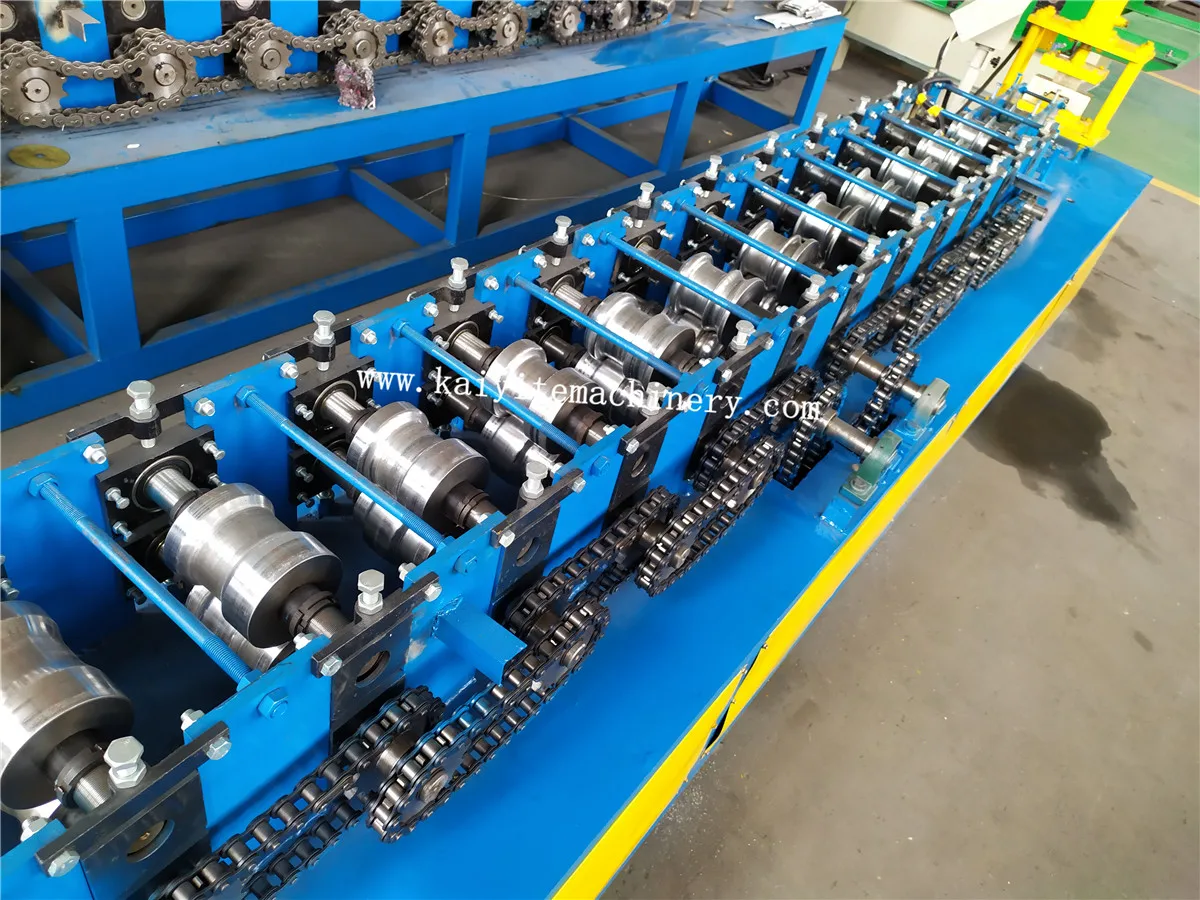

forming rollers
· Material：High grade 45# steel.
（According to your actual drawing.)

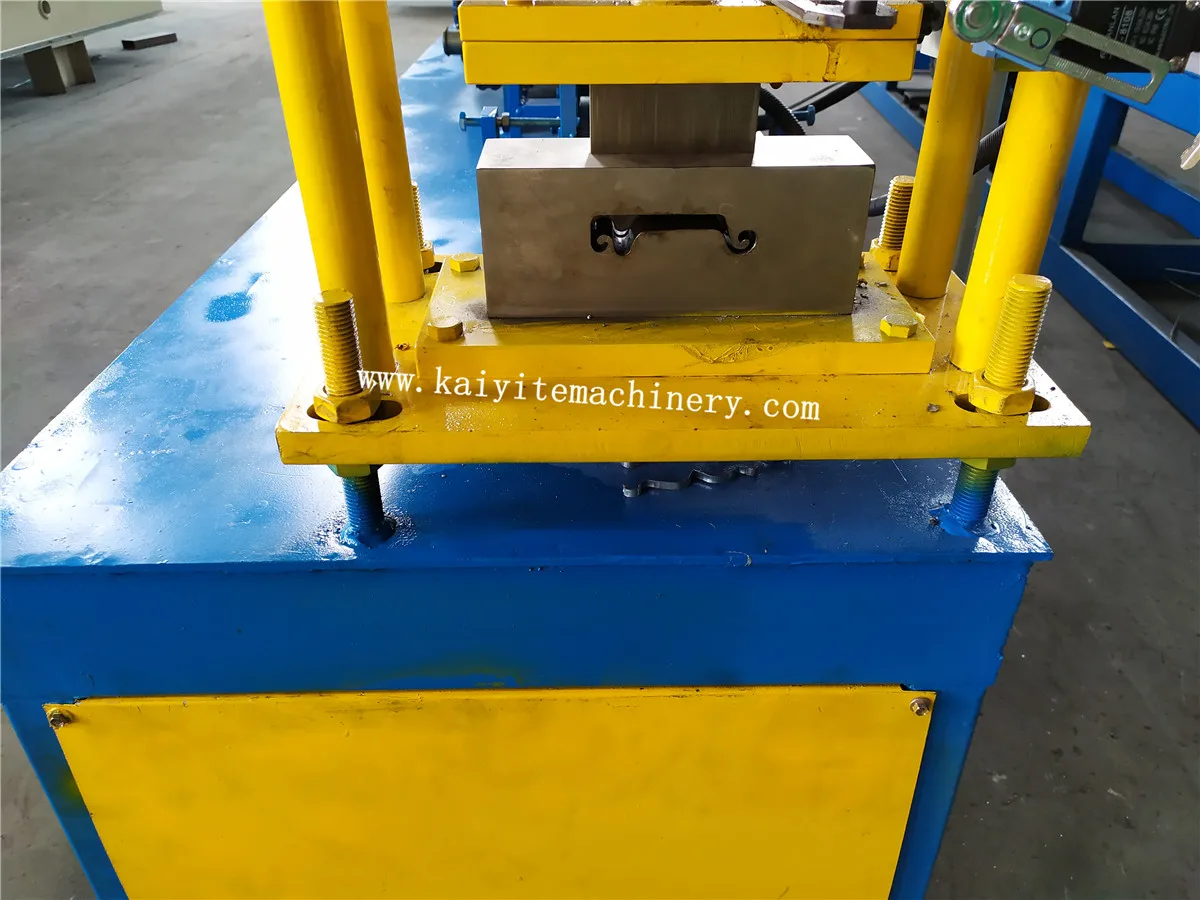

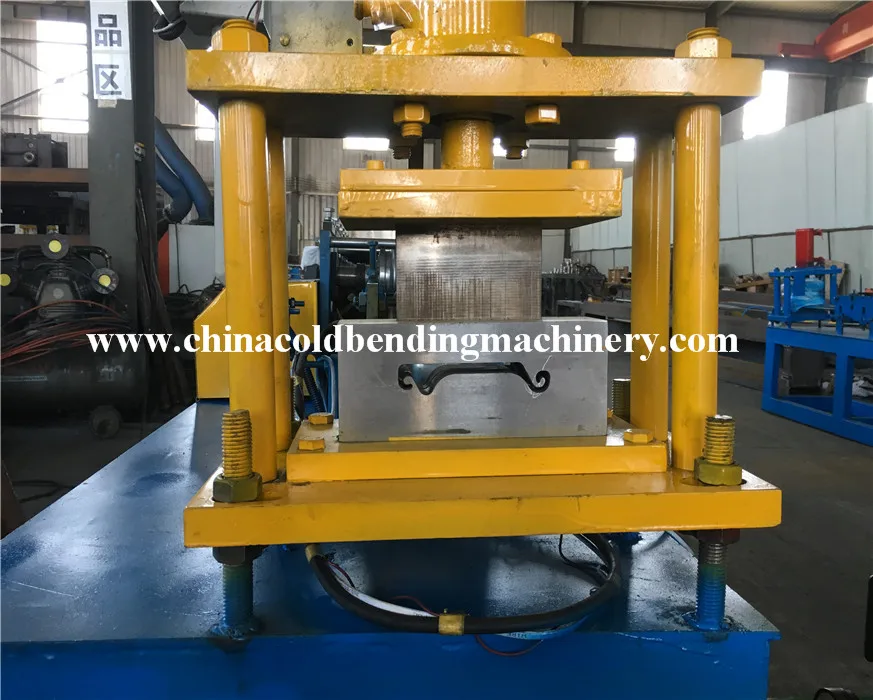

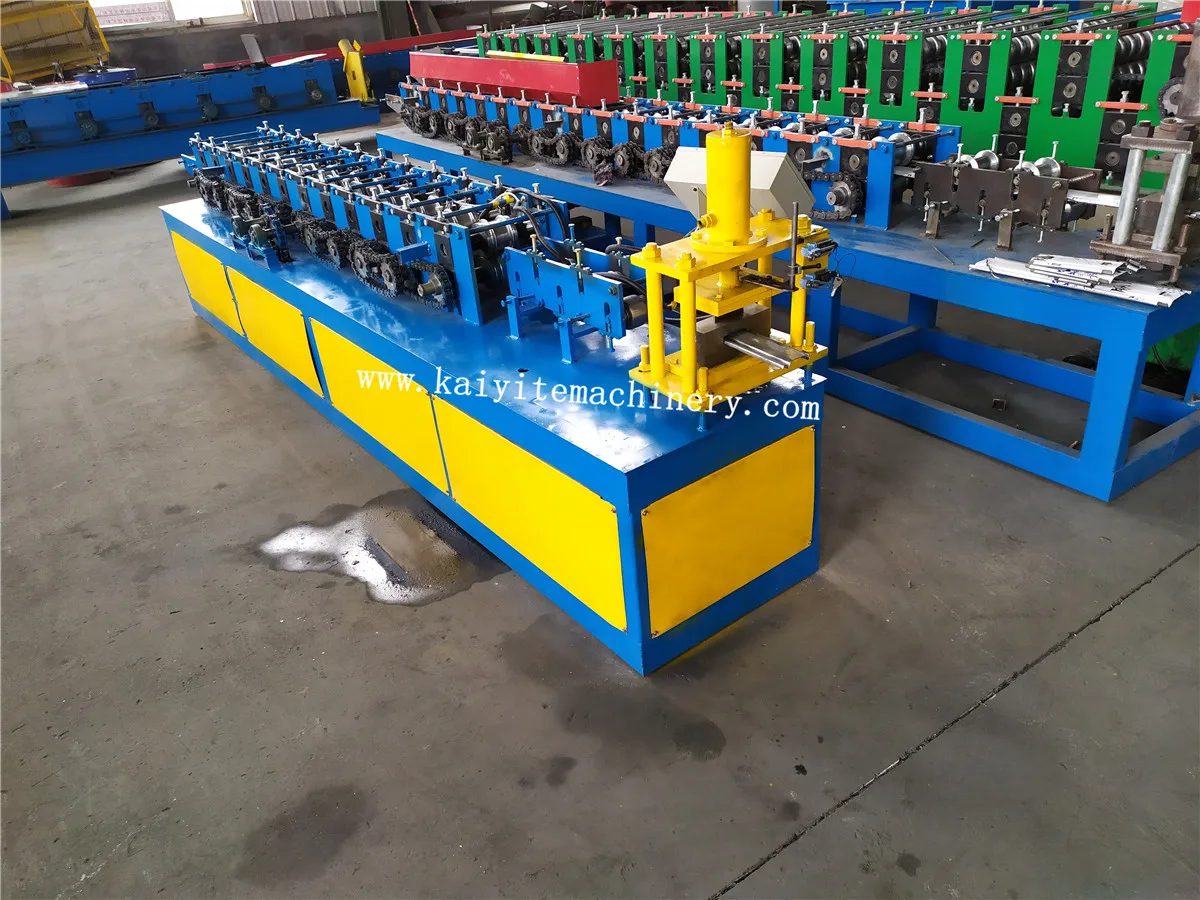

cutting system
· Material of blade ：Cr12MOV（much better than normal Cr12 material）
· Hydraulic power ：3 KW

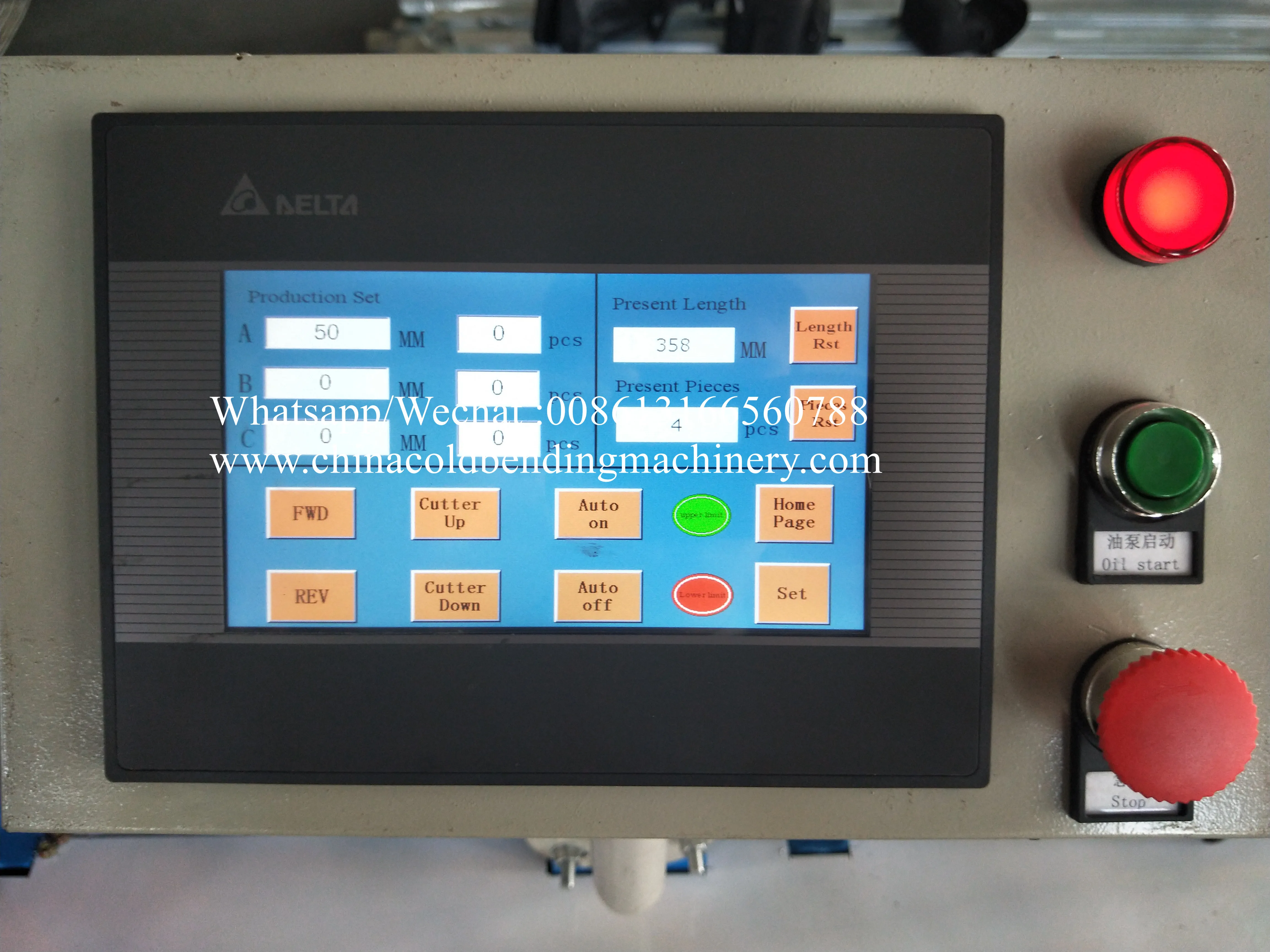

control cabinet
· Suitable power ：380V, 50Hz, 3phase
（or according to your need.） · Feature：The whole process is automatically controlled by the computer.
In this way, you can ensure accuracy and easy work.
Company Introduction
Packing&Shipping
1.We will wipe anti rust oil for the whole machine .
2.Plc controller will be covered by foam film
3.Spare parts are some small parts are packed in a wodden case.
4.All componenets are fixed well by steel wire with container.
2.Plc controller will be covered by foam film
3.Spare parts are some small parts are packed in a wodden case.
4.All componenets are fixed well by steel wire with container.
After Sales Service
1. a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Sevice
3 .a.We provide 5 years free warranty and free technical support for the whole life of any machine
b.24 hours technical support by email or calling
FAQ
Q1: Are you a manufacturer?
A1:Yes, we are professional manufacturer of the roll forming machine
Q2. What are the main key points for selecting right machines?
A2: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.
Q3. Can you provide OEM service for roll forming machine?
A3: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A4: We provide 5 years free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q5:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A5: If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food
Salary of 80 -100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to
take care of his safety.
Q6: I receive a lot of quotations, they are big range, How could i choose?
A6: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for
contacting with me.
Q7: I have not whatsapp and skype, how could I contact with you?
A7: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
Q8. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A8: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
When you arrive our station, we will arrange to pick up you there!
