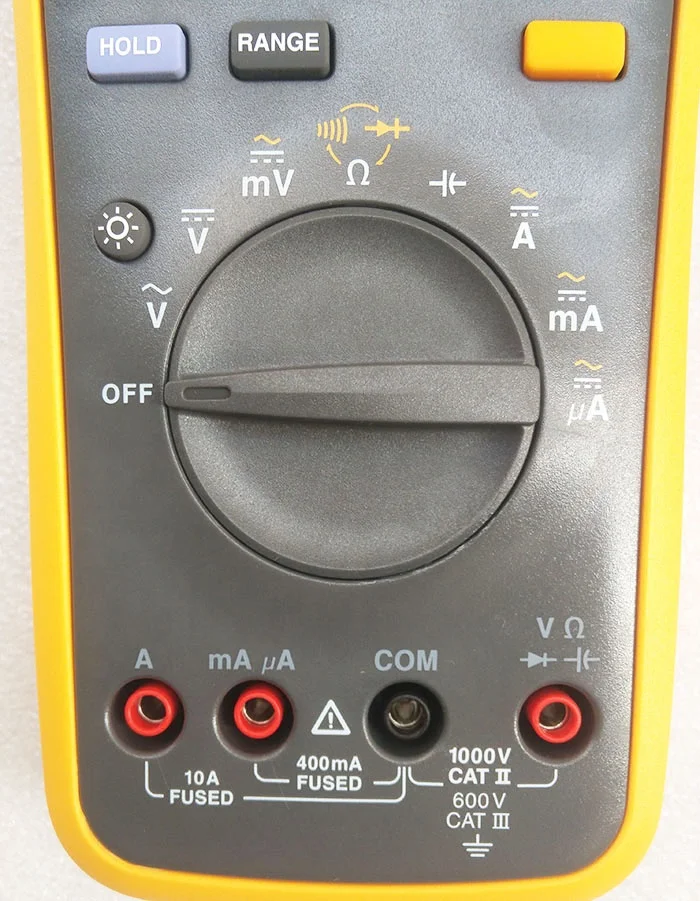

15B Digital Multimeter
- Category: >>>
- Supplier: Shenzhen Mreay Electronic Commerce Co. Ltd.Shenzhen Ltd.
Share on (62524409371):
Product Overview
Description
Product Description
F15B+ 4000 Counts AC/DC Voltage,Current,Capacitance,Ohm Auto/Manual Range Digital multimeter Meter Tester
Features :
Multiple functions with Auto / Manual ranges.
Large LCD display,4,000 Counts update 3/sec
Main Measurements : AC/DC Voltage/Current ,Capacitance, Diode & Continuity
Capacitance : 40.00nF/400.0nF/4.00uF/40.00uF/400.0uF/1000uF
AC Volts(40Hz-500Hz) : 4.000V/40.00V/400.0V/1000V
AC mV:400.0mV
DC Volts : 4.000V/40.00V/400.0V/1000V
DC mV:400.0mV
AC Current uA(40Hz-400Hz): 400.0uA/4000uA
AC Current mA(40Hz-400Hz):40.00mA/400.0mA
AC Current A(40Hz-400Hz):4.000A/10.00A
DC Current uA : 400.0uA/4000uA
DC Current mA:40.00mA/400.0mA
DC Current A:4.000A/10.00A
Resistance :400.0/4.000K/40.00K/400.0K/4.000M/40.00M ohm
Data Hold Function
Continuity Test with Alert
Diode Test
Both Auto range and Manual range Selectable
Overrange protection for all ranges
Polarity Indication : Indicates negative polarity
Sleep Mode / Auto Power off / Low Battery Indication
Continuity Test with Alert
Power Supply : 2 x AA 1.5V Battery (Not included)
General Specification:
Maximum voltage bettwen any Terminal and Earth Ground:1000V
Display(LCD):4000 Counts,updates 3/sec
Battery Type :2AA,NEDA 15A,IEC LR6
Battery Life :500 hours minimum
Temperature: Operating:0-40C
Storage:-30-60C
Relative Humidity:
Operating Humidity:Non-condensing<=90%
Operating Humidity,40 Mohm Range:<=80% at 10C to 30C,<=70% at 30C to 40C
Fuse protection for current inputs:440mA,1000V Fast Fuse ,Fluke specified part only
11A,1000V Fast Fuse ,Fluke specified part only
IP Rating:IP40
Safety:IEC 61010-1,IEC61010-2-030 600V CAT III,1000V CAT II,Pollution Degree 2
Features :
Multiple functions with Auto / Manual ranges.
Large LCD display,4,000 Counts update 3/sec
Main Measurements : AC/DC Voltage/Current ,Capacitance, Diode & Continuity
Capacitance : 40.00nF/400.0nF/4.00uF/40.00uF/400.0uF/1000uF
AC Volts(40Hz-500Hz) : 4.000V/40.00V/400.0V/1000V
AC mV:400.0mV
DC Volts : 4.000V/40.00V/400.0V/1000V
DC mV:400.0mV
AC Current uA(40Hz-400Hz): 400.0uA/4000uA
AC Current mA(40Hz-400Hz):40.00mA/400.0mA
AC Current A(40Hz-400Hz):4.000A/10.00A
DC Current uA : 400.0uA/4000uA
DC Current mA:40.00mA/400.0mA
DC Current A:4.000A/10.00A
Resistance :400.0/4.000K/40.00K/400.0K/4.000M/40.00M ohm
Data Hold Function
Continuity Test with Alert
Diode Test
Both Auto range and Manual range Selectable
Overrange protection for all ranges
Polarity Indication : Indicates negative polarity
Sleep Mode / Auto Power off / Low Battery Indication
Continuity Test with Alert
Power Supply : 2 x AA 1.5V Battery (Not included)
General Specification:
Maximum voltage bettwen any Terminal and Earth Ground:1000V
Display(LCD):4000 Counts,updates 3/sec
Battery Type :2AA,NEDA 15A,IEC LR6
Battery Life :500 hours minimum
Temperature: Operating:0-40C
Storage:-30-60C
Relative Humidity:
Operating Humidity:Non-condensing<=90%
Operating Humidity,40 Mohm Range:<=80% at 10C to 30C,<=70% at 30C to 40C
Fuse protection for current inputs:440mA,1000V Fast Fuse ,Fluke specified part only
11A,1000V Fast Fuse ,Fluke specified part only
IP Rating:IP40
Safety:IEC 61010-1,IEC61010-2-030 600V CAT III,1000V CAT II,Pollution Degree 2
