Column Internals Drip Tube Deck Liquid Distributor
- Category: Chemical Machine Parts >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (62526569039):
Product Overview
Description
Products Description
Drip Tube Deck Distributo
To acquire the maximum efficiency in packed column, liquid should be distributed uniformly over the packed bed.Therefore, Liquid
Distributors are used above each bed of packing.Good practice designed distributors have following specifications:
* Uniform liquid distribution
* Operation flexibility through the turn down range
* Low vapor pressure drop
* Low liquid residence time
* Capability to be used as combined with collector for re-distribution
* Minimum distributor height
* Fouling resistance
* Cross mixing capability
Distributors are used above each bed of packing.Good practice designed distributors have following specifications:
* Uniform liquid distribution
* Operation flexibility through the turn down range
* Low vapor pressure drop
* Low liquid residence time
* Capability to be used as combined with collector for re-distribution
* Minimum distributor height
* Fouling resistance
* Cross mixing capability
In the mass transfer process, evenly distribution of liquid and gas is certain important. If the liquid and gas are not evenly distributed across the superficial tower area when it enters the packing bed, the liquid-to-gas ratio will be incorrect and the required separation efficiency will be reduced and even fail. To ensure the intimate contact and high mass transfer efficiency, any cross section In the packed tower should be evenly distributed with gas and liquid. So, the liquid distributor, especially the pre-distributor is priority among priorities.

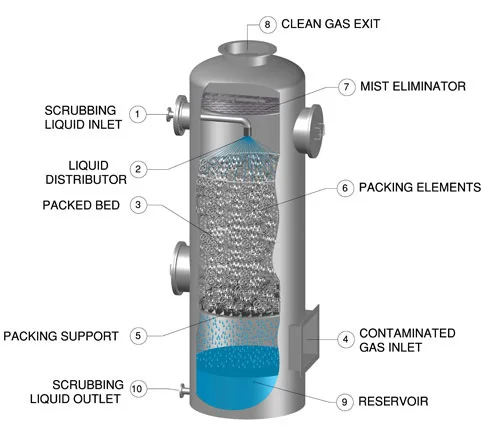

Liquid distributor is an important tower internals in the packed tower, which is installed upper of the packing hold down and connect with the liquid inlet. The structure of liquid distributor should be reasonable to prevent disturbing hold down device for higher mass transfer efficiency.
Liquid distributor is an important tower internals in the packed tower, which is installed upper of the packing hold down and connect with the liquid inlet. The structure of liquid distributor should be reasonable to prevent disturbing hold down device for higher mass transfer efficiency.
What types of liquid distributor for choice?

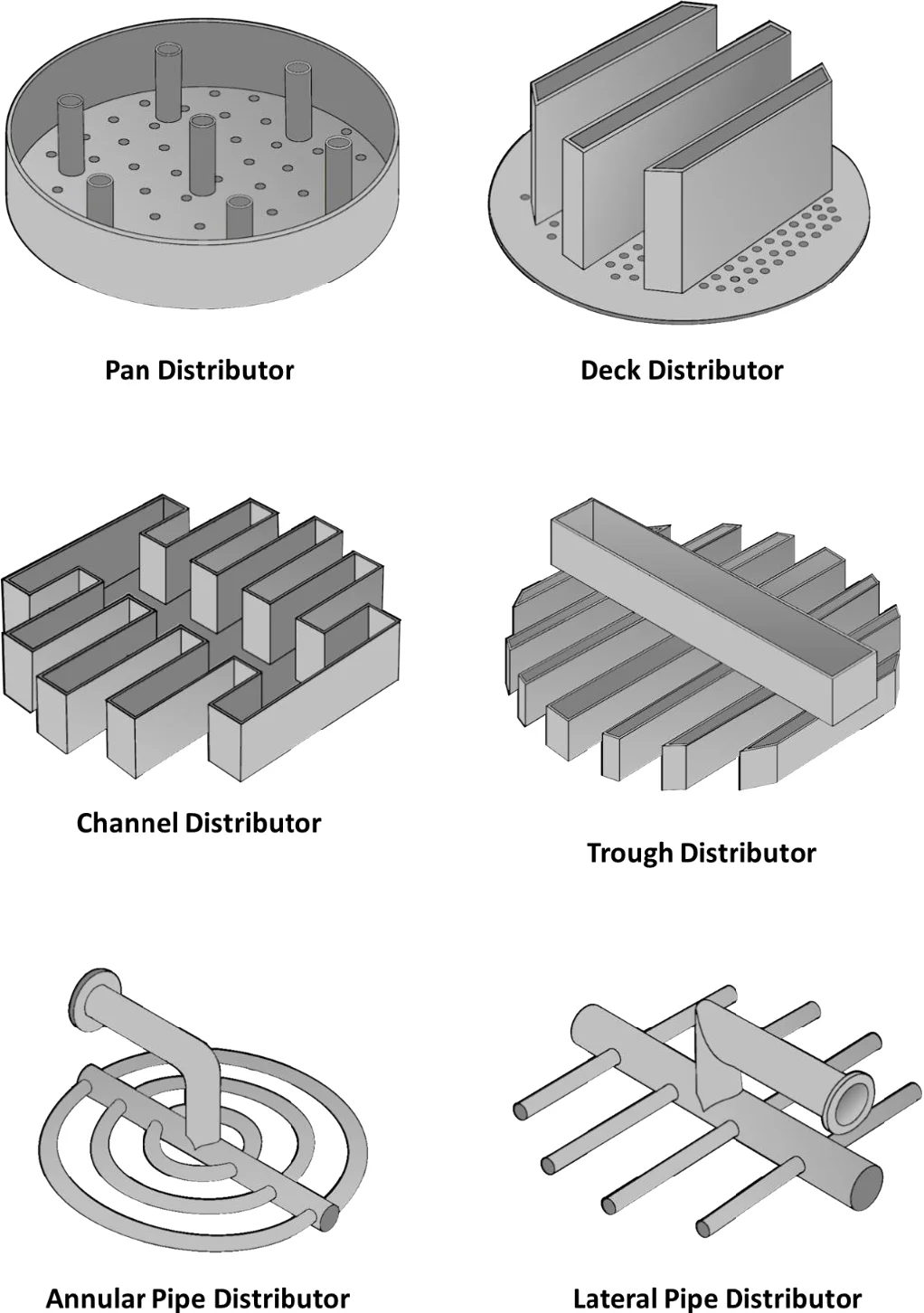

The liquid distributor has various types according to different standard and using conditions. Overall, it has four types.
* Spray nozzles. Hemispherical spray nozzle will distribute the liquids evenly to the random or structured packing bed. There are numerous small holes in 3–10 mm on the nozzle. It is suitable for the smaller diameter packed tower, which is smaller than 600mm.
* Perforated pipe distributor. Single row or double row perforated pipes will evenly distributed the liquid to the packing bed through perforated holes under the pipe. It is widely used in the medium liquid, reduced pressure distillation towers and wire gauze structured packing towers. It can be made into ladder shapes and ring shapes.
* Through distributor. It has through type and through-pan type, which is widely used in the heavy liquid and gas load, high viscosity liquid and liquid with suspended solid.
* Orifice distributor. It can be divided into perforated plate type and pan type. The liquid will flow down through perforated holes or overflow from the annulus between the distributor and the vessel. It is suitable for the small diameter tower, which is smaller than the 800 mm.
The liquid distributor has various types according to different standard and using conditions. Overall, it has four types.
* Spray nozzles. Hemispherical spray nozzle will distribute the liquids evenly to the random or structured packing bed. There are numerous small holes in 3–10 mm on the nozzle. It is suitable for the smaller diameter packed tower, which is smaller than 600mm.
* Perforated pipe distributor. Single row or double row perforated pipes will evenly distributed the liquid to the packing bed through perforated holes under the pipe. It is widely used in the medium liquid, reduced pressure distillation towers and wire gauze structured packing towers. It can be made into ladder shapes and ring shapes.
* Through distributor. It has through type and through-pan type, which is widely used in the heavy liquid and gas load, high viscosity liquid and liquid with suspended solid.
* Orifice distributor. It can be divided into perforated plate type and pan type. The liquid will flow down through perforated holes or overflow from the annulus between the distributor and the vessel. It is suitable for the small diameter tower, which is smaller than the 800 mm.

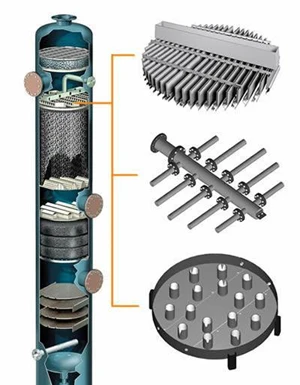

LD-01: Liquid distributor ensures uniform liquid distribution for high mass transfer efficiency.

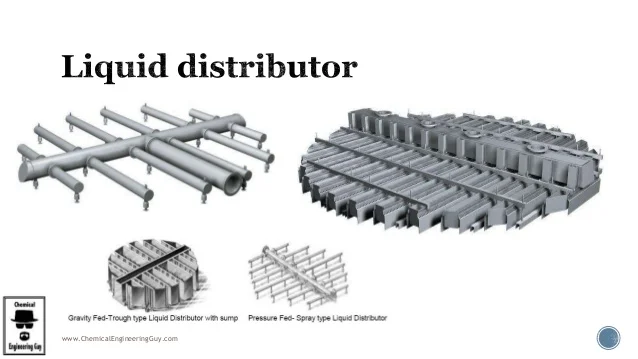

LD-02: Perforated pipe liquid distributor.
LD-03: Through liquid distributor.
LD-04: Spray nozzle liquid distributor.
LD-05: Perforated type orifice liquid distributor.
