Гибридная солнечная система Vmaxpower 3 кВт, 24 В для установки солнечных панелей на крыше класса А и контроллера MPPT, солнечная система
- Category: Solar Energy Systems >>>
- Supplier: Beijing Multifit Electrical Technology Co. Ltd.
Share on (62532285693):
Product Overview
Description
Product Description
Specification

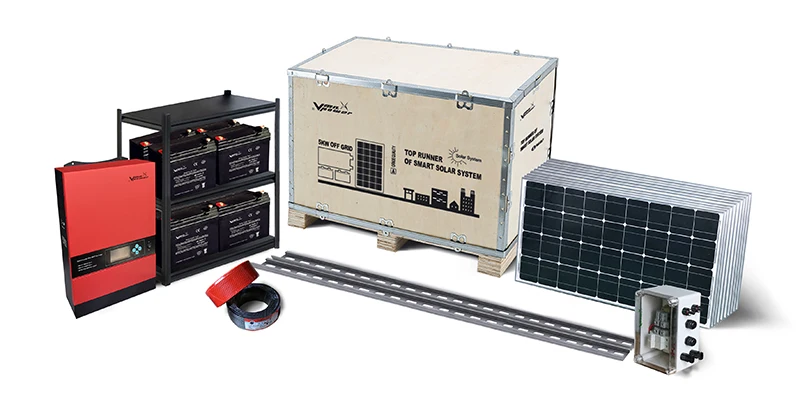

Vmaxpower 3KW Solar Off Grid Solar System(DC Voltage：24V) | ||||||||
Items | Product Name | Specification | Quantity | Remarks | ||||
1 | Solar Panels | MUL-6M-350P-72 Poly 350W | 9pcs | Size:1950*990*40 | ||||
2 | Inverter with MPPT Controller | SuninvM HF Pro 3K 24V 3000W | 1 | Warranty: 2 years | ||||
3 | Seal lead acid battery | MUL-12V 200A Battery | 4pcs | AGM type Deep Cycle solar battery | ||||
4 | Solar Brackets | 6m C type steel | 9pcs | Size:41*41*2.5mm | ||||
5 | PV cables(MC Four to inverter) | Black and Red | 100m(each) | 100M red,100M black | ||||
6 | MC Four connector ( C type steel connecting bolt and screw) | Customized by your requirement | 10 set | Durable tools | ||||
Product Details

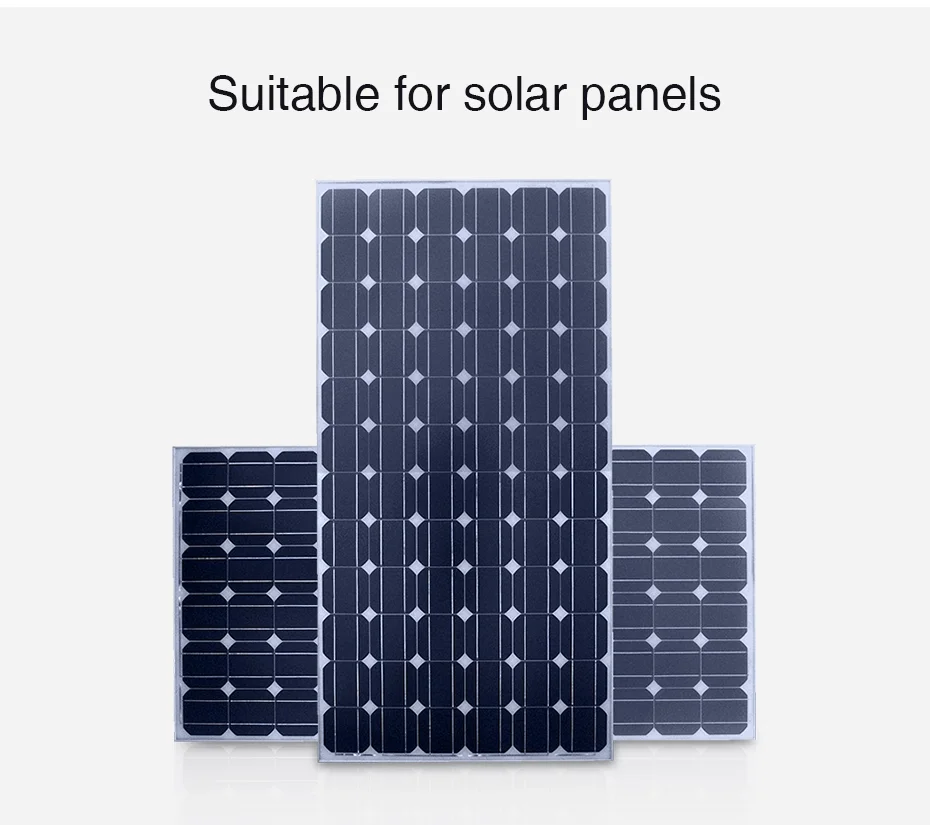

Solar Panels(350W Polycrystalline)
Peak Power Watts: 350W (MUL-350P-72)
Maximum Power Voltage: 38.9V
Maximum Power Current: 9.26A
Open Circuit Voltage: 48.3V
Short Circuit Current: 9.68A
Dimensions:1950×992×40 mm
Maximum Power Voltage: 38.9V
Maximum Power Current: 9.26A
Open Circuit Voltage: 48.3V
Short Circuit Current: 9.68A
Dimensions:1950×992×40 mm

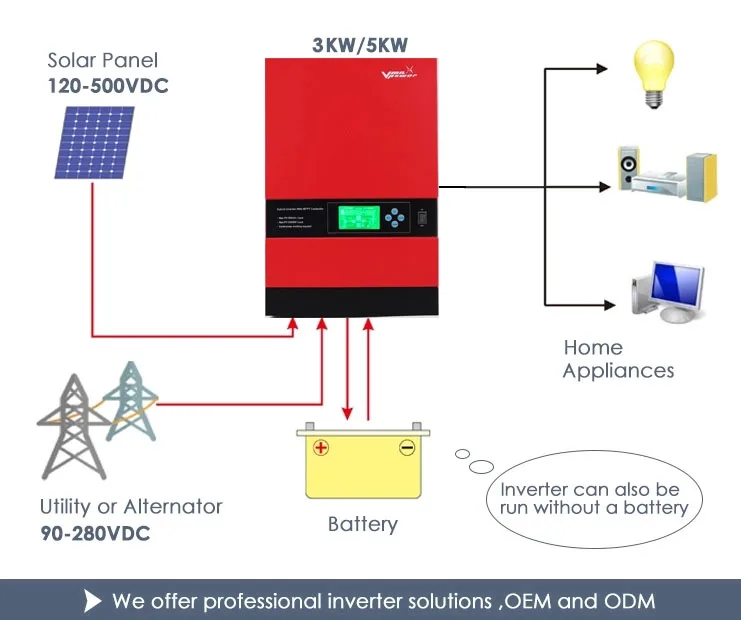

Solar Hybrid Inverter with MPPT Controller
Hybrid Inverter Inverter with MPPT Controller
Rated Output Power: 3KW
Peak Power: 2KVA/4KVA/6KVA/8KVA/10KVA
Wide PV input range up to 500VDC
MPPT Controller: 80A
Work without battery,Batteryless suppot,
AC Charger Voltage: 170V-280V(Adjustable)
Support AC &Generator Input
Warranty: 2 Years
Lead acid & Gel & Lithium battery
Capacity(kWh): 2.4KWH
Nominal Voltage(Vdc): 12V
Nominal Capacity(AH): 200Ah
Depth of Discharge: 70%
Nominal Voltage(Vdc): 12V
Nominal Capacity(AH): 200Ah
Depth of Discharge: 70%
Warranty: 2 years
DC Combiner Box
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
SPD, Fuse are optional

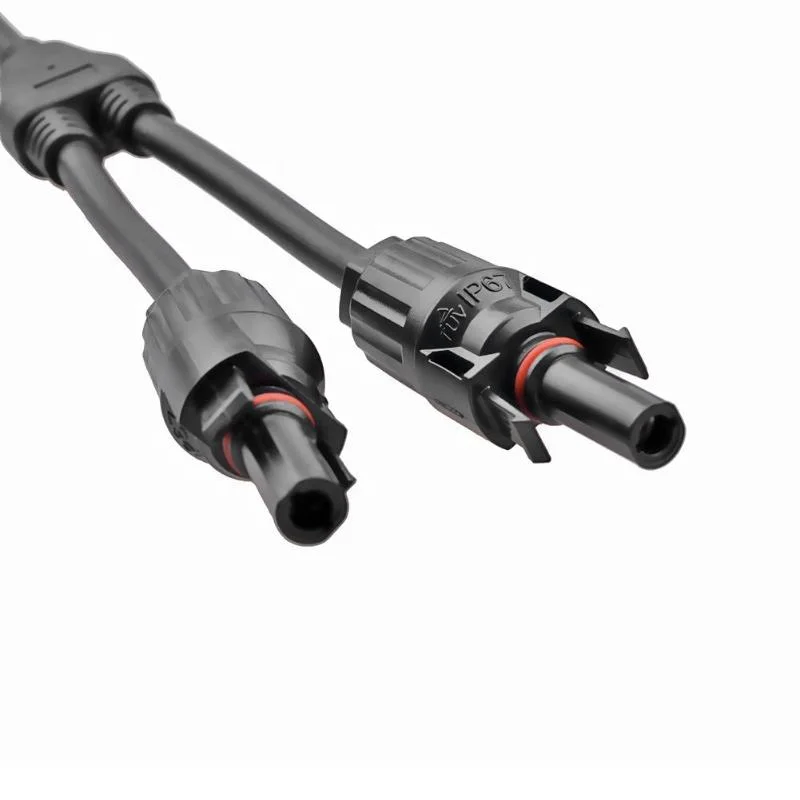

Solar cable &MC Four
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:/1000VDC/1500VDC
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:/1000VDC/1500VDC
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Four type of solar brackets are optional
There are four types of bracket installing. Weight:18.6 kg (41.0 lbMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
You can choose the most appropriate one for your part, We will customize by your requirements.
Mid & End Clamps: 35,40,45,50mm
You can choose the most appropriate one for your part, We will customize by your requirements.
(Click on the customer service on the right side >>> )

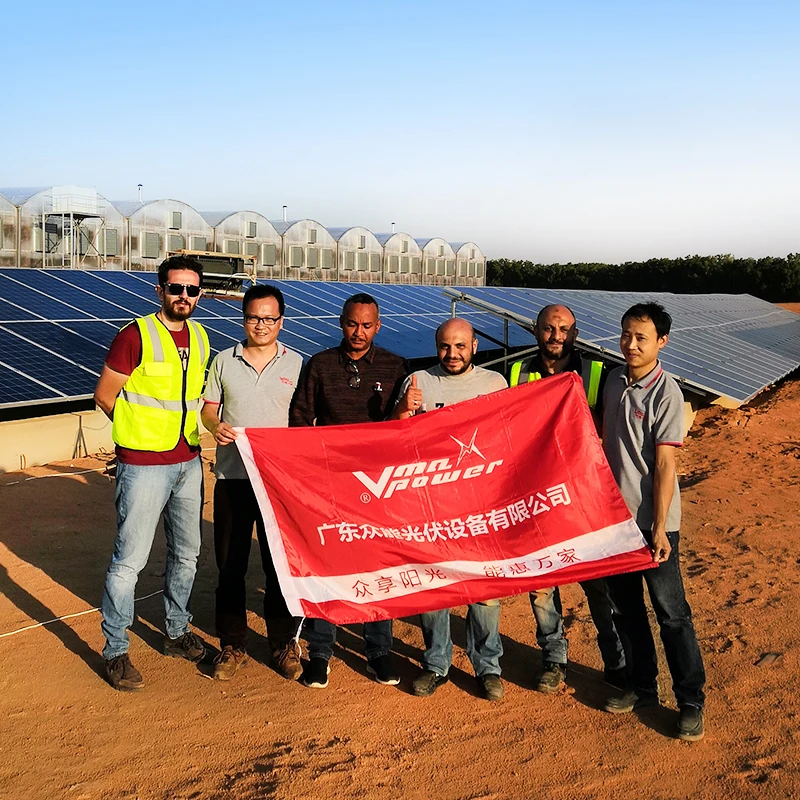

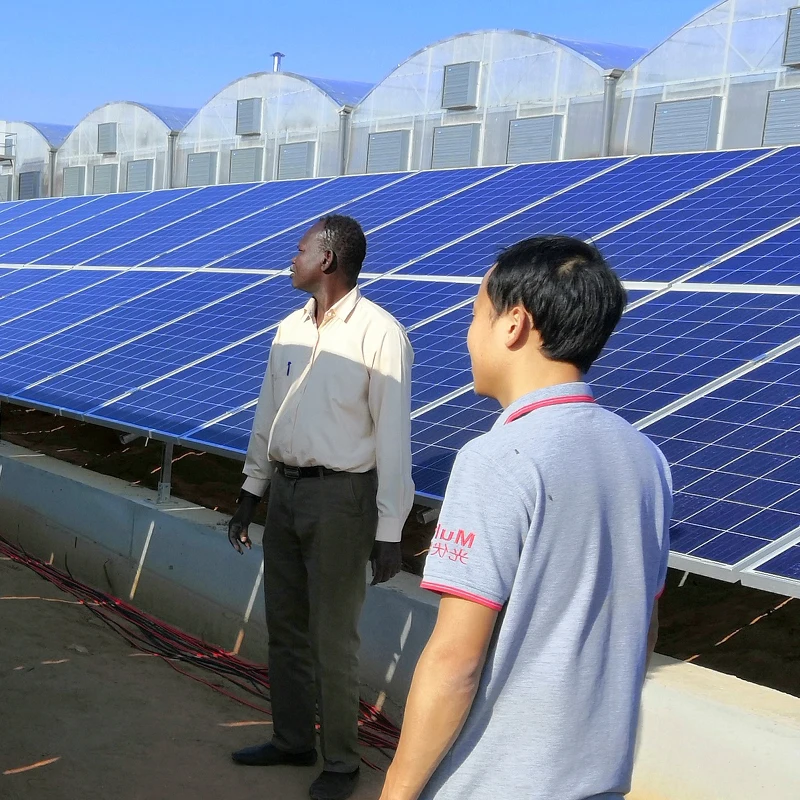

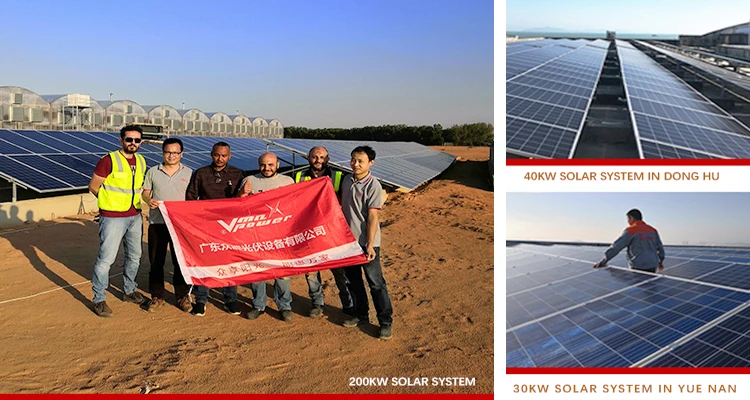

Solar Projects & Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

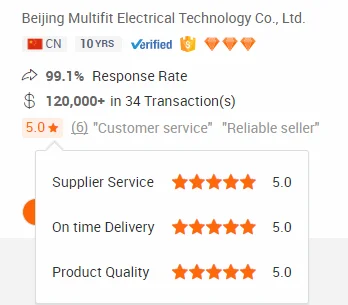

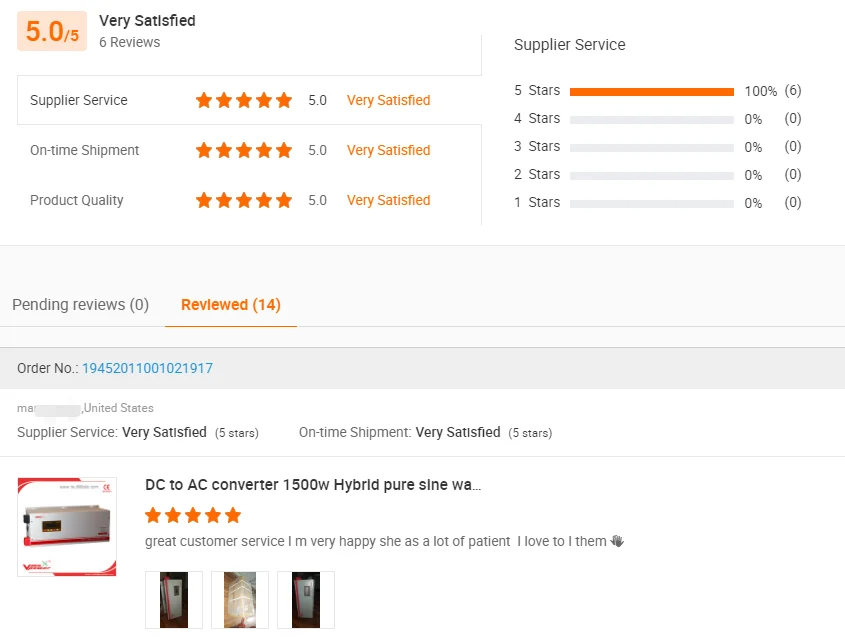

Alibaba & Feedbacks
Company Profie
Beijing Multifit Electrical Technology Co.,ltd is a high-tech plant for the solar power system and renewable energy products . We
undertake the projects related to electrical engineering design and installation also. Beijing Multifit , Founded in 2009, focused
on providing world-calss, small-scale photovoltaic power plant .
There are more than 50 countries and regions in the world and meet various needs of different regions'customers.
We never try to our best to grow up and enhance the customer's satisfaction and awareness.
Sunshine for you, Multifit for all.
