Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer is based on advanced technical design of European countries,combined with practical experiences from tube factories.Being the best Choice of PE tube printing,it has stable quality and easy to operate and maintenance. Printing blanket unit,mandrel disk unit and oven can obtain the most reasonable in line speed by using individual motor and control constant speed by computer.There are three functions of this machine:printing,coating and drying separately or in line. It is most suitable for precise & clear printing.It also provide larger printing area & half tone jobs facility. For method of coating and drying,there are Regular Oven and UV Drying or both together for optional.
Parameter
Printing ink unit motor
3.7kw
Mandrel motor
2.2kw
Oven motor
2.2kw
Printing ink adjusting motor
90w*6pcs
Applicable printing ink
UV printing ink
Applicable printing plate
copper, zinc, resin
Antistatic capacity
3kw
UV drying capacity
5kw
Max. printing diameter
16mm-60mm
Max. Printing tube length
200mm
Printing speed
≤60pcs/min
Air supply
0.3-0.5MPa
Power consumption
53kw
Dimension
11500*1570*2150mm
Direction for Use

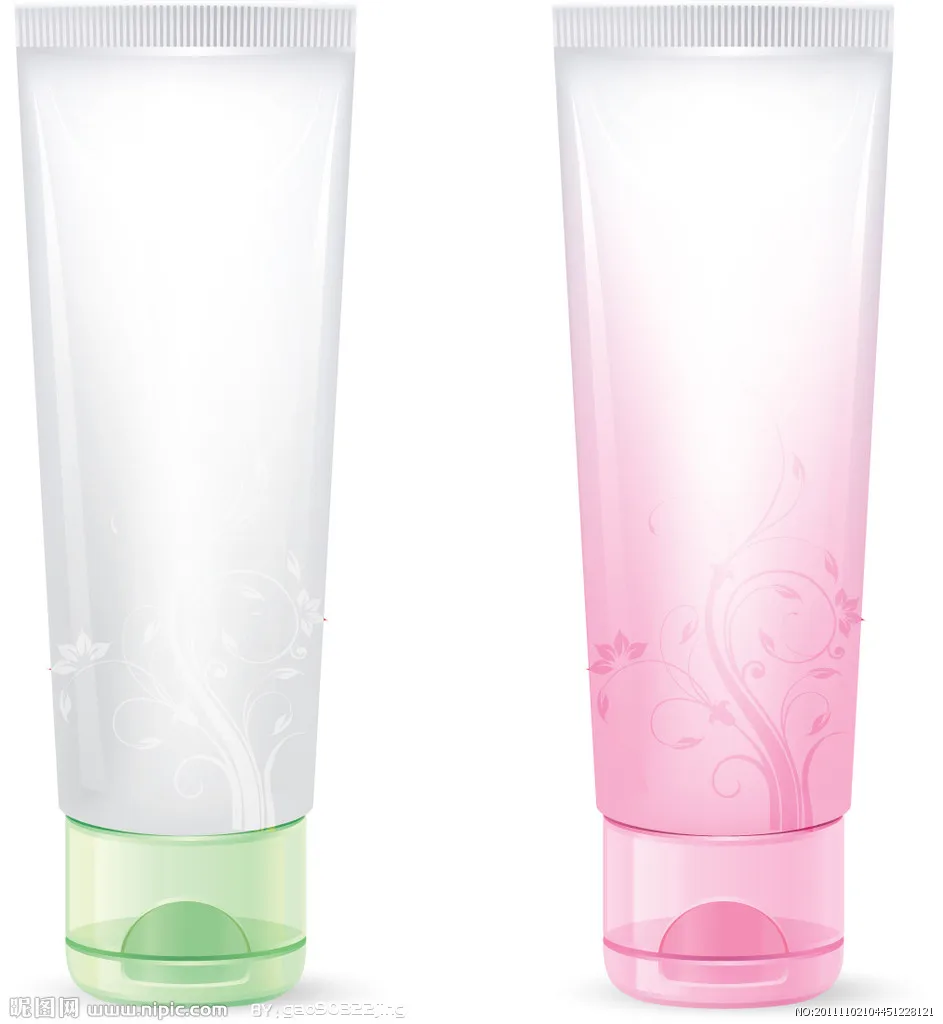

Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer used for printing seamless PE tubes which has one layer, two layer, three layers and multiple layers to package cosmetics like cleanser, hand cream, shampoo, lotion, etc.
Description of Features
Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer
1. For UV lacquer,special UV oven is required,with which to obtain rapid drying out and more glossy surface.We also offer UV & heater oven in common which can save space and easy to operate and save energy for our customer to choose accordingly. 2. Precise index ensures accuracy of every movement.It is easy to dismount/rectify printing mandrel. 3. Tube feeding system works with detector.Coating will not be proceed without tube on mandrel.Machine will stop automatically if tubes are not taken from mandrel to the oven. 4. Corona system with precipitator ensures cleaning of tubes before printing. 5. Reasonable ink-transmission system shows good effect to large area/screen point printing. 6. Foldable ink unit is easy to clean,change color and stick printing plate.
Detailed Images

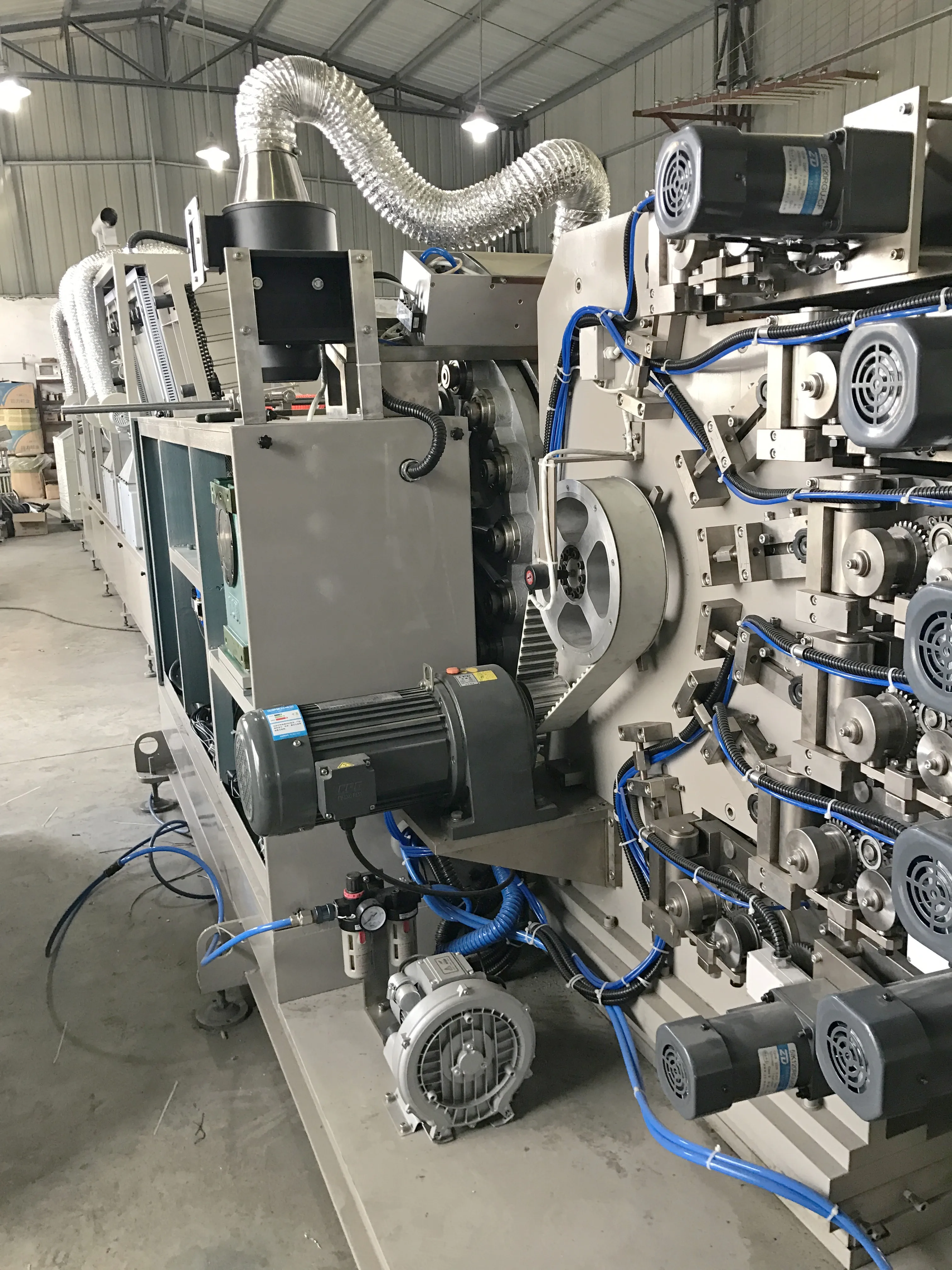

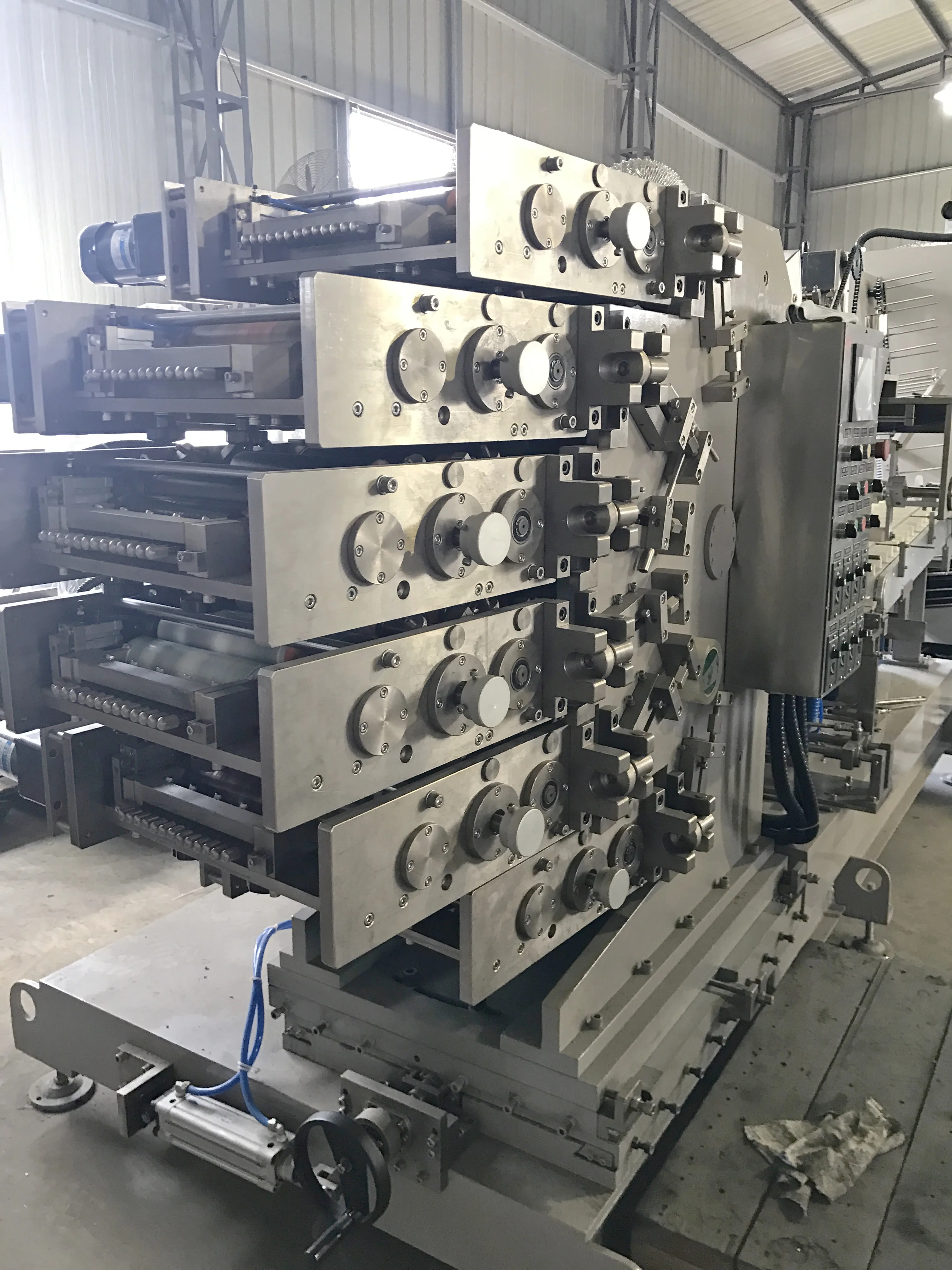

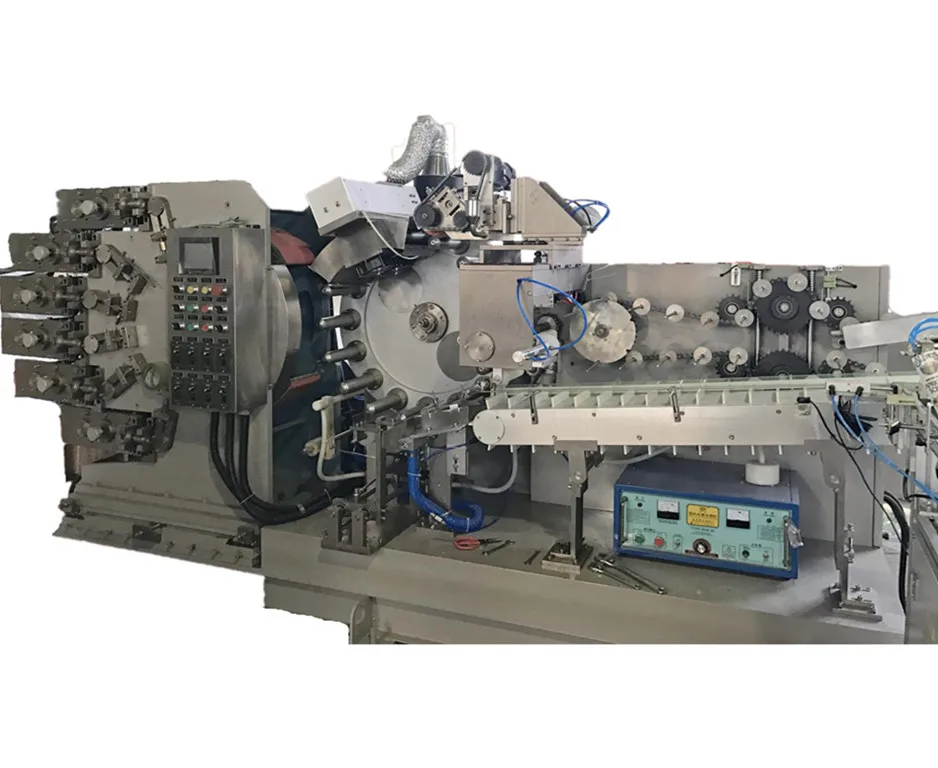

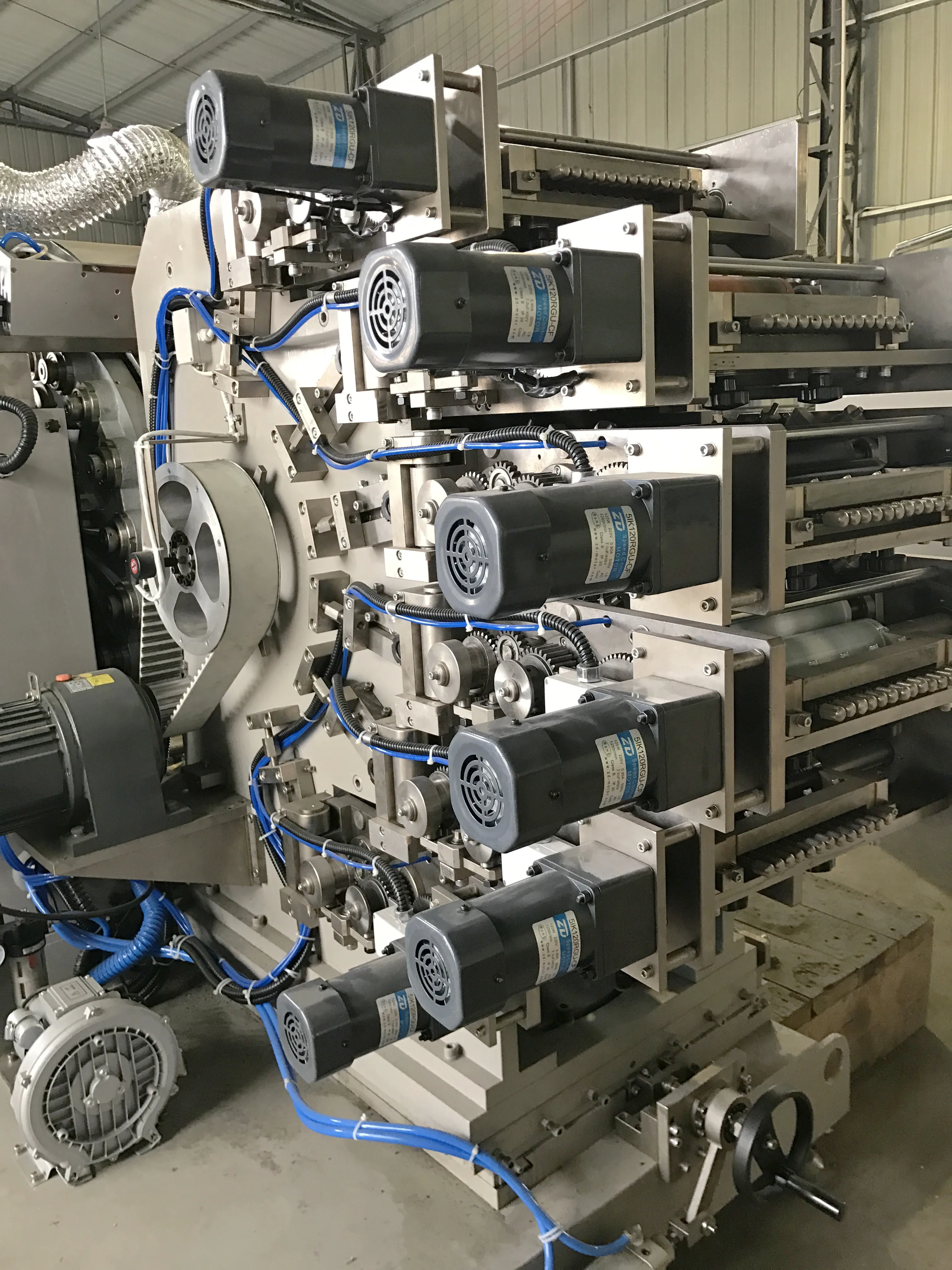

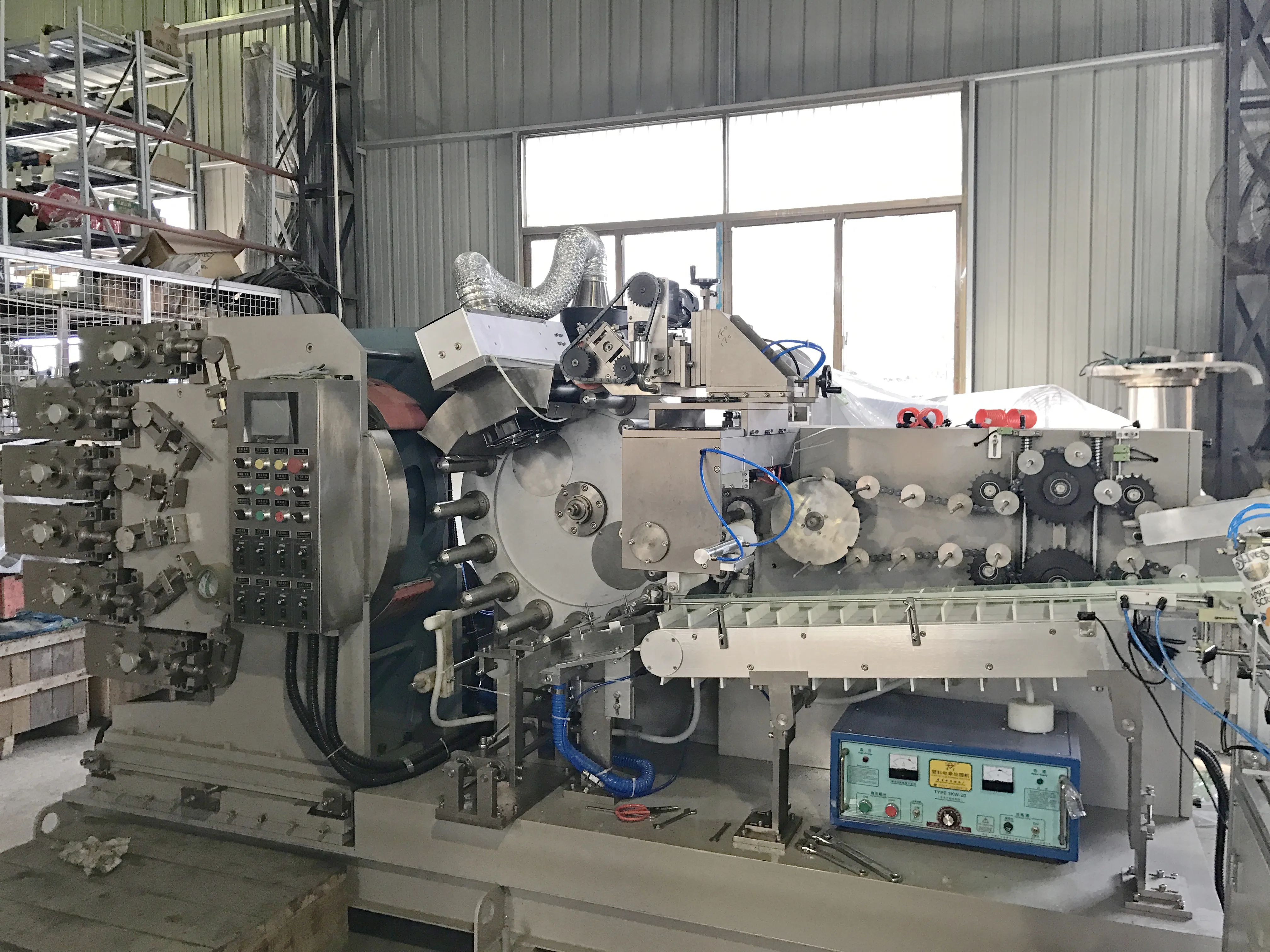

Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer details like belowing picture.
Related Products
Packing&Shipping
Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer is suitable packaged in standard exporting wooden cases which can protect the goods in a safe way during the long time sea shipping.
After Sales Service
Pre-sales services
* Inquiry and consulting support.
* Video conference to see our products
* View our Factory.
After-sales Services
* Free parts in warranty * Video support and 24*7 hours services online * Installation, training and machine maintenance
Company Introduction
Sunway, composed of Shanghai Sunway Technology Co., Ltd., Shanghai Sunway Packaging Machinery Co., Ltd., Shanghai Sunway Industry and Trading Co., Ltd., Tongzhou Sunway Machinery Manufacturing Co., Ltd. Sunway sales agent in Jakarta, Indonesia, Sunway sales agent in New Delhi, is a complex enterprise integrating research and development, design and manufacture and trade. We have a staff of three hundred of which two are professors, five are research workers who possess the senior professional title, over ten are technologists who possess the middle professional title, over fifty are supervisors, and two hundred are technicians.It is a team of high quality in regard to the development of manufacturing technologies and the enterprise management. The factory covers an area of over 15,000 square metres. It has a property of RMB 25 million and its annual sales reach RMB 50 million.Our main products: daily chemical and pharmacy machinery series including Cream-like, detergent-like and seasoning producing device such as vacuum paste machines, homogenizing and emulsifying machines, stirring machine and reaction caldron;Device for producing tube such as auto paste production line of plastic and aluminum-plastic tube, filling and sealing machine of tubes in various specification, color filling and sealing machine, tube printing machine; bottle-like packing machine such as filling & screwing(capping) machine of liquid, filling & screwing (capping) machine with inner cork of eye drop and oral liquid;small bag packing machine for packing liquid , paste, power and granule; all kinds of stainless conveyor; water disposing device;various specification mould of tube line; stainless steel super –clean operator, tank, post; toilet soap line, etc.. Taking Better Product, Lower Price, More Satisfactory Service, and More Satisfied Customer as our guiding principle, and with the spirits of Conscientiousness, Steadiness, Pioneering and Innovation, our enterprise finds favour in the eyes of our customers home and abroad. Besides the home market, our products enjoy a big foreign market, which are exported to America, Japan, Russia, India,Burma, Italy, France, Nigeria, Vic tram, etc. In 1996, our Filling & Sealing Machine was awarded the gold medal in the China Patent & New Product Fair. From 2002 until now, we were granted the title of prestigious enterprise from our municipal government. In 2003, our enterprise got the ISO 9001:2000. Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer.
Our Services & Strength

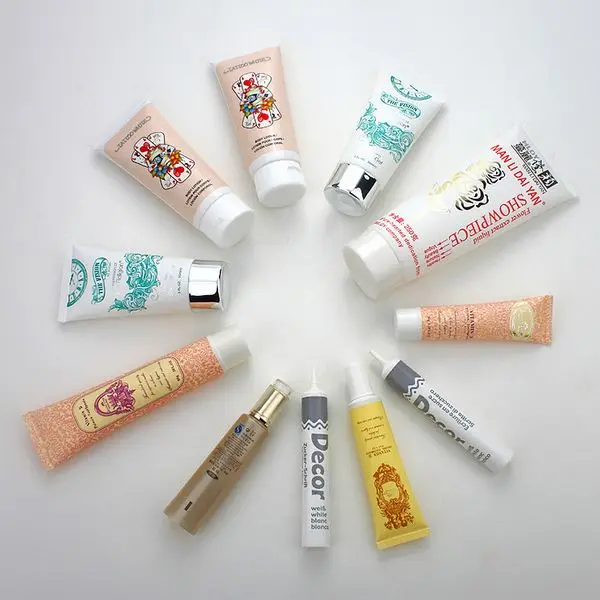

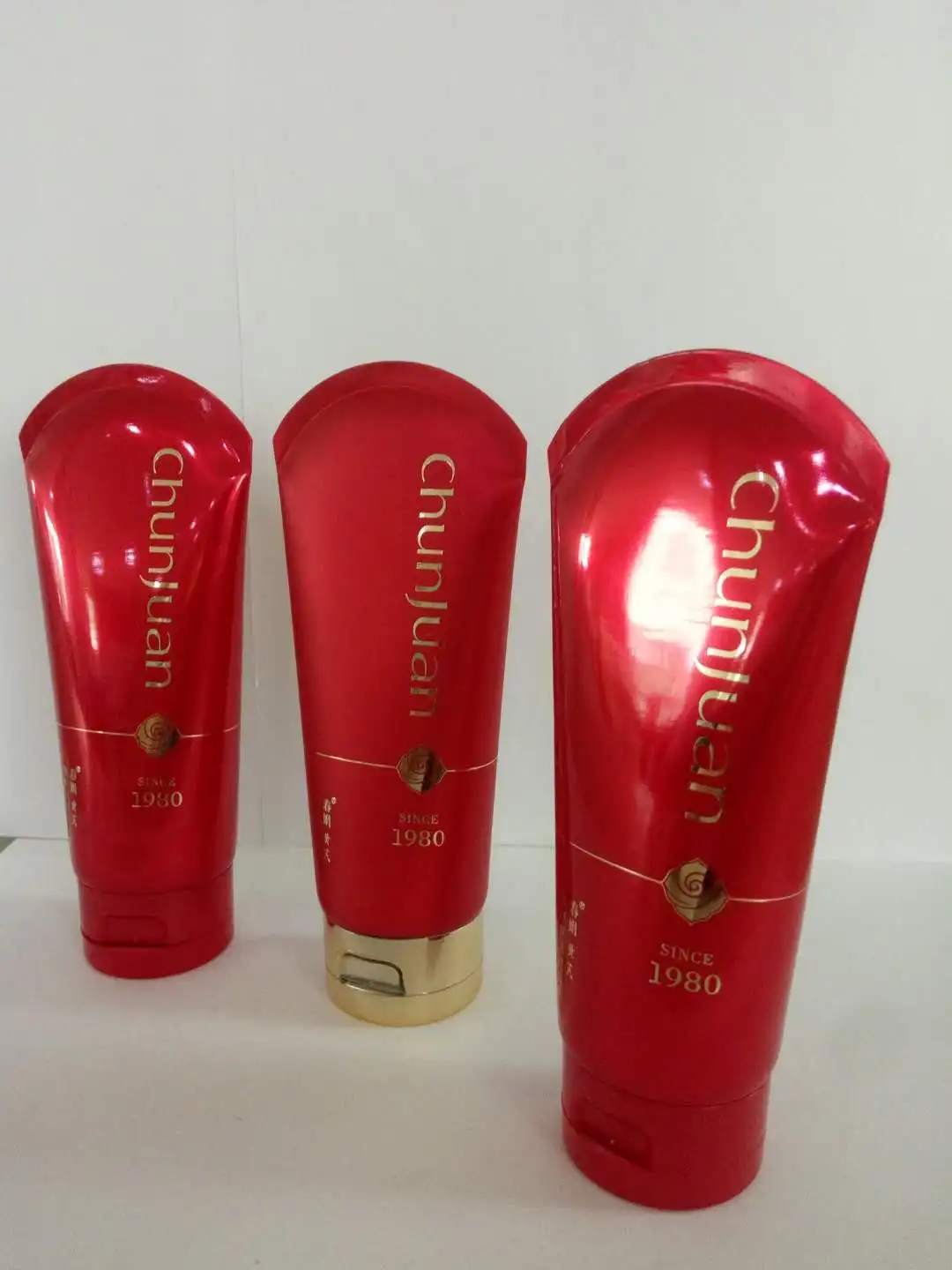

Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer can make differet diameters and colos tube.
FAQ
Six-color Offset Printing Machine, PE tubes Offset Printing Machine, Offset Printing Machine for Seamless PE Tube, 6 Color Rotating Printer.Q1:Are you manufacturer? Can we visit your factory? Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory. Q2: How about your prices? Answer: Our prices are competitive in our field and also negotiable according to your order quantity. Q3: How's your products? Answer: Parts of named-brand, best metals of machine boy are used to assure you of the best quality. Q4: What's your advantage? Answer: Compared with our competitors, we can offer you one-step service.The whole production line including machines, rawmaterial, even toothpaste, cosmetic formulas for free are available. And more? Please feel free to contact us..
