GHZ Central Drive High Rate Thickener
our products
Product Description

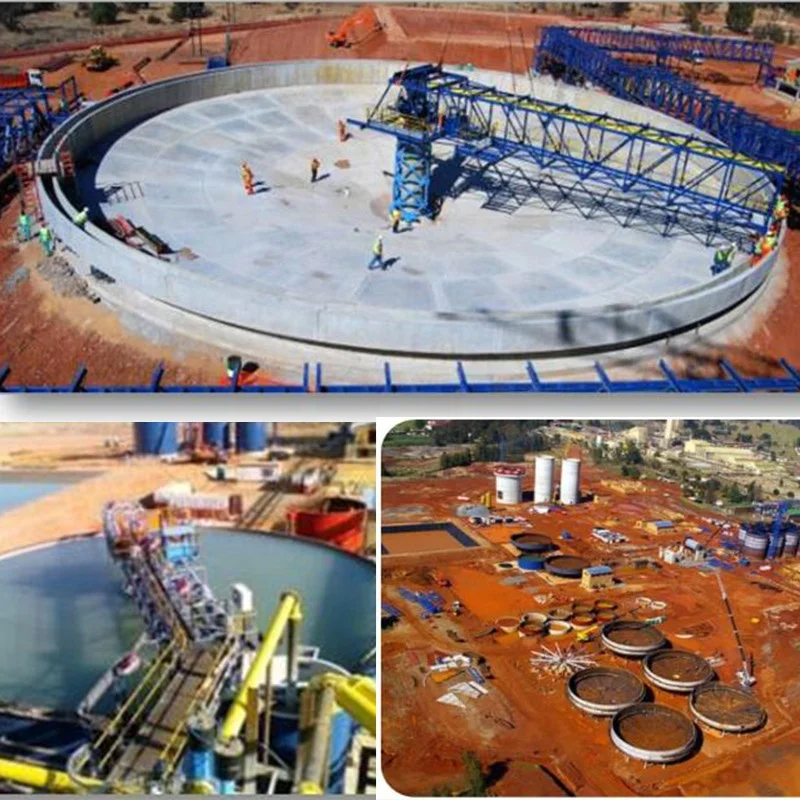

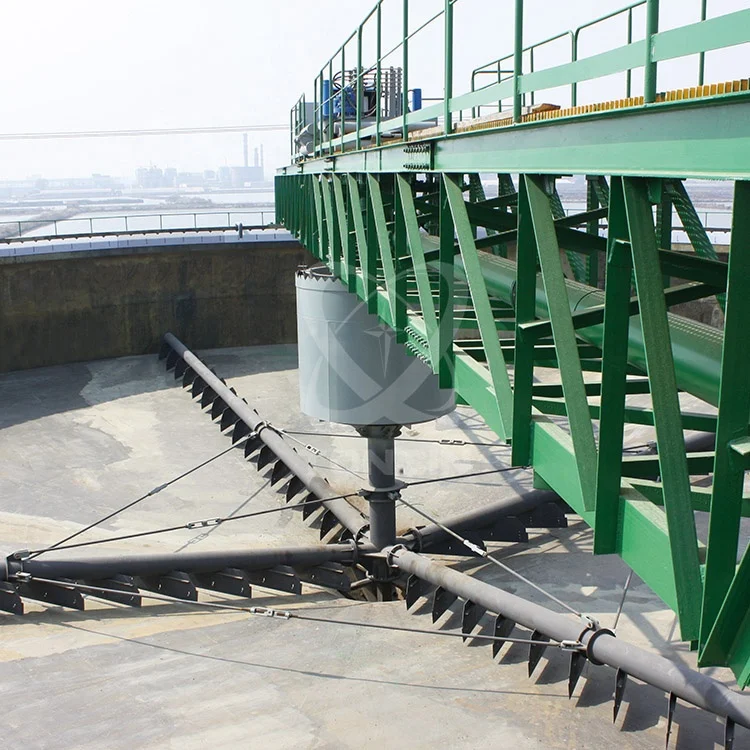

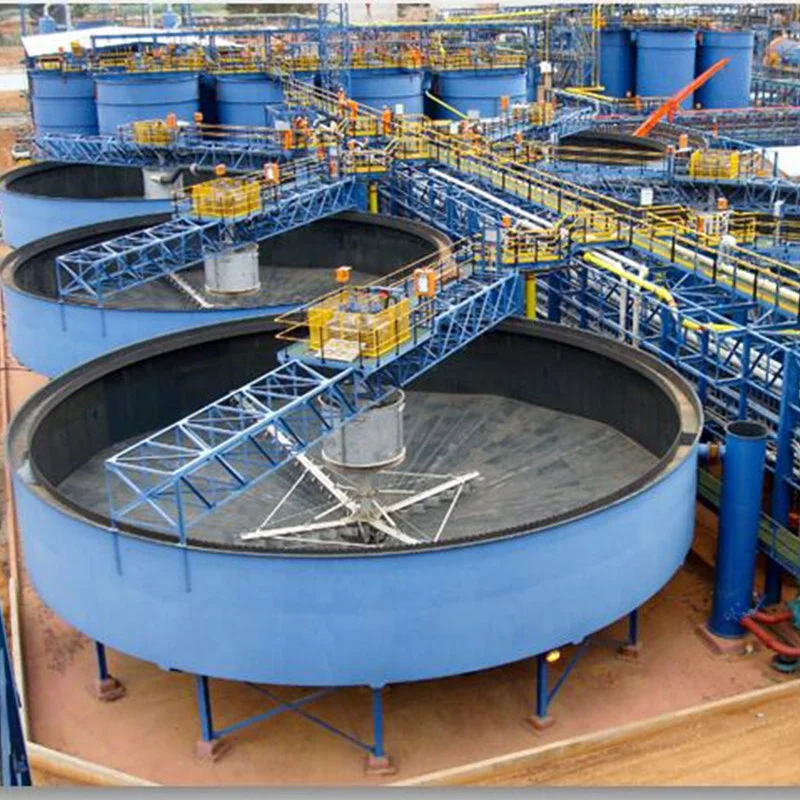

New type high rate thickener introduces the function of flocculant assisted dehydration, at the same time, according to the requirements of the application in different industries, by optimizing the structure of the equipment and flocculant assisted dehydration, newly developed new type thickener has the advantages of concentrating efficiency greatly accelerated, Throughput enlarged and high underflow concentration; It has been widely used in the dewatering of various metal and non-metallic ores, and the slurry solid-liquid eparation in Introduction. GNZ thickener is a new High-rate thickener with central-drive, automatic lifting rake that we have developed based on foreign technology .It is widely applicable to treatment of various industrial feed pulp, like coals, metal ore dressing water, metallurgy, chemical, tailings treatment, environmental protection etc.
Model | Concentration tank | Sediment area | The lifting height of rake(mm) | Rake rotating speed(r/min) | Motor Power | |
Diameter(m) | Depth(m) | |||||
GNZ-3 | 3 | 2.5 | 10 | 300 | 0.1-0.2 | 3+1.1 |
GNZ-6 | 6 | 3.0 | 28 | 300 | 0.1-0.2 | 4+1.5 |
GNZ-9 | 9 | 3.2 | 63 | 300 | 0.1-0.2 | 4+1.5 |
GNZ-12 | 12 | 3.5 | 110 | 300 | 0.1-0.2 | 4+1.5 |
GNZ-18 | 18 | 4.4 | 254 | 600 | 0.1-0.2 | 7.5+2.2 |
GNZ-20 | 20 | 4.4 | 310 | 600 | 0.1-0.2 | 7.5+2.2 |
GNZ-24 | 24 | 5.2 | 452 | 600 | 0.05-0.2 | 7.5+2.2 |
GNZ-30 | 30 | 5.2 | 707 | 600 | 0.05-0.2 | 11+3 |
GNZ-38 | 38 | 5.5 | 1134 | 600 | 0.05-0.2 | 15+4 |
GNZ-45 | 45 | 5.5 | 1590 | 600 | 0.05-0.1 | 37+4 |
GNZ-53 | 53 | 6.0 | 2206 | 600 | 0.05-0.1 | 37+4 |
GNZ-60 | 60 | 6.0 | 2826 | 600 | 0.03-0.1 | 45+5.5 |
GNZ-70 | 70 | 6.8 | 3846 | 600 | 0.02-0.05 | 45+5.5 |
GNZ-85 | 85 | 7.8 | 5671 | 600 | 0.02-0.05 | 45+5.5 |
Note:
1. The above parameters are only for reference. As the settlement performance of materials is relatively large, the specific parameters are subject to the design drawings provided by our company.
2. Our company can design thickener with different models according to the requirements of users.
Main Features
The Thickener Advantages:
1. High efficiency of concentration and scraping , which is three to five times than common thickener.
2.Excellent feed system——high-rate feed well:
a. The feed well makes the feed degas and have the energy dissipation, and it has tangential feeding.
b.Add the flocculant reasonably, and improve the efficiency .
c.It is equipped with distribution plate, which can take advantage of the effective area of the tank reasonably.
3. Driven lifting system with overweight design and large torque design can ensure the normal operation of the device. The thickener can not shut down in the extreme conditions, improving the efficiency of the device.
4.It adopts spiral design of rake teeth logarithm, and we can design rake teeth density according to material performance, which can improve the efficiency of scraping.
5.It has advanced thickener control system , automatically lifting rake, flocculant feeding, and automatically controlled
underflow discharging pump
product details
1.Design of main driving and rake lifting gear
1)Driving framework and chassis are made according to heavy type transmission device,
running is stable and reliable.
2)Full automatic rake lifting.
3)Star transmission,the max running torque is 5000,000Nm.The designed torque of driving
transmission Is designed according to following standards.
a.Running torque value: 33% of the designed torque.
b.High torque alarm: 50% of the designed torque.
c.Rake rising; 60% of the designed torque.
d.Rake decreasing: 40% of the designed torque.
e.The designed torque value of mechanical device: 150% of the designed torque.
2 Control system
Site control and remote control are combined,DCS control points are supplied.
1)PLC control,overloading protection.
2)Material discharging terminal is set up with mud layer pressure sensor to control rotation
and mud discharging by pump.
Company Information
The Nuclear Industry Yantai TONCIN Group Co., Ltd.owns 1000 employees and 350 million assets.The whole company covers 200000 square meters, the factory workshops covers as large as 80000 square meters and the annual production value up to 600 million RMB.
The company is specialized in researching-developing, producing and selling the solid-liquid separation equipments. Our main products as follows: DU rubber belt vacuum filter,TC precise ceramic vacuum filter, HVPF vertical automatic filter press, rubber belt, ceramic filter plate and so on. All the products are widely applied in military industry, chemistry industry, metallurgy, mines, power plant, foods, pharmacy, Washing coal, environment protection and so on, covering 70% market share in domestic, and exported to more than twenty countries and areas.
