20W 30W 50w JPT RAYCUS Fiber laser marking machine laser marker Max source
- Category: Laser Marking Machines >>>
- Supplier: Liaocheng Easy Automation Equipment Co. Ltd.
Share on (62535823697):
Product Overview
Description
Product Description

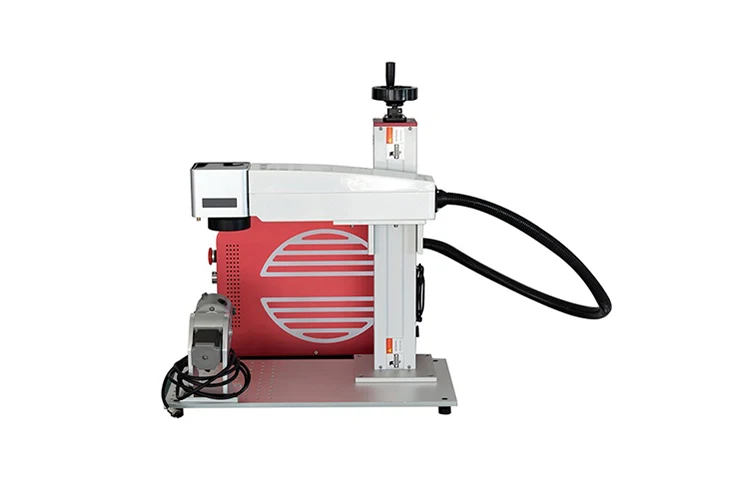

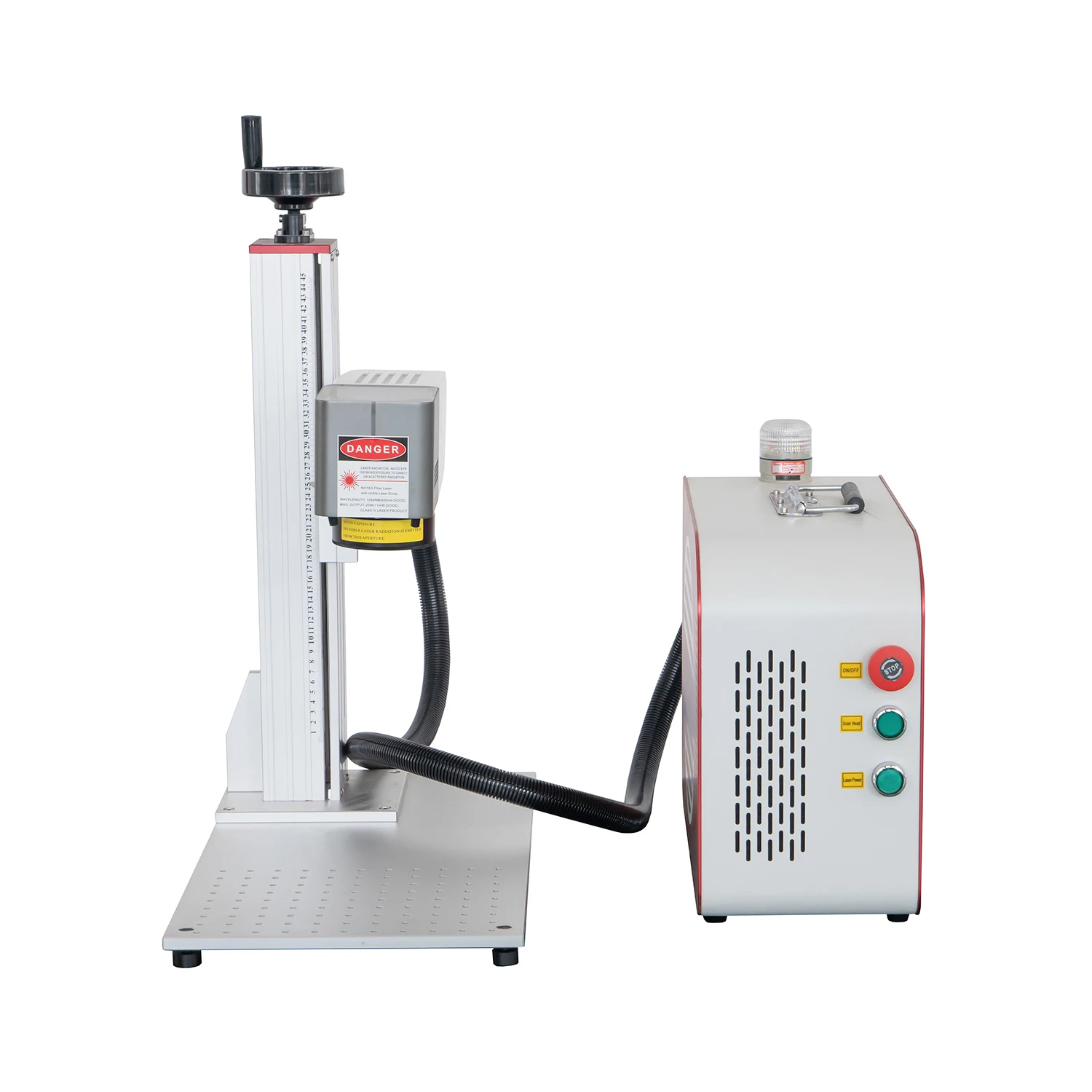

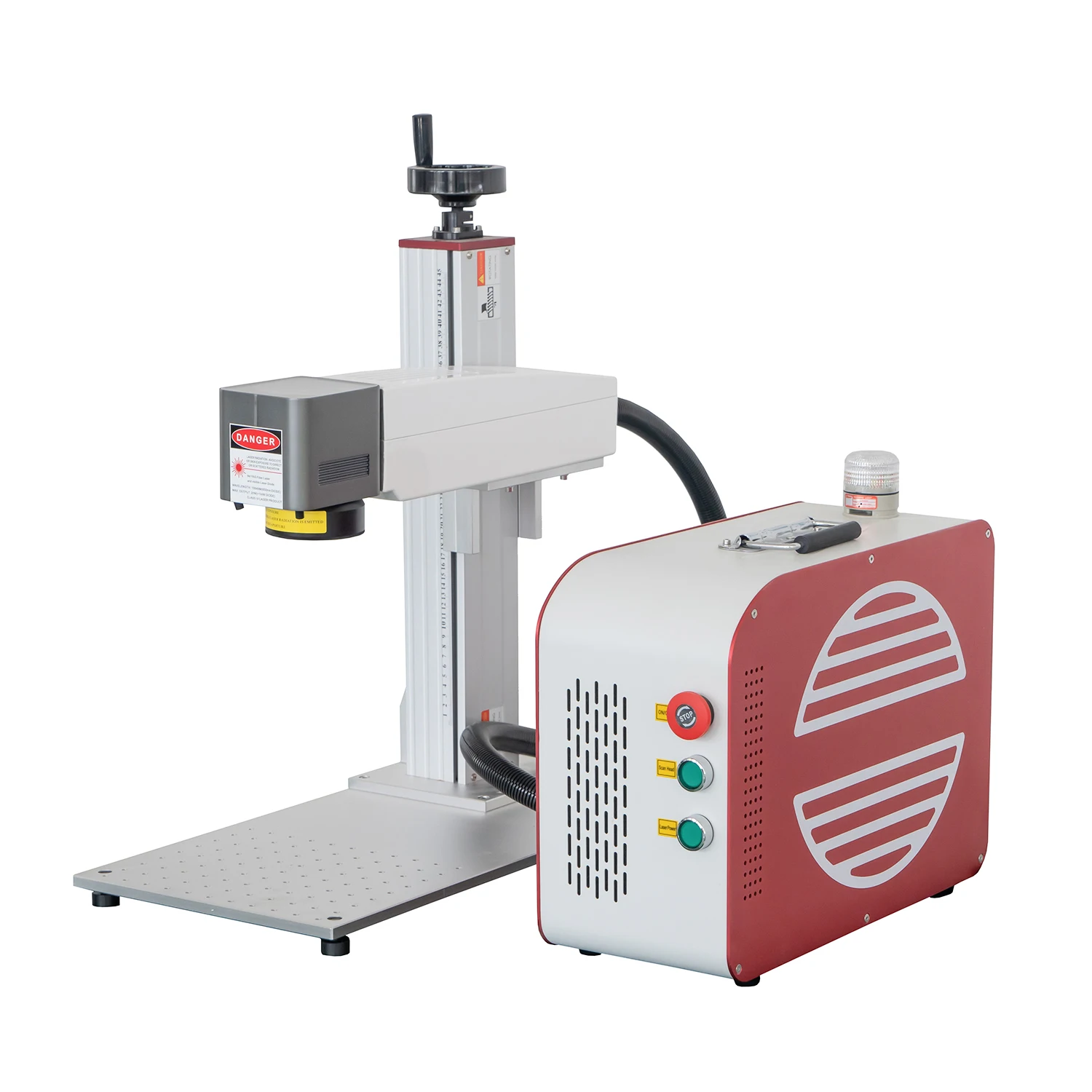

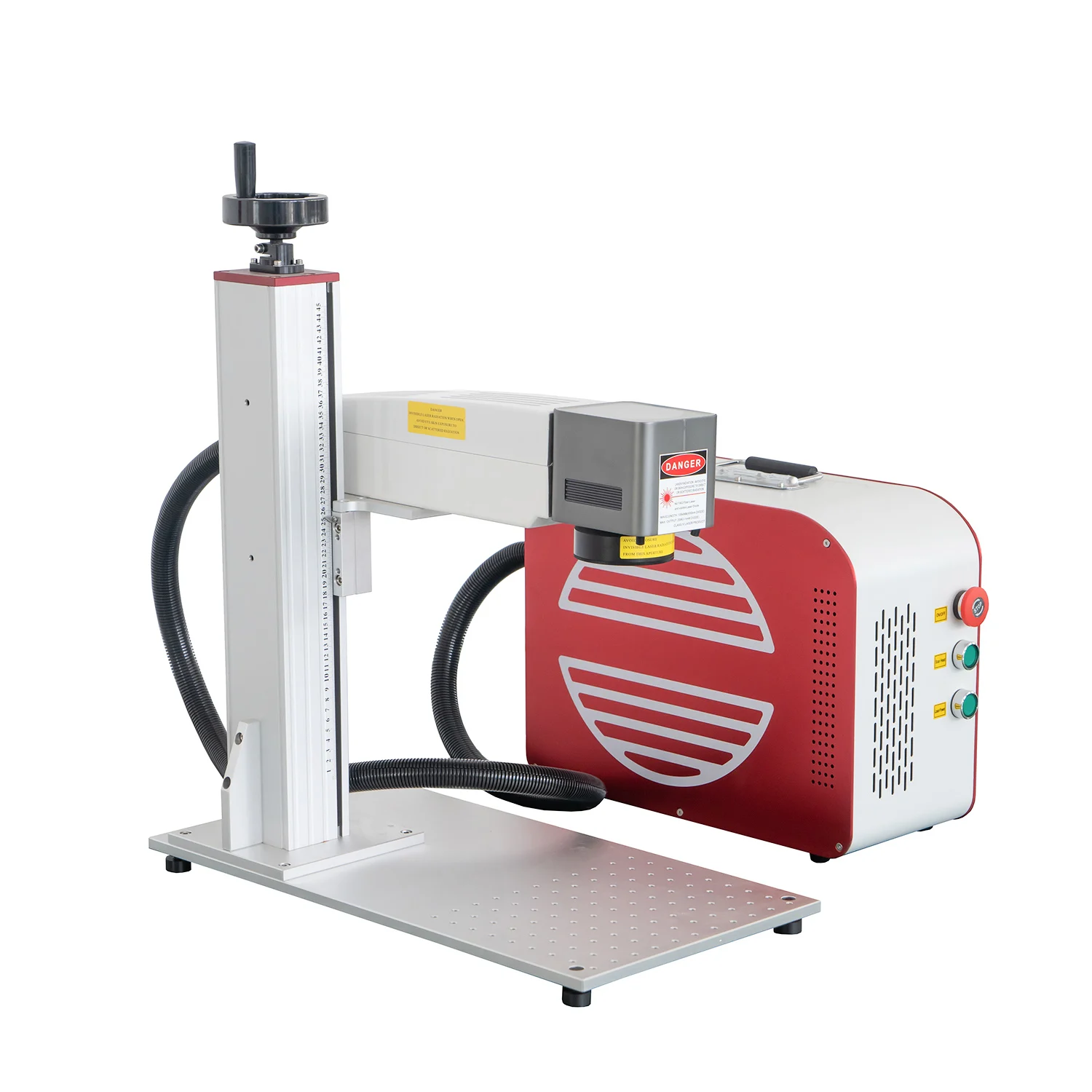

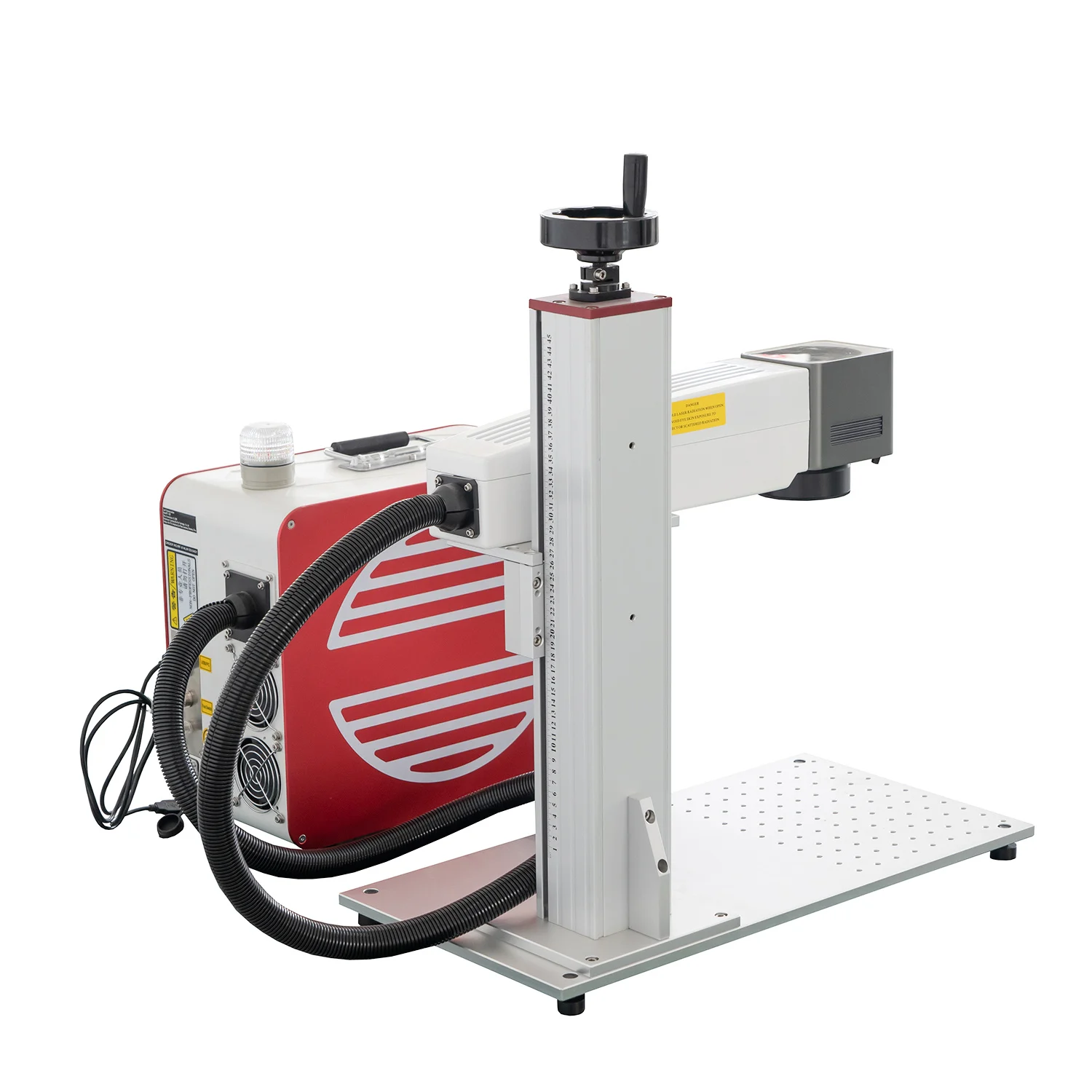

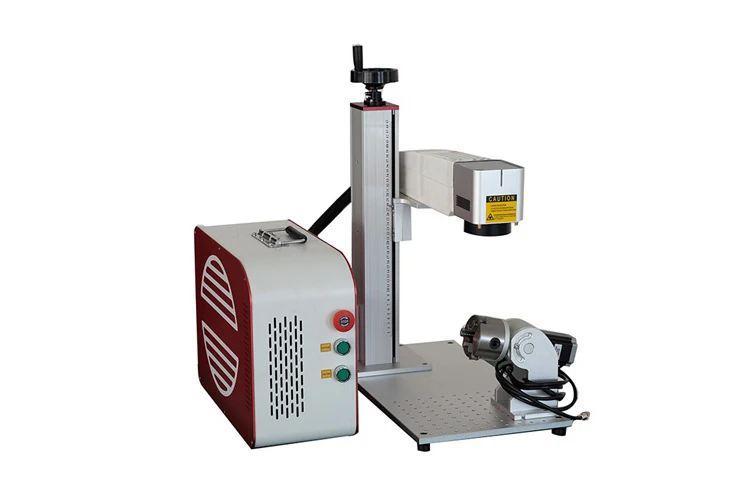

Portable Split 20w 30w 50w fiber laser marking machine
Machine advantages
>>The fiber laser is used to output the laser, with high electro-optical conversion rate, small size and good beam quality. The life of the fiber laser is more than 100,000 hours. Counting on 24 hours a day and 365 days a year, the life of the fiber laser is more than 10 years. It is truly maintenance-free and saves you high maintenance costs.
>>The portable fiber laser marking machine has a good spot pattern, thinner single lines, suitable for ultra-fine processing, high system integration, and less failures, which is really suitable for industrial processing.
>>The marked graphics and text will not fade due to friction and are permanent.
>>No consumables, low power consumption, completely air-cooled, no water-cooled machine is needed, and the power consumption of the whole machine is less than 1000 watts.
>>low cost of use, energy saving.
>>integrated modular design, easy maintenance, small size. Save your precious plant space.
>>The portable fiber laser marking machine has a good spot pattern, thinner single lines, suitable for ultra-fine processing, high system integration, and less failures, which is really suitable for industrial processing.
>>The marked graphics and text will not fade due to friction and are permanent.
>>No consumables, low power consumption, completely air-cooled, no water-cooled machine is needed, and the power consumption of the whole machine is less than 1000 watts.
>>low cost of use, energy saving.
>>integrated modular design, easy maintenance, small size. Save your precious plant space.
Product Paramenters
Model | ES-20F | ES-30F | |||
Laser source | JPT LP 20W | JPT LP 30W | |||
Max Single pulse energy | 0.8mj | 0.8mj | |||
Laser beam quality M2 | 1.3 | 1.3 | |||
Full power frequency adjustable range | 25--600KHZ | 37--600KHZ | |||
Frequency adjustable range | 1--600KHZ | ||||
Pulse width | 200ns | ||||
Laser wavelength | 1064nm | ||||
Marking area | 75x75mm--300x300mm | ||||
Marking speed | 8000mm/s | ||||
Min.linear width | 0.01mm | ||||
Min.character size | 0.2mm | ||||
Control program | Genuine EZCAD control system compatible with win7/8/10 | ||||
Graphic format supported | JPG/BMP/DXF/PLT | ||||
Working voltage | 220v and 110v | ||||
Cooling way | Air cooling | ||||
The main configuration of the machine

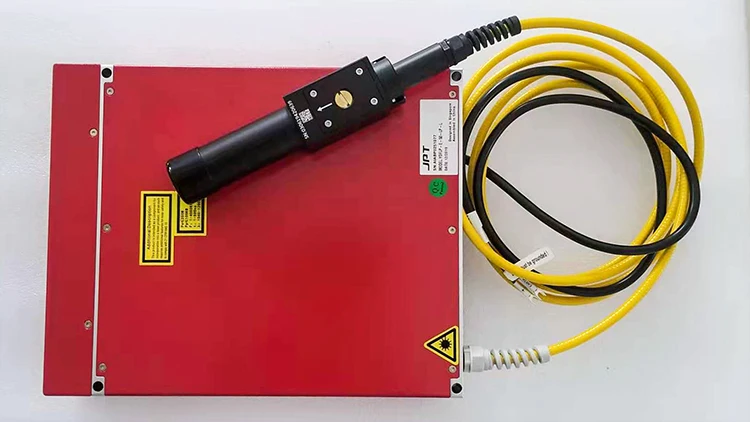

The new JPT LP laser has a frequency adjustable range of 1-600KHZ, which will make your marking effect perfect.
Especially the JPT 50W they have much more efficiency for deep marking and thin metal cutting. good choice for jewelry industy

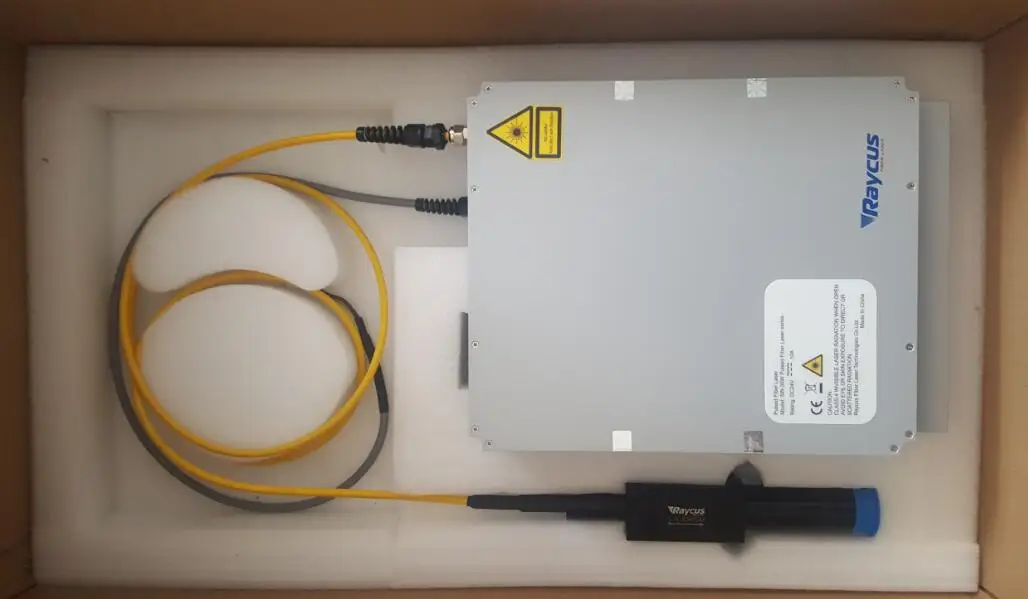

Raycus laser source
good cost performance
famous brand

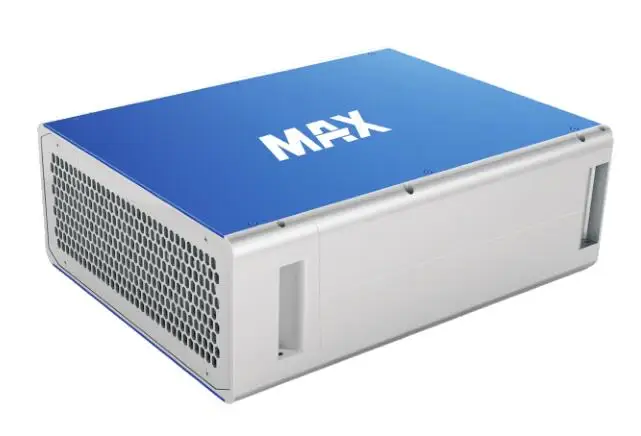

Max laser source
very good price
easy and durable
Genuine EZCAD control system compatible with win7/8/10

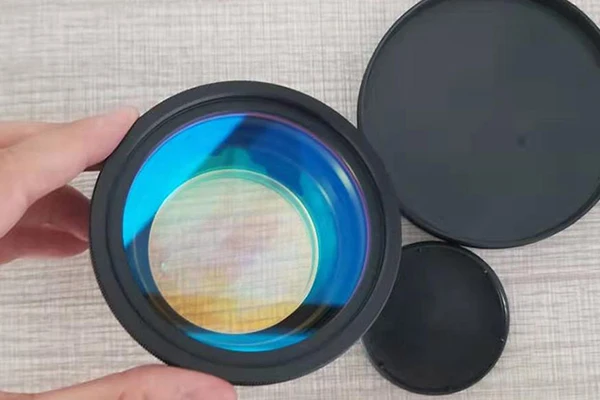

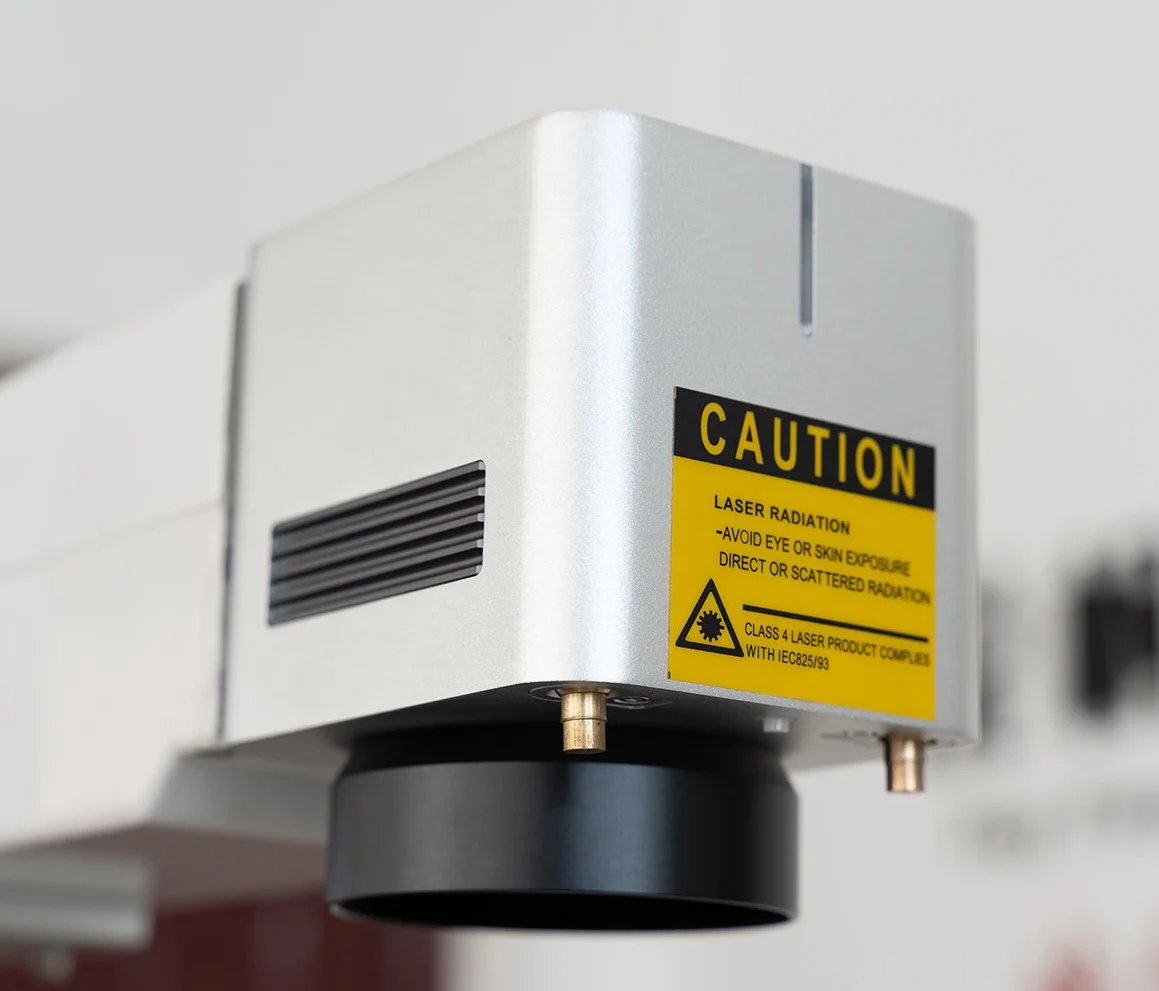

It can give you a very good beam quality
It has a dual red light and an alarm system. The dual red light can help you find the focus more easily. The alarm system will prompt you when the machine fails.
Allows the machine to perform long-term stable work
Product application

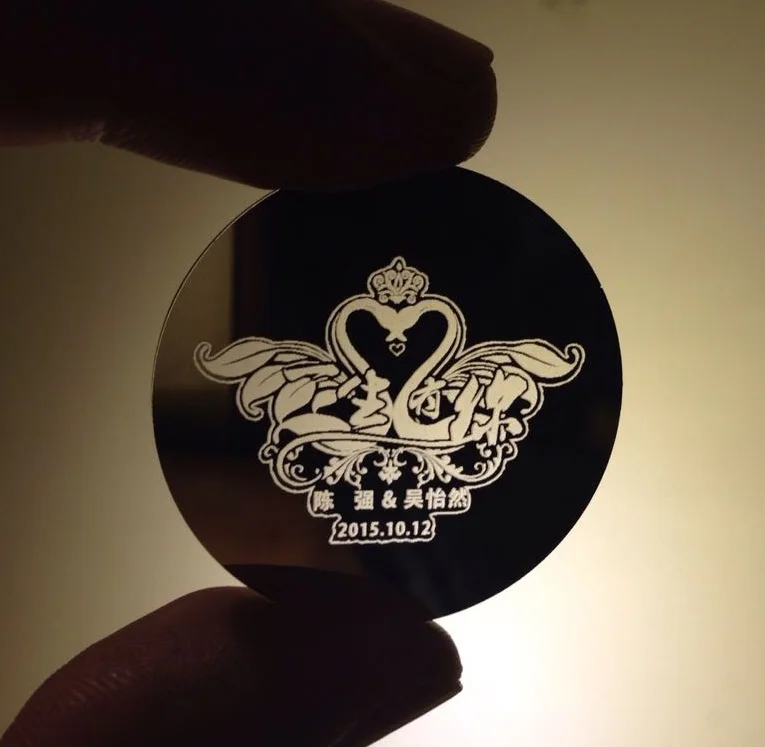

It works very well on metal materials.

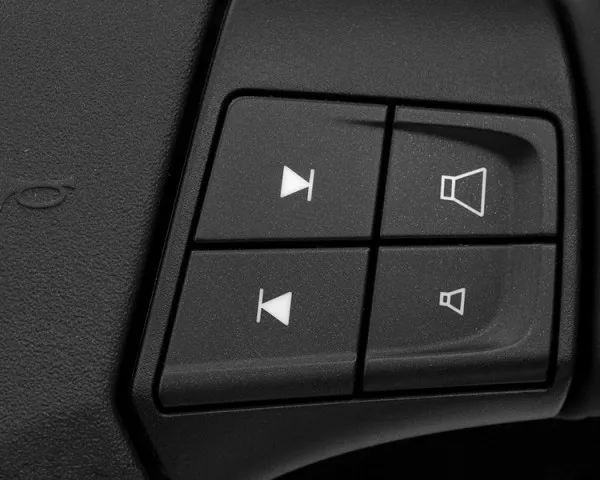

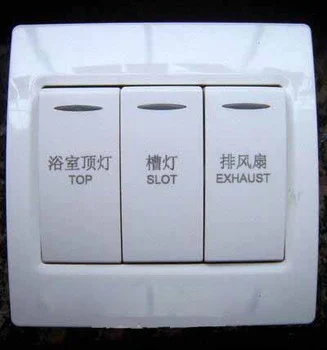

It can also be used for marking on plastic materials
Packing & Delivery
1.Standard plywood cases with sponge filled inside for packing protection.
2.The wooden case is fumigation free which is suitable by sea &by air.
3.Customized packing as per customer's requirement.
2.The wooden case is fumigation free which is suitable by sea &by air.
3.Customized packing as per customer's requirement.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
A1:We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
A3:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A4: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A5: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A6: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A7: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A8: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
A1:We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A2:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
A3:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A4: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A5: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A6: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A7: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A8: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
