Product Overview
Description
Products Description
Machine details

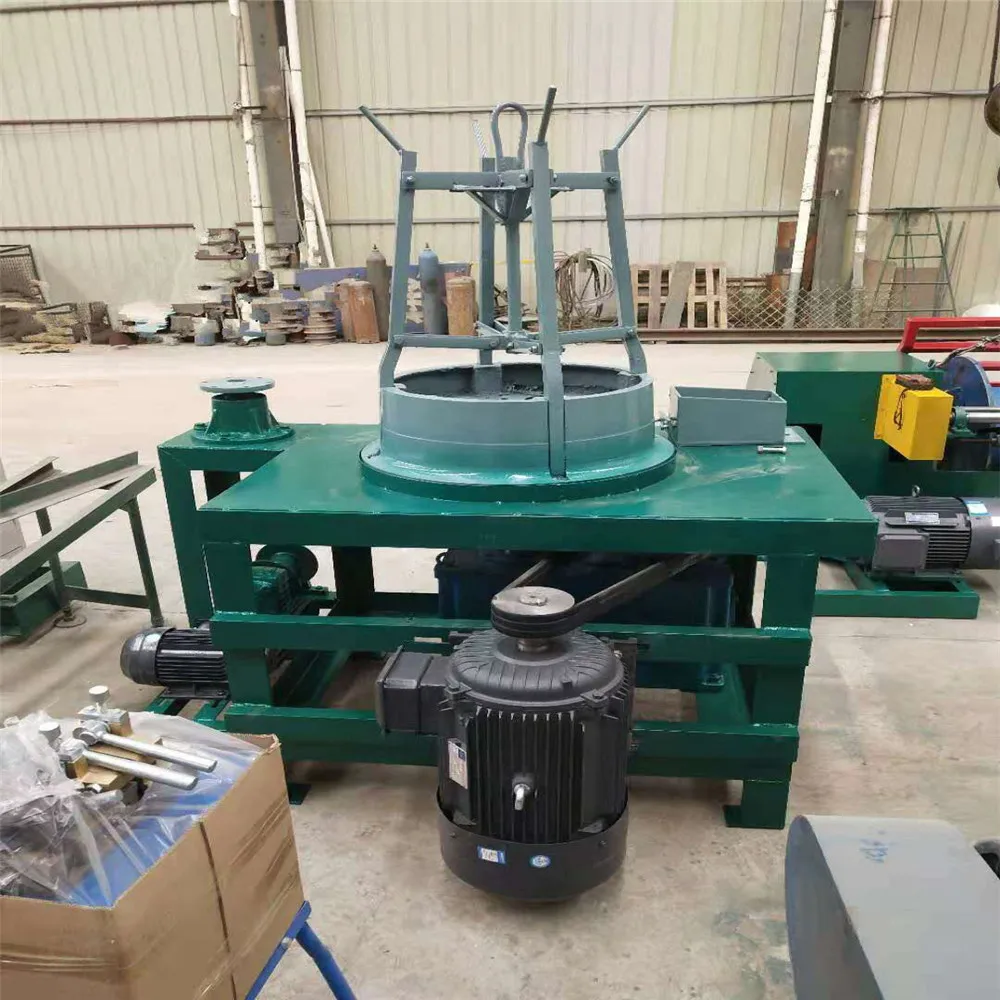

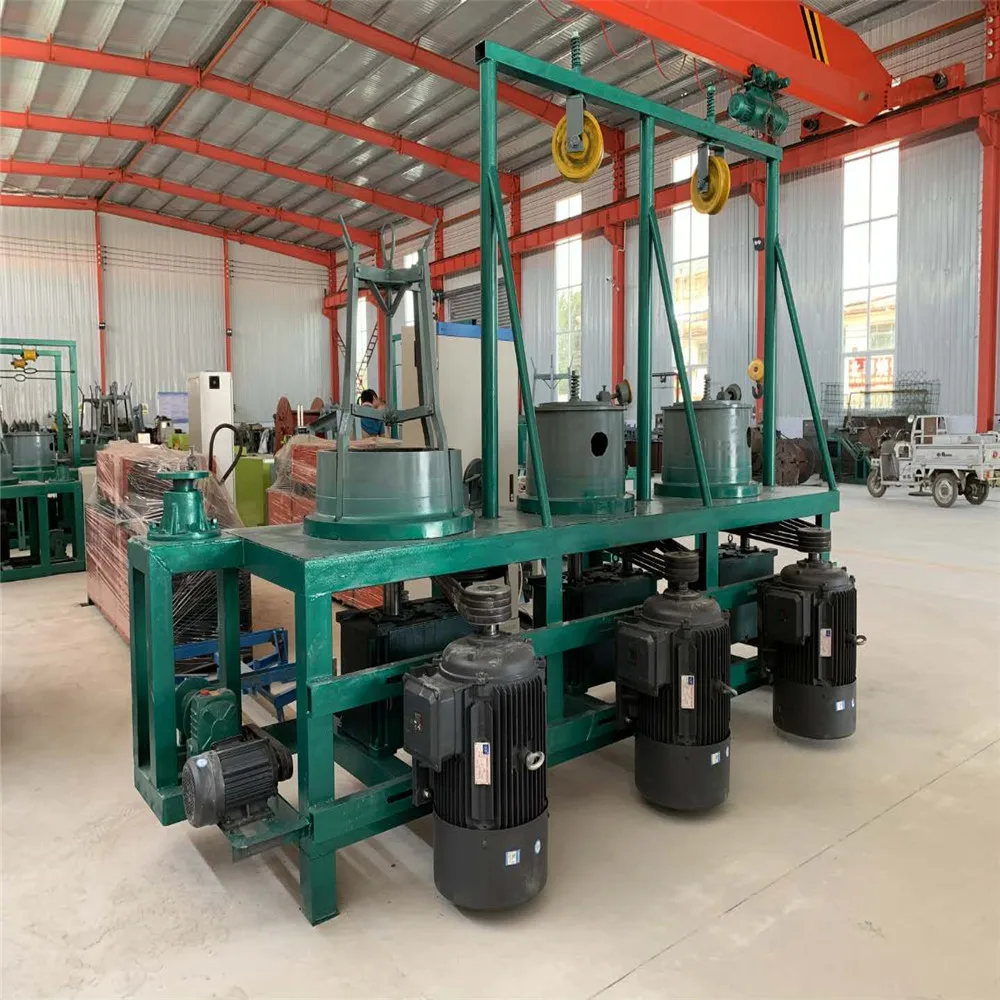

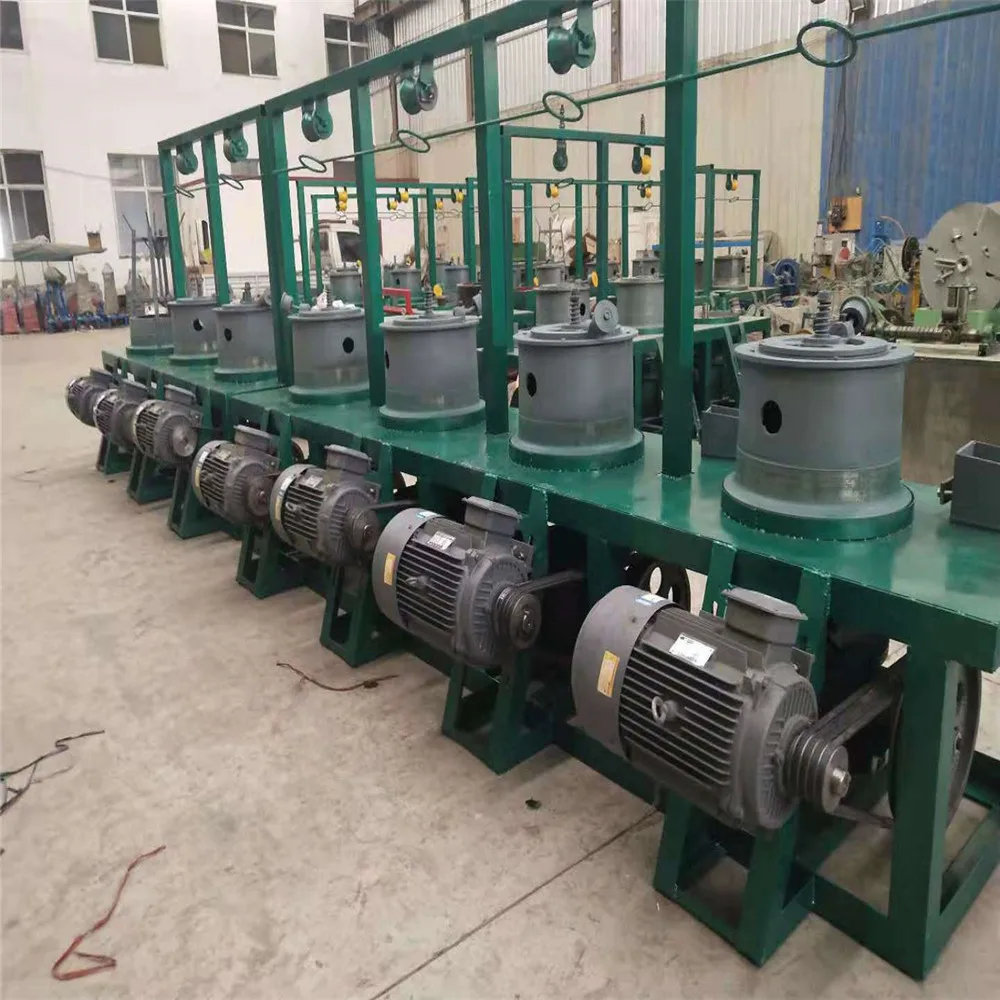

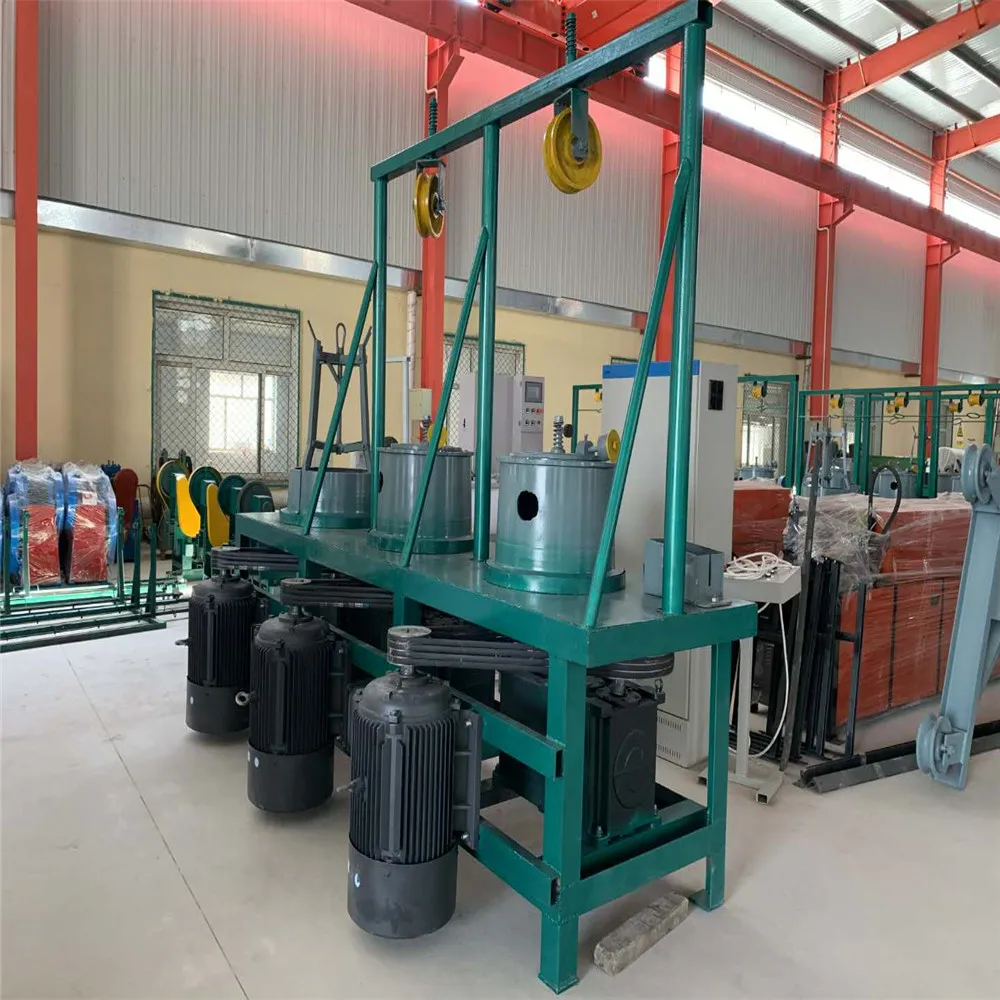

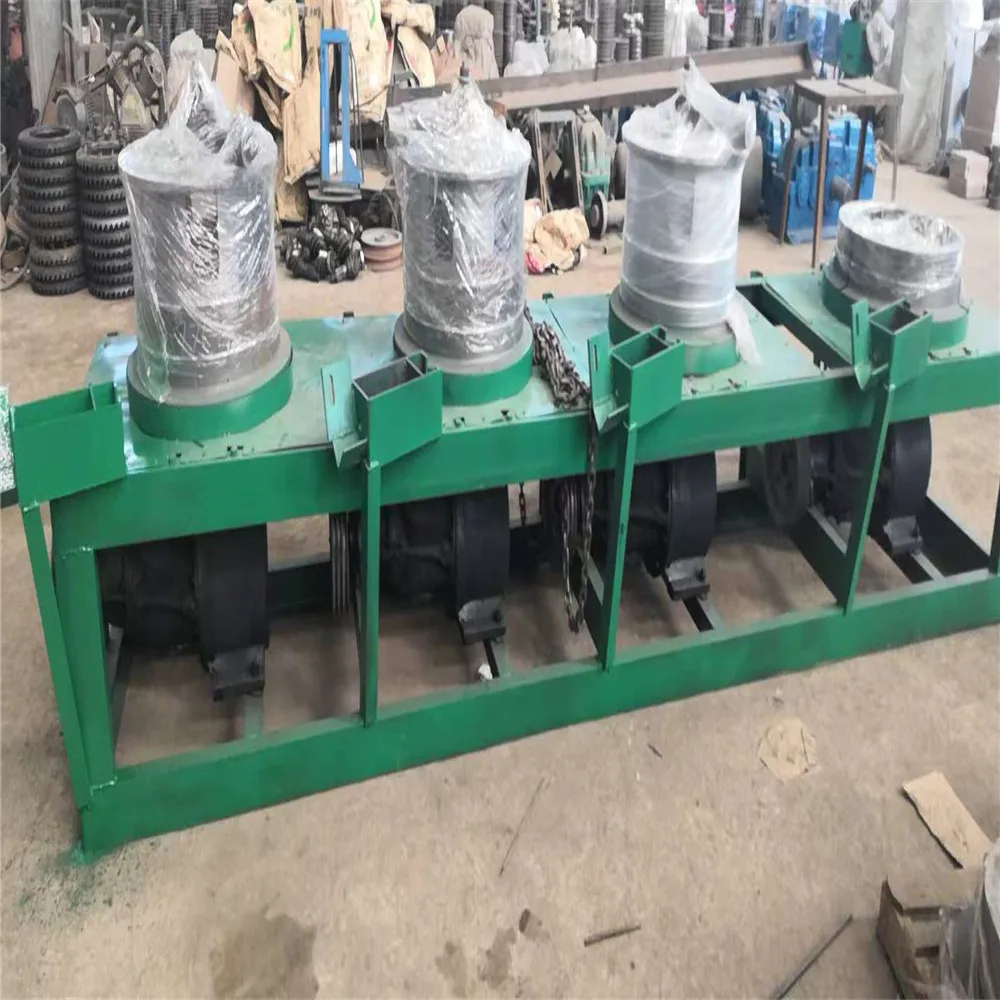

Pulley type wire drawing machine
The equipment is suitable for processing of 8mm-6mm wire rod and various kinds of metal wire, especially suitable for processing
low carbon iron wire, galvanized iron wire, copper wire, aluminum wire, stainless steel wire, rubber hose steel wire, spring wire,
welding wire, etc. Use customer bold type reducer, thickening box body, increase the bearing.
low carbon iron wire, galvanized iron wire, copper wire, aluminum wire, stainless steel wire, rubber hose steel wire, spring wire,
welding wire, etc. Use customer bold type reducer, thickening box body, increase the bearing.
Pulley Type wire drawing machine | ||||||||||
Max inlet wire diameter (mm) | min inlet wire diameter (mm) | Drawing Passage | Motor(KW) | Production Speed (m/min) | Production Capacity (T/24hours) | |||||
6.5 | 3.8 | 4 | 15*4+1.5 | 100-120 | 12-15(3.8mm) | |||||
4.0 | 2.0 | 5 | 7.5*5+1.5 | 150-200 | 5-6(2.0mm) | |||||

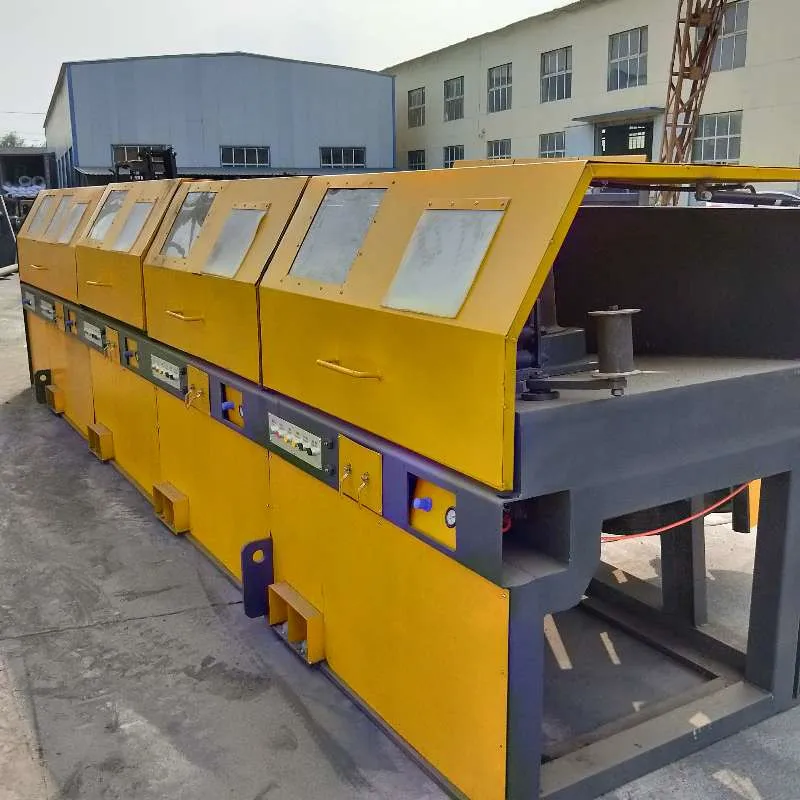

Straight Line Wire Drawing Machine
The straight line wire drawing machine is a high-end wire drawing
machine developed and produced by the digestion and absorption technology. Main features: The drum has a narrow-slot
water-cooling, the drawing die adopts direct water cooling, and the cooling effect is good. It adopts first-class strong narrow
V-belt and standard hard-toothed gearbox transmission, with high transmission efficiency and low noise. It adopts fully enclosed
protection system, good safety, tension tuning, smooth drawing, and several inverters with AC frequency conversion (or DC).
Programmable control system), screen display, high degree of automation, easy operation, excellent quality of drawn products.
machine developed and produced by the digestion and absorption technology. Main features: The drum has a narrow-slot
water-cooling, the drawing die adopts direct water cooling, and the cooling effect is good. It adopts first-class strong narrow
V-belt and standard hard-toothed gearbox transmission, with high transmission efficiency and low noise. It adopts fully enclosed
protection system, good safety, tension tuning, smooth drawing, and several inverters with AC frequency conversion (or DC).
Programmable control system), screen display, high degree of automation, easy operation, excellent quality of drawn products.
Specification | LZ-560 | ||||||
Drum diameter | 560mm | ||||||
Max inlet wire tensile strength | 1300Mpa | ||||||
Drawing numbers | 2-13 | ||||||
Inlet wire diameter max | 6.5mm | ||||||
Outlet wire diameter min | 1.35mm | ||||||
Max wire speed | 15m/s | ||||||
Motor | 160-220KW | ||||||

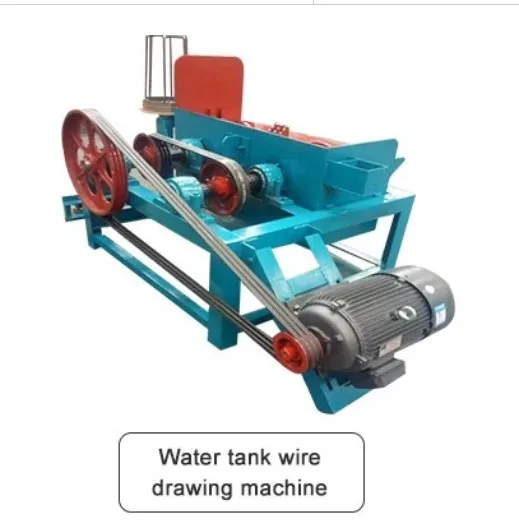

Water tank wire drawing machine
The water tank series wire drawing machine is in wet type to draw low,mild and high carbon steel wires,as well as non-ferrous
materials,with swift speed ,high quality and good reputation.
It is the most ideal equipment for steel wires and ropes,galvanized wires,and elctric wires manufacturer.
materials,with swift speed ,high quality and good reputation.
It is the most ideal equipment for steel wires and ropes,galvanized wires,and elctric wires manufacturer.
Water Tank Wire Drawing Machine Paratemter | ||||||||||||
Type | Max.Inlet Diameter(mm) | Min.Outlet Diameter(mm) | Drawing Passage | Motor Power(kw) | Production Speed(m/min) | Production Capacity(T/24h) | ||||||
WWM-1 | 4.0-3.5 | 1.8-1.4 | 8-10 | 37+1.5 | 150-200 | 5-8 | ||||||
WWM-2 | 2.0 | 0.5-1.0 | 10-12 | 15+2.2 | 280-350 | 1-1.5 | ||||||
