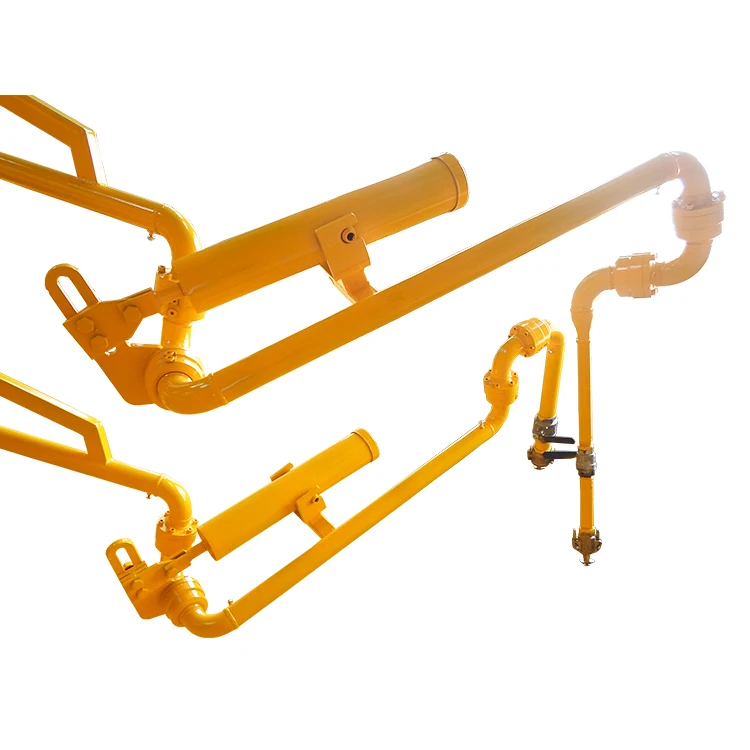

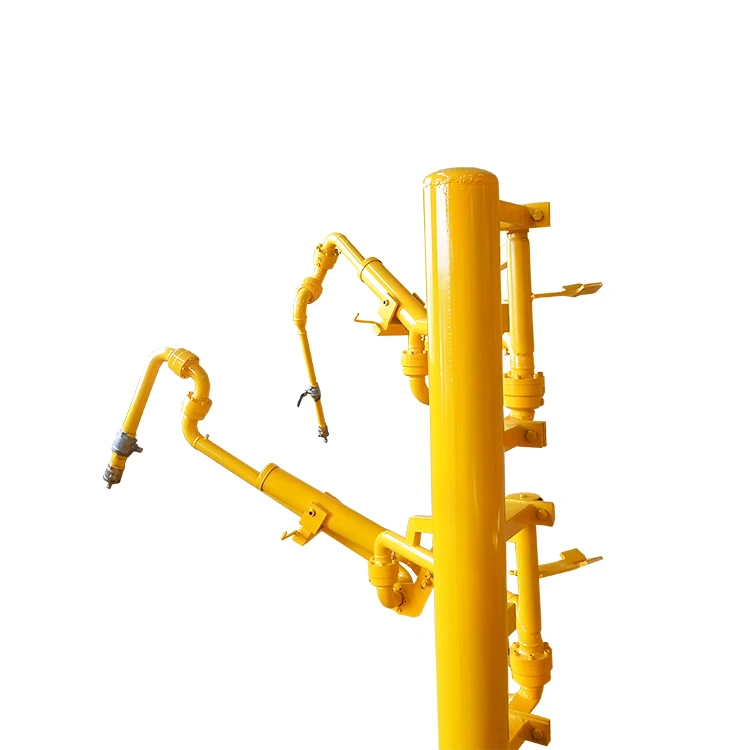

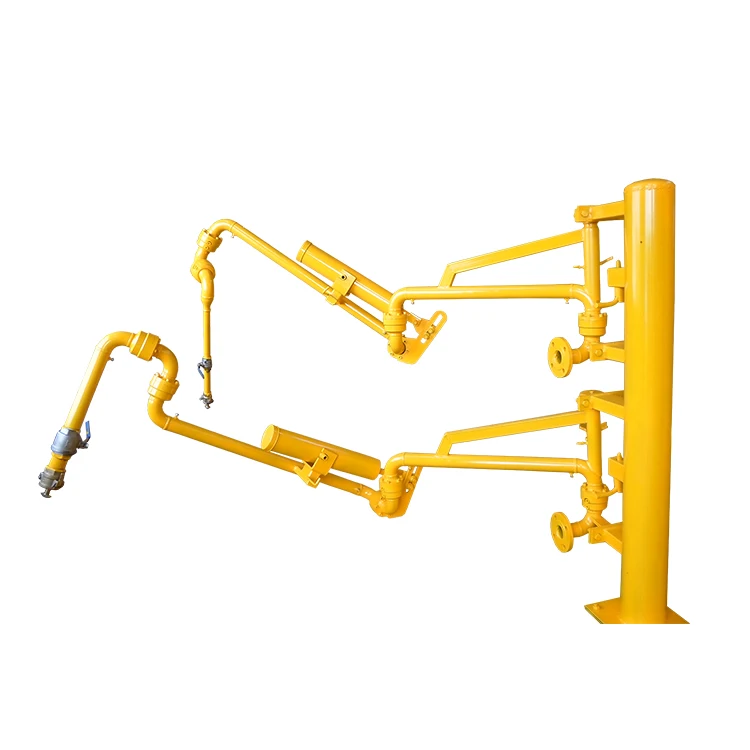

High quality and low price lpg loading arm

AL2543 loading and unloading arm can be widely used in oil refineries, chemical plants, crude oil transfer stations and oil product transfer stations, etc. It has the characteristics of reasonable overall structure, beautiful appearance, strong practicability, and can effectively prevent static electricity and pollution; balance; The method adopts pressure spring balance, which can realize balance and light operation force at any position within the working range. The key parts of the rotary joint are novel in structure, large in bearing capacity and flexible in rotation. In particular, the seals are made of polytetrafluoroethylene and polymer polyurethane materials, which are wear-resistant And corrosion resistance, which prolongs the service life of the whole machine.
Second, the basic structure of the AL2543 loading and unloading arm
   1. Column: It plays a supporting role and bears the reverse torque when the arm is deployed.
   2. Inner arm: the basic component of arm movement and conveying medium.
   3. Outer arm: the basic component of arm movement and conveying medium.
   4. The vertical pipe sends the medium into the tanker.
   5. Spring cylinder balance system: balance the heavy moment of the vertical pipe and the outer arm, and reduce the manpower of the outer arm to move up and down.
   6.  Height: about 1.7m; extended width about: 3.0m
