Электромагнитный расходомер Krohne OPTIFLUX 4300
- Category: Flow Meters >>>
- Supplier: Shanghai Qingji Beverage Machinery Co. Ltd.
Share on (62537748257):
Product Overview
Description
Products Description

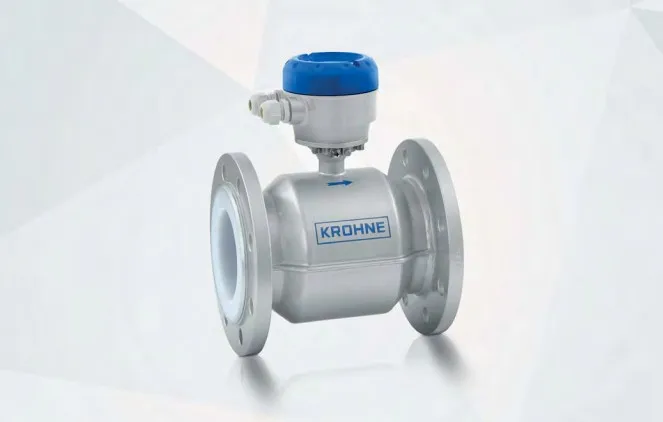

Krohne OPTIFLUX 4300 Electromagnetic Flowmeter
The OPTIFLUX 4300 is an electromagnetic flowmeter (EMF) for advanced process applications with aggressive liquids or abrasive media. The high-end flowmeter is particularly suitable for critical applications requiring high accuracy and many diagnostic functions. It enables reliable measurement even under very harsh process conditions with temperatures up to +180°C / +356°F, low conductivities (≥1 µS/cm), high solid contents (up to 70%) and high pressures (up to 1500 bar / 21751 psi). For custody transfer applications, the OPTIFLUX 4300 has a wide range of certifications including OIML R49 and R117 or MI-001 and MI-005. It can also be used for flow measurement in district heating networks requiring MI-004 approval.
The OPTIFLUX 4300 is available in a wide diameter range up to DN3000 / 120". Its patented virtual reference option allows for a very cost-saving measuring mode without additional grounding rings – particularly when it comes to large diameters. Installation in measurement chambers subject to (constant) flooding is possible with the IP68 / NEMA 6P rated version. The meter is approved for use in hazardous areas and offers various digital communication options. A full on-site verification of the OPTIFLUX 4300 without process interruption can be carried out using the OPTICHECK service tool.
The OPTIFLUX 4300 is available in a wide diameter range up to DN3000 / 120". Its patented virtual reference option allows for a very cost-saving measuring mode without additional grounding rings – particularly when it comes to large diameters. Installation in measurement chambers subject to (constant) flooding is possible with the IP68 / NEMA 6P rated version. The meter is approved for use in hazardous areas and offers various digital communication options. A full on-site verification of the OPTIFLUX 4300 without process interruption can be carried out using the OPTICHECK service tool.
Details Images
Product Paramenters
Product name | Krohne OPTIFLUX 4300 Electromagnetic Flowmeter | ||||||
Form | Electromagnetic OPTIFLUX 4000 flow sensor+ signal converter IFC 300 | ||||||
Size | DN2.5...3000 / 1⁄10…120" | ||||||
Maximum measuring error | IFC 300: down to 0.2% of the measured value ± 1 mm/s | ||||||
Calibration / Verification | Standard: 2 point calibration by a direct volume comparison. Optional: Verification to Measurement Instrument Directive (MID), Annex MI-001. Standard: Verification at Ratio (Q3/Q1) = 80, Q3 t 2 m/s Optional: Verification at Ratio (Q3/Q1) > 80 on request | ||||||
Process temperature | PTFE / PFA: -40...+180°C / -40...+356°F for remote versions PTFE / PFA: -40...+140°C /-40...+284°F for IFC 300 compact versions PTFE / PFA: -40...+120°C /-40...+248°F for IFC 050 and IFC 100 compact versions ETFE: -40...+120°C / -40...+248°F Hard rubber: -5...+80°C / 23...+176°F Soft rubber: -5...+60°C / 23...+140°F PU: -5...+65°C / 23...+149°F | ||||||
Ambient temperature | -40…+65°C / -40…+149°F | ||||||
Storage temperature | -50...+70°C / -58...+158°F | ||||||
Measuring range | -12...+12 m/s / -40...+40 ft/s | ||||||
Pressure | 0.25 Mpa to 4.0 Mpa (PN2.5 to PN40) | ||||||
Connection | Flange type | ||||||
Power supply | 100…230 VAC (-15% / +10%), 50/60 Hz; 240 VAC + 5% is included in the tolerance range 24 VDC (-30% / +30%) | ||||||
Output signal | 4…20 mA, pulse, frequency, status, HART, Modbus | ||||||
How To Order
For a accurate quotation, please advises us as below:
1. What is the measuring medium or PH range?
2. What is the caliber size and flowrate?
3. What is the pressure range and temperature range?
4. What is the supply voltage and output signal?
5. How many quantities?
Packing and Shipping
Packing: carton or wooden package with bubble bag
Shipping: air express (DHL, TNT, UPS, FedEx, SF), air freight or sea
FAQ
Q: How fast can you delivery goods?
A: Usually 4-6 weeks after receive your payment.
Q: What's your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.
Q: How long is your product warranty?
A: 1 year
Q: How long your quotation valid?
A: Our quotation valid for 30days
Q: What trade terms, payment mode and payment terms can you accept?
A: Trade terms: Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
Q: What express ways you can offer, can we use our own courier?
A: We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepaid , also can use your own courier account to do the freight collect , just for your convenience.
A: Usually 4-6 weeks after receive your payment.
Q: What's your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.
Q: How long is your product warranty?
A: 1 year
Q: How long your quotation valid?
A: Our quotation valid for 30days
Q: What trade terms, payment mode and payment terms can you accept?
A: Trade terms: Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
Q: What express ways you can offer, can we use our own courier?
A: We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepaid , also can use your own courier account to do the freight collect , just for your convenience.
