Воздушное охлаждение 6 в 1 крыльчатка PADDLEWHEEL аэратор для аквакультуры и сточных вод
- Category: Aquaculture Machine Aerators >>>
- Supplier: Zhejiang Fordy Imp. & Exp. Co. Ltd.
Share on (62538701600):
Product Overview
Description
Product Description

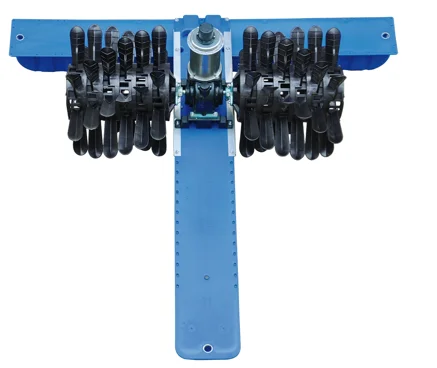

6-IN-1 IMPELLER
FOR AQUACULTURE & WASTE WATER
FOR AQUACULTURE & WASTE WATER
"FUTI" AERATOR IS THE FIRST ARCUATE BEVEL GEAR PADDLEWHEEL AERATOR RESEARCHED AND DEVELOPED BY ZHEJIANG FORDY MACHINERY CO., LTD IN 2000. FUTI AERATOR IS POPULAR ADOPTED AND USED BY THE CUSTOMERS DUE TO THE GOOD QUALITY AND AFTER SALES SEVERICE. THE AERATORS WE DESIGNED CAN SAVE LOTS BILLS FOR OUR CUSTOMERS. THE OXYGEN TRANSFER CAPACITY IS 36.3% HIGHER THAN THE STANDARD AND POWER EFFICIENCY IS 36.8% HIGHER THAN STANDARD, SAVE 20% ELECTRIC ENERGY THAN THE TRADTIONAL MODEL.
Model | spare parts | unit | special | material |
Stainless Steel Motor | 1 | 3HP 3 PHS Inductrial motor, motor to be made according to the customer's requiry for the voltage | Stainless steel 316 housing, aluminum motor fan, 100% new copper | |
Cast iron Reducer | 1 | arcuate bevel gear, mechanical seal, 50Hz/60Hz | cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface | |
Stackable Impeller | 2 | stackable impeller | ||

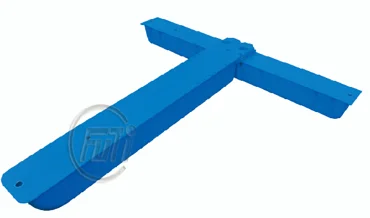

Floats | 2 | 1989*251*170mm 1989*285*208mm | HDPE float made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure No influence of water | |
movable joint | 2 | hole: 25.5mm | cast iron or stainless steel(depends on customer's requiry) | |
bolt and nut bag | 1 | stainless steel 304(SUS 304) | ||
pedestal | 2 | Nylon |
CHARACTERISTICS | ||||||||
1.Arcuate bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models. | ||||||||
2.Arcuate bevel gear is made of chromium-manganese-titanium with cartonitriding on the surface, Long life span and high rigidity are available | ||||||||
3. mechanical seal is adopted which life span is 2 or 3 times longer than oil seal | ||||||||
4. protector inside motor is available to avoid motor being burnt accidentally | ||||||||
5. HDPE flat, Nylon impeller, stainless steel solid shaft, and frame are available | ||||||||
6. the housing of motor and reducer is electrophoresis, the anti-corrosion performance is much better | ||||||||
Main Part:Motor
MotorBrand:FUTI
Original:China
Power:1.5Kw(2HP)
Phase:3phs
RPM1440/50HZ 1700/60HZ
Our high-efficiency motor is made of 100% new copper wire, adopting the automated coil reeler, rotor positioning instrument and following uncompromised precessing and inspection procedures. good quality, longevity, lower amp, low power comsumption
Main part:Cast iron Reducer
Brand:FUTI
Original:China
Ratio 1:14 1:16.8
oil Liter 0.8L
cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface, oxygen transfer capacity is 36.3% higher, power efficiency is 36.8% and save at least 20% electric energy than traditional models, mechanical seal on it
Main Part:Impeller
Original:China
1. made from HDPE material with excellent ductility 2.intergral blow molded formation, No influence of water 3.excellent in withstanding larger impact, corrosion free and weathering 4.100% new HDPE material, resist impact, acid-alkalinity & sun exposure

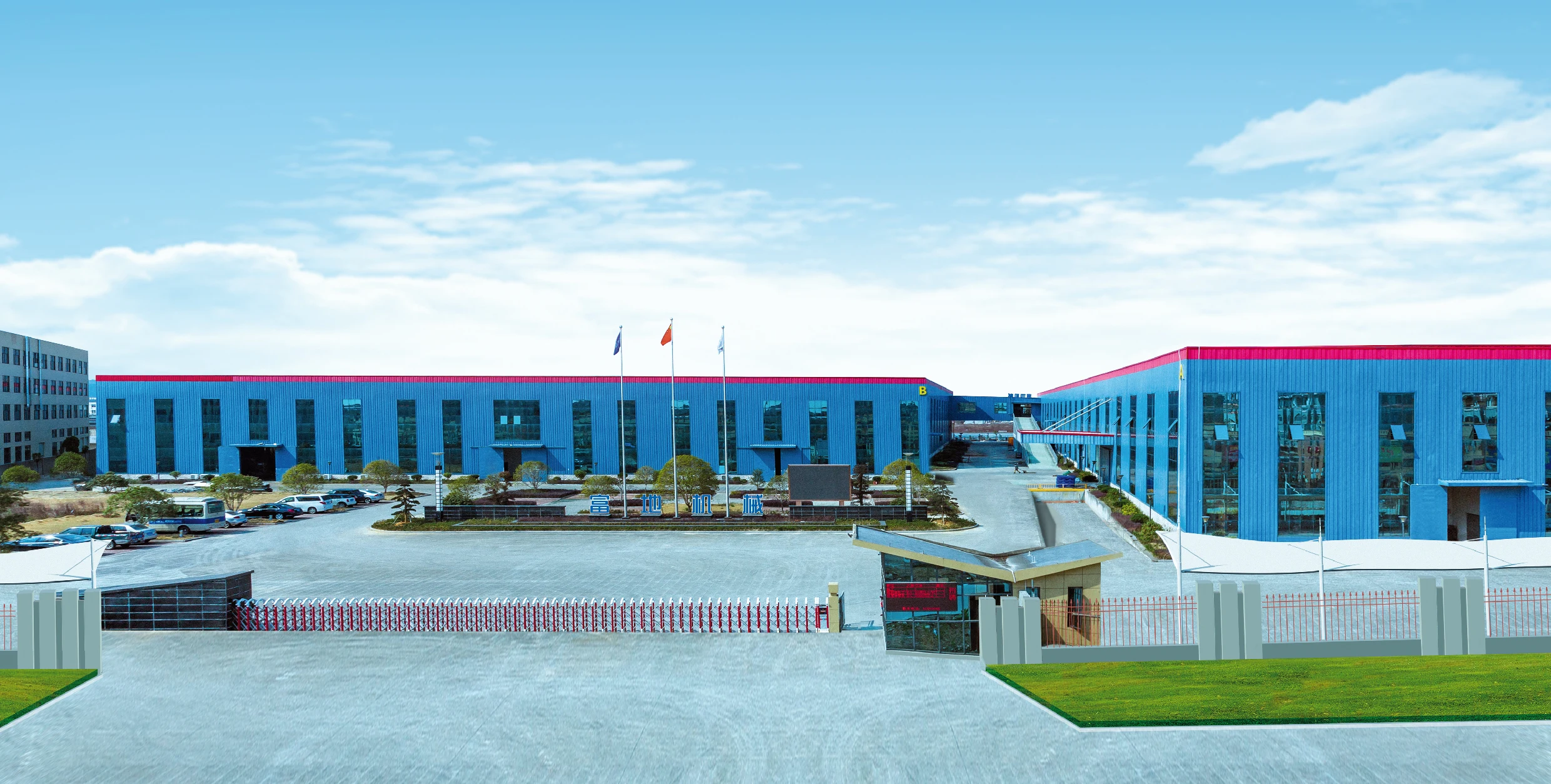

Company Profile

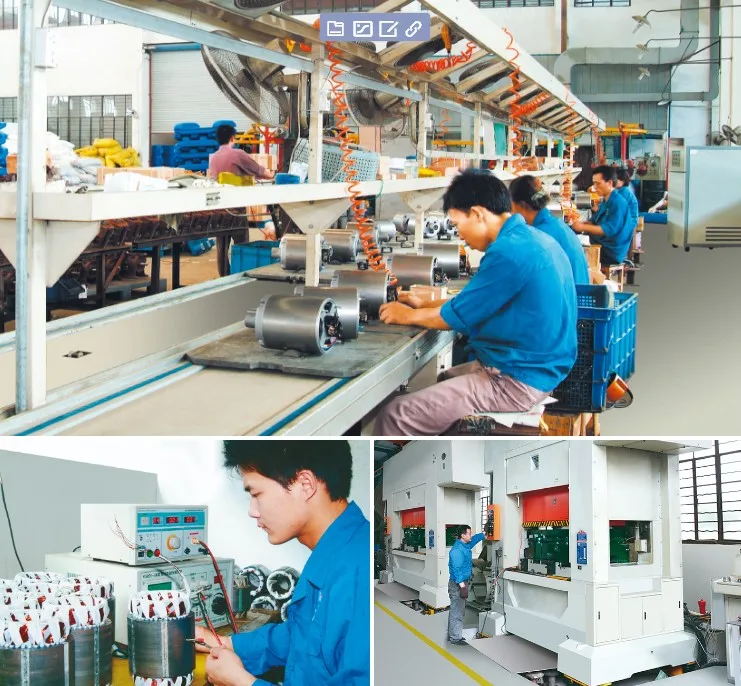

Production Process

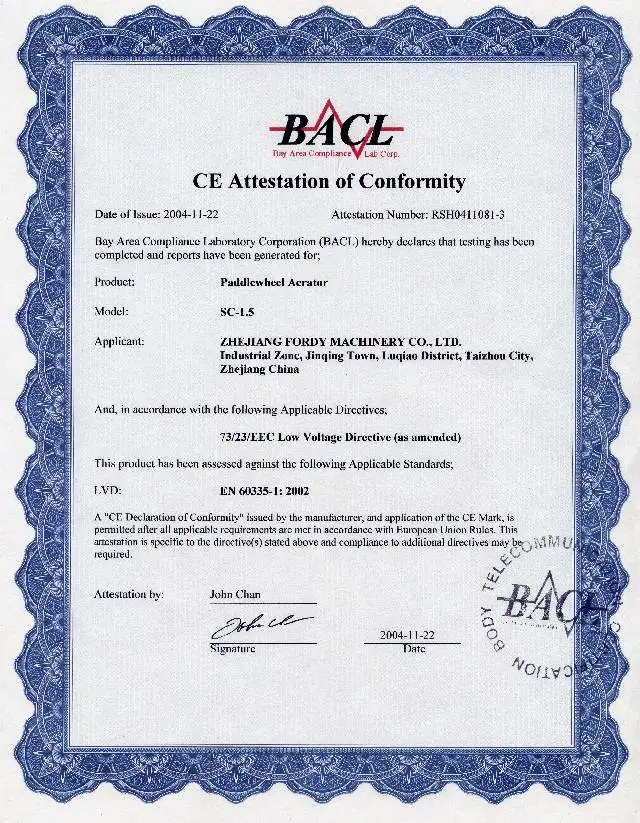

Certifications
Exhibition photos

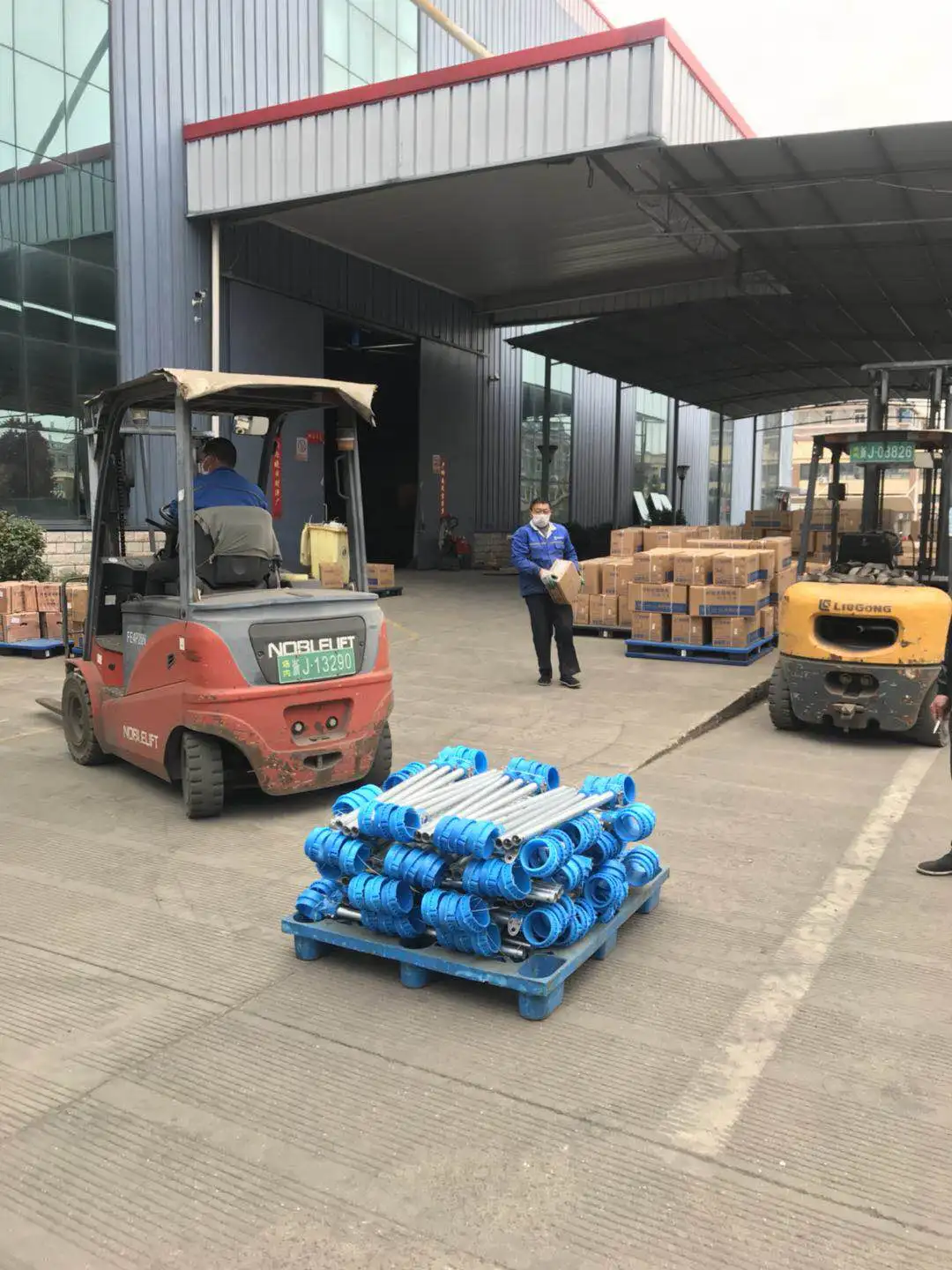

Packaging Logistics
