BETA door making machines atc cnc route cabinet machine atc function cnc woodworking engraving machine

Product Overview

Description

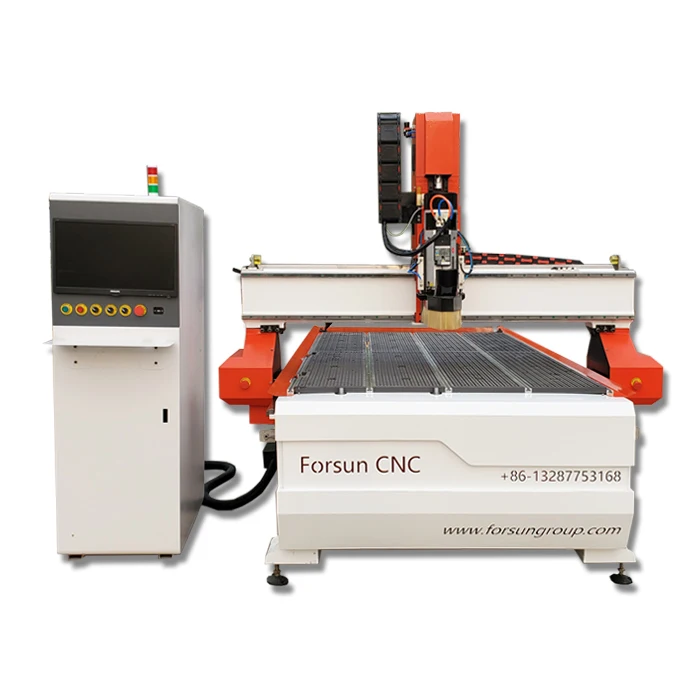

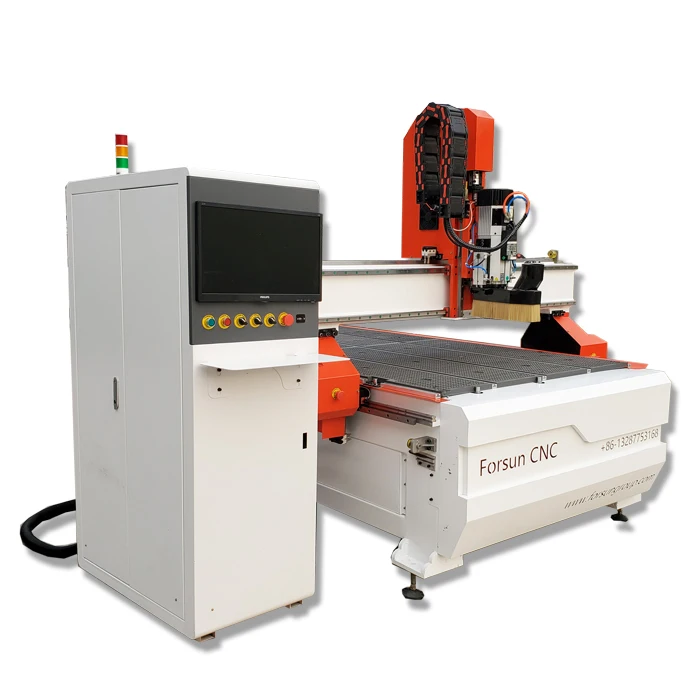

BETA  door making machines atc cnc router machine

Ø Effective working area: 1300*2500mm*200mm

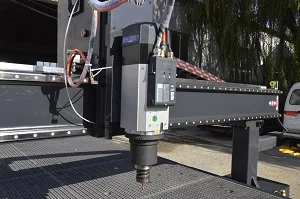

Ø 9kw Italy HSD ATC air cooling spindle

Ø 11kw Taiwan Delta inverter

Ø German SIEMENS 808D control system

Ø German SIEMENS servo motor

Ø Linear 10 PCS Tool Magazine

Ø Vacuum & T-slot working table

Ø Taiwan TBI Ball Screw,Helical Rack and Pinion

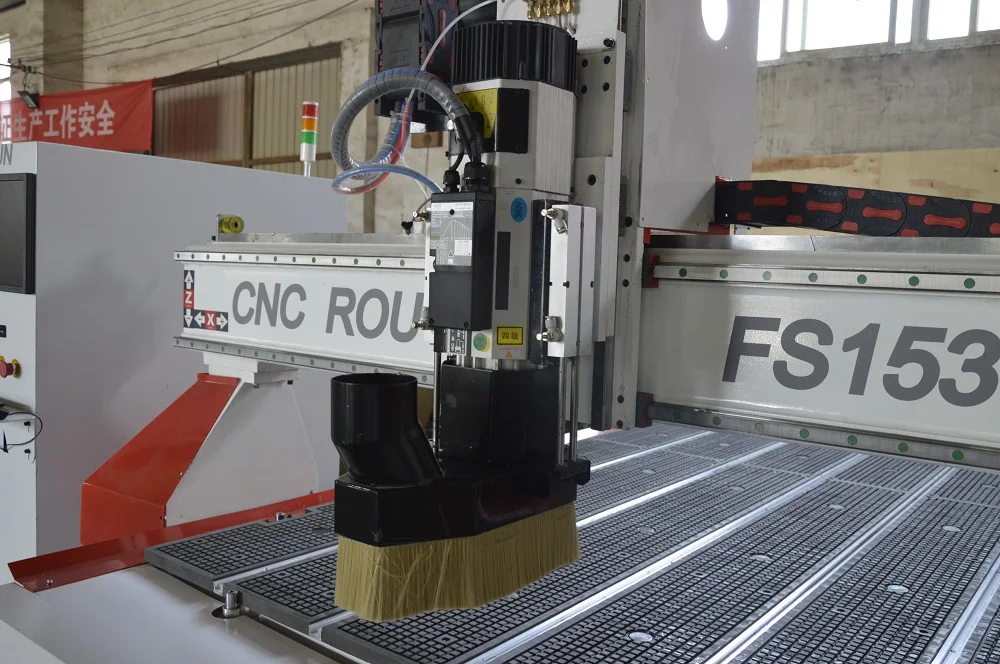

Spindle	Italy HSD Air Cooling Spindle  Top brand of the world. Spindle speed: 0-24000RPM.
Inverter	Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
Motor	German SIEMENS servo motor high working efficiency and stable running promised
Control system	SIEMENS 808D Controller Thanks to its panel based design philosophy, and IP65’s protection level, the SINUMERIK 808 series is ideal for harsh environments.
Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
Tool magazine	Linear 10PCS Tool Magazine The use of an 10 Tool speeds up tool changes assuring faster cycle times increasing production throughput.

1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair,

doors and windows.

2) The wood products: voice box, game cabinets, computer tables, sewing machines

table, instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body

of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other

carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and

soft metals such as copper, aluminum plate engraving and milling process.

Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.



Why choose us?



Q1:How long is the delivery time of this cnc milling machine?

For standard machines, it would be 7-15 days;

For non-standard machines and customized machines according to client s specific requirements,

it would be 15 to 30 days.

Q2: What mode of payment for this cnc milling machine?

T/T, 50% deposit and the balance 50% should be paid before shipment.

Q3: If some problems happened to this cnc milling machine during warranty

period, what should i do?
