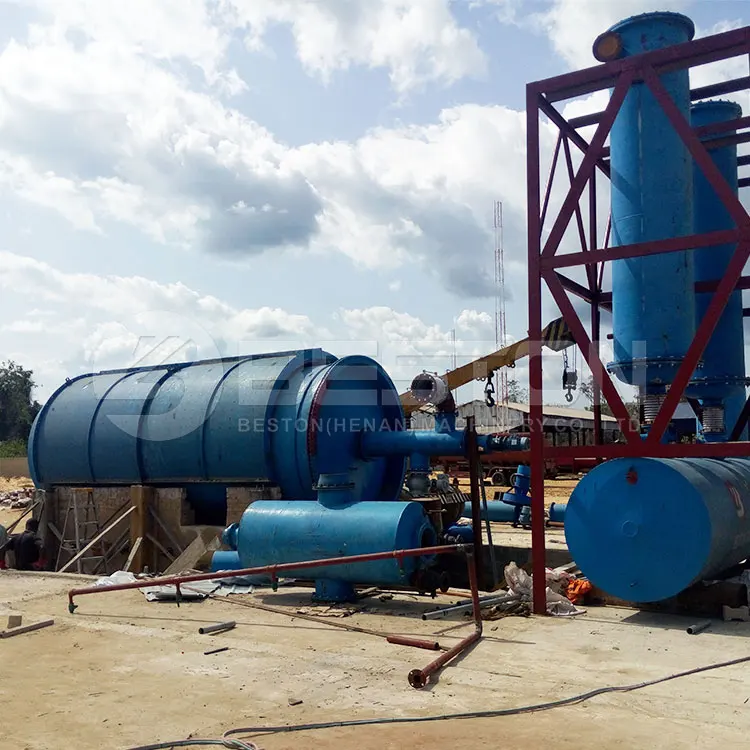

Beston машина для переработки отходов Пиролизная установка для шин пластика

Product Overview

Description

Tyre Pyrolysis Plant Plastic Recycling Machine

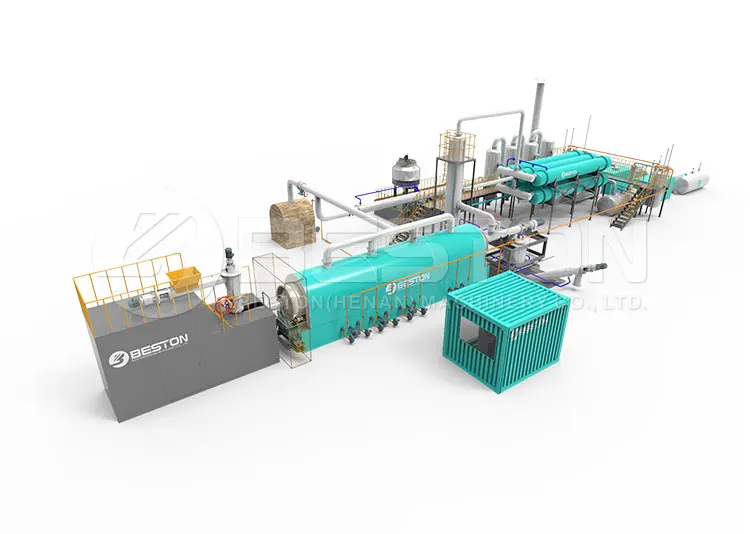

>>>>> Brief Introduction Of Continuous Pyrolysis Equipment

The whole process of continuous pyrolysis equipment adopts hot air heating, atmospheric pressure, poor oxygen pyrolysis process operation, continuous feeding, continuous slag discharge, furnace body airtight, gas recovery and combustion heating. This equipment improves the thermal pyrolysis efficiency and improves its safety.

>>>>> Continuous Pyrolysis Equipment Advantages

1. Simple Installation

Each module has been installed and manufactured when it leaves the factory, and can be used after simple debugging. The assembly of each module is simple. After lifting according to the position, use pipe screws to complete the installation.

2. Easy Replacement

One of the system modules has a problem. You can simply replace it with a new module and quickly assemble it. This is the main feature of a systematic and modular design.

3. Easy Transportation

Each module is designed to be easily transported by vehicle.

4. Flexible Layout

It can be flexibly arranged according to different venues to meet the venue conditions of different customers.

>>>>> Notes

1. No hard bulk material shall be mixed into the conveying material, such as brick, steel plate, etc., so as to avoid the damage of the screw machine.

2. It is necessary to keep the raw material filled with feed screw during production to isolate the air. Pay attention to the feeding situation of raw material in feed hopper during production, pay attention to whether the feed screw is blocked, and adjust the speed of feed motor by slowing down the feeding speed; Adjust the spiral motor speed of continuous pyrolysis main body to solve.

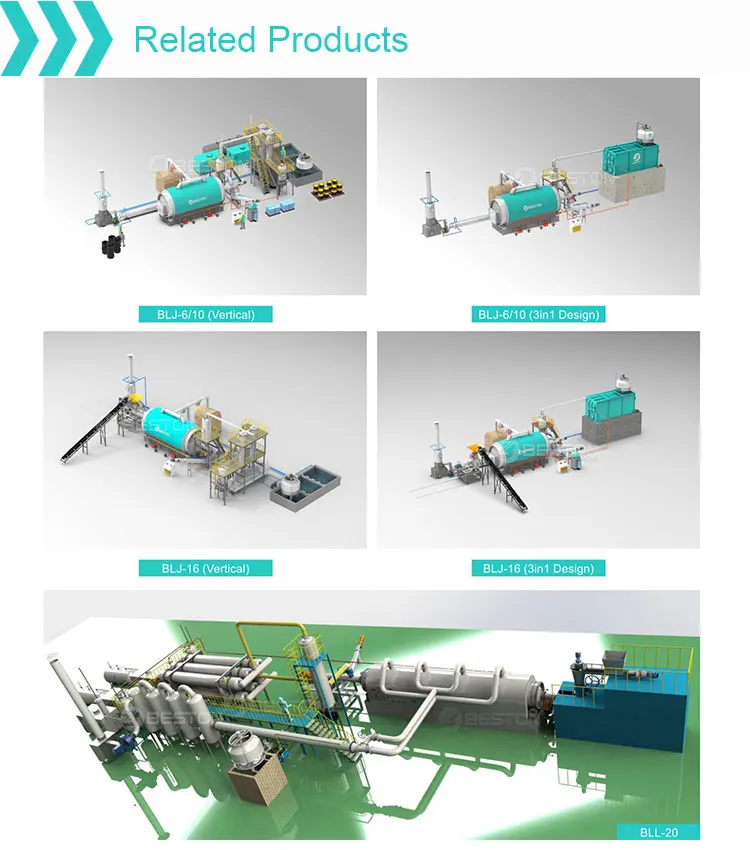

Data	BLJ-6	BLJ-10	BLJ-16	BLL-16	BLL-20
Daily capacity	6 MT	10 MT	16 MT	16 MT	20MT

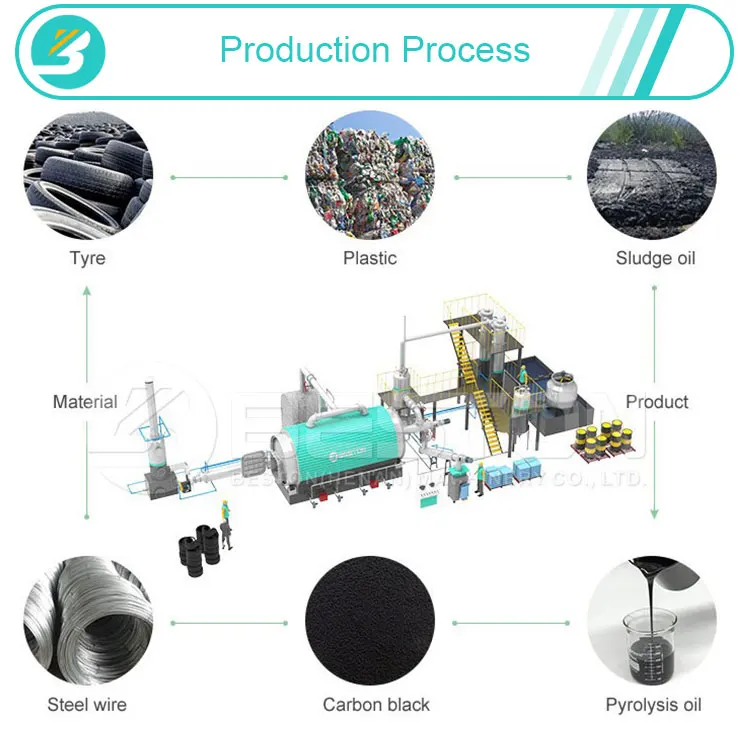

Raw material	Waste tires,rubber,plastic,oil sludge,medical waste
Working method	Batch			Semi-Continuous	Fully continuous
Operating pressure	Constant pressure
Reactor rotate speed	0.4 turn/minute				Not rotary type
Total power	24 kw/h	30 kw/h	54 kw/h	54 kw/h	53.6,62,84(kw/h)
Reactor size(m)	2.2*5.1	2.8*L6.2	D2.8 *L7.1	D2.8 *L7.1	L12.5*W2.2*H2.5
Space (L*W*H)	20*10*10 m	25*15*10 m	25*15*10 m	25*15*10 m	20*15*10m,33*15*10m

>>>>> About Beston

Beston (Henan) Machinery Co., Ltd. is an innovative high-tech enterprise. We have been engaging in technology research, manufacturing and service import and export for many years.

Beston manufacturing base was built in 1998, which is committed to environmental protection industries. With over 20 years’ unremitting effort and development, we have been the industry leader.The main products are biomass waste recycling production lines, including garbage sorting production line, waste tire and plastic pyrolysis production line, rubber powder production line, waste oil rectification production line, waste biomass carbonization production line and waste paper pulp production line. Our equipment has been exported to dozens of countries and regions like Europe, Middle East, Southeast Asia, Afria, South America, etc., being highly appreciated by foreign Governments and customers.

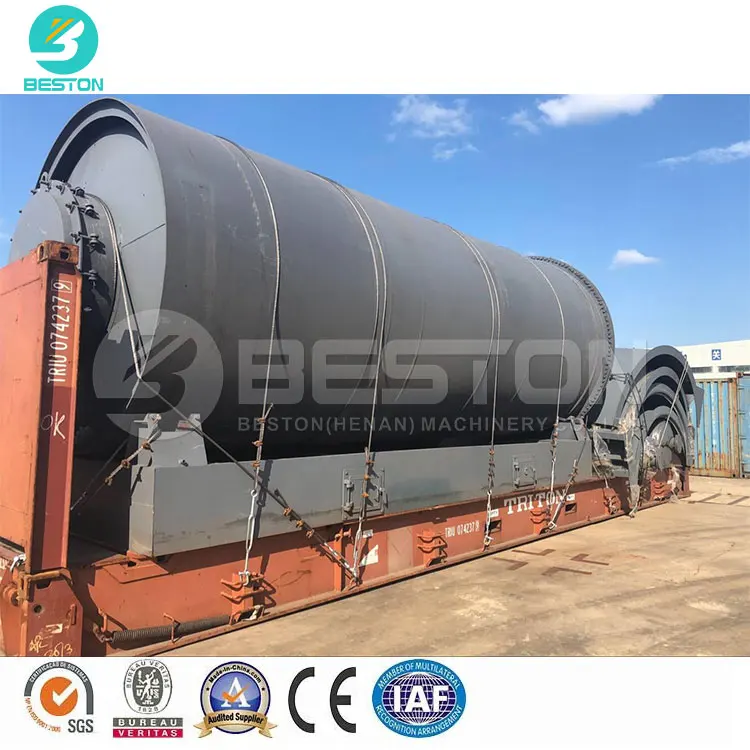

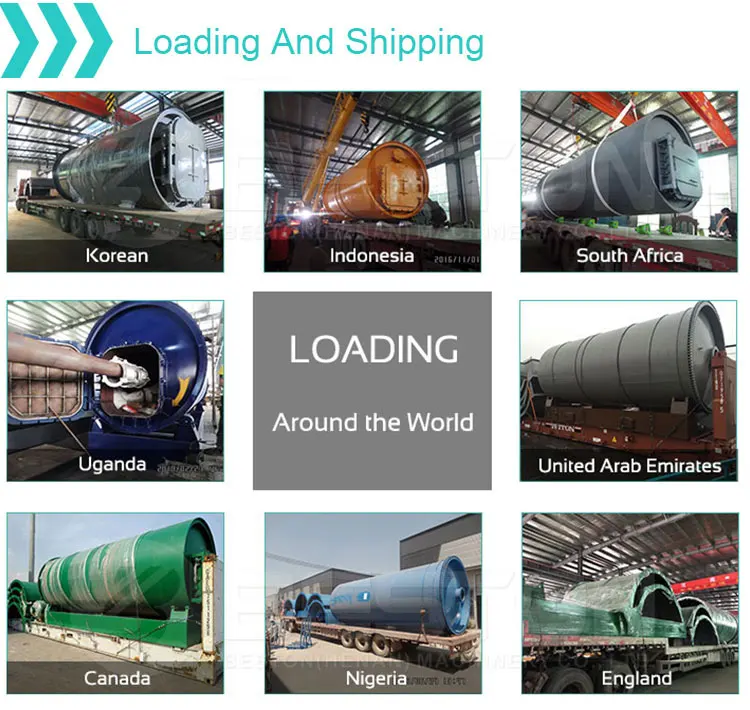

>>>>>Transport

Packaging :

1.Equipment body: plastic film.

2.Accessories: standard export wooden cases.

3.We can do as your requirement.

 Shipping :

25 working days after paymnet.

 >>>>>> Our Service

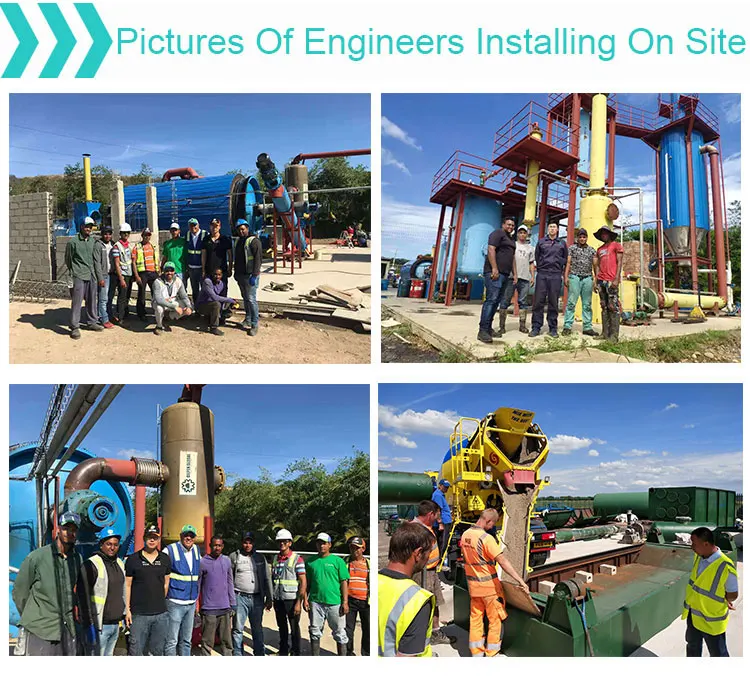

Installation And Training

Engineer for installation guiding, testing, commissioning and operators training.

Installation Period

Anticipate period is 30-50 working days, actual time depend on local working efficiency

Installation Charge

Buyer cover engineer’s visa cost, round-trip tickets+ board and lodging+ phone calling charge and related basic daily expenses, as well as salary (80USD one day one person).

Warrantee

12 months guarantee Onsite services Regular phone call visiting Whole life time maintenance and wear parts supply

>>>>> FAQ

1. Q: Can we process mixed material of tire and plastic?

A: We don't advise it, because they have different oil yield rate and quality.

2. Q: Is BLL-16 Pyrolysis Plant a BATCH system?

A: No, semi-continuous with pretreating system.

3. Q: Also can this plant take all types of waste plastic?

A: Except PET and PVC, the rest can be deal with.

4. Q: What's the advantage of " Three in one"?

A: Oil tank, oil condenser,hydraseal Save installation time and land; with good cooling effect

5. Q: Does the reactor use the burnable gases generated by the pyrolysis process as additional fuel to heat the reactor?

A: Yes.The combustible gas generated during the pyrolysis process after the hydroseal desulfurization and imputoty removal, can be used as fuel heating the reactor.

6. Q: Does the pyrolysis reactor have technological capabilities of disposing of metal fragments and contaminants deposited from processing of rubber and plastic material waste?

A: Our unique end side dischargeing design, which could enable discharging under 200℃ temp with complete sealing, 4-5 hours saving for temp cooling down.

Designed for semi-continuous type, we will add filter in the discharge screw, which will separate the carbon black small wires.

7. Q: Are there other locations. I saw an office in Canada. Is that correct?

A: We have set up branches and overseas warehouses in Russia, Pakistan and Uzbekistan.
