136KW 50HP 40ton R22/R407c/R134a экономичный легко установить тип С Воздушным Охлаждением Прокрутки промышленный охладитель
- Category: Industrial Chiller >>>
- Supplier: Dongguan Lechang Machinery Co. Ltd.
Share on (62540623749):
Product Overview
Description
120HP SCREW COOLED CHILLER
Model
Item | LC-100WS |
Band | |
Power supply | 380V/3PH/50HZ |
| |
Nominal cooling capacity
| Kcal/h | 335000 |
|
KW | 390 |
| |
USRT | 111 |
| |
Refrigerant
| Name | R22(or R407C/R404A) | Import of high quality refrigerant |
Refrigeration circuit | 1 |
| |
Throttling device | Control method | Thermostatic expansion valve |
|
Compressor
| Type | Semi-hermetic Screw | Hanbell(Taiwan) |
Starting |  |
| |
Energy control | 25%-50%-75%-100% |
| |
Input power(kw) | 79.6 |
| |
Rated current(A) | 134 |
| |
Condenser
| Type | Shell tube |
High efficiency external thread copper pipe shell and tube type |
Water flow(m3/h) | 80.8 |
| |
Pressure loss(kpa) | 50 |
| |
Pipe specification(PT) | 4″ |
| |
Evaporator
| Type | Shell tube | High efficiency internal thread copper pipe shell and tube type |
Water flow(m3/h) | 67.1 |
| |
Pressure loss(kpa) | 65 |
| |
Pipe specification(PT) | 4″ |
| |
Safety device | Overload protection.high and low pressure protection.exhaust overheating protection.antifreeze protection.power inverse phase protection.hydraulic protection. | JAVE(Taiwan).ALCO(America).Schneider(France).Chint | |
dB(A) | 63.8 | ||
Dimension | LxWxH(mm) | 3100*1100*1900 | Wooden case |
Machine weight(kg) | 1950 | ||
Operating weight(kg) | 2150 | ||
Remark:
1.The capacity is according to the following parameters: ambient temperature:35 ° inlet/outlet chilled water temperature 12 ° C / 7 ° C
2.The specifications above are subject to change without notice.
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

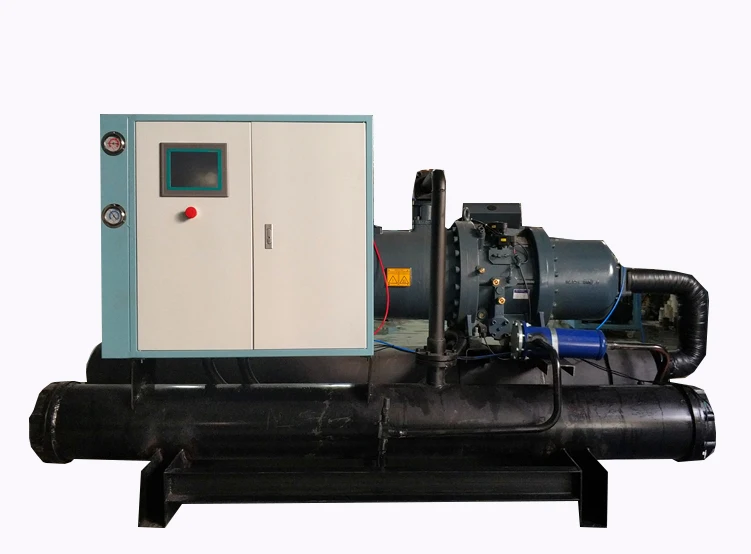

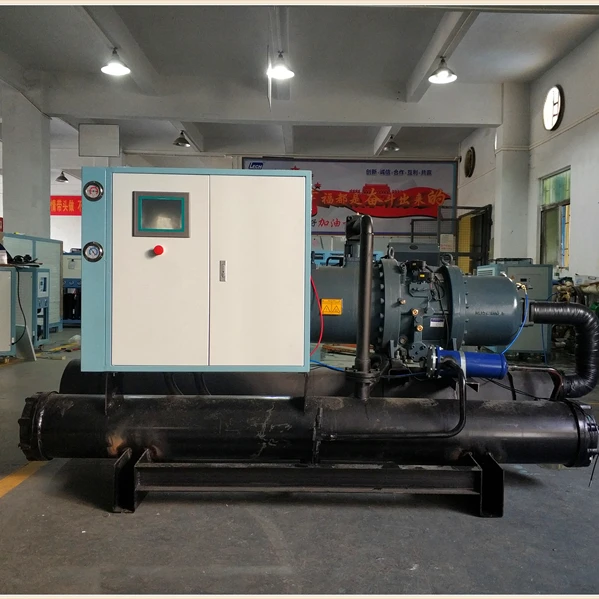

MACHINE PICTURES
