Product Overview
Description
Product Description

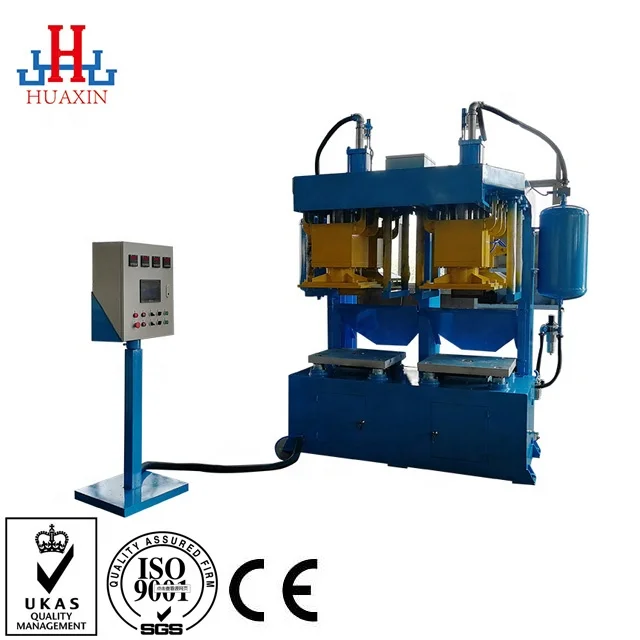

Foundry Sand Moulding machine is a kind of casting machinery.
It is mainly used for making sand moulds.
Jolt squeeze Moulding machine is suitable for small-scale and batch production of castings. It can be used on casting production
lines or used alone. It can complete the processes of compaction and molding.
His main function is to fill sand into flask for compaction, shake and compact the loose sand in the sand box by molding machine,
and then take it out of the mold to complete the process. Our standard molding machine is a micro-shock compaction molding
machine, which uses air pressure to apply pressure to the molding sand in the sand box through a pressure head or pattern to
compact the molding sand and has certain action noise. Iron Foundry
It is mainly used for making sand moulds.
Jolt squeeze Moulding machine is suitable for small-scale and batch production of castings. It can be used on casting production
lines or used alone. It can complete the processes of compaction and molding.
His main function is to fill sand into flask for compaction, shake and compact the loose sand in the sand box by molding machine,
and then take it out of the mold to complete the process. Our standard molding machine is a micro-shock compaction molding
machine, which uses air pressure to apply pressure to the molding sand in the sand box through a pressure head or pattern to
compact the molding sand and has certain action noise. Iron Foundry

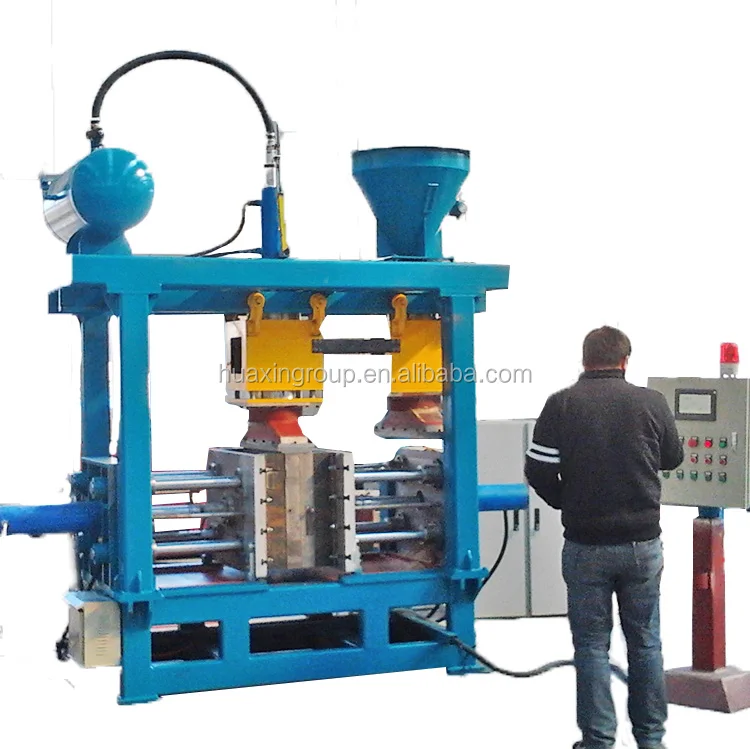

Foundry Resin Sand Core Making Machine

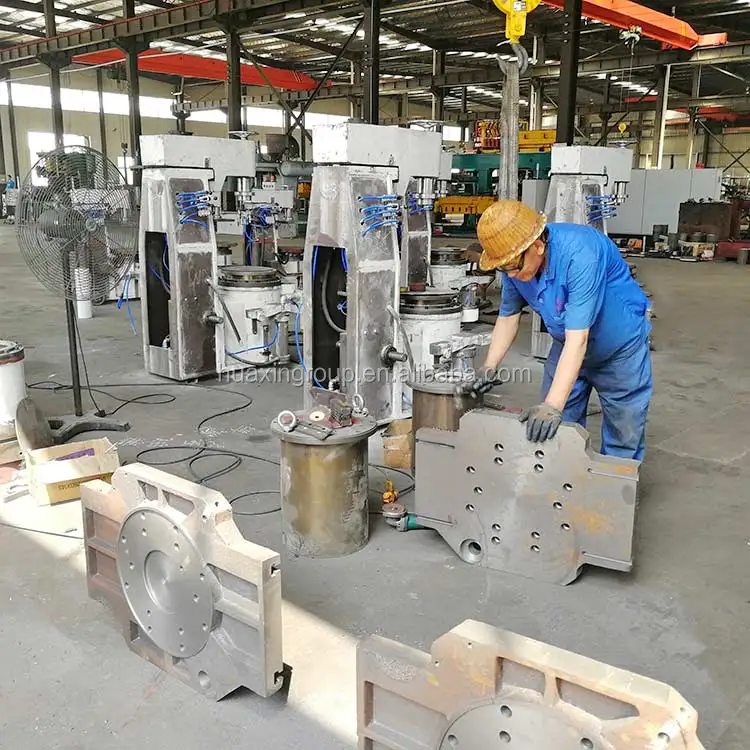

Description of proudction process
1. Most parts of the molding machine are ductile iron castings, and the quality of castings is very important
2. Our Huaxin Company has its own foundry and casting testing laboratory to ensure the quality of molding machines from the source.
3. After the casting comes out, it will go through a series of machining processes. The company has over 30 sets of machining equipment to ensure timely delivery.
4. After the casting is processed, polished, assembled and welded to the fuselage.
5. Connect the air source, debug and test run to ensure that the equipment delivered from the factory is qualified equipment. Iron Foundry

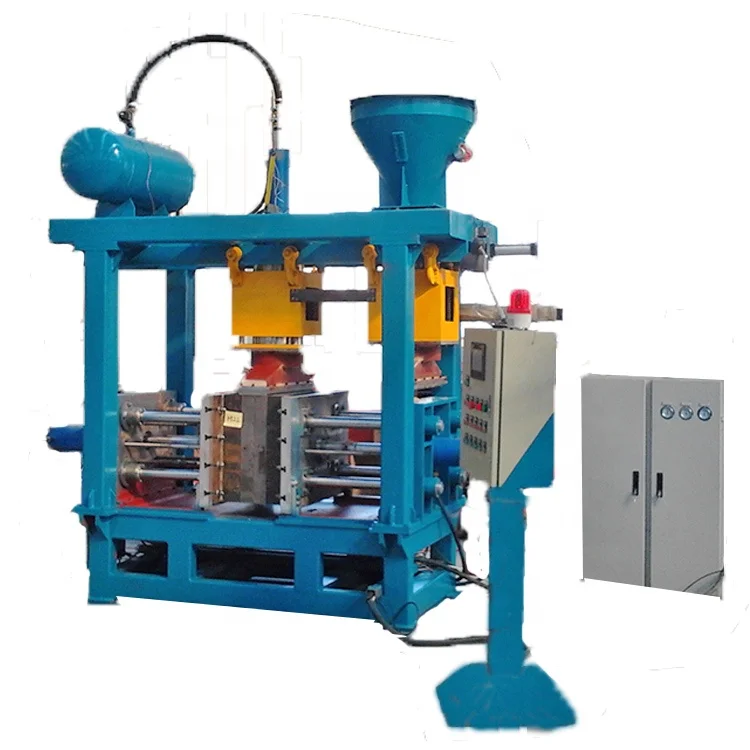

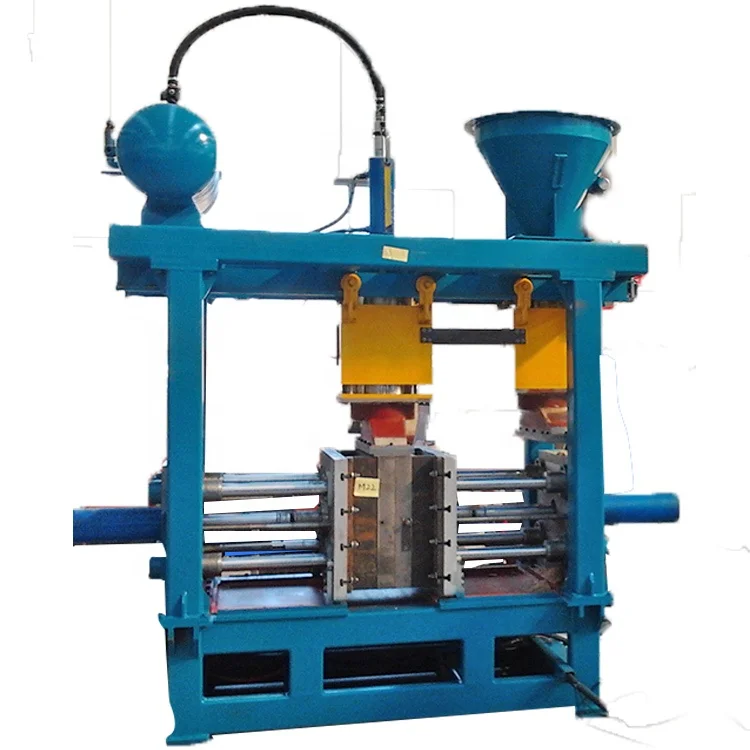

Detailed Images
1. The machine adopts a spring-buffered pneumatic micro-shock mechanism, which can reduce the impact of the shock on the foundation, and the requirements on the foundation are not high.
2. The pattern drawing mechanism is synchronized by two stripper cylinders , connecting rods and synchronous shafts.
3. This machine has increased Compaction cylinder stroke and compacting force, so the quality of sand mold is firm and uniform.The machine adopts a spring-buffered pneumatic micro-shock mechanism, which can reduce the impact of the shock on the foundation, and the requirements on the foundation are not high.
4. The pattern drawing mechanism is synchronized by two stripper cylinders , connecting rods and synchronous shafts. This machine has increased Compaction cylinder stroke and compacting force, so the quality of sand mold is firm and uniform.
Size Information
Size Chart of Foundry sand
Foundry Resin Sand Core Making Machineiten no. | Z143W | Z145W | Z146W | Z147W | Z148WB | Z148WK | Z149WK |
working table size (mm) | 560X420 | 600X550 | 700X550 | 800X575 | 900X730 | 1200X730 | 1200X1030 |
Compressed air consumption | 0.25M3 | 0.4M3 | 0.4M3 | 0.4M3 | 0.6M3 | 0.6M3 | 0.6M3 |
Company Introduction
Since its founding in 1998 as Qingdao Huaxin Group, the mission of qingdao huaxin group has been to develop the most innovative solutions possible for the automation of green sand moulding, sand core making machine, sand preparation and shot blasting processes throughout the foundry industry. Continuous technological improvement and innovation have earned nearly 20 intellectual property rights in China. Today, with nearly 5,000 sand moulding machines and shot blasting systems installed around the world, and its sales and service operations are spread all over the world.
Our single focus is, has always been, and will always be the foundry industry.
Our single focus is, has always been, and will always be the foundry industry.

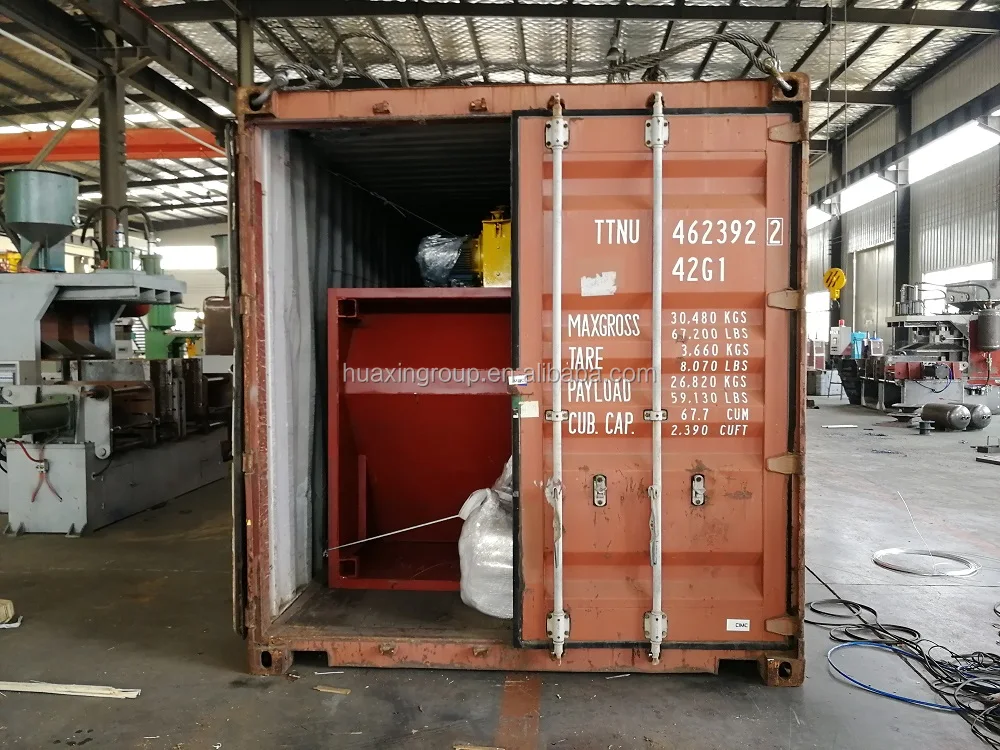

Packing&Shipping
Foundry sand casting Jolt squeeze molding machines are packed export standard packing.
Production Strength
OUR SERVICES & STRENGTH
1. Qingdao Huaxin Company has more than 20 years of production experience in casting equipment.
2. Semi-automatic pneumatic molding machine, multi-contact molding machine full-automatic static pressure molding production line.
3. There are also core shooting machines, shot blasting machines, sand processing equipment and other casting production lines designed by the company itself.
4. The company has excellent research and development equipment team, mature sales and after-sales service team, and professional service for each user.Iron Foundry
2. Semi-automatic pneumatic molding machine, multi-contact molding machine full-automatic static pressure molding production line.
3. There are also core shooting machines, shot blasting machines, sand processing equipment and other casting production lines designed by the company itself.
4. The company has excellent research and development equipment team, mature sales and after-sales service team, and professional service for each user.Iron Foundry
