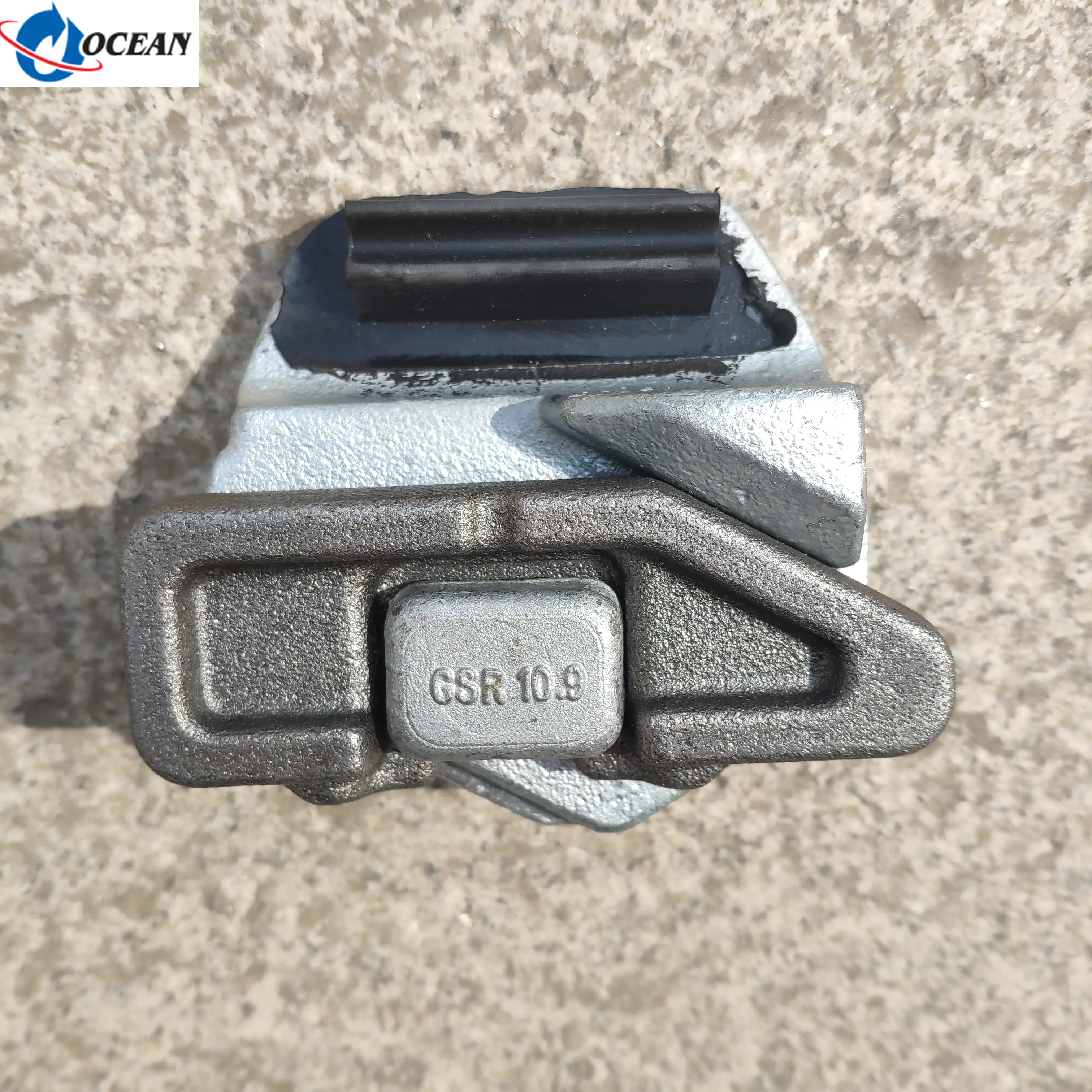

GSR W16 115 38 Crane Rail Clip For Rail Construction
- Category: Railway Parts & Accessories >>>
- Supplier: Tianjin Ocean Mechanical & Electrical Equipment Co. Ltd.
Share on (62542178629):
Product Overview
Description
Product Description

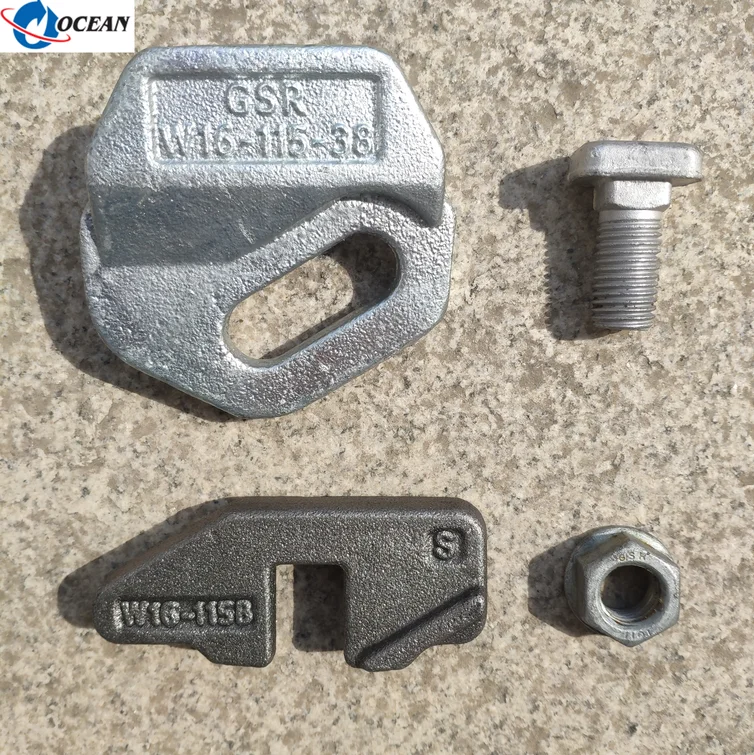

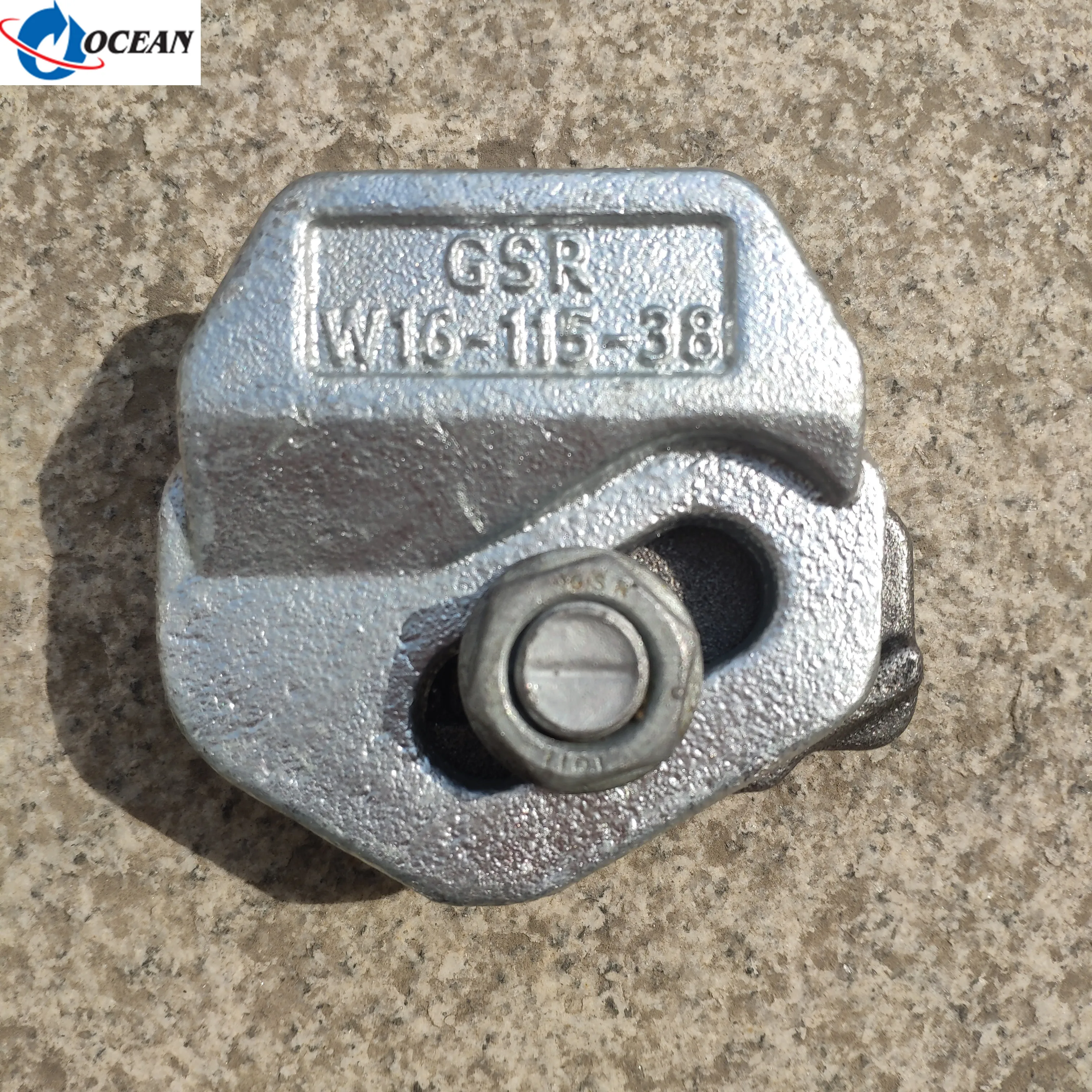

W16-115
GSR Welded Base Fixing
The GSR W16-115 adjustable crane rail clip is designed to fix heavy rails, on narrow steel plate, in the most arduous
applications. It can withstand a horizontal force from the rail of 125kN.
applications. It can withstand a horizontal force from the rail of 125kN.
Its low profile allows it to be used with cranes that are fitted with guide rollers.
Specification
Max side load : 125kN
Horizontal rail adjustment : 15mm
Horizontal rail adjustment : 15mm
TIGHTENING TORQUE: 220Nm
DIMENSIONS(mm):
NO. | A | B | C | WEIGHT(kg) |
W16-115-30 | 30 | 47 | 29 | 0.85 |
W16-115-38 | 38 | 47 | 29 | 0.92 |
W16-115-45 | 45 | 47 | 29 | 0.98 |

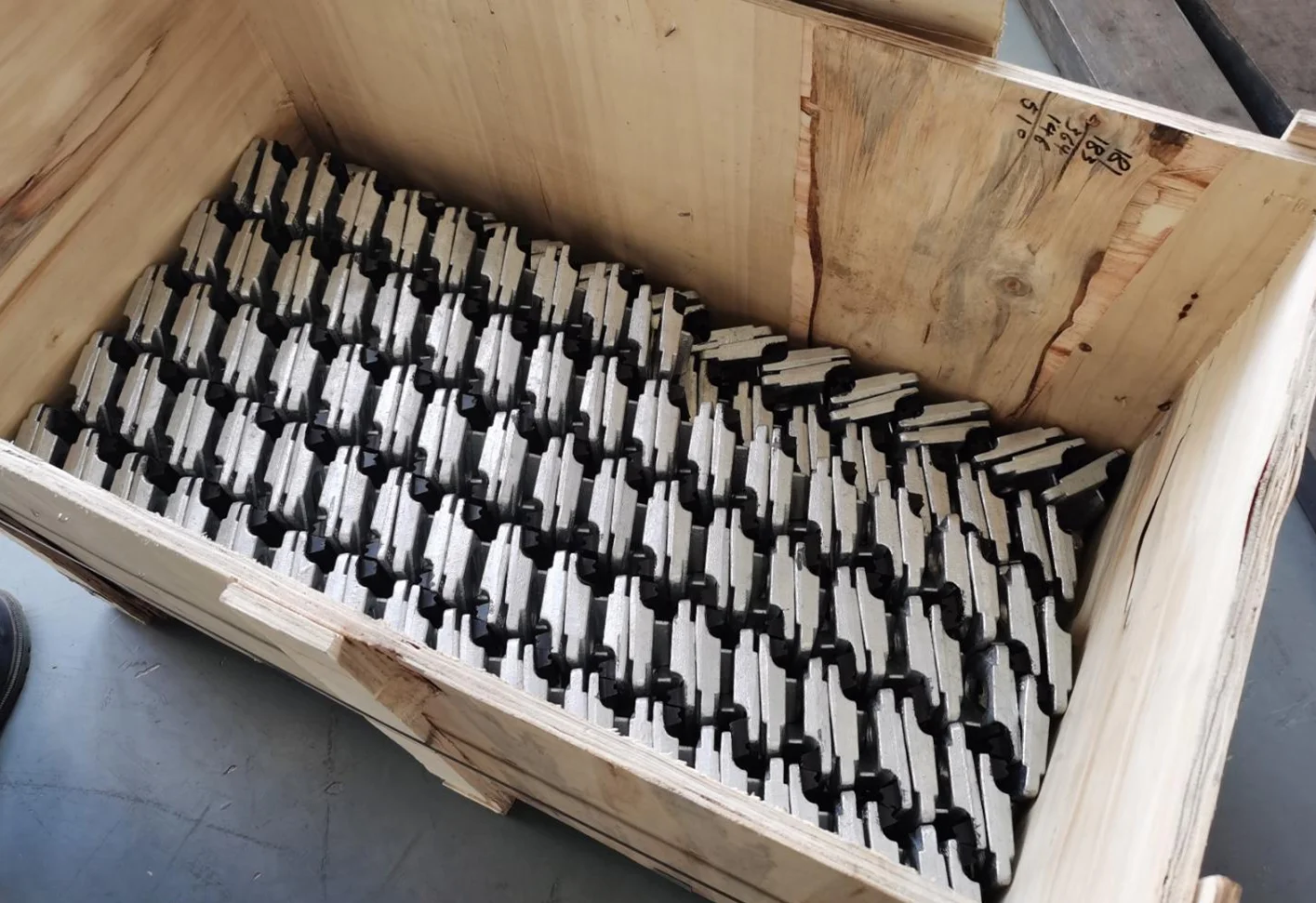

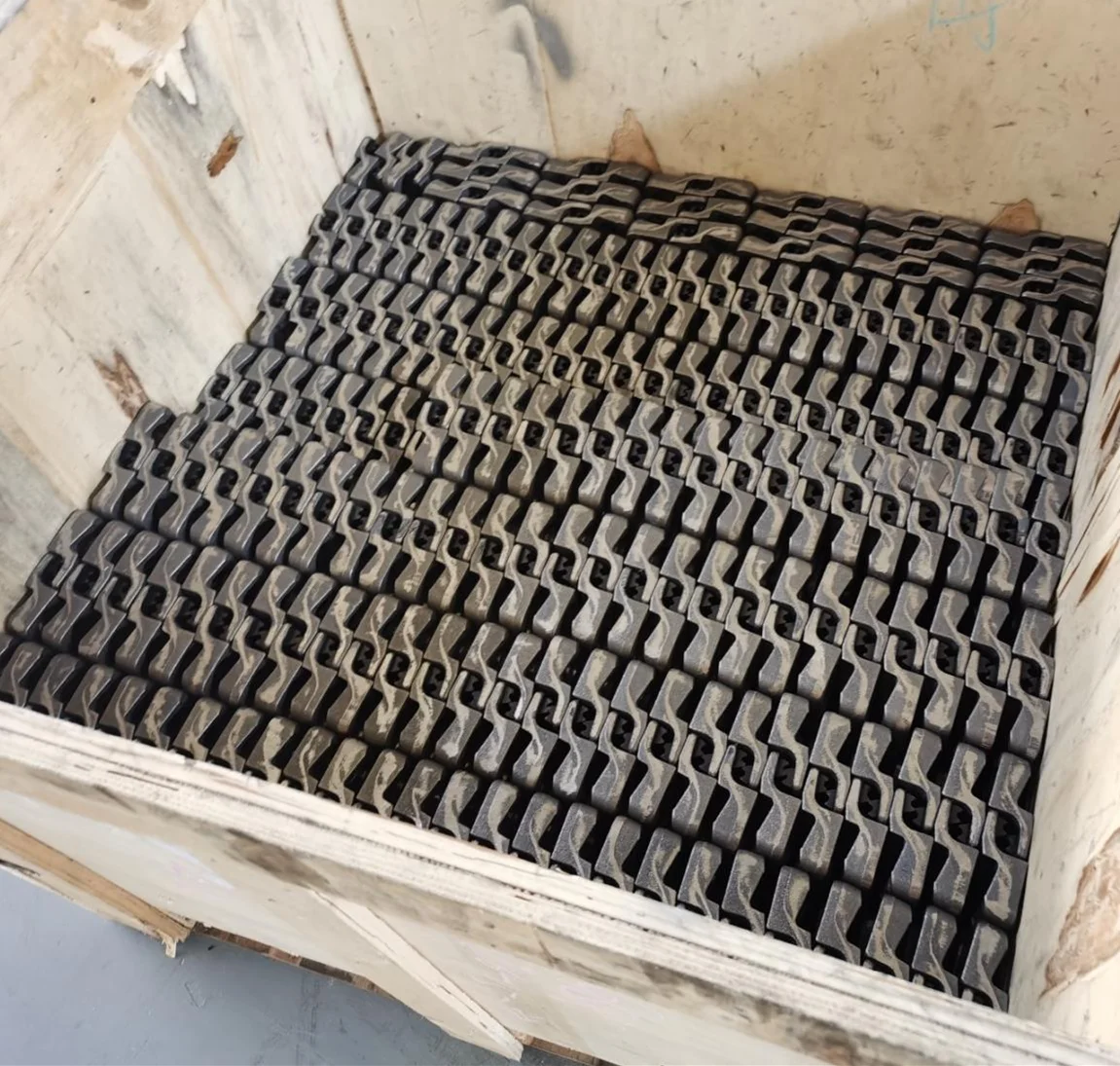

Packing & Delivery

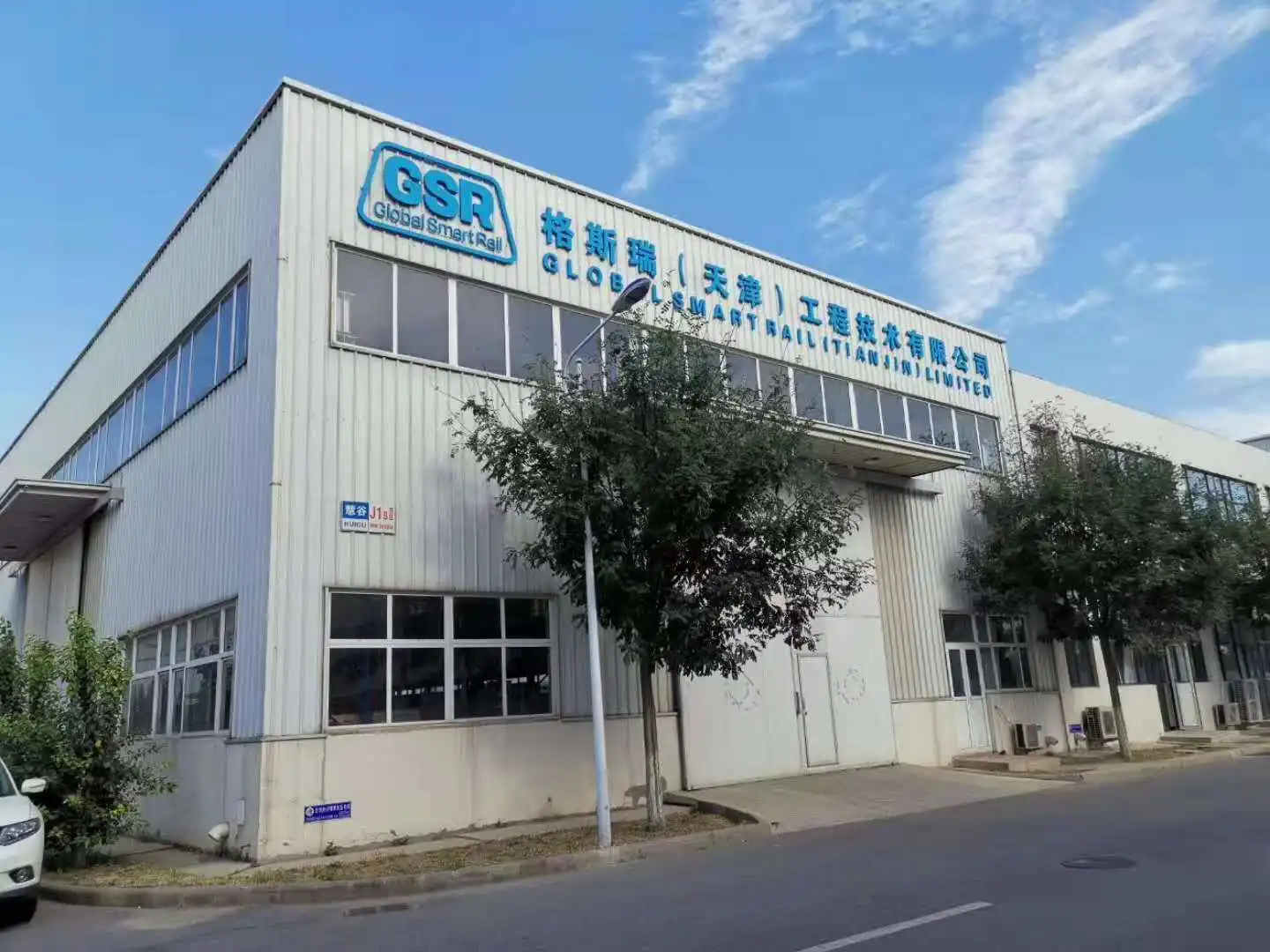

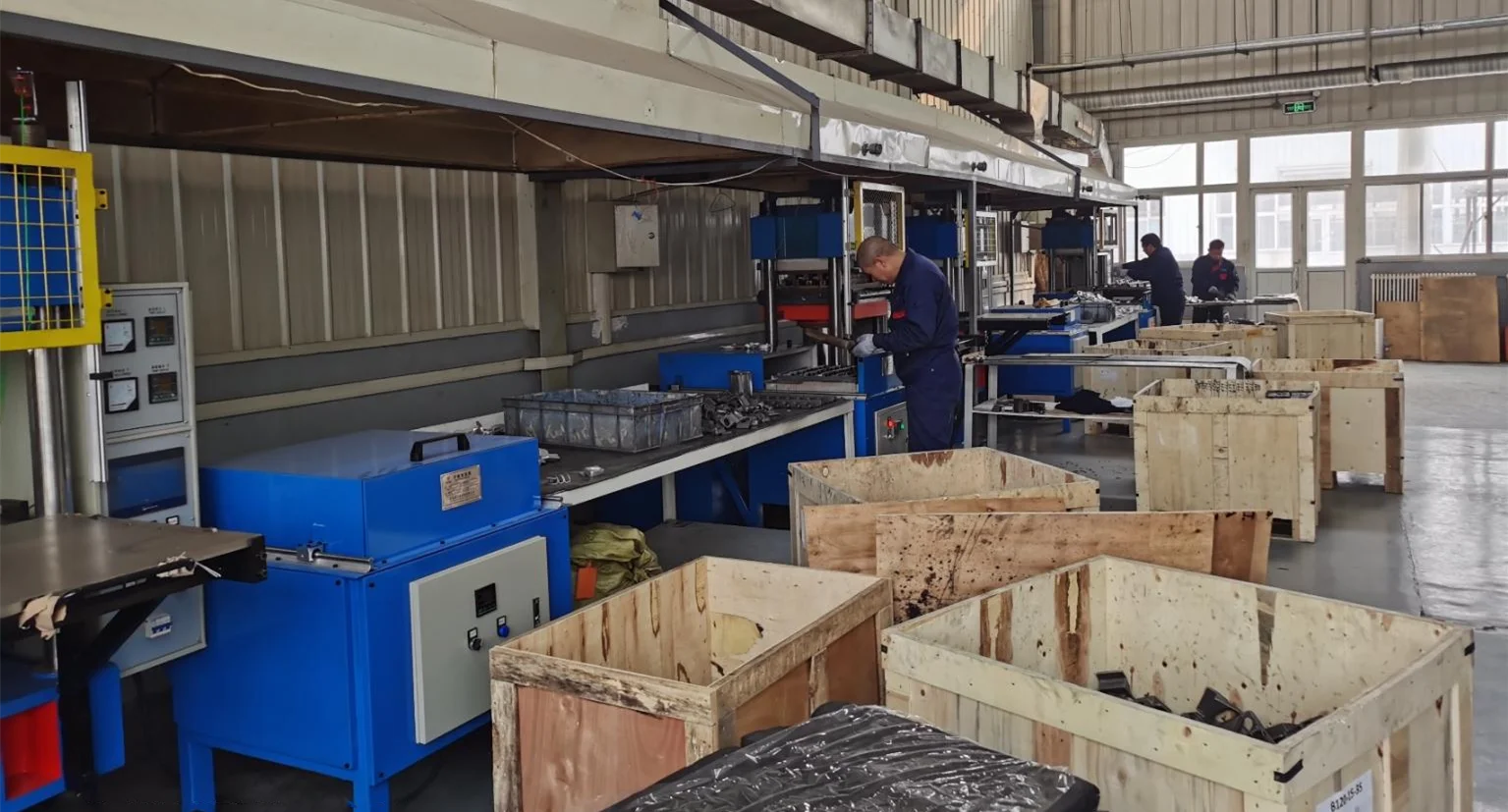

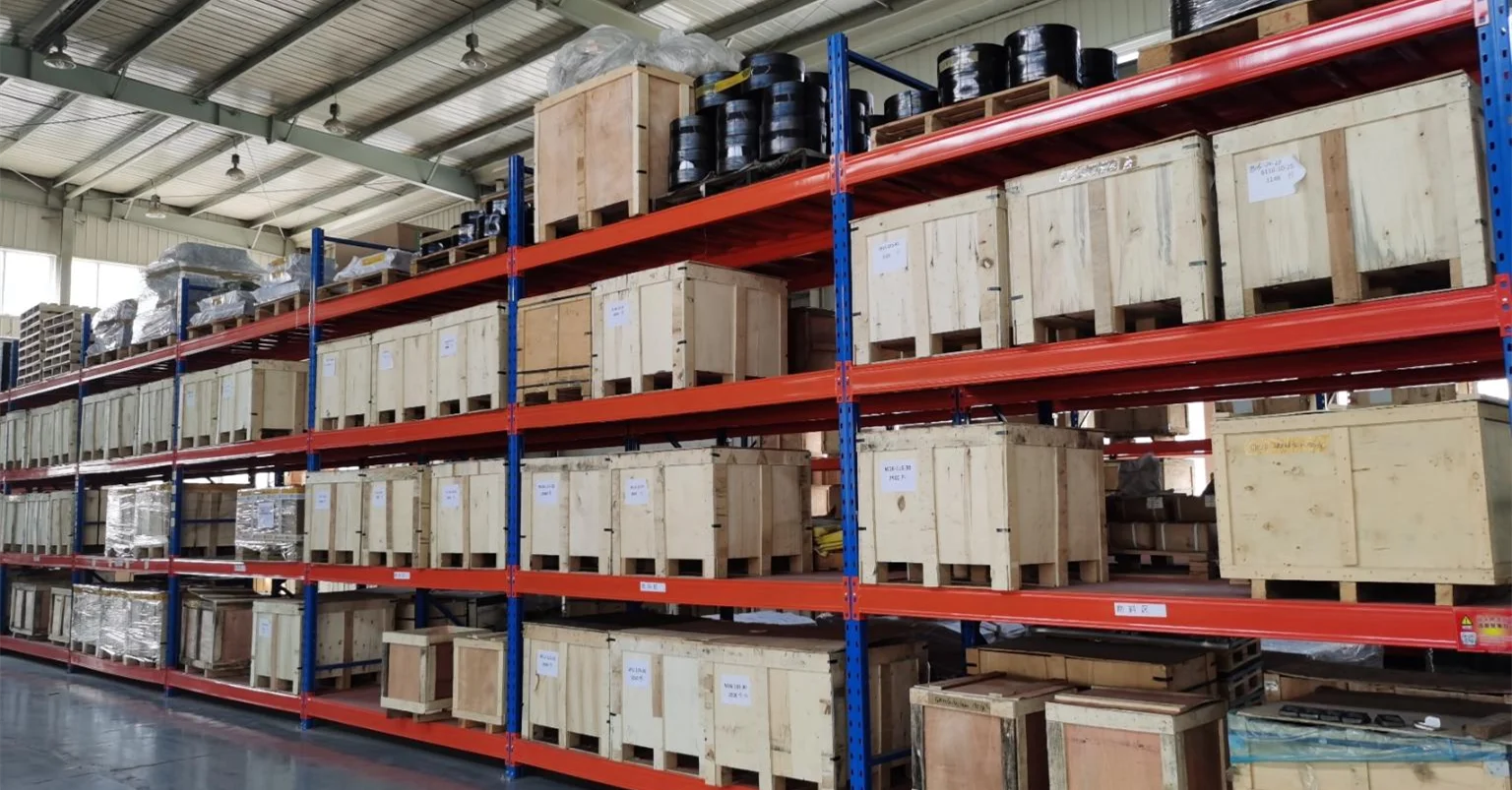

Company Profile
Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Major Projects
High Speed Railway Project
The GSR rail system product has been successfully applied in the high speed railway maintenance station. The project will promote our GSR products in the railway system.
Supply: 15500 meters of QU100 rail adopted GSR adjustable chairs and provided 15,500meters of rail installation.
Contact Details
Address: 2-1207 Boling Building No.108 Dazhigu Mid Road Hedong District, Tianjin, China.
Tel: 0086 22 24387905
Fax: 0086 22 24387909
Ckype/WhatsApp/WeChat: 86 131 32559262
