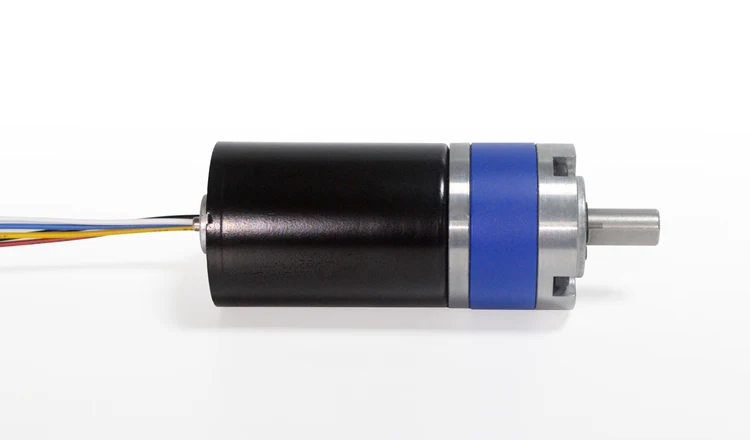

12V 24V DC Planetary Gearbox brushless Gear Motor CE&RoHS
- Category: DC Motor >>>
- Supplier: Shenzhen Chiming Motor Co. Ltd.
Share on (62542360801):
Product Overview
Description
Product Description
| Model | Gear Ratio | Rated Voltage | No Load | Rated Load | Stall Extrapolation | L Size | Weight | ||||
| Speed | Current | Torque | Speed | Current | Torque | Current | |||||
| V | RPM | MA | Kg.cm | RPM | MA | Kg.cm | A | MM | G | ||
| CM36-3650-1260 | 3.7 | 12 | 1600 | 230 | 0.7 | 1300 | 1300 | 3.2 | 4 | 26.6 | 666 |
| 5.18 | 12 | 1200 | 230 | 1 | 1000 | 1300 | 4.6 | 4 | |||
| 14 | 12 | 430 | 230 | 3 | 360 | 1300 | 10.7 | 4 | 32.6 | 735 | |
| 27 | 12 | 230 | 230 | 5 | 195 | 1300 | 20.7 | 4 | |||
| 50 | 12 | 120 | 230 | 9 | 100 | 1300 | 38 | 4 | |||
| 71 | 12 | 85 | 230 | 13 | 75 | 1300 | 46 | 4 | 38.7 | 800 | |
| 100 | 12 | 60 | 230 | 18 | 52 | 1300 | 65 | 4 | |||
| 139 | 12 | 45 | 230 | 20 | 40 | 1300 | 90 | 4 | |||
| 189 | 12 | 32 | 230 | 26 | 24 | 1300 | 110 | 4 | 44.8 | 875 | |
| 263 | 12 | 23 | 230 | 36 | 17 | 1300 | 150 | 4 | |||
| 369 | 12 | 16 | 230 | 51 | 12 | 1300 |
| 4 | |||
| 516 | 12 | 12 | 230 | 71 | 9 | 1300 | 4 | ||||
| 721 | 12 | 8 | 230 | 100 | 6 | 1300 | 4 | ||||
| CM36-3650-2460 | 3.7 | 24 | 1600 | 130 | 0.7 | 1300 | 670 | 5 | 4 | 26.6 | 666 |
| 5.18 | 24 | 1200 | 130 | 1 | 1000 | 670 | 7 | 4 | |||
| 14 | 24 | 430 | 130 | 3 | 360 | 670 | 17.5 | 4 | 32.6 | 735 | |
| 27 | 24 | 220 | 130 | 5 | 195 | 670 | 34 | 4 | |||
| 50 | 24 | 120 | 130 | 9 | 100 | 670 | 63 | 4 | |||
| 71 | 24 | 85 | 130 | 13 | 75 | 670 | 90 | 4 | 38.7 | 800 | |
| 100 | 24 | 60 | 130 | 18 | 52 | 670 | 126 | 4 | |||
| 139 | 24 | 45 | 130 | 20 | 40 | 670 | 175 | 4 | |||
| 189 | 24 | 32 | 130 | 26 | 24 | 670 |
| 4 | 44.8 | 875 | |
| 263 | 24 | 23 | 130 | 36 | 17 | 670 | 4 | ||||
| 369 | 24 | 16 | 130 | 51 | 12 | 670 | 4 | ||||
| 516 | 24 | 12 | 130 | 71 | 9 | 670 | 4 | ||||
| 721 | 24 | 8 | 130 | 100 | 6 | 670 | 4 | ||||

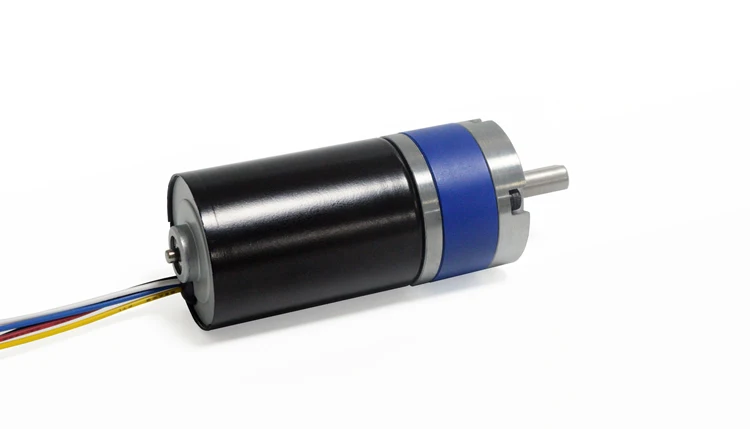

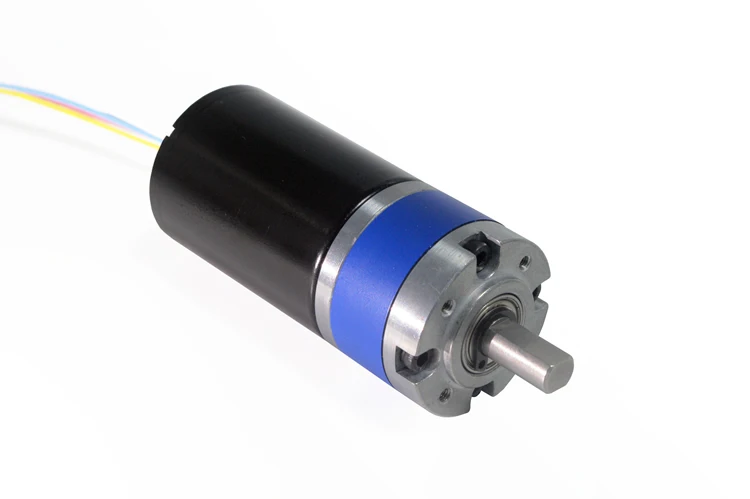

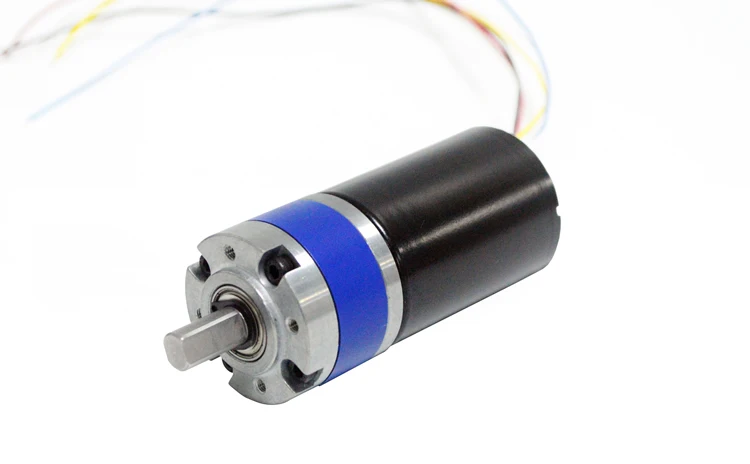

Product Show
Product Applications

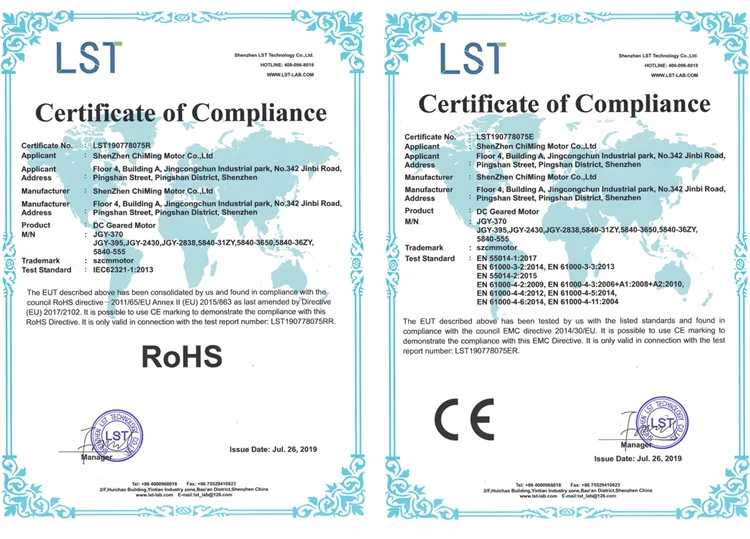

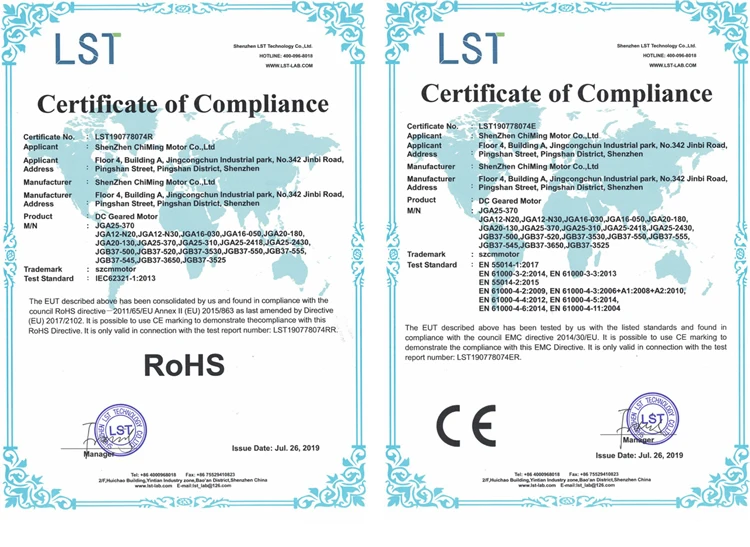

Certifications
Our Factory

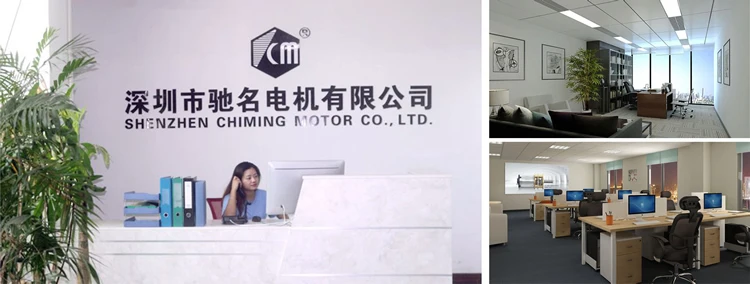

| Office |

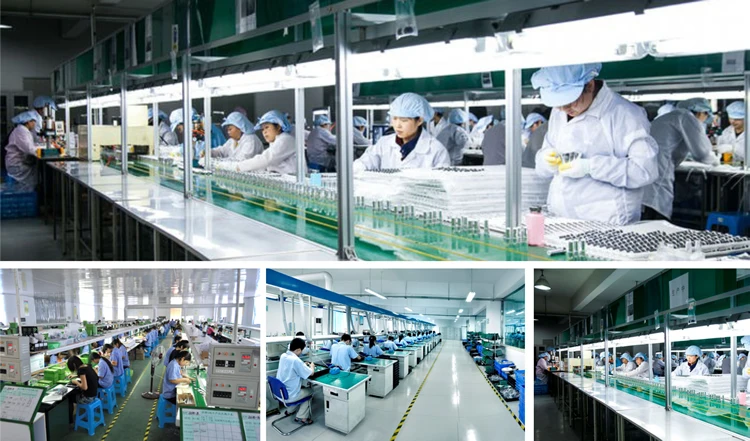

| Workshop |

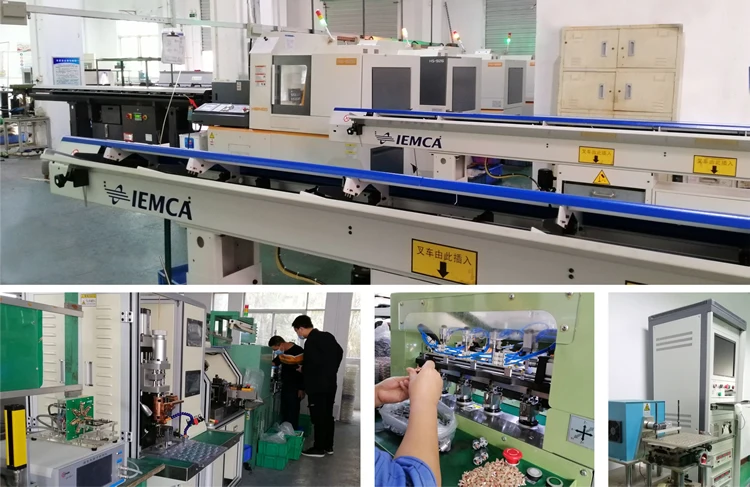

| Machine & Testing Equipment |
Packaging & Shipping
*shockproof foam packing
*Suitable carton size
*stretch film and pallet packing
*DHL,EMS,UPS,Epacket,ocean shipping
*Sample order send out in 2 days.
Our Services
*General Service:
*Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
*Payment Choice:T/T, Western Union,, L/C, etc, easy for your business.
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor- made according to customer’s requirements.
