JAGUAR External Fluxer 4 Preheater Lead Free Wave Soldering for High Volume Production

Product Overview

Description

JAGUAR Newest External Flux Spray Style Lead Free Wave Soldering Machine

Model:TOP450

Jaguar External Flux Spray Style Wave Soldering is represented Jaguar's most advanced technology, which equipe external flux spray and special mountain shapped flux recycle device, flux recyle more completely, extra independent 4 sections hot air preheating total length 2000mm, conveyor speed 0-2000/m adjustable, PCB throughput increase 50%, it's a machine of high cost-performance rate.



Specification:

Model No.	JAGUAR N450
Controlling	PC+Siemes PLC
Conveyor motor	1P AC220V,60W
Conveyor speed	0-2000mm/min
PCB width	50-350mm(W)
Fux capacity	6L
Conveyor height	750±20 mm

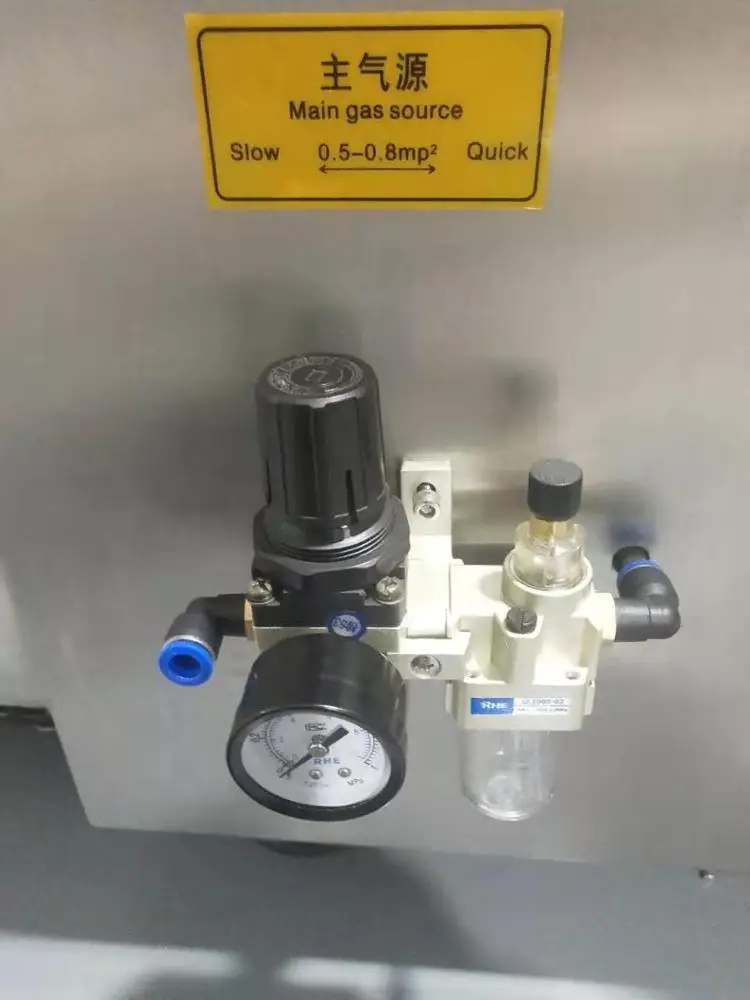

Air supply	5kg/cm²  12Nl/min
Preheating zones	4 hot air, independent temperature control
Length of heating zones	2000mm
Range of temp. setpoint	Room temperature---250ºC
Solder pot heating	1KW*9PCS, Room temperature---300ºC
Wave height	Approx.12mm
Solder pot volume	420KGS
Solder pot temperature	Room temperature---300ºC(ajustable)
Wave motor	3P AC220V,0.18KW*2PCS
Nail clean pump	1P AC220V 6W
Conveyor  direction	L→R (R→L optional)
Welding angle	3-6º
Flux pressure	3-5BAR
Power supply	3 phase AC380V 50HZ/60HZ
Normal operating power/total power	10KW/40KW
Machine dimension	4430(L) ×1620(W) ×1710(H) mm
Mahcine net weight	2300kgs





INTRODUCTION:

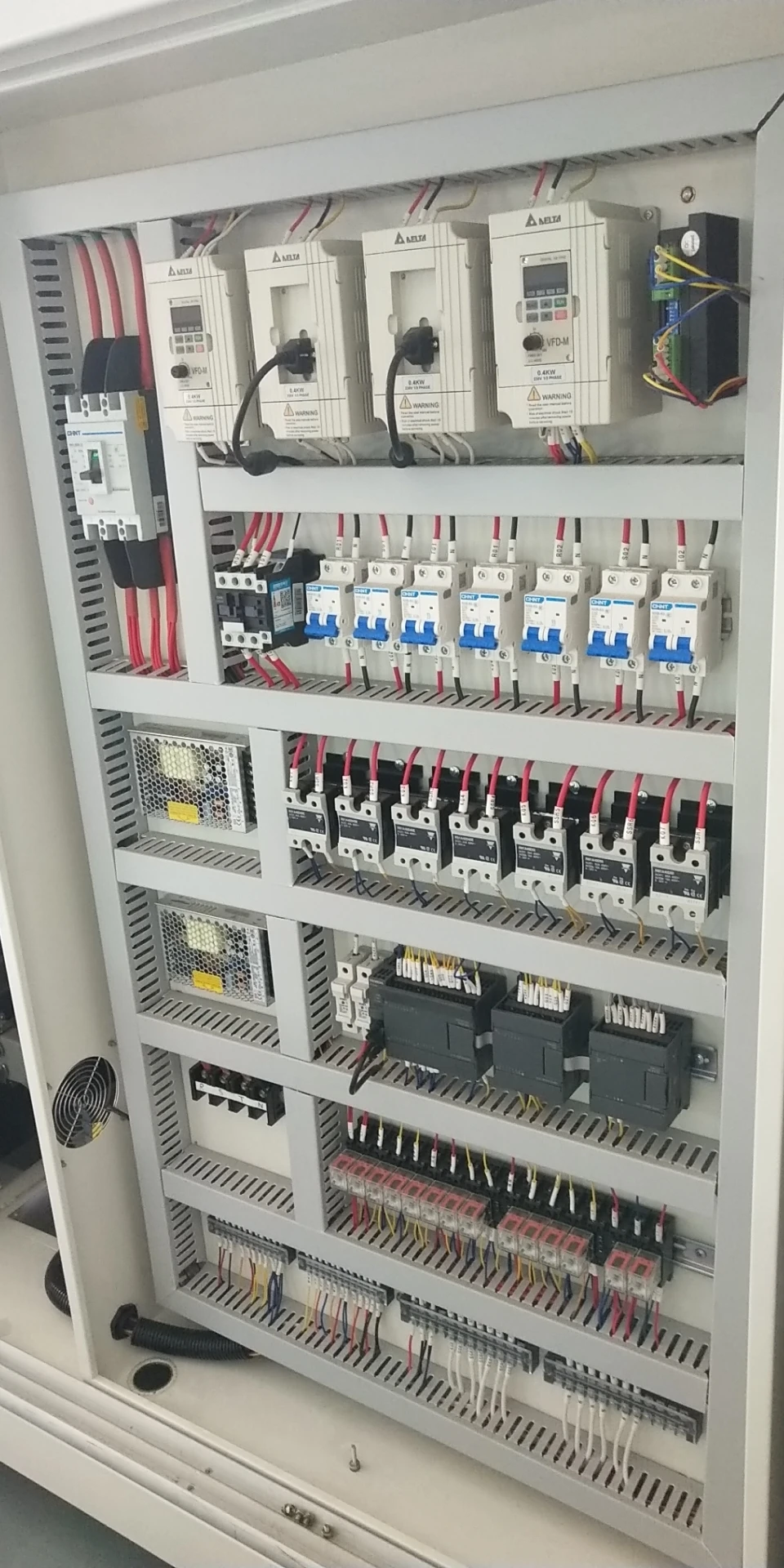

1. The whole machine adopts Siemens PLC+ lenovo computer + temperature control module control, stable and reliable

2. Powerful control software, running in Windows 7 system, Chinese and English can be switched at any time

3. All computer controlled. The computer, UPS, and controller constitute a stable system

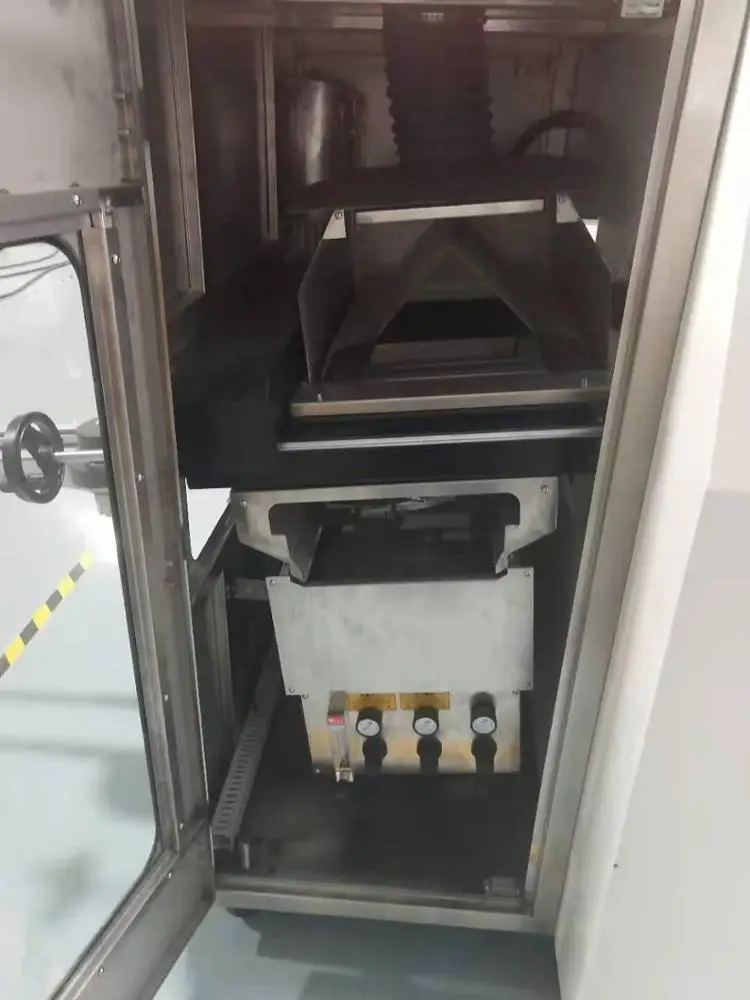

4. Stepper motor spray mechanism, accurate movement, low noise, suitable and frequent action, long working life

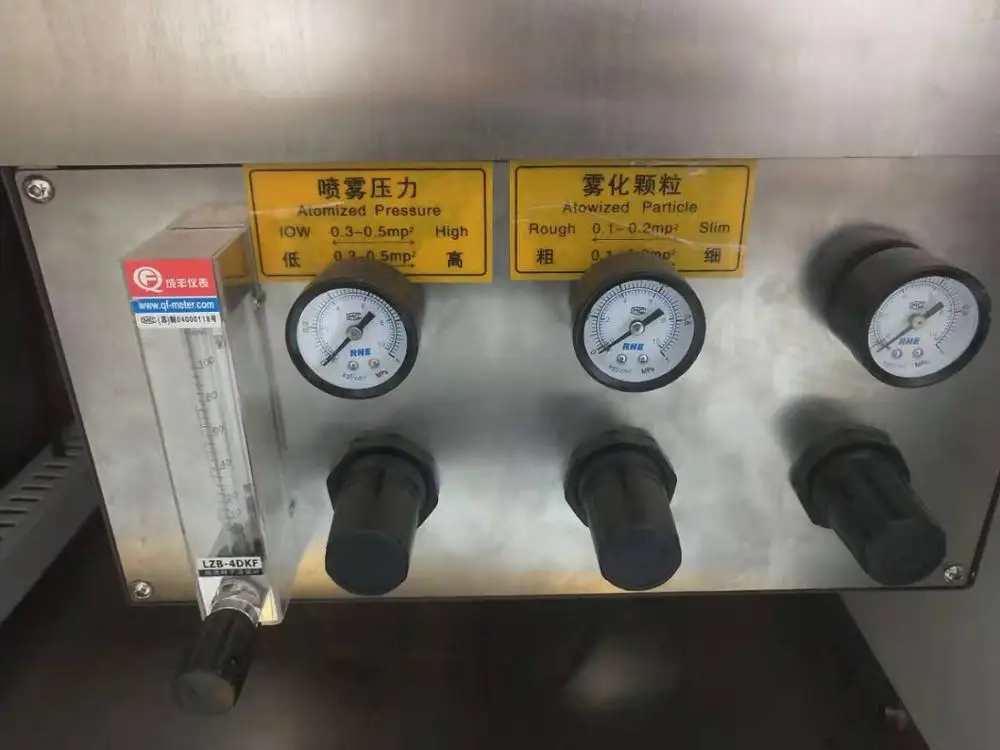

5. Japanese lacquerware spray head, spray area and atomization depth adjustable

6. Flux compulsory feeding system to maintain flux constant pressure supply

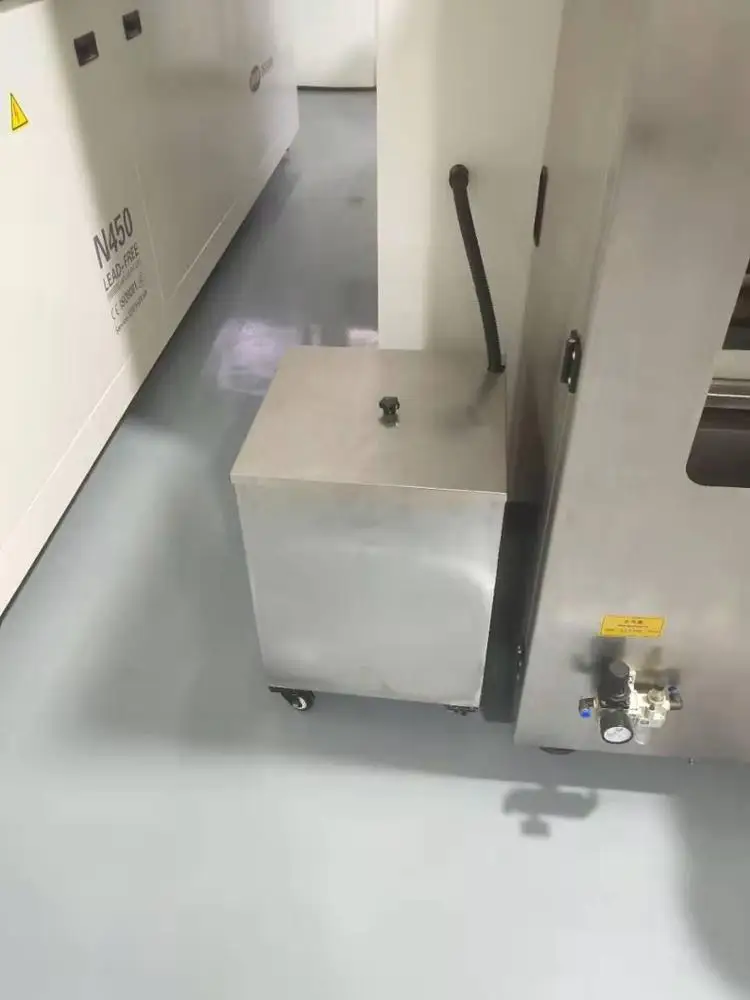

7. Perfect flux recovery and exhaust filtration system, beneficial to environmental protection

8. The total length of the 4 preheating zones is 2000mm

9. Heater modular design, easy maintenance

10.Molded arc-tooth impeller, patented nozzle design, to achieve ultra-low oxidation

11.The solder pot liner is made of cast iron enamel, effectively preventing the corrosion of lead-free solder

12.Wave economic operation mode, less oxidation, energy saving

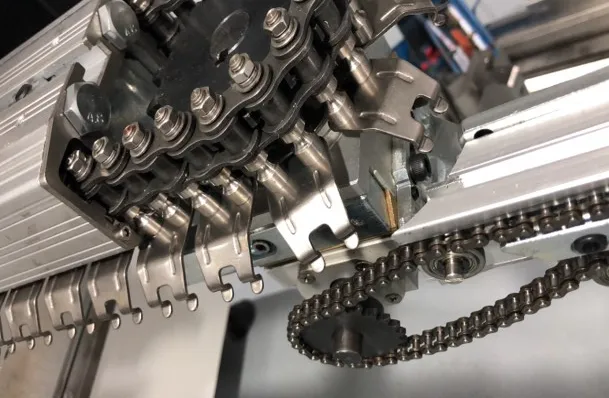

13.Full titanium alloy chain claw, corrosion and high temperature resistance, never deformation

14.The wave width of impact crest and tinchanping can be adjusted to save energy and reduce the amount of oxidation

15.Double cooling zone design, using up and down fan strong cooling mode, forced water cooler optional

16.Equipped with new titanium alloy double hook claw, aluminum alloy guide rail anti - deformation structure design

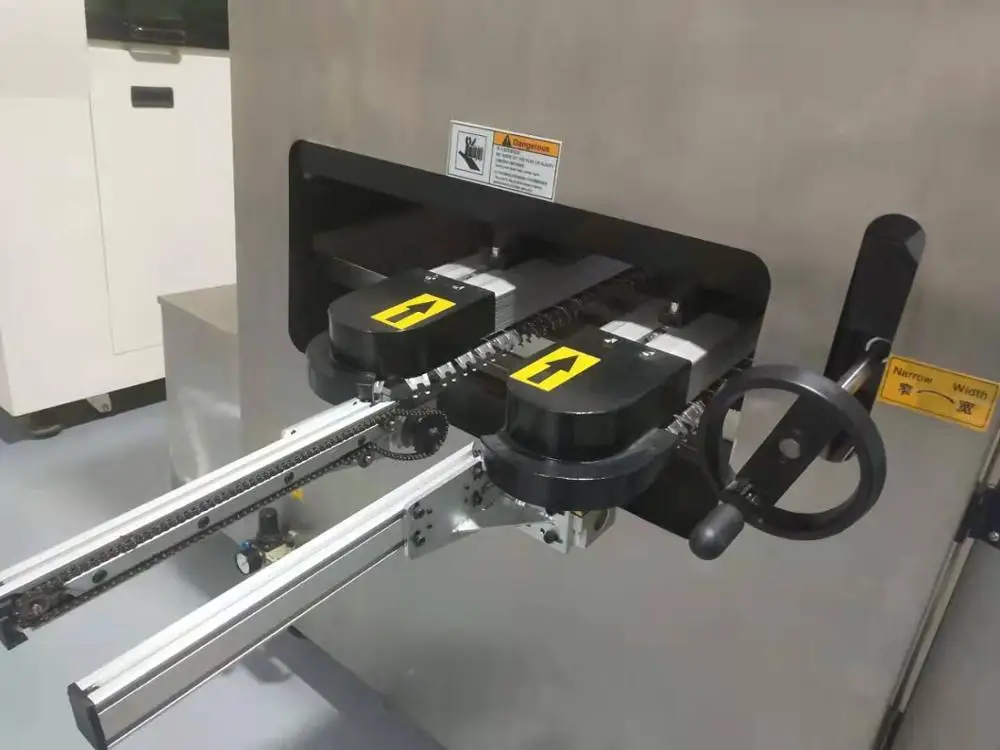

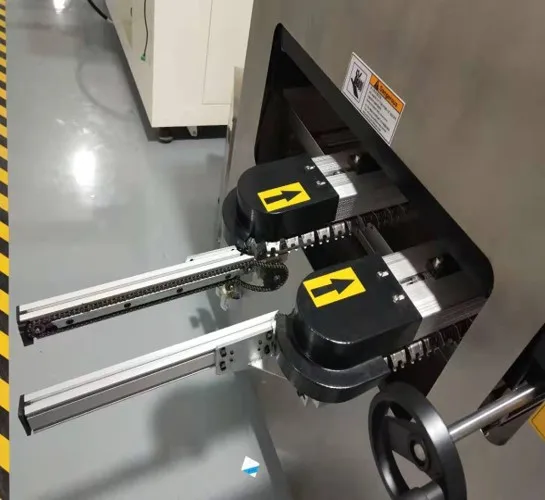

17.Manually adjust the width of the substrate; The delivery Angle is adjustable

18.The transportation speed is controlled by frequency converter, stepless speed regulation
