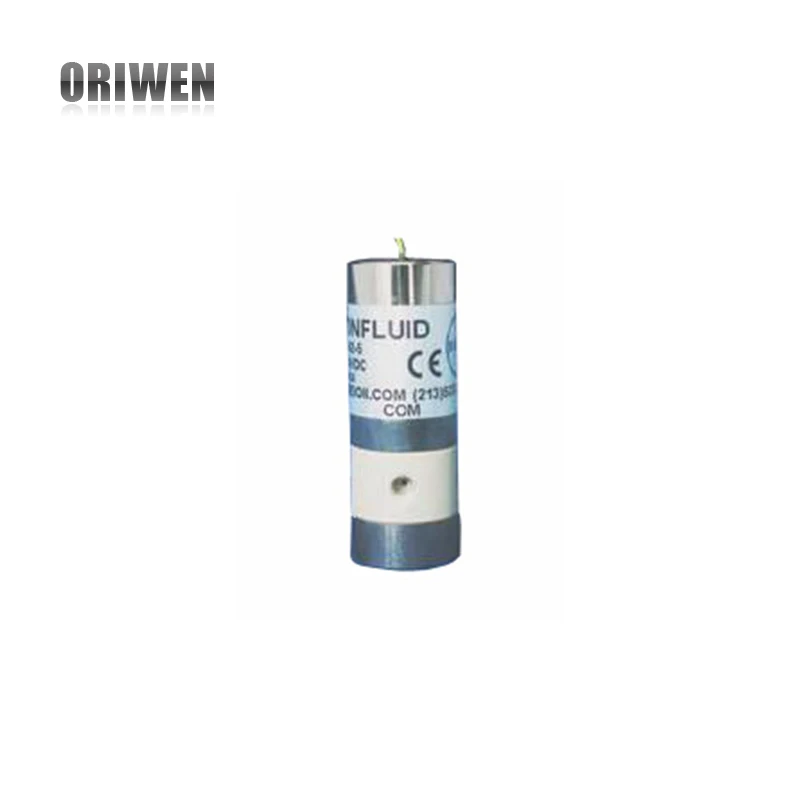

2 Way Normally Closed 12VDC Inert Diaphragm Solenoid Isolation Valve
Product Description
Introduction
Our Solenoid Operated Isolation Valves provide a completely inert and non-metallic fluid path for the instrument designers. A flexible diaphragm is used to isolate the solenoid actuation mechanism from the fluid path. Solenoid Isolation Valves (inert) are applicable to medical and analytical instruments. Small highly inertness valves are suitable for flow control on corrosive chemical liquids and particle-free liquids.
Features
ü 2 way normally closed-NC, 2 way normally open-NO and 3way available
ü 12 volt or 24 volt DC solenoid
ü Low energy consumption
ü Completely isolated design of solenoid coil
ü Wetted materials: PTFE/PEEKTM/PPS/EPDM/FFKM
ü Modular installation: no leakage points and smaller installation space
ü Continuously working for 20 million times
ü Smaller size and space occupation
ü Low internal volumes, precise flow control
ü A shorter response time
ü Standard pressure range: 0~60 psi (or higher according to custom service)
Small Valve Types

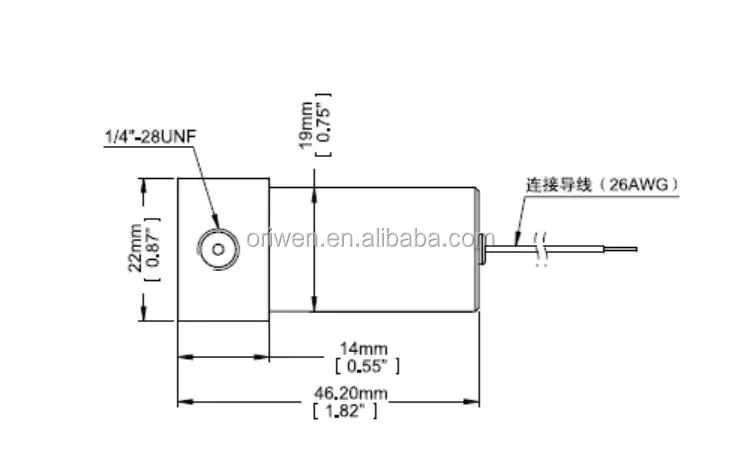

Different sizes of isolation valves; Solenoid Coil Size: 19.1mm and 25.4mm;
Corresponding Orifice: 0.032’’~0.125’’ (0.81mm~3.17mm), suitable for a range of applications.
Wetted materials
The wetted part of the isolation valves only includes the diaphragm and the valve bottom. The standard material is PTFE which is inert and of good performance of corrosion resistance. Others are like PEEK, PPS, EPDM and Perfluoroelastomer.
Note:

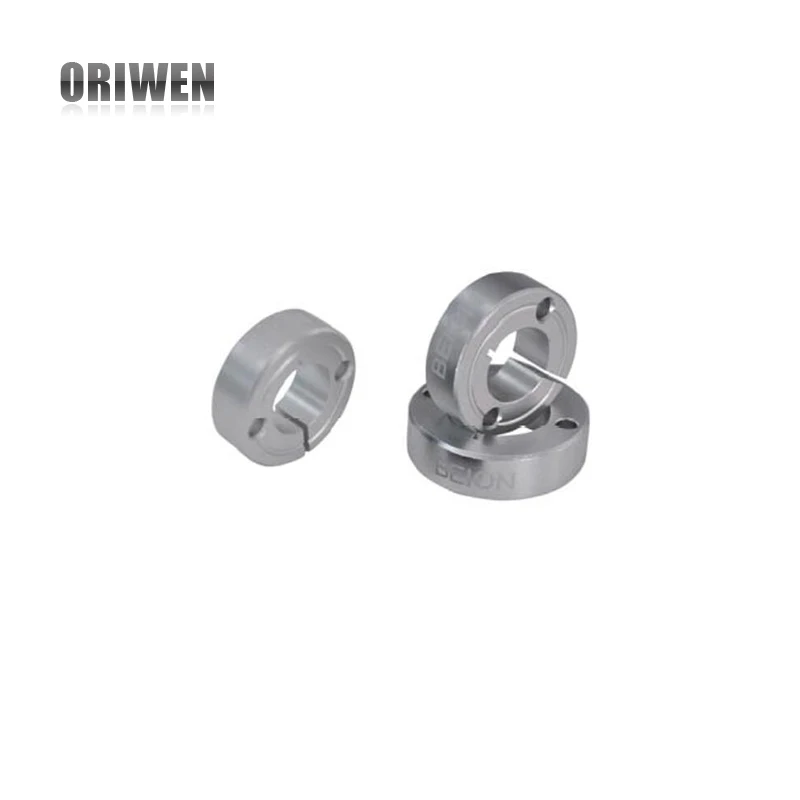

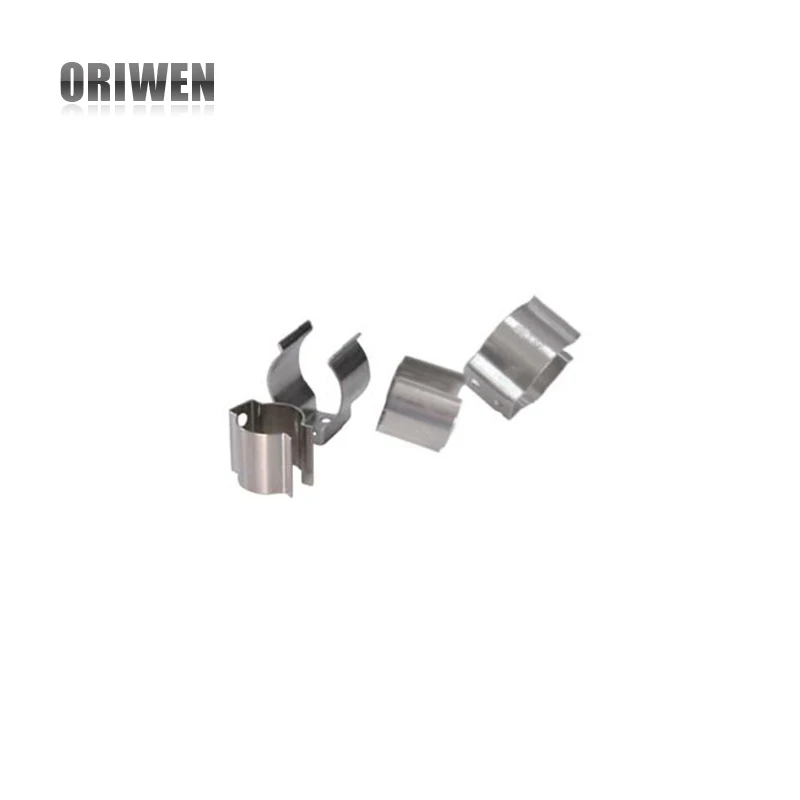

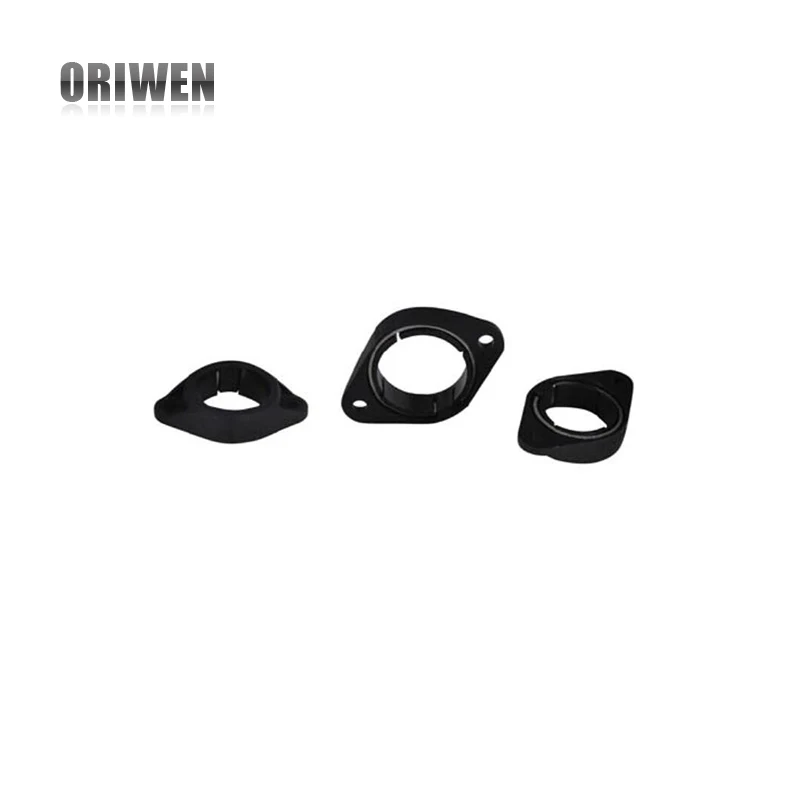

*Mounting clip, ring, and flange are all available to support with.
*Please feel free to contact us for quotation or custom service about our Solenoid Isolation Valves.
