3/4' Pulse Valve Repair Kit NBR Nitrile Diaphragm For JICI 20 JICR 20 JISI 20 JISR 20 Diaphragm Valve
- Category: >>>
- Supplier: Ningbo Brando Hardware Co. Ltd.Ningbo Ltd.
Share on (62544120171):
Product Overview
Description
Product Description
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility
5. EPDM, FKM all available.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility
5. EPDM, FKM all available.
Brando Number | Type | Quatity | Suitable valve | Material |
J20 | 3/4'' | 1 | JICI 20, JICR 20, JISI 20, JISR 20 | Nitrile/Buna |
J25 | 1'' | 1 | JICI 25, JICR 25, JISI 25, JISR 25 | Nitrile/Buna |
J40 & JTY-X | 1 1/2'' | 2 | JICI 40, JICR 40, JISI 40, JISR 40, JIFI 40, JIFR 40 | |
J50 & JTY-X | 2'' | 2 | JISI 50, JISR 50, JIFI 50, JIFR 50 | |
J76 & JTY-X | 2 1/2'' | 2 | JISI 65, JISR 65, JIFI 65, JIFR 65 | |
J89 & JTY-X | 3'' | 2 | JISI 80, JISR 80, JIHI 80, JIHR 80 | |
J102 & JTY-X | 4'' | 2 | JIHI 100, JIHR 100 |

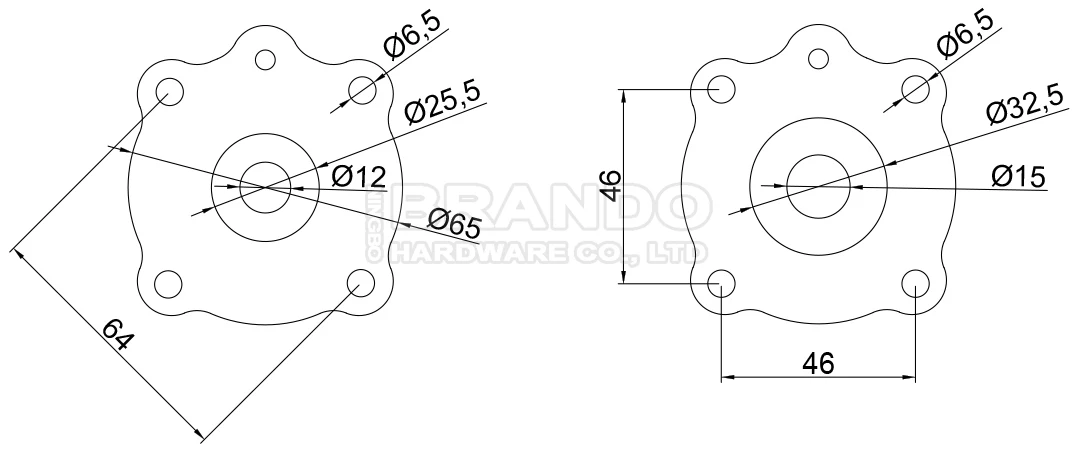

Main Dimension

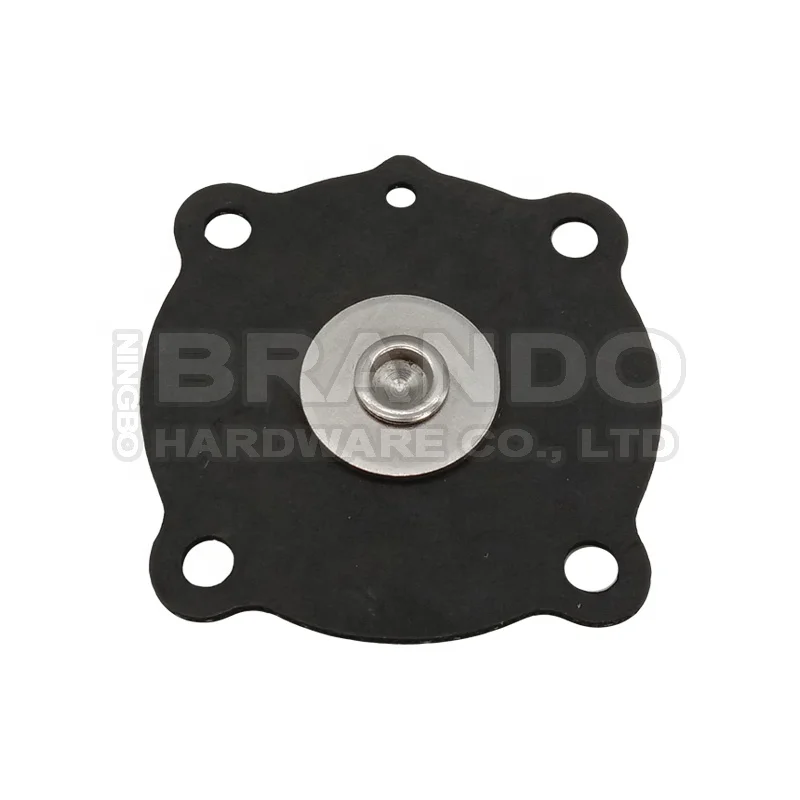

Detailed Images

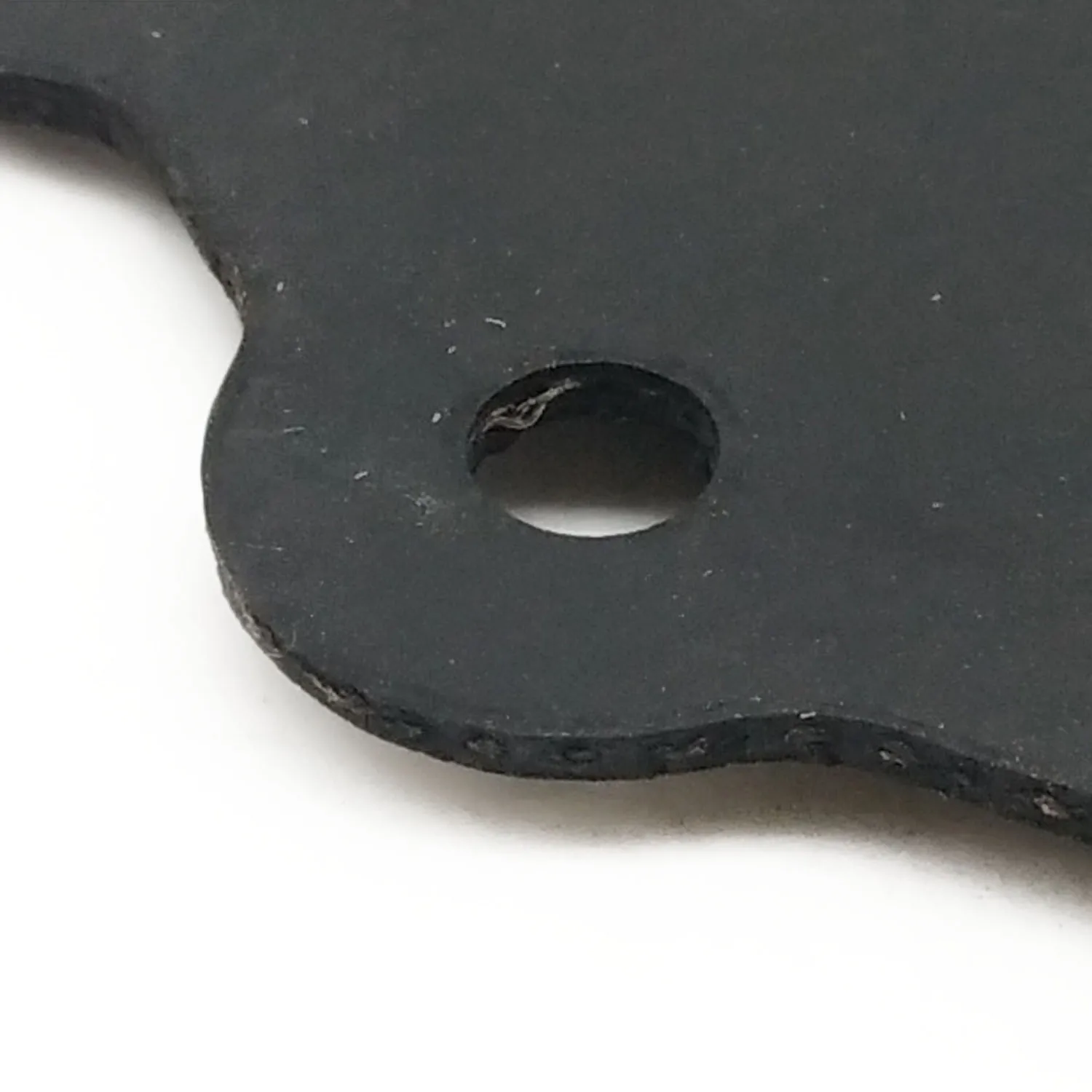

Bleed Hole

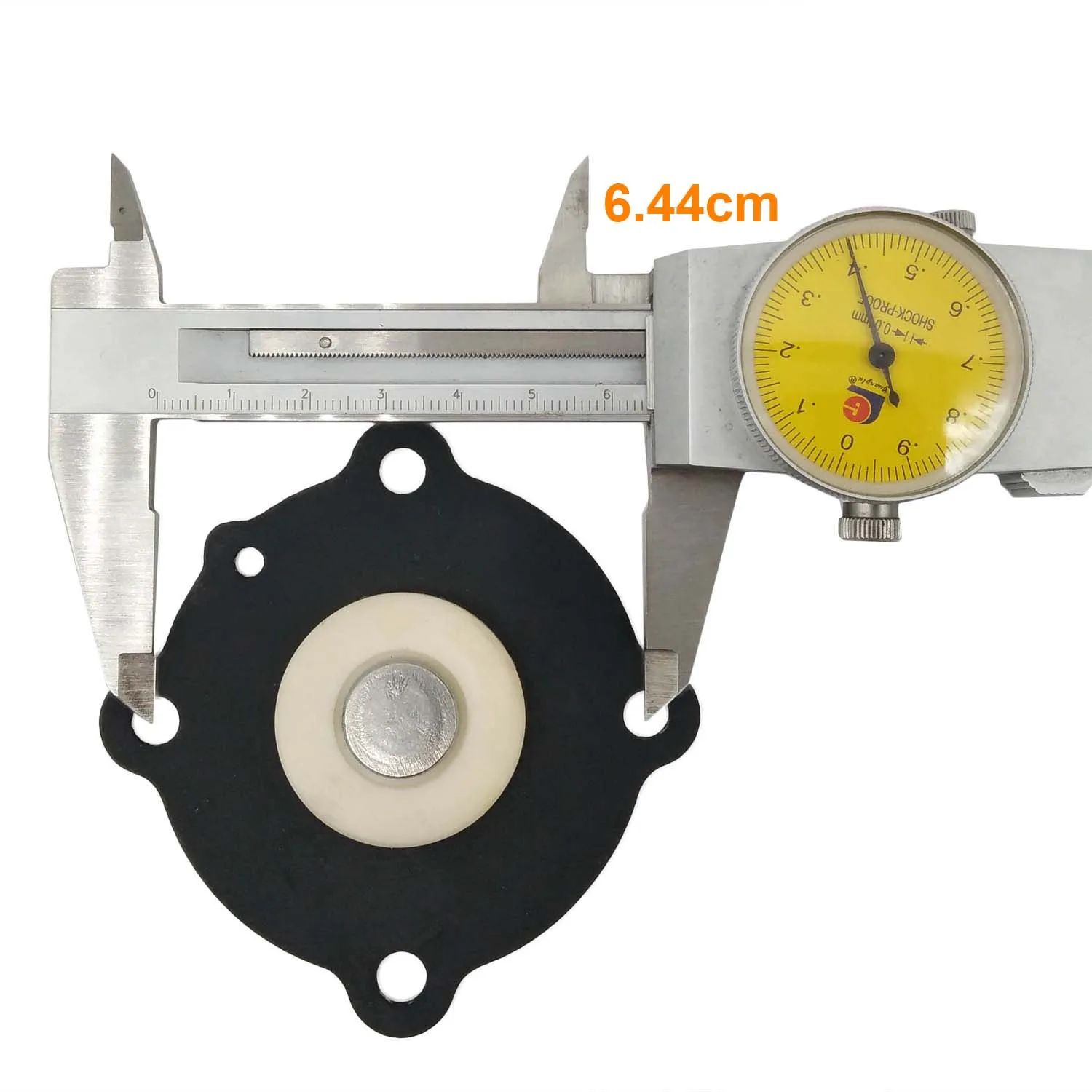

Center Distance

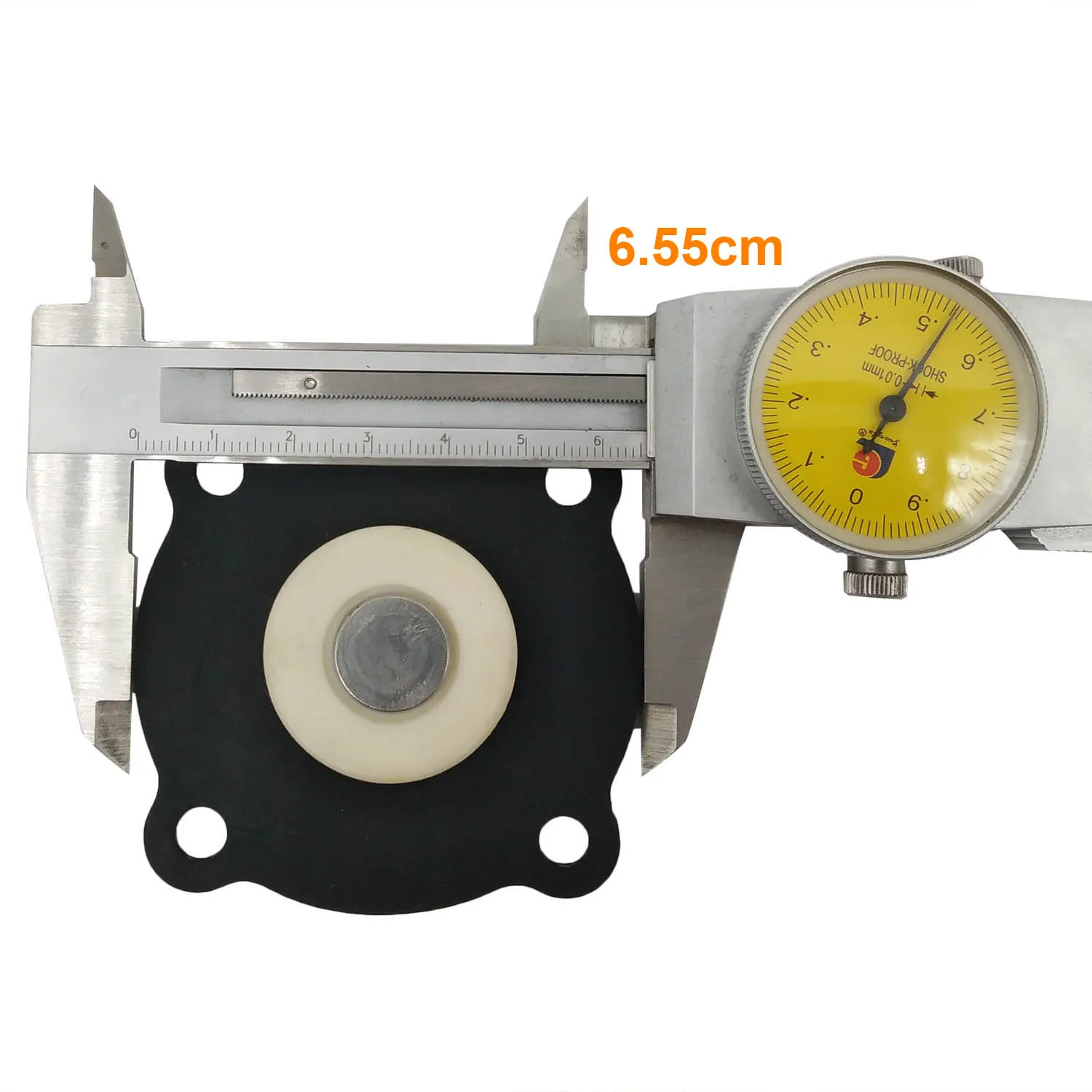

Diaphragm Outer Diameter

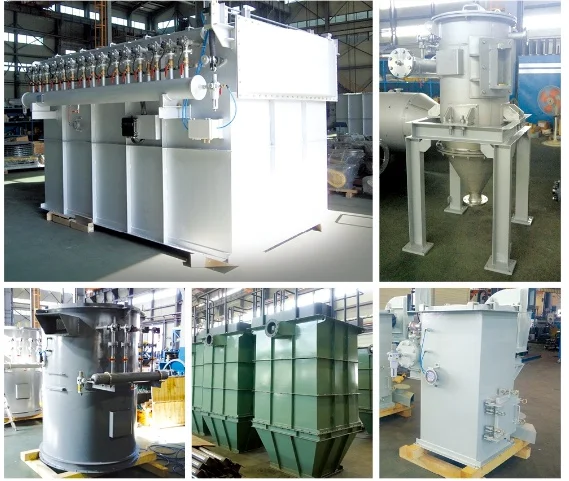

Application Examples
OEM ODM Service
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Our Production
Packing&Shipping
Internal Box
Carton
Pallet
