LS F7 automatic rigid shoe jewelry box wrapping machine
- Category: Boxing Machines >>>
- Supplier: Dongguan Longxingjian Intelligent Equipment Co. Ltd.
Share on (62544384726):
Product Overview
Description
Products Description
About LS-F7
LS-F7 Smart rigid box making machine is applied for wrapping the cover paper on the pasted box. When we get a new box, installed the box mold on machine, input its data on the LS-F7 touch screen. Including the box length, width, height, cover paper width, top mold height, middle mold height and tucking in blade thickness. Then press caluate, machine will automaitc come to home position and move to setting position. Load a box to checking the setting and ensure each setting is fine. Then machine can start working. Whole process will cost 8 minutes.
This machine will finished the side wrapping, edge folding (edge folding length ≤100mm), tucking in and air pressing at one time. No need to change air pressing board, tucking in blade. Air pressing structure has been divide into two floor, so that whole machine will cost around 3 s for finished one box.
It is an ideal equipment for changable small orders.
Price vary with raw material cost, please contact our sales for lastest prices.
Specification of LS-F7 Smart Rigid box making machine | ||
Machine model 型号 | LS-F7 | |
Max box size 最大加工尺寸 | L450*W380*H100mm | |
Min box size 最小加工尺寸 | L80*W65*H10mm | |
Motor power 电机功率 | 3.2kw/220v | |
Working speed 工作速度 | ≤20 pcs/min | |
Air pressure 气源要求 | 10L/min 0.6MPa | |
Machine dimension 外形尺寸 | L1200*W1120*H3100mm | |
Machine weight 机器重量 | 1150kg | |

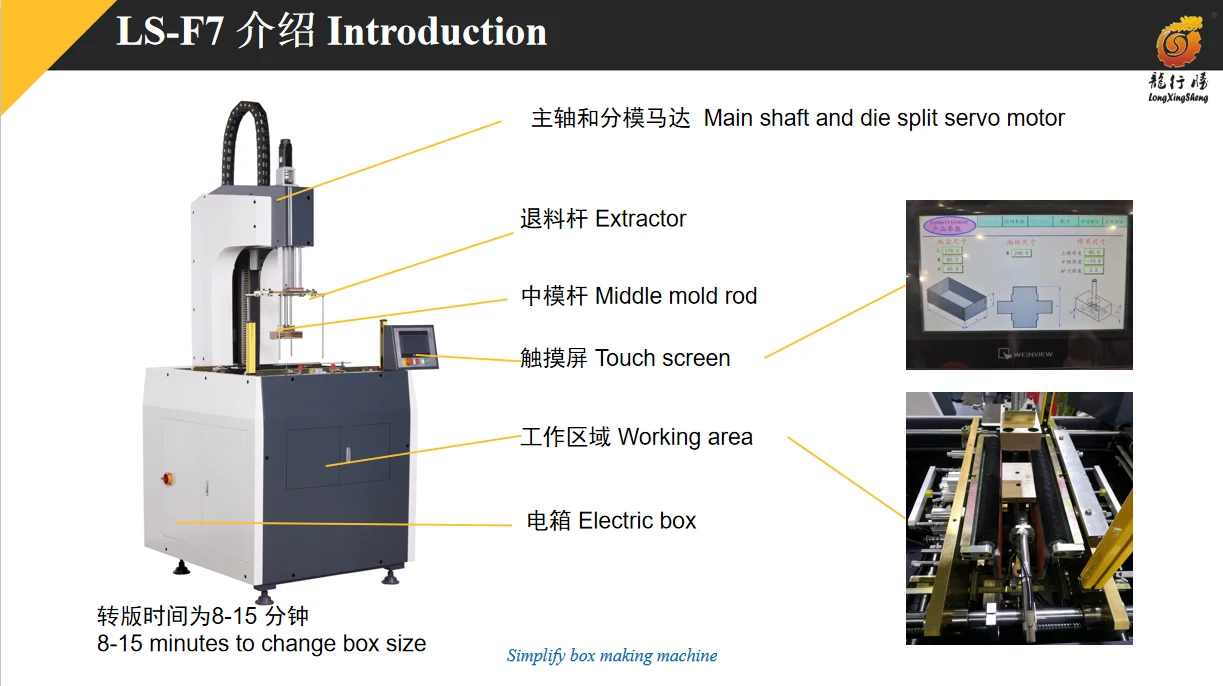

Touch screen
Chinese & English language operation system
Electric box

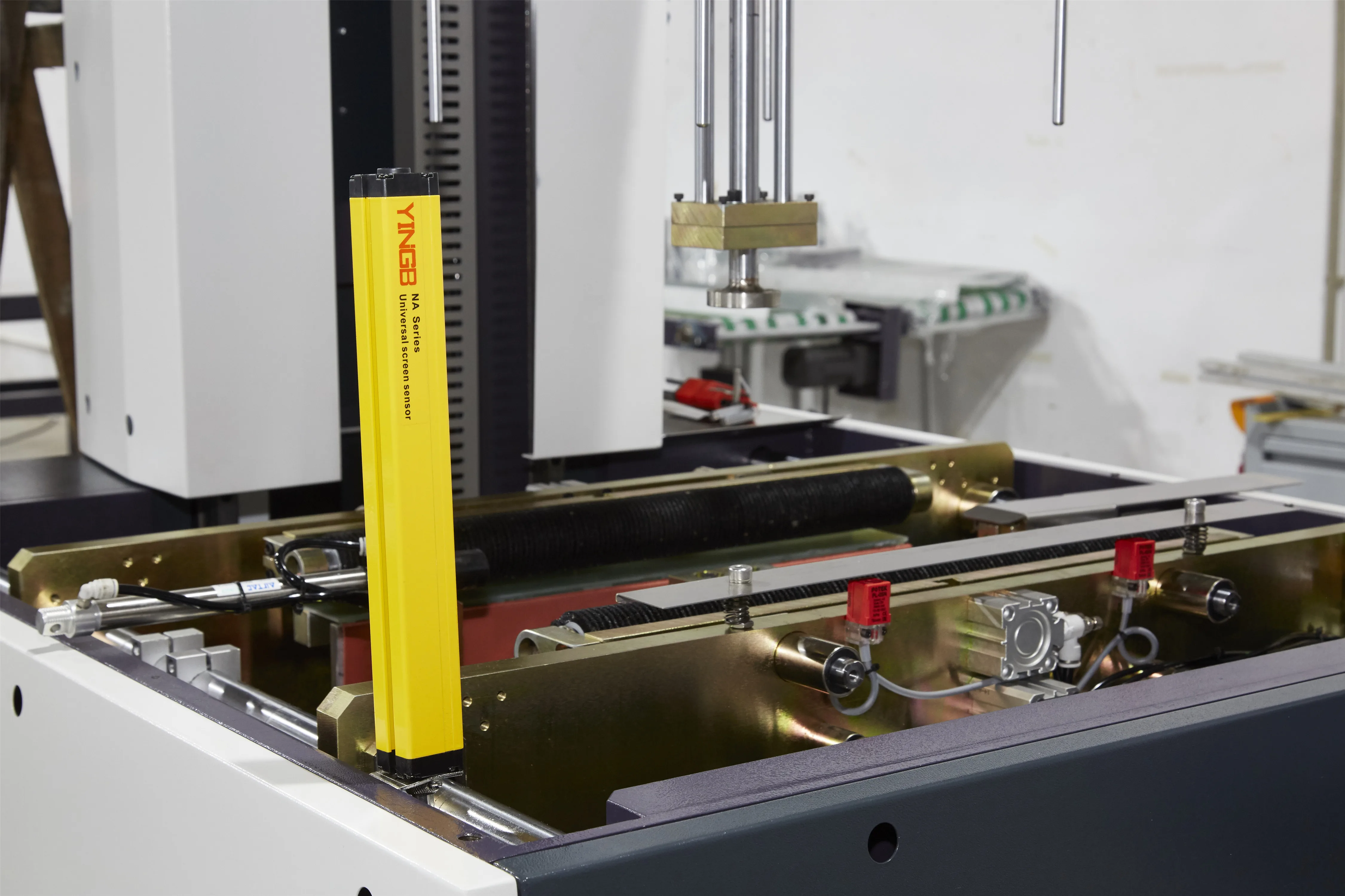

First floor air pressing
Including long side wrapping, edge folding, tucking in and air pressing structure.
Second floor air pressing
Including short side wrapping, tucking in and air pressing structure.
Plastic mold
Durable but expensive
Wooden mold
Economical and easy producing.

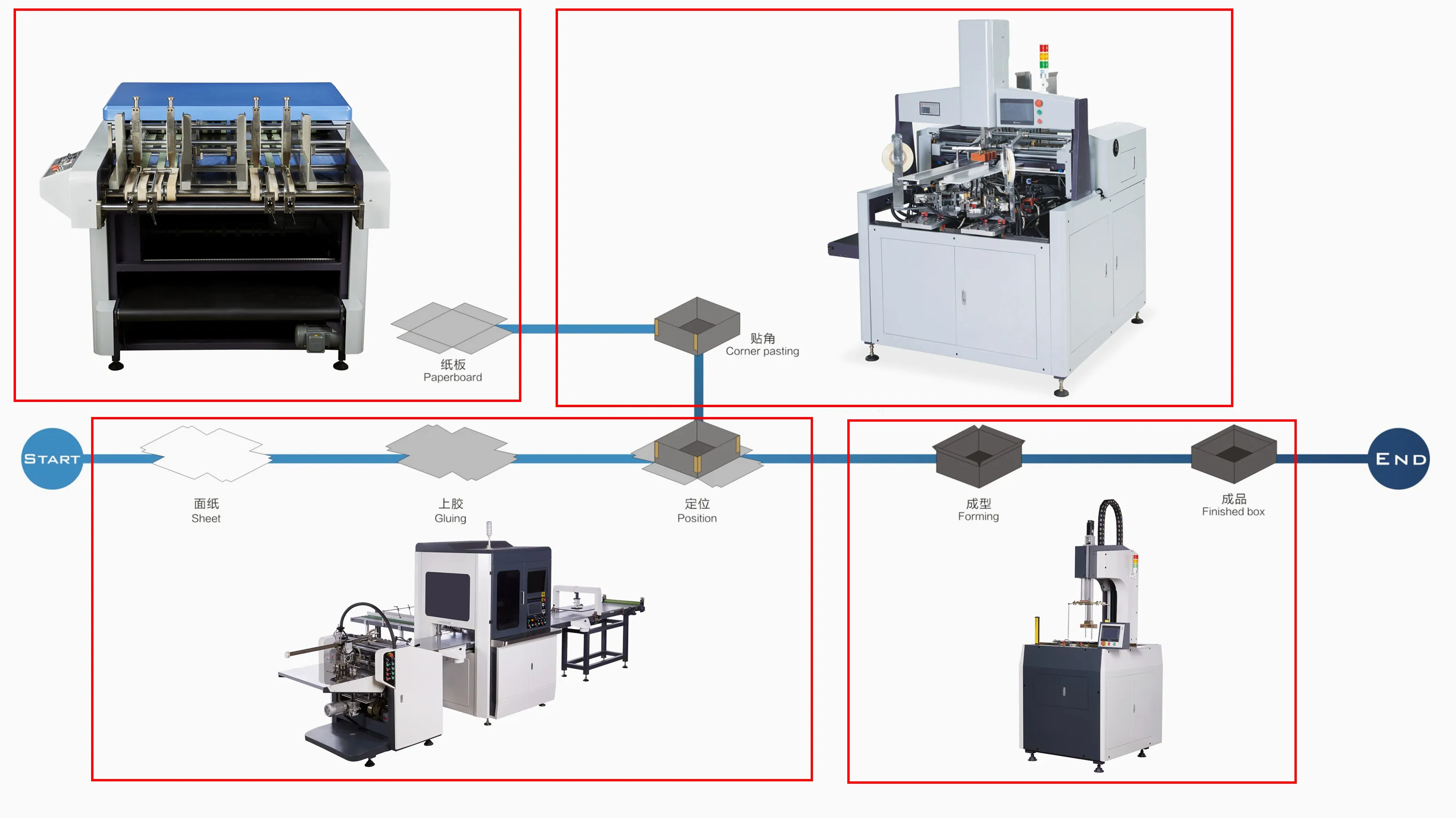

Working process
1. box positioning on glued paper
2. Long side wrapping
3. Tucking in and edge folding
4. First floor air pressing
5. Short side wrapping
6. Tucking-in and second floor air pressing
Box range of LS-F7
Normal rigid box
Tucking into bottom box
Max wrapping depth 65mm
Long edge folding box
Max edge folding length 100mm
Machine installation
\t\t\t\t\t\t\t\t\tPackaging&Delivery \t\t\t\t\t\t\t
Company Profile
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Certification
Expo with customers
Our Service
Pre-sale service.
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation.
After-sale service.
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
FAQ
1.What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .
3.What is the production time while placing order?---- Within 7-30 workdays.
4.Do you have stock product to sell?----Normally we do,it depends on which models you inquired .
5.What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.
6.Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.
7.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
8.How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.
9.Can your engineer come to us for installing the machine & handle problems?---Yes,we can.And it is free-cost for the installing & training for 7 work days,you just need to pay for the air tickets & accommodation for our engineer.
10.Are you a manufacturer?----Yes, we are a manufacturer with over 12 years professional experience .Welcome the exclusive agents in Europe/Asia/Africa/America to join us.
11.What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
12.Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
13.What’s the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
