Hard wood lump charcoal making machine bbq lump charcoal machine
- Category: Woodworking Machinery >>>
- Supplier: Henan Lantian Machinery Manufacture Co. Ltd.
Share on (62544727277):
Product Overview
Description
Hard wood lump charcoal making machine/bbq lump charcoal machine
Product Description of wood lump charcoal making machine
Hard wood lump charcoal making machine adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
Raw materials & Final product of charcoal making machine
All kinds of wood, wood chips, wood branches, wood sawdust, wood wastes and other kinds of biomass like rice husks, peanut shells, coconut shells, wheat brans, stalks,tree branches, bamboo etc. And, the biomass briquettes like rice husk briquettes, wood briquettes can also be carbonized by our machine!
Technical Paramenters of carbonization furnace
Type | Dimensions | Capacity | Carbonization time | Gross weight |
LTH-1200 | φ1.8*2 m | 3 ton/batch 2 batch/day | 6-8 hours | 2500kg |
LTH-1600 | φ1.8*4.5 m | 6 ton/batch 2 batch/day | 6-8 hours | 5000kg |
Working principle of bbq lump charcoal machine
Feeding raw material and sealing the furnace: use the rail car to feed the raw material into the carbonization furnace and lock the furnace door, finaly sealing the furnace. Preheating and drying the raw material: use the wood or other fuel heat the raw material inside the furnace, from room temperature slowly heat up to 220-250℃, this process time is about 1.2 to 2.0 hours (the specific heating-up time is mainly depend on raw material moisture content, density, diameter size,etc), discharge water inside the raw material and the air in the inner tank. Anaerobic carbonization: When the temperature inside the carbonization furnace increase to there is little yellow smoke discharged from the smoke tube ( hydrogen,oxygen and other volatile substances). it means start the carbonization process, then we can recovery of combustible flue gas into furnace ignition, Adjust the intake combustible flue gas amount, keep the temperature in the inner tank about 300-550℃, 2.0-3.5 hours (the specific temperature and carbonization time is mainly depend on raw material moisture content, density, diameter size and carbonization degree,etc).

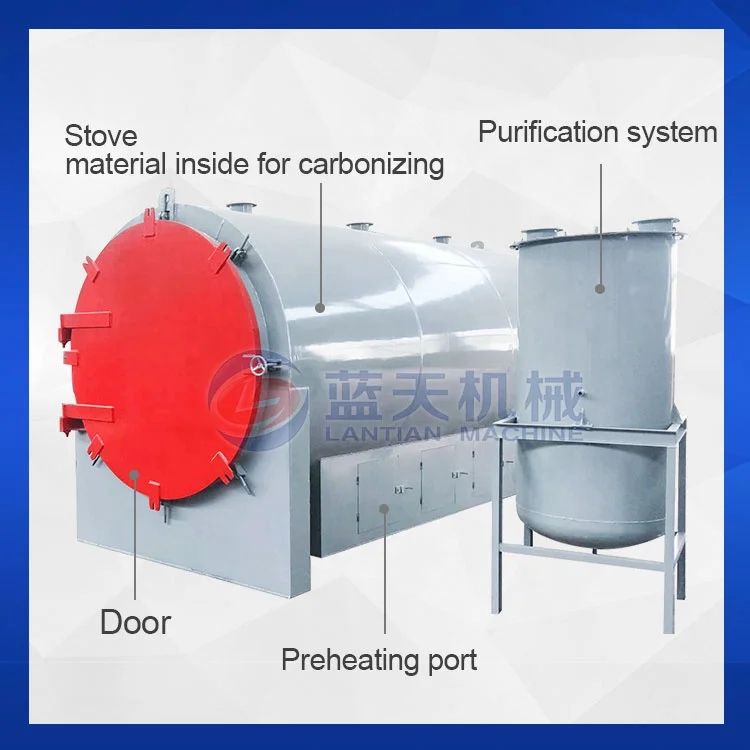

Details of lump charcoal making machine
For the heating source, it's better to use nature gas, LPG, also you can use burning wood, coal to generate hot air, we change combustion apparatus is ok.
The furnace door structure is made of refractory material, 10 cm insulation ensures that the heat in the furnace is not leaking
This part like inner pot, after carbonizing, it can cooling outside, take this part outside for cooling, then put next batch inside furnace to continuous carbonizing. So it is very efficiency, and the density of the mesh around the pot can be customized according to your material size
A slide is arranged under the liner to facilitate the sliding of the liner after carbonization and to carry out the next batch of carbonization
Packaging and Shipping
Our payment terms:
1. We usually accept T/T, or Cash. 30% for down payment, and 70% pay as balance before loading.
2. It is about 15-25 days to finish all the machines after receive the down payment.
3. We take pictures of finished products, and test all the machines before delivery.

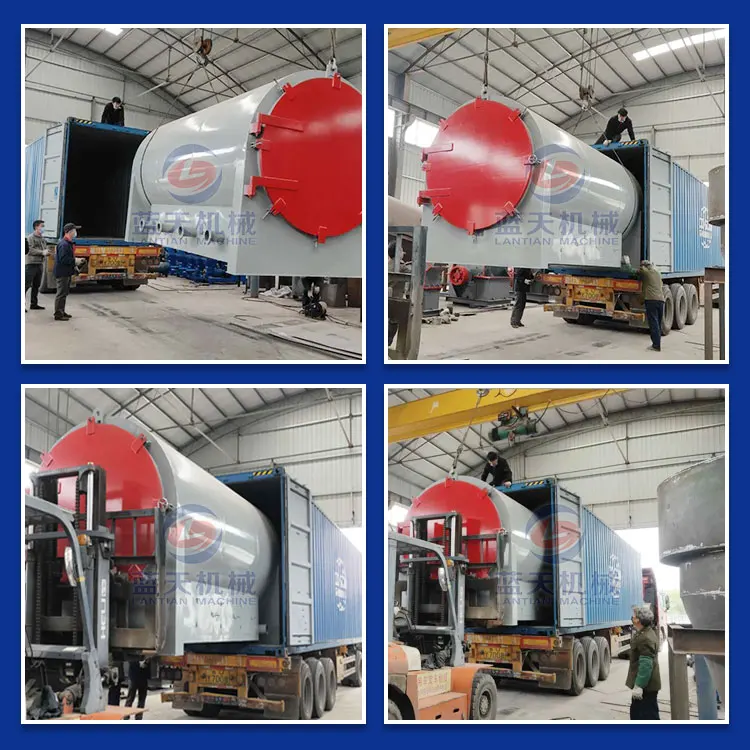

Delivery of our machines:
1. We have been long term of cooperation with many famous shipping agent. Also we can according to your needs to arrange the delivery
2. After load the machines into the containers, we can we send the loading pictures to you.
3. When we get the B\\L after the ship leave the Port to your place, we will send it with the Contact, Pre-form Invoice, Packaging List, etc to you so as your can do the clearance.
1. We usually accept T/T, or Cash. 30% for down payment, and 70% pay as balance before loading.
2. It is about 15-25 days to finish all the machines after receive the down payment.
3. We take pictures of finished products, and test all the machines before delivery.
Delivery of our machines:
1. We have been long term of cooperation with many famous shipping agent. Also we can according to your needs to arrange the delivery
2. After load the machines into the containers, we can we send the loading pictures to you.
3. When we get the B\\L after the ship leave the Port to your place, we will send it with the Contact, Pre-form Invoice, Packaging List, etc to you so as your can do the clearance.
Company Profile
Henan Lantian Machinery Manufacture Co.,Ltd is specilize in producing charcoal machine, there are many useless material in the world, our machine can make these material recycling use, and make high profit for user. Our equipment can make charcoal or briquette from waste material, like use waste wproduction. Since our company's inception, has high credibility. And we help customers choose and design the best quality product line for different types machine. Our machine sold at home and abroad. Also, we supply those certifications like CE ISO9001, CO, Form E, COC, CIQ, to help customers from different countries clearance.
Recommend product by seller
Note: we are not only can offer the hard wood lump charcoal making machine, also can provide the other type briquette machines, drying machines. If you need the whole production line, welcome to contact me for more details.
Hoist type wood lump charcoal machine
This machine also can make charcoal, it can carbonize big size material, like bamboo, wood log, tree branches, coconut shell etc.
Please click the photo see more information about this machine.
Please click the photo see more information about this machine.
Continuous charcoal making machine
This bbq lump charcoal machine is the most popular carbonization furnace. With a full-automatic operation, you can save a lot of time,cost and labor.
Please click the photo see more information about this machine
Please click the photo see more information about this machine
Sawdust wood briquette machine
This machine can press sawdust, wood chip into briquettes, then put them into bbq lump charcoal machine, you can get the charcoal briquettes.
Please click the photo see more information about this machine
Hydraulic shisha BBQ charcoal making machine
This machine use for making shisha hookah charcoal from charcoal powder. It can make different shapes, like round shape or square shape.
Please click the photo see more information about the machine
Please click the photo see more information about the machine
