SF 400LA Automatic A4 Photocopy Paper Shrink Tunnel, Shrink wrapping Packing machine

Product Overview

Description

Model	SF-400LA	SF-4525
Power	2kw	9kw
Power Supply	AC 380/220V 1/3PH 50/60Hz	AC 380/220V 3PH 50/60Hz
Tunnel Size L×W×H	/	1000×450×250mm
Max.Packing Size	L+H≤530 W+H≤430 H≤130mm	1000x300x200mm
Packing Speed	15m/min.	0~15m/min
Air Temperature	0~300℃	0~300℃
Shrink Film	POF	POF,PVC
Machine Size L×W×H	1860×880×1600mm	1300×720×1500mm
Packaging Size L×W×H	1830×860×1560mm	1580×770×1105mm
G./N. Weight	475/453kgs	235/215kgs

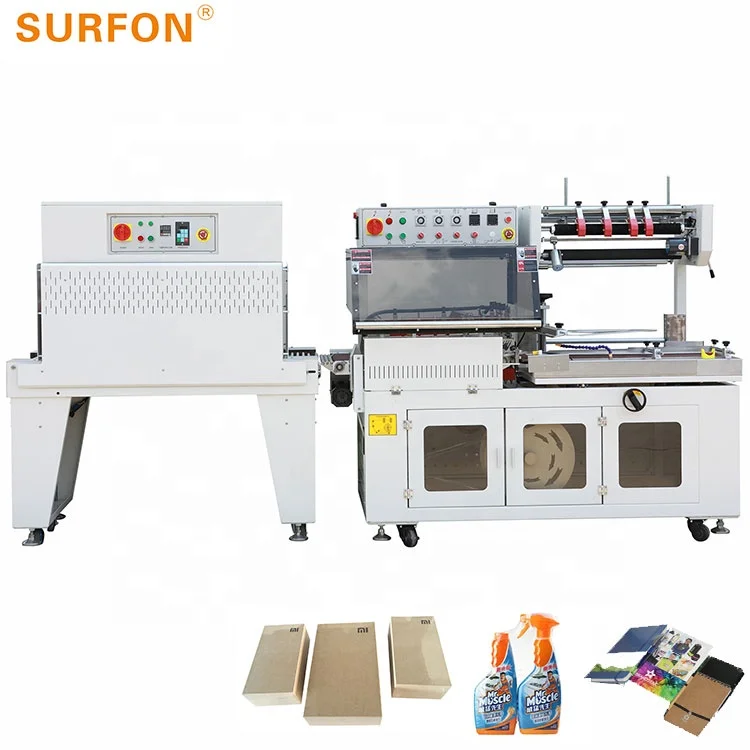

         |   SF-400LA is a fully automatic unmanned operation "L" type sealing machine which is widely used in mass production packaging line with high efficiency. Automatic film feeding punching device, manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items.

         |   Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution;

         |    Equipped with imported photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;

         |   Automatically-feeding: the length can be auto adjusted by the sensor and time relay. Matched the reduction motor makes the waste film automatically rolling;

         |    When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers;

         |   Different size products can also be packaged combinations to achieve the promotional effect;

         |    Using original Autonics digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate and we can be arbitrarily set. Do not worry about hurting the product for imprecise temperature. The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting;

         |    The machine is equipped with organic glass shield with automatic alarm function which greatly improves safety;

         |   The entire machine realizes unmanned operation with the production line connecting;

         |   Film up-down synchronization mechanism specially designed to correct the deviation film;

         |   Can be added easily tear functions according to customer requirements;

         |    Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries’ large quantities of shrink wrap.





Sealer	Brand	Country
Sensor	Banner	USA
Side Sealing Cylinder	Festo	Germany
Side Sealing Solenoid Valve	SMC	Japan
Cross Sealing Cylinder	Airtac	Taiwan
Cross Sealing Valve	Airtac	Taiwan
Gear Motor	GPG	Taiwan
PLC	Siemens	Germany
HMI	Siemens	Germany
Film Motor	Li Ming	Taiwan
Intermediate Relay	Siemens	Germany
Power Supply	Mean Well	Taiwan
Solid Relay	Fotek	Taiwan
AC Contactor	Schneider	France
All Switches	Siemens	Germany

Shrink Tunnel	Brand	Country
Power Supply	Mean Well	Taiwan
Solid Relay	FOTEK	Taiwan
Gear Motor	GPG	Taiwan
Circulation Motor	SURFON	Taiwan
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
Electric Breaker	Schneider	France
Thermal overload Relay	Schneider	France
AC Contractor	Schneider	France
Frequency Inverter	Schneider	France
All Switches	Siemens	Germany
