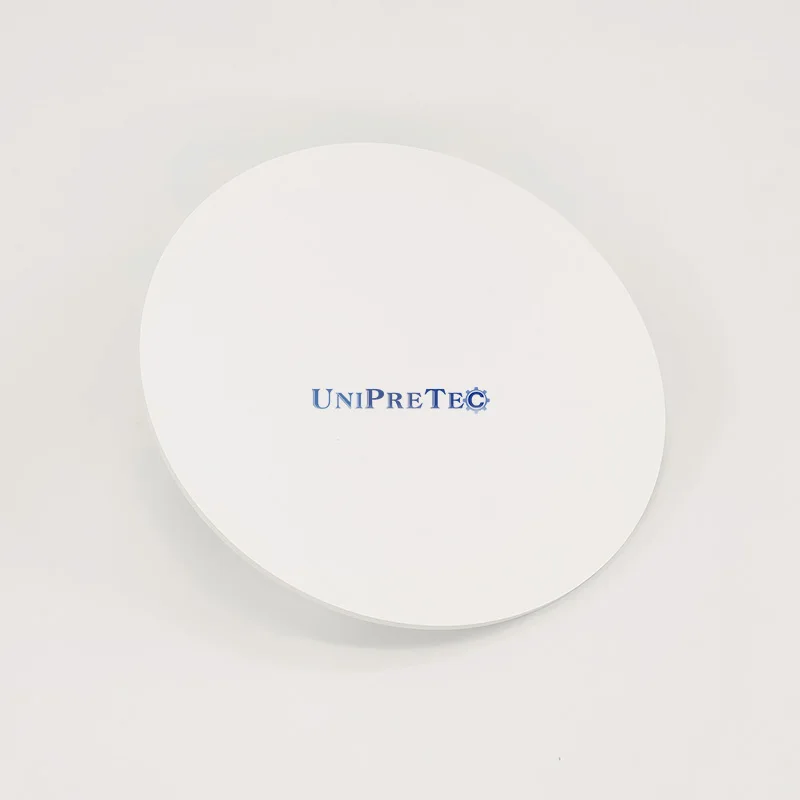

Round BN Boron Nitride Ceramic Plate
Round BN Boron Nitride Ceramic Plate
Round BN Boron Nitride Ceramic Plate
Round BN Boron Nitride Ceramic Plate
Round BN Boron Nitride Ceramic Plate

Round BN Boron Nitride Ceramic Plate

Share on (62545546067):


Price:$13.00 - $39.00

Quantity:


Product Overview

Description



Material Introduction

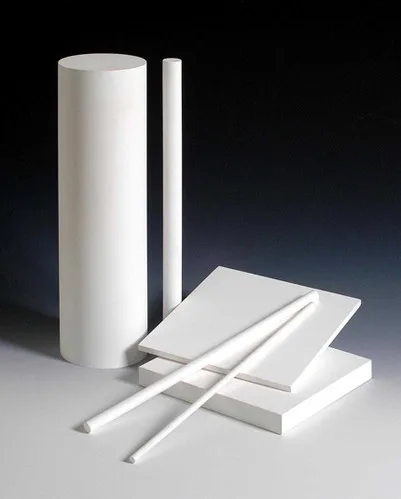

Hexagonal Boron Nitride Ceramics
At UNIPRETEC, we produce several advanced ceramic parts with fine engineered ceramics, and one of those is Hexagonal Boron Nitride. We generally choose a form known as hexagonal boron nitride (h-BN). Hexagonal BN is a composite of boron and nitrogen that is both heat and chemically resistant. It is the most robust crystalline type of boron nitride, along with graphite. Since it has a composition identical to graphite, although you will even hear it named "white graphite" since it is white in colour. What is more, hardness of hexagonal BN is similar to graphite, so it is very easily to machine the parts into required shape, only one small tip, machining work should be process in dry conditions with no cooling liquid. Also, visible dust can be created during machining, so wearing mask and goggle is necessary.


Product Features


Excellent Electrical Insulator
Max. 2000 °C Use Temp.
High Thermal Shock Resistance


Low CTE
Low Wetted by Molten Metals
Easy Machinability


Material Properties


ITEM
UNIT
BN-2000
BN-2300
BN-2800
BN-3000
Main Content
-
BN>99%
BN+Al2O3
BN+AlN
BN+ZrO2
Color
-
White
Light Grey
Dark Grey
Dark Grey
Density
g/cm3
1.95-2.00
2.25-2.35
2.75-2.85
2.90-3.00
Flexural Strength
Mpa
30
65
85
90
Compressive Strength
Mpa
55
145
205
220
Electrical Resistivity
Ω·cm
>1014
>1013
>1013
>1012
Max. Use Temp. (Air)
℃
900
1,000
1,000
1,000
Max. Use Temp. (Vacuum)
℃
1,900
1,750
1,800
1,750
Max. Use Temp. (Inert)
℃
2,000
1,750
1,800
1,750
Thermal Conductivity
W/m.K
35
30
85
30
CTE (25 - 1,000 ℃)
10-6/K
1.5
2
2.8
3.5


∆ The above data is offered for reference and comparison only, exact data will vary depending on manufacturing method and part configuration.


Applications


Amorphous Alloy Strip Producing
Metal Powder Gas Atomization
Melting Crucibles and Liners


Vacuum Furnace Parts
Aerospace
Sintering Trays and Setters


About Us


UNIPRETEC is a representative technical ceramic company in China. Relying on the technical team with more than 10 years of experience and the cooperation of well-known domestic colleges and institutions, our company covers the manufacturing and sales of oxide, nitride and carbide ceramic products. Based on the research in the advanced ceramic industry, our company is good at providing suitable products and suggestions flexibly according to customers' applications and needs. For many years, our company has focused on meeting the needs of customers from all over the world. Many praises from customers and partners have been encouraging UNIPRETEC to move forward and develop.
