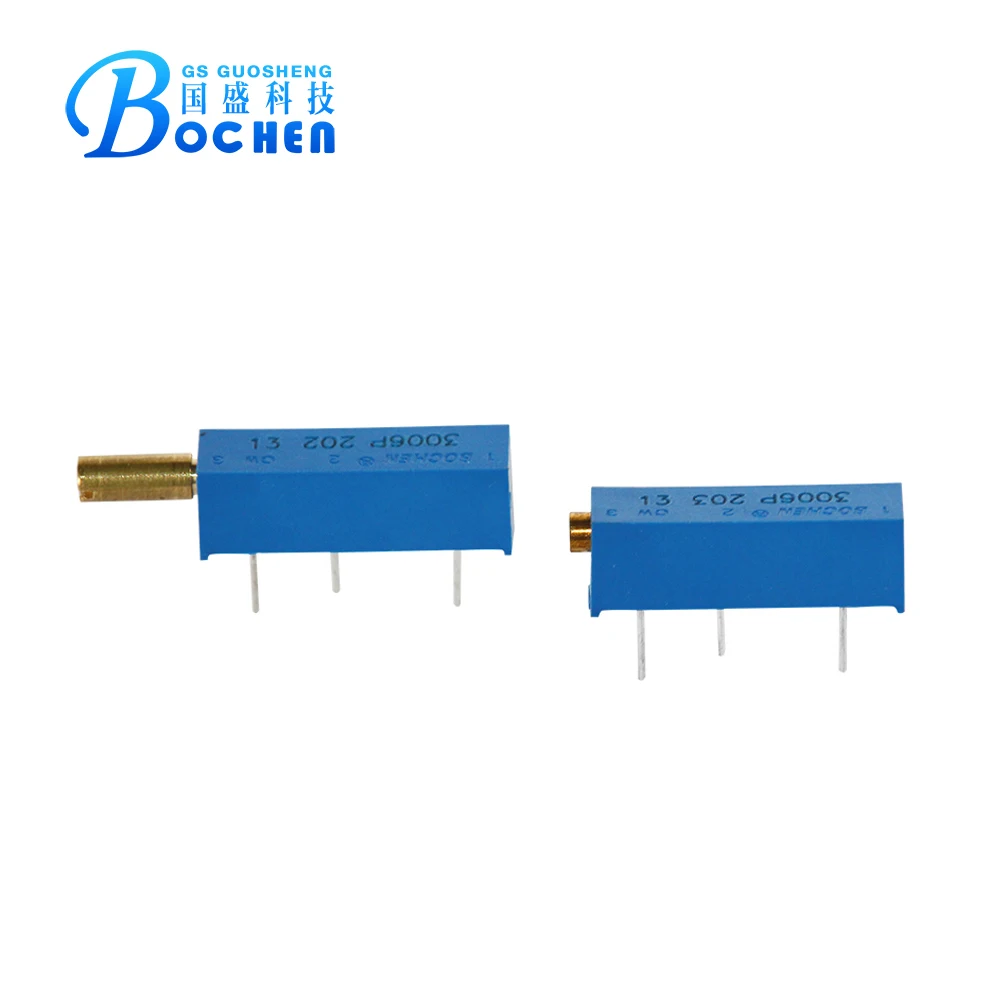

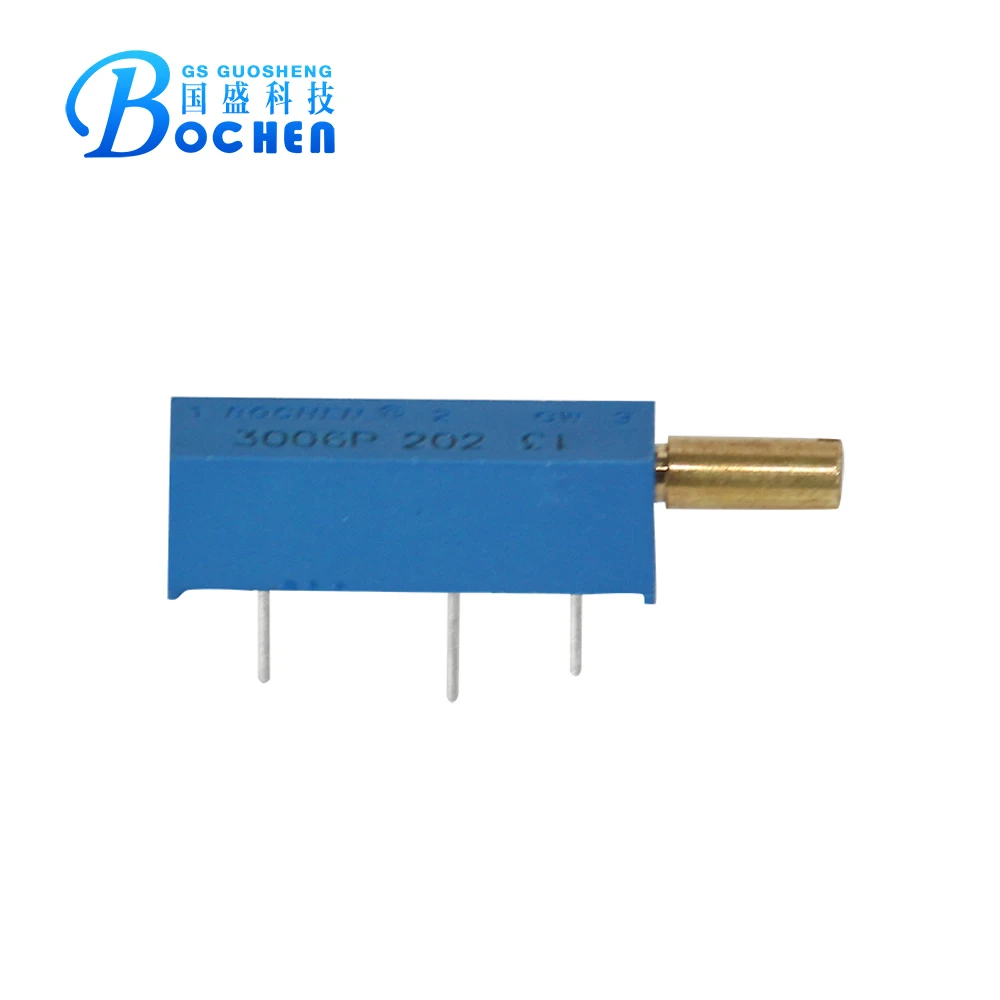

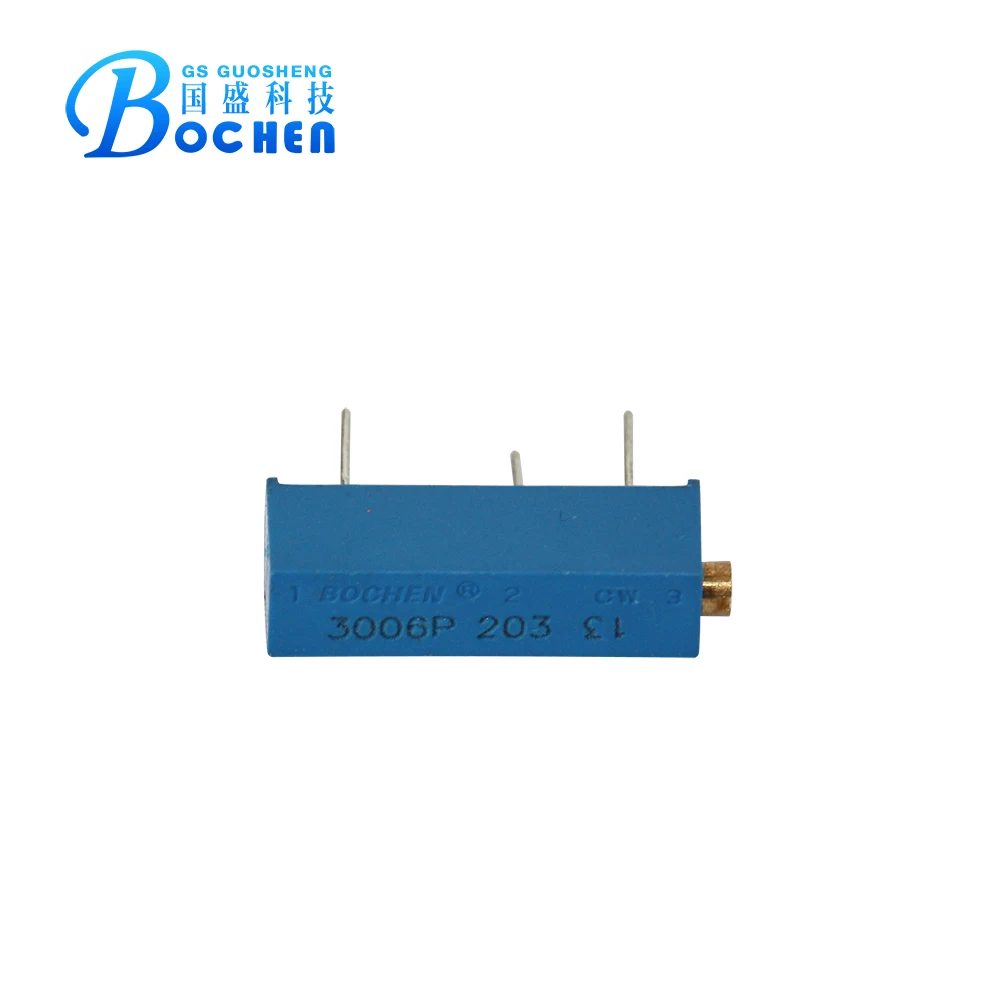

long 10mm shaft Trimmer potentiometer 3006P b103 potentiometer

Electrical Characteristics

Range of nominal resistance

10Ω~5MΩ

Resistance tolerance

±10%    ±5% (customization)

Terminal resistance

≤ 2Ω

Contact resistance variation (CRV)

≤±3%R or 3Ω

Insulation resistance

≥ 1GΩ (100V AC)

Withstand voltage

101.3 Kpa 600V   8.5kPa 350V

Effective electrical travel

22±2 cycles



Environment Characteristics

Rated power

0.75W ( 315V max)

Temperature range


-55°C~+125°C

Temperature  Coefficient

±250, ±100ppm/°C

Collision (10-500HZ, 0.75mm)

98m/s²,6h ΔR≤±1%R

Vibration (390m/s², 4000 times)

ΔR≤±1%R,

Temperature variation (-55°C/30min,
 +125°C/30min, 5 cycles)

ΔR≤±1%R,
 ΔUab/Uac≤±1%R

Climate category (IEC68-2-2)

ΔR≤± 3%R,R1≥100MΩ,Insulation Resistance≥1GΩ

Electrical endurance (0.75W, 1000h)

ΔR≤± 3%R,CRV≤±3%R or 3Ω

Mechanical endurance (200 cycles)

ΔR≤± 3%R, CRV≤±3%R or 3Ω

Steady damp heat (IEC68-2-3, Ca, 96h)

ΔR≤± 3%R, Insulation Resistance≥1GΩ

Physical Characteristics

Total mechanical travel

22±2 cycles

Starting torque


30mN.m
