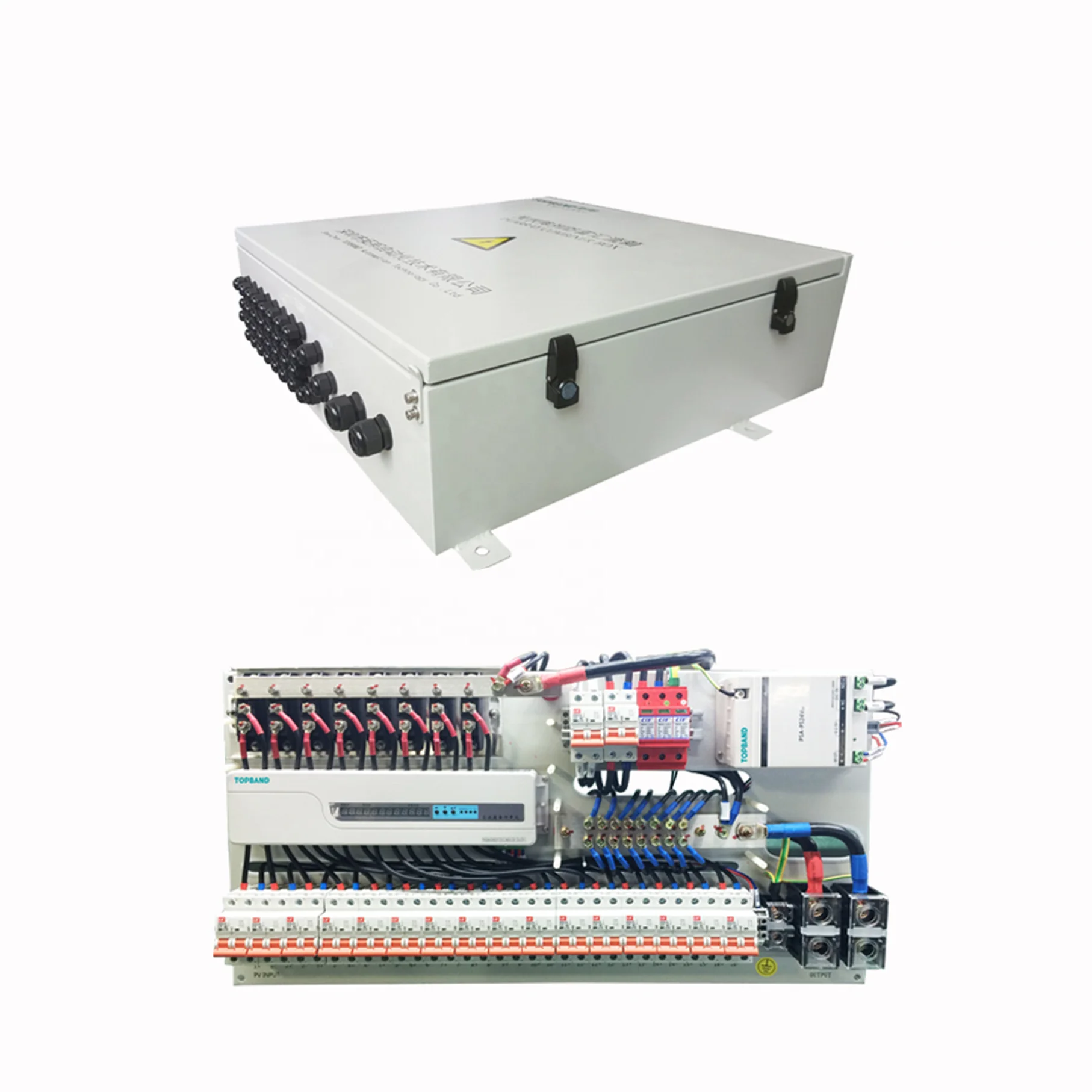

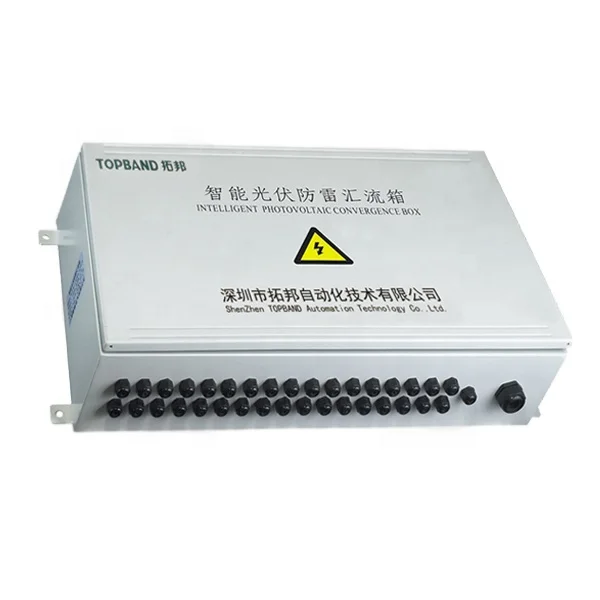

PV Array Current Voltage Monitoring Solar String Combiner Box
- Category: >>>
- Supplier: Shenzhen TOPBAND Automation Technology Co. ltd
Share on (62546462992):
Product Overview
Description
Products Description
In the solar photovoltaic power generation system, in order to reduce the connection between the solar PV array and the inverter, improve the reliability of the system, and facilitate the installation and maintenance of the system, it is generally necessary to add a combiner box between the PV module and the inverter.
High protection class
Ultra-modern protection mechanisms are used to guarantee the best surge protection. The system conforms with the current photovoltaic standard EN 50539-11.
Easy maintenance
The DC 1000V & 1500V combiner box was designed for reliability and economy. Maintenance work is easy to carry out, even after many years of use in the field.
Long service life
All the components are optimized to guarantee that they will have a long service life, world well-known brands or China famous brands, CE approved.
Easy to wire in the field
The combiner box is delivered ready for connection. Waterproof gland or M--C--( 4 mm diameter contact pin)4 connector.
Ultra-modern protection mechanisms are used to guarantee the best surge protection. The system conforms with the current photovoltaic standard EN 50539-11.
Easy maintenance
The DC 1000V & 1500V combiner box was designed for reliability and economy. Maintenance work is easy to carry out, even after many years of use in the field.
Long service life
All the components are optimized to guarantee that they will have a long service life, world well-known brands or China famous brands, CE approved.
Easy to wire in the field
The combiner box is delivered ready for connection. Waterproof gland or M--C--( 4 mm diameter contact pin)4 connector.
PV Array Current Voltage Monitoring Solar String Combiner Box | ||||||||
Model | PowerSA-SUNio | PowerSA-SUNio | ||||||
PV array input number | ≤24 or customized | ≤32 or customized | ||||||
Max. current per string | ≤20A | ≤20A | ||||||
PV Array Voltage (Vdc) | 1000V/1500V | 1000V/1500V | ||||||
Communication port | RS485 | RS485 | ||||||
Power supply | 220Vac or 230~1000Vdc self power supply for optional | 220Vac or 230~1000Vdc self power supply for optional | ||||||
Ambient temperature | -35℃~+65℃ | -35℃~+65℃ | ||||||
Ambient humidity | 0~95% | 0~95% | ||||||
Warranty | 1 year | |||||||
Cabinet Material | SPCC | |||||||
OEM SERVICE IS ABAILABLE！ | ||||||||
Details Images
Out intelligent monitoring unit can monitor the working condition and fault state of each PV battery string, provides lightning protection, short circuit protection, and earthing protection on PV battery series. Which can also monitor the temperature of solar panel cell.
Project Application
Company Profile
100% factory manufacturing, professional customized service
12 years production experience of PV array combiner box
High, medium, economical, 3 kinds of component configuration meet your variety requirements.
FAQ
Q: When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent normally within 12 hours.
Q: What are your payment terms?
A: Paypal, Western union, T/T, Trade Assurance are ok.
Q: Do you offer sample service?
A: Sure, it's well understood that sample test is a necessary for projects.
Q: Can I put my company logo on the cambinet?
A: Yes, OEM service is available for logo/packaging/ inside componets brands etc.
Q: How soon can you response to after-sales problems?
A: Our R & D department and engineer team is in the nearest office to the sales department, so if any problems, quick feedback and solutions will be offered by them. Cooperate with us, you have a full engineer team and sales team right behind you on the production side! ^_^
A: Reply will be sent normally within 12 hours.
Q: What are your payment terms?
A: Paypal, Western union, T/T, Trade Assurance are ok.
Q: Do you offer sample service?
A: Sure, it's well understood that sample test is a necessary for projects.
Q: Can I put my company logo on the cambinet?
A: Yes, OEM service is available for logo/packaging/ inside componets brands etc.
Q: How soon can you response to after-sales problems?
A: Our R & D department and engineer team is in the nearest office to the sales department, so if any problems, quick feedback and solutions will be offered by them. Cooperate with us, you have a full engineer team and sales team right behind you on the production side! ^_^
