Radial Wire Fan Guard Double Middle Ring Welding Machine

Product Overview

Description

Radial Wire Fan Guard Double Middle Ring Welding Machine :

Machine Features:

 Fan Guard Production Line include: ring bending machine, ring butt welding machine,inner ring spot welding machine, hydraulic press for guard shape forming, outer ring welding machine, middle ring welding machine,   handle bending machine, handle welding machine, edge trimming machine, etc.

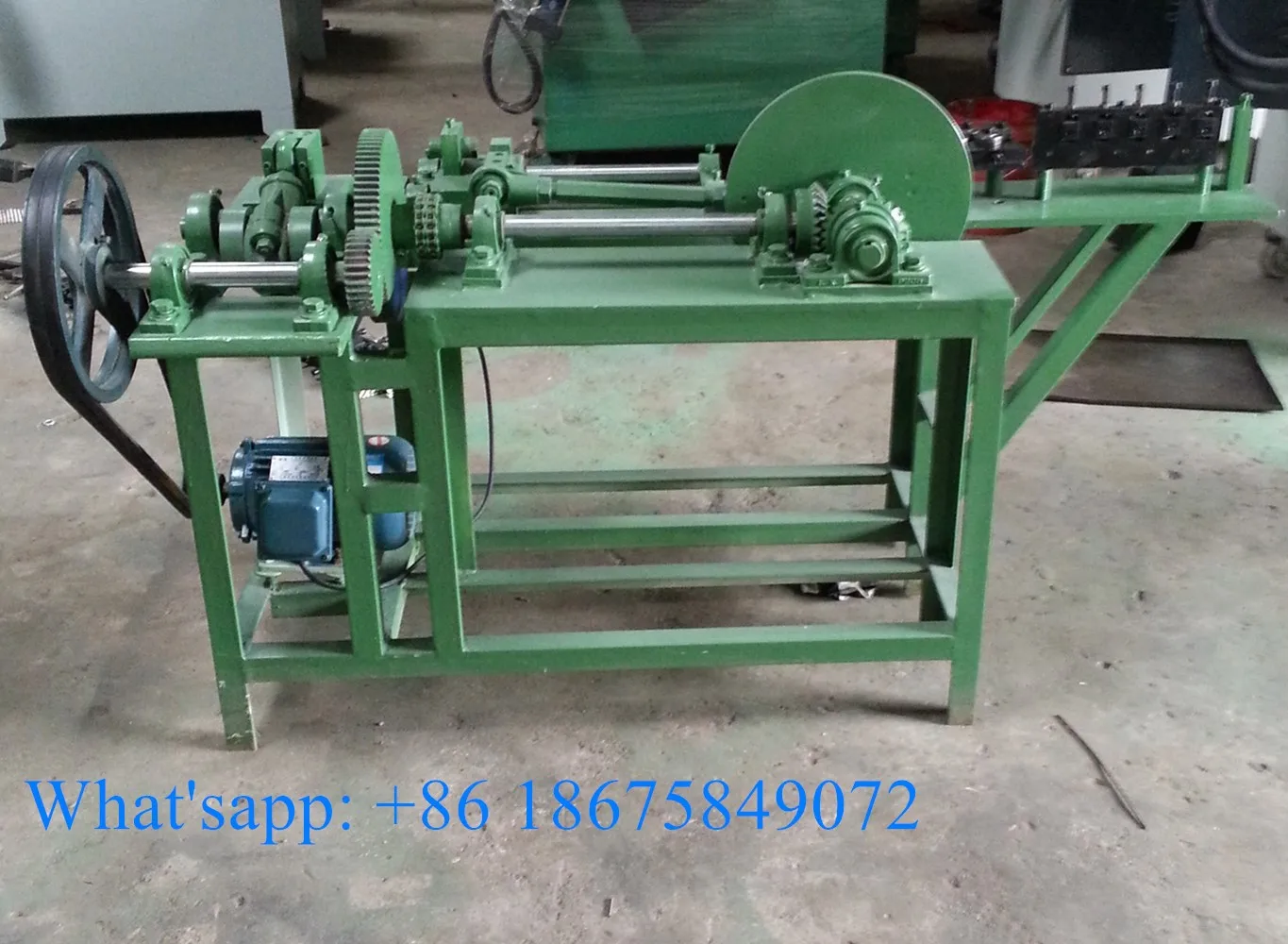

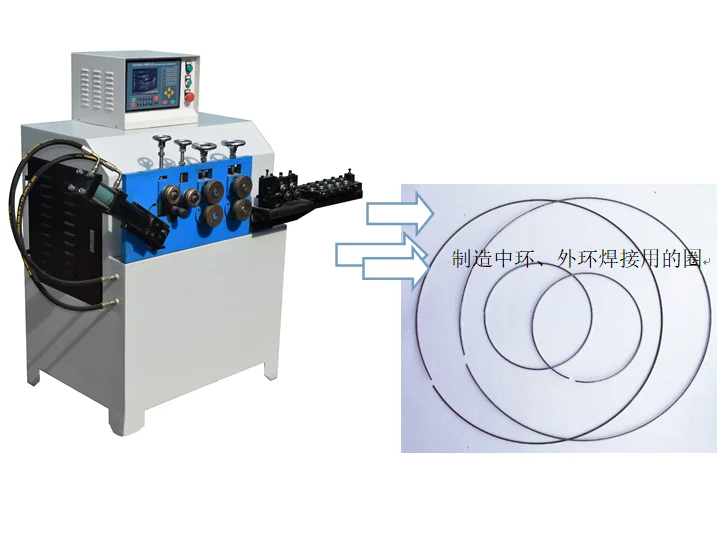

Main technical data of auto hydraulic ring making machine for electric fan guards:

 -- Machine model: DQ2-6

 -- Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%).

 -- Suitable diameter: 2.0-6.0mm

 -- Suitable ring diameter: 50-900mm

 -- Main driving power: 1.5kW

 -- Linear wire feeding speed: about 30m/min

 -- Productivity: 6000-8000 pieces per 8 hours shift

 -- Dimension: 1350 x 700 x 1450mm

 -- Weight: about 400kg



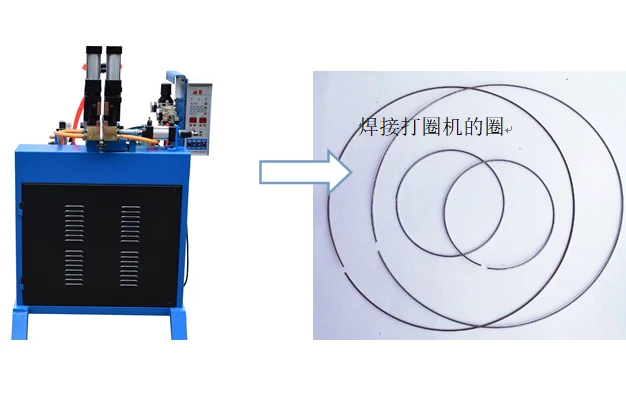

Main technical data of ring butt welding machine for electric fan guards:

 -- Machine model: UN-40

 -- Rated power: 40KVA

 -- Max. pressing force: 1100N

 -- Max. welding force: 400N

 -- Max. welding section area: 80mm2

 -- Welding speed: 5000-10000 pieces per 8 hours shift

 -- Dimension: about 800 x 850 x 1000mm

 -- Weight: about 250kg



Main technical data of electric fan guard inner ring spot welding machine:

-- Machine model:DN-25

-- Suitable wire diameter: 1.0-1.8mm

-- Size of fan guard: 8”-20” (by changing flange moulds)

-- Rated welding power: 25KVA

-- Productivity: about 1000-1500 pieces per 8 hours shift (16”, 120 pieces radial wires)

-- Air consumption: 0.15M3/min

-- Welding current: 6A every welding point

-- Dimension: 1600 x 1000 x 1300mm

-- Weight: about 480kg

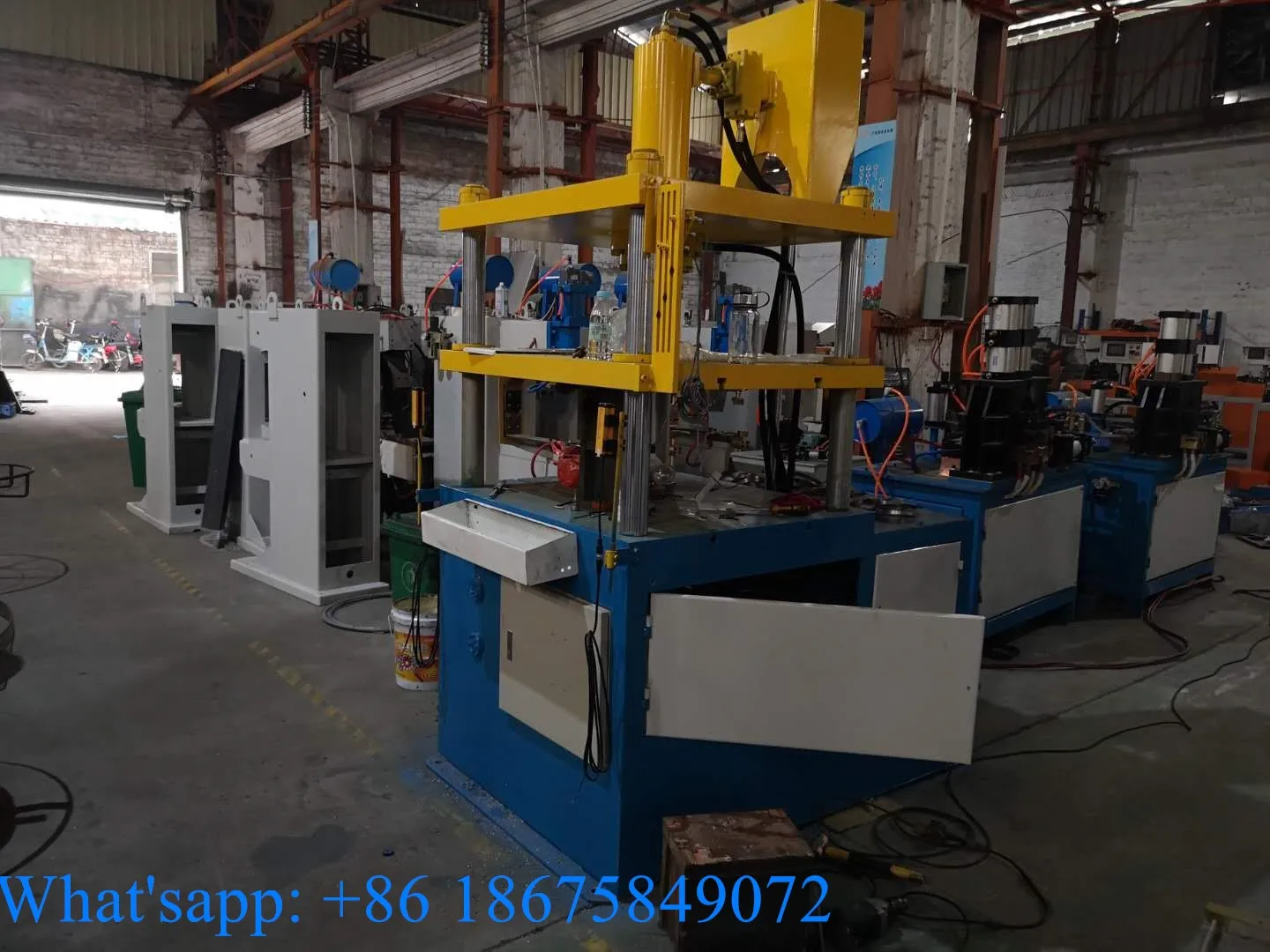

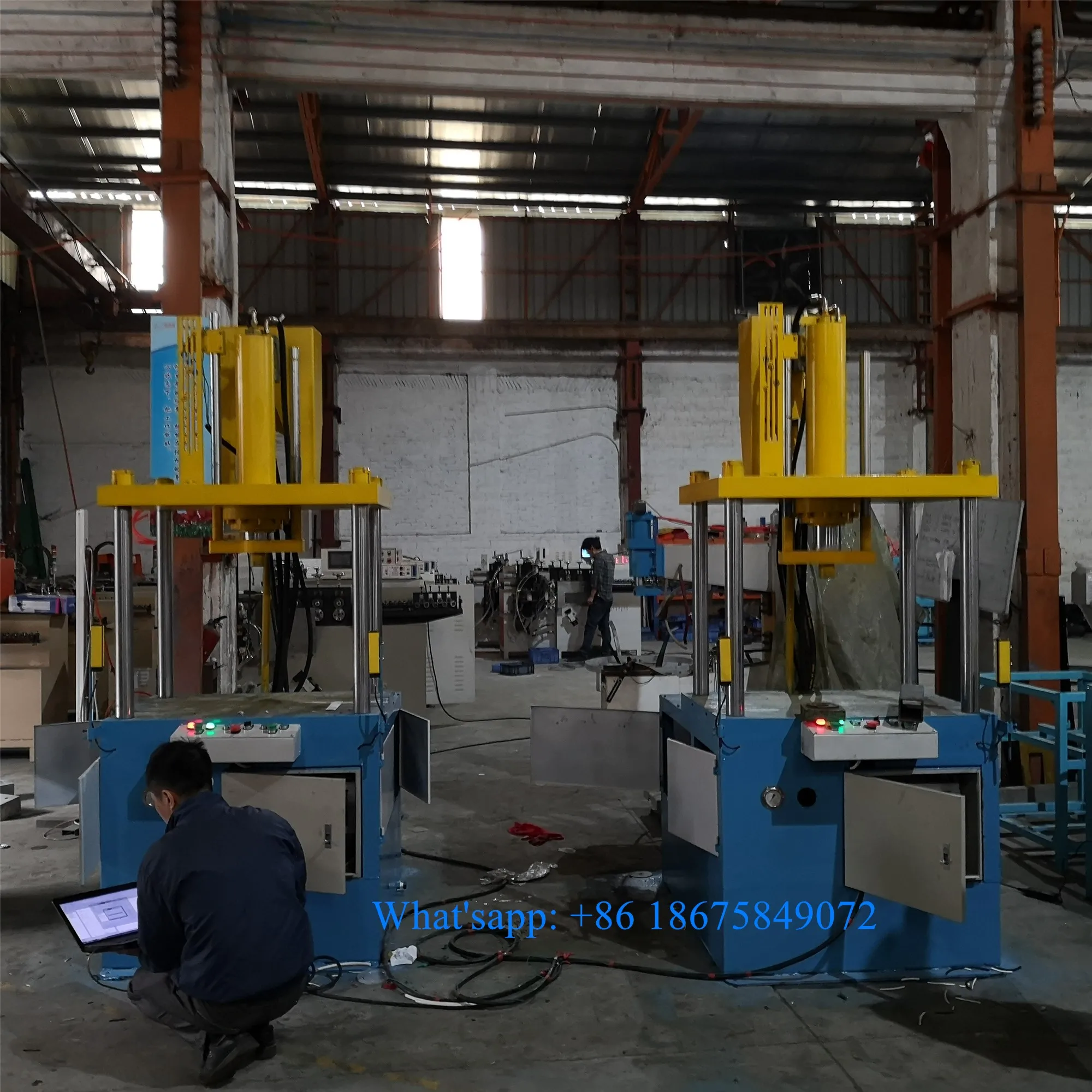

Main technical data of hydraulic press machine for electric fan guards:

 -- Machine model: BO-25T

 -- Voltage: 380V/50Hz

 -- Power: 5.5kw

 -- Capacity of tank: 850*850*400mm

 -- Productivity: 4000-6000 pieces per 8 hours shift

 -- Dimension: about 1250 x 1050 x 2350mm

 -- Weight: about 1600kg

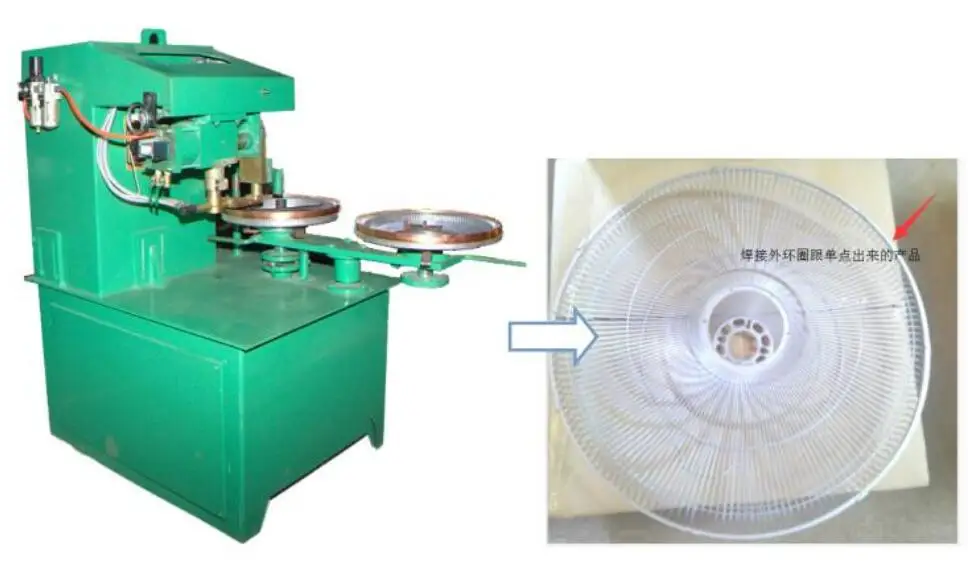

Main technical data of electric fan guard outer ring welding machine:

 -- Machine model: DN-50KVA

 -- Suitable wire diameter of the outer ring: 3-4mm

 -- Rated welding power: 50KVA

 -- Size of guards: 8"-20"

 -- Productivity: 2000-3000 pieces (16", 120 radial wires)

 -- Air consumption: 0.4m3/min

 --Welding current: 10A per time

 -- Dimension: 1200 x 950 x 1550mm

 -- Weight: about 500kg

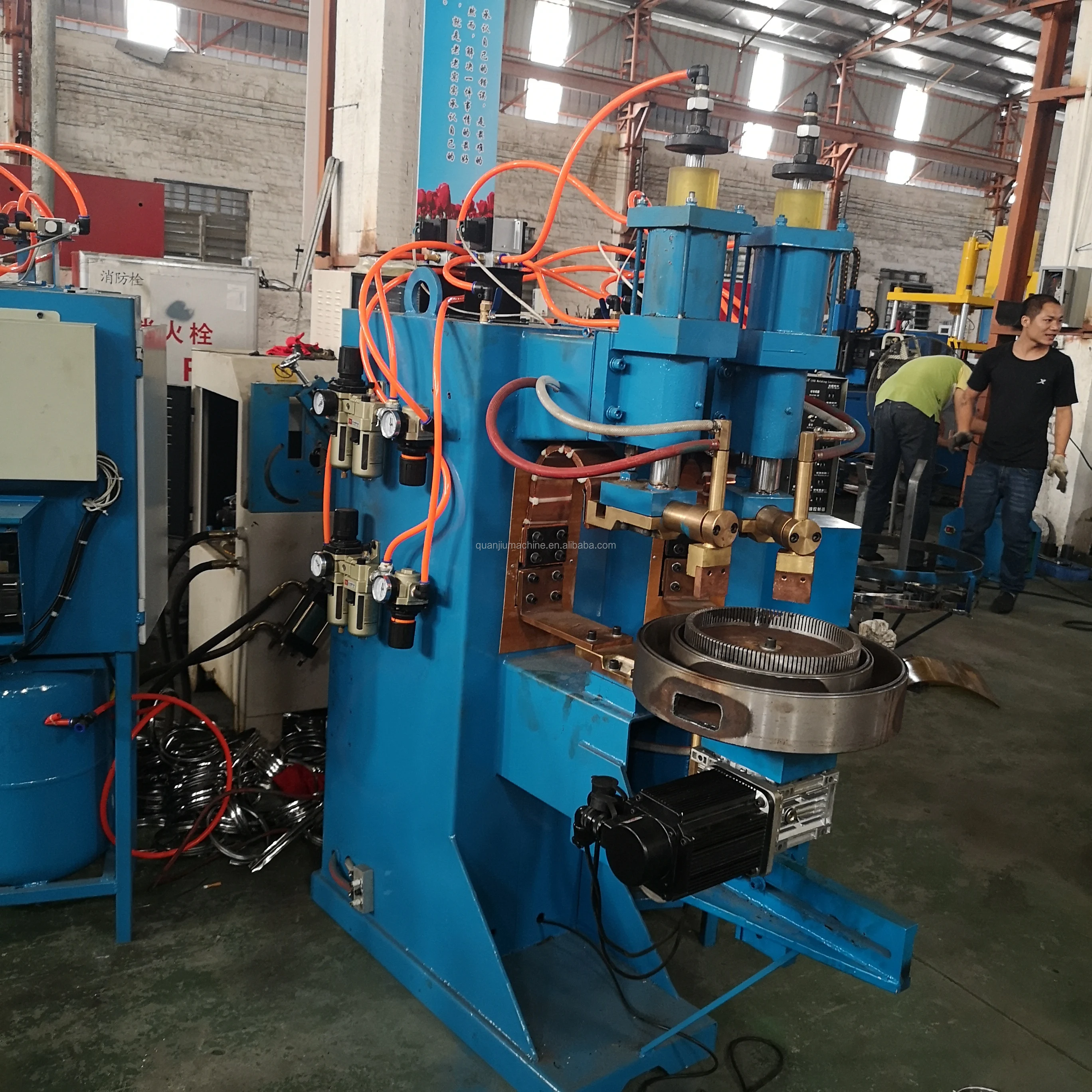

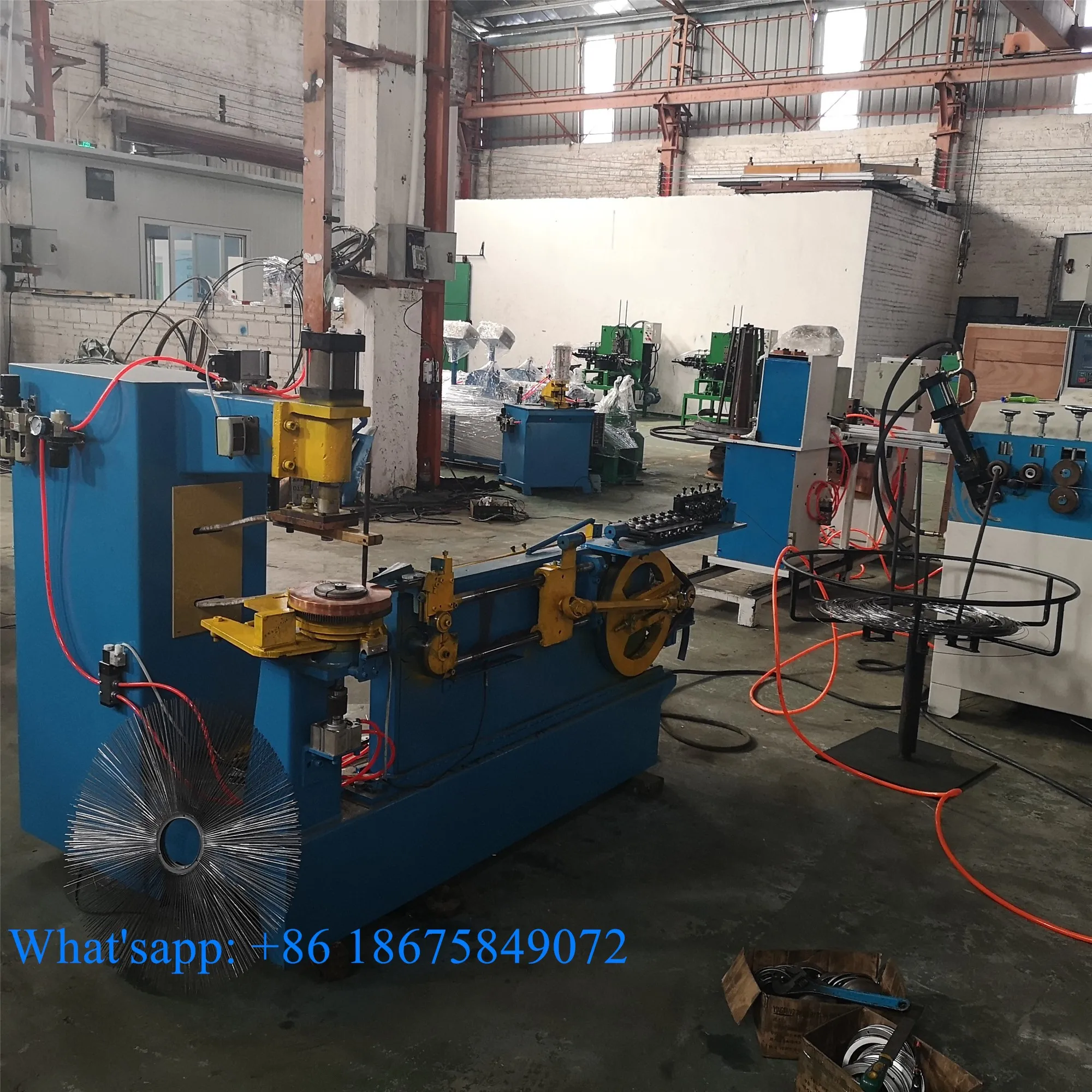

Main technical data of electric fan guard double middle ring welding machine:

 -- Machine model: DN-40+40KVA

 -- Suitable wire diameter for middle ring: 1.5-3.0mm

 -- Rated welding power: 40+40KVA

 -- Size of guard: 8”-22”

 -- Productivity: 2000 pieces (16”, 120 pieces radial wires)

 -- Air consumption: 0.5M3/min

 -- Welding current: 10A per time

 -- Dimension: 1150 x 450 x 1600mm

 -- Weight: about 450kg

Main technical data of lifting handle forming machine for electric fan guards:

 -- Machine model: CX-180

 -- Wire diameter: 1.0-3.0mm

 -- Motor power: 1.5kw

 -- Dimension: about 1500 x 600 x 750mm

 -- Weight: about 250kg

Main technical data of lifting handle welding machine for electric fan guards:

 -- Machine model: DN-63

 -- Rated power: 63KVA

 -- Suitable wire diameter: 1.0-6.0mm

 -- Welding speed: 5000-10000 pieces per 8 hours shift

 -- Dimension: about 900 x 450 x 1600mm

 -- Weight: about 380kg

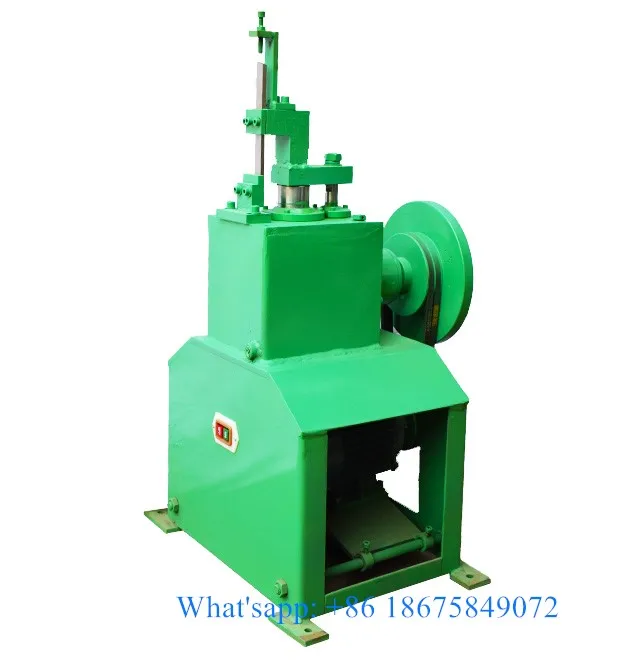

Main technical data of electric fan guards edge trimming machine:

 -- Machine model: QB-6

 -- Suitable wire diameter: 1.0-6.0mm

 -- Driving motor power: 0.55kW

 -- Productivity: 6000-8000 pieces per 8 hours shift

 -- Dimension: 600 x 400 x 800mm

-- Weight: about 135kg

1	ring bending machine
2	ring butt welding machine
3	inner ring spot welding machine
4	hydraulic press for guard shape forming
5	outer ring welding machine
6	middle ring welding machine
7	handle bending machine
8	handle welding machine
9	edge trimming machine
