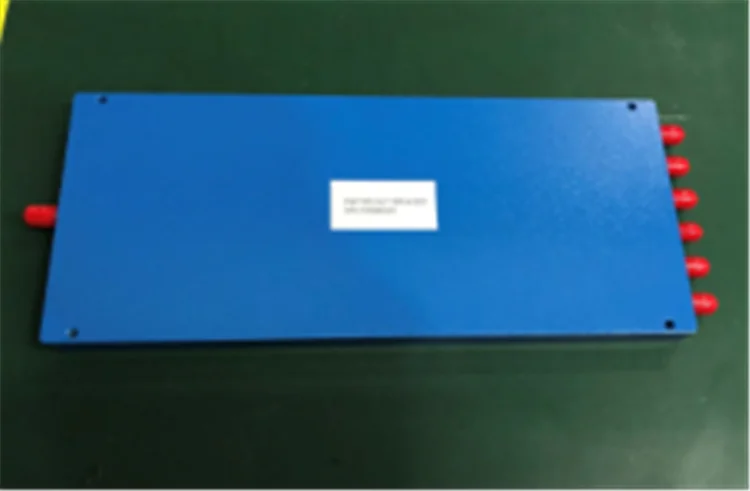

500~ 8000 MHz SMA Female 50 Ohms Impedance Forward Power 20W & Reverse Power 1W Splitter outdoor Telecom Parts
- Category: Telecom Parts >>>
- Supplier: Suzhou Alton Electronics Technology Co. Ltd.
Share on (62547547605):
Product Overview
Description
Products Details
Model: 2005-811 | ||||
SN | Parameters | Specifications | ||
1 | Frequency Range | 500 ~ 8000 MHz | ||
2 | Insertion Loss | ≤5.0dB(Excluding theoretical loss 7.8 dB) | ||
3 | Input Port VSWR | Typ.1.26 / Max.1.5 | ||
4 | Output Port VSWR | Typ.1.19 / Max.1.4 | ||
5 | Isolation | Typ.25dB / Min.17dB | ||
6 | Amplitude Balance | ≤ 1.2dB | ||
7 | Phase Balance | ±15° | ||
8 | Impedance | 50 Ohms | ||
9 | Input/Output Connectors | SMA-Female | ||
10 | Power Rating | Forward Power 20W & Reverse Power 1W | ||
11 | Operation Temperature | -35 ℃ ~ +75 ℃ | ||
12 | Surface Finishing | Blue paint | ||
