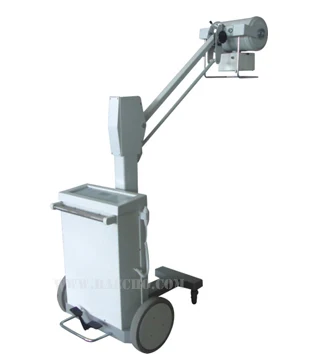

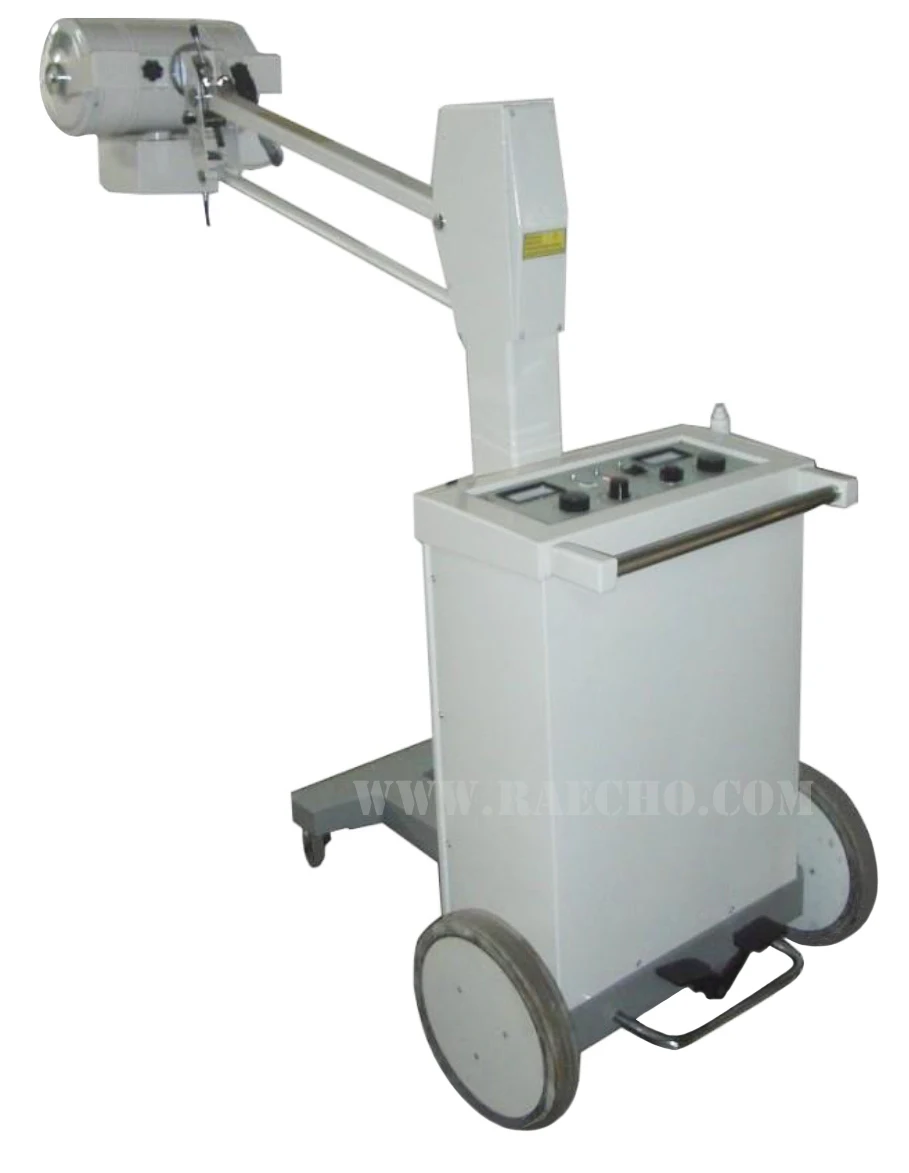

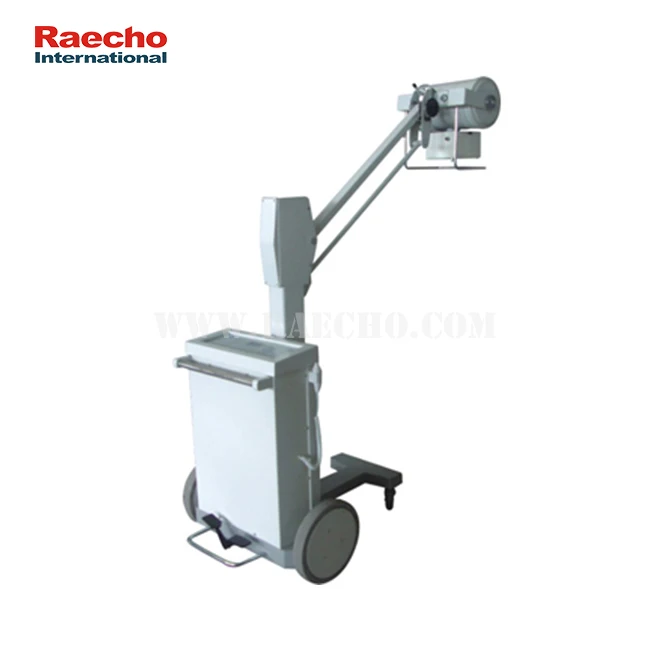

Take x-ray photography of the head, extremitiles, chest cavity and other parts of humanin the ward or in operation room.
Technical Parameter
Power supply
Voltage
180-240 V
Frequency
50HZ
Internal resistivity
<1.0Ω
Current
35A instant
Rating
≥7k VA
Photography
Voltage
50-100 kV
Current
16ma. 32ma 63ma 100ma
Time
0.08s ~6.3s
X-ray tube focus
4.3mm X4.3mm
Maximum remote control distance
7m
Maximum height of focal spot from floor
>1880 mm
Minimum height of focal spot from floor
<520 mm
Columns turning angle
±45
Collimator: maximum film size at 650mm focal distance
350 mm X 350 mm
The net weight of the unit
150kg
The gross weight of the unit
240kg
Shipping volume
150cm X 100cm X 150cm
Main features
1. Single focus, full-wave rectifier, combined X-ray generator
2. SCM control (easy to maintain and repair)

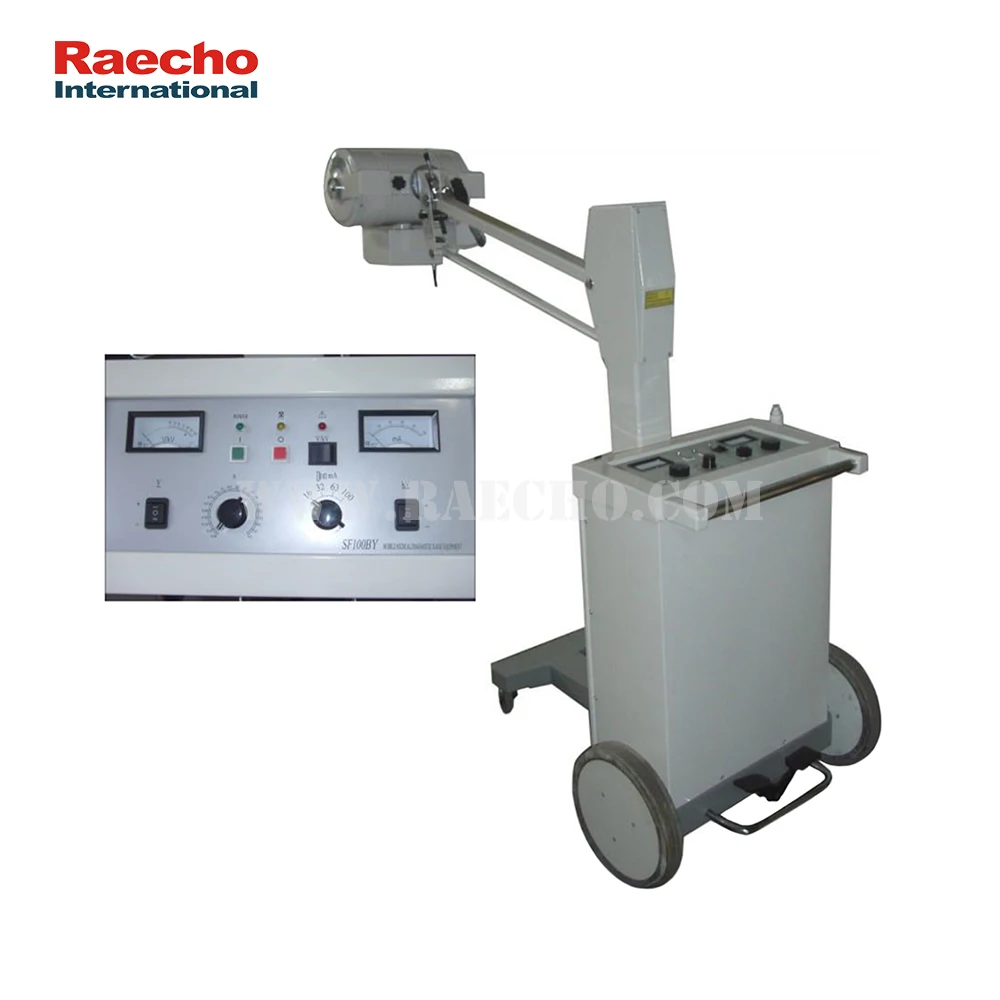

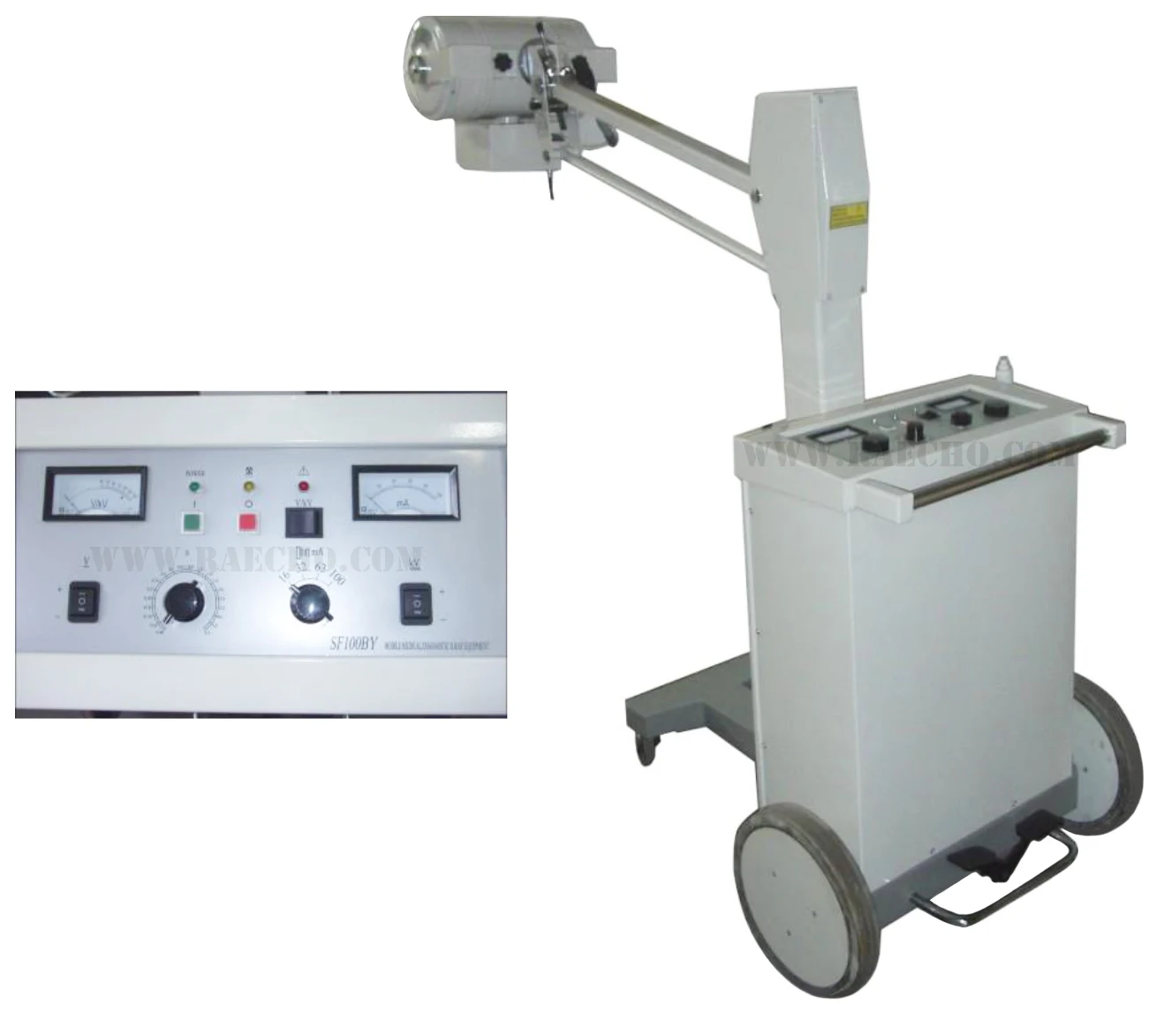

3. High visual and operational console with LCD monitor
4. Prestore 8 kinds of photography parameters and select, modify, store the parameters under the condition of choice
5. Power voltage (V), photograph kilovolt (KV) infinitely variable control
6. Premier high voltage with high power SCR zero control circuit
7. Function of load chains, exposure time control, auto alarm, preheat filament, subassemblies temperature control, and so on
8. Cantilever structure makes the small volume and easily moving
