WDS 590 BGA rework station For laptop desktop repair other welding equipment

Product Overview

Description

WDS-590 BGA Rework station

Product Description



Manual BGA Rework Station

Model:WDS-590

1.Repair Success Rate:More Than 99%.

2.Using The Industrial Touch Screen.

3.Independent 3 Heating Zones, Hot Air Heating / Infrared Preheat. (temperature accuracy ± 3℃).

4.With CE Certification.

Parameter

1	Power	AC 220V±10% 50Hz
2	Overall dimension	L500mm*W590mm*H650mm
3	PCB size	Max 400mm*370mm Min 10mm*10mm
4	BGA size	Max 60mm*60mm Min 1mm*1mm
5	PCB thickness	0.3-5mm
6	Weight of machine	40KG
7	Warranty	1 year
8	Total power	4800W
9	Payment way	T/T,Western Union
10	Usage	Repair chips / phone motherboard etc
11	Electrical material	Touch screen+Temperature control module+PLC control
12	Location way	V-shape card slot+Universal jigs

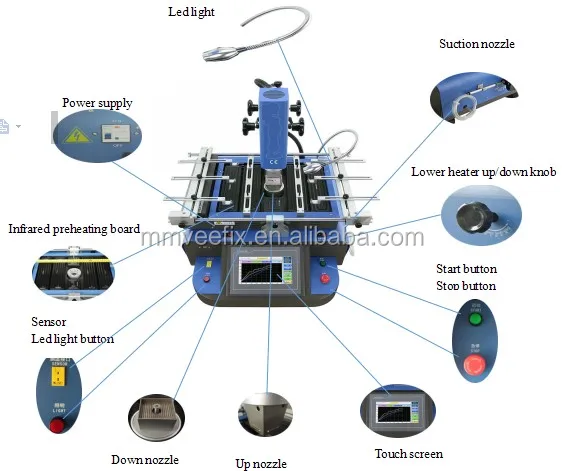

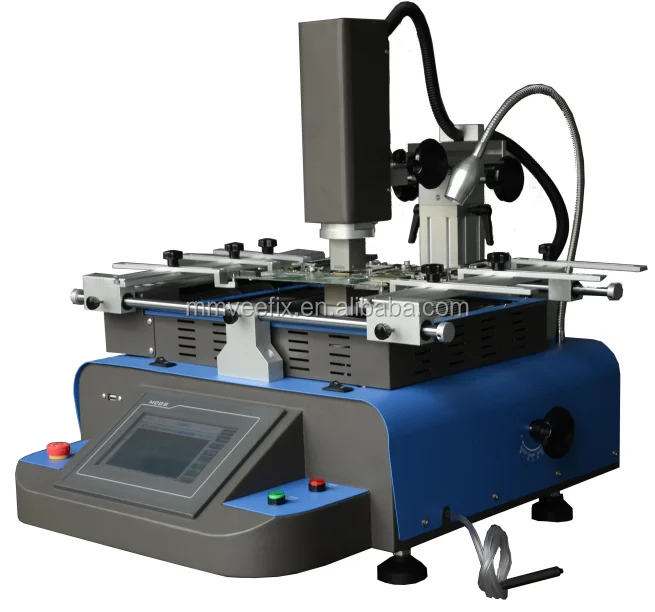

Product Image

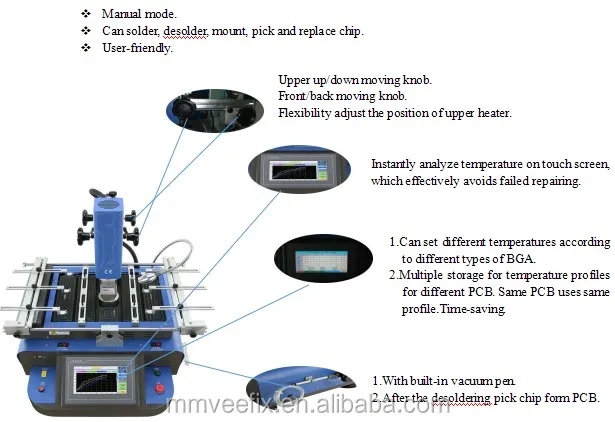

Operation System

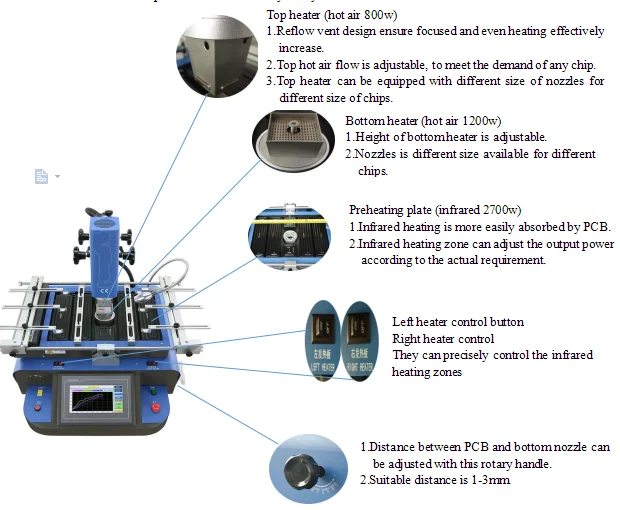

Strict Temperature Control System

1. 8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve.

2. It adopting high accuracy K-type thermocouple close-loop control.

3. The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

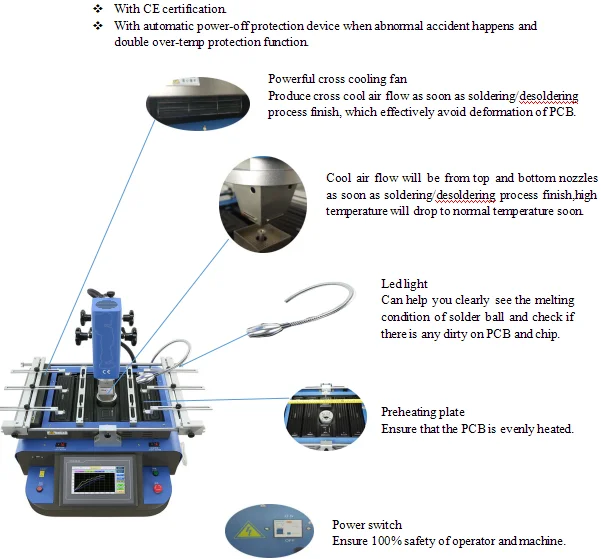

Safety System

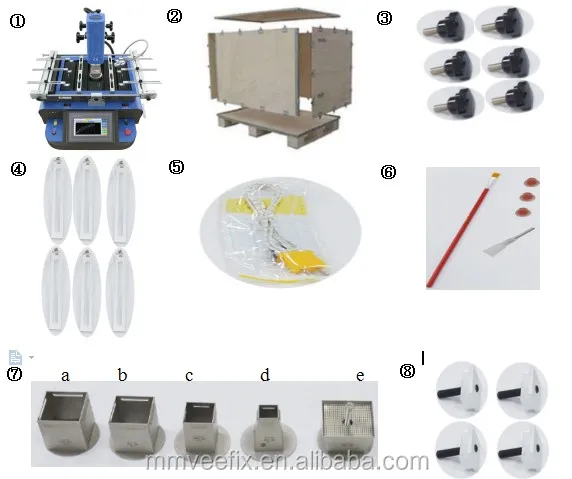

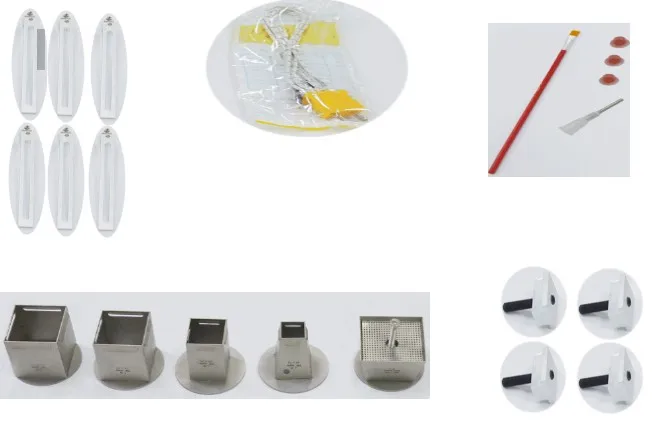

Packing List
