6 channel optical fiber slip ring,300rpm,IP rating 65 or 67,Max Optical power 23dBm
- Category: Electrical Contacts and Contact Materials >>>
- Supplier: Shenzhen Jinpat Electronics Co. Ltd.
Share on (62549230167):
Product Overview
Description
Product Description
Bargain Price Only in Alibaba

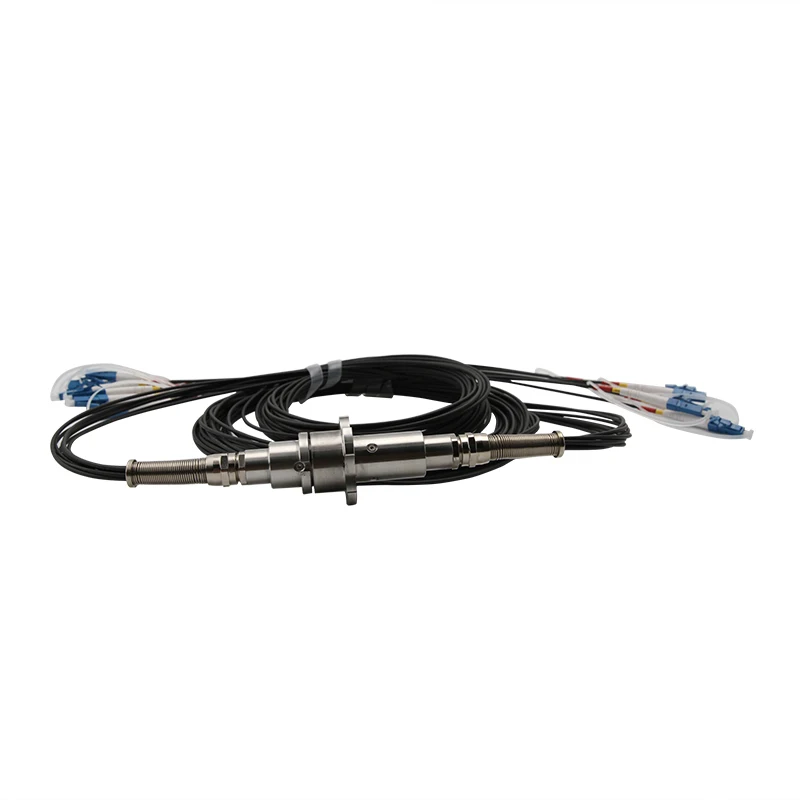

Fiber Optic Rotary Joint, also known as fiber optic slip ring, fiber optic rotary connector, optical hinges, etc. This slip ring adopts optical fiber as media for transmitting data, providing the best technical solution for elements of system to transmit data when rotating. It is especially suitable for equipments that require unlimited, continuous or intermittent rotation and transmit large capacity of data and signals from stationary position to rotary position. It can improve mechanical performance, simplify system operation, and avoid damage to fiber optic due to rotation of moving joints. The fiber optic rotary joints can be used with a traditional electric slip ring as a photoelectric hybrid slip ring to transmit power and high speed data.
Mini 6-channel optical fiber slip ring, the installation diameter is only 20mm, the smallest diameter multi-channel optical fiber slip ring in the industry, the performance index is better than similar imported products, super long life, single and multi-mode optional, short delivery time.
Specifications | |||
Fiber types | SM or MM | Maximum speed | 300rpm |
Channel number | 6 | Package style | Pigtails on both ends |
Wavelength range | SM:1310-1550nm MM:850/1300nm | Weight, approx | 200g(No tail cable and connection included) |
Insertion loss | <4dB | Jacket types | 2.0mm (Kevlar/TPU or armor) |
Insertion loss ripple | <2dB | Connector types | FC/SC/ST/LC(PC or APC) |
Return loss | SM:≥45dB MM:≥30dB | Estimated life cycle | >100 million revolutions |
Max Optical power | 23dBm | Vibration | MIL-STD-167-1A |
Working temperature | -20~+65℃(Industrial grade) -50~+80℃ (Military grade) | Mechanical shock | MIL-STD-810G |
Storage temperature | -55~+85℃ | IP rating | IP65 or IP67 |

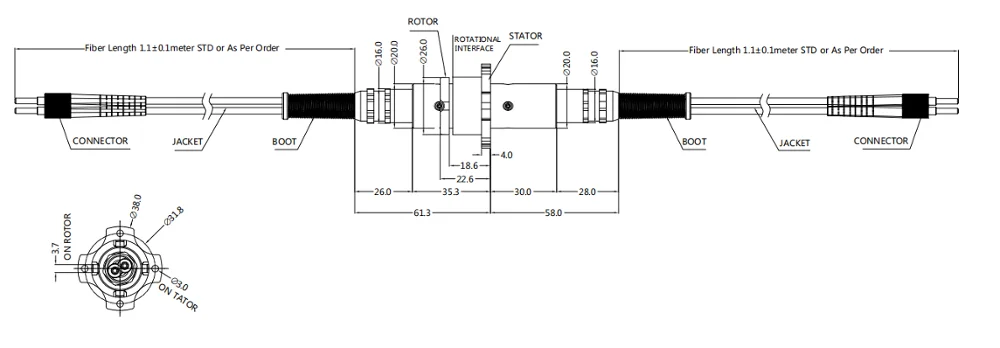

Product outline drawing
Advantages:
- No contact and friction, long life, up to 10 million rpm (more than 100 million rpm for signal channel )
- Can combine with multiple signals such as video, series, and Ethernet signal, etc.
- Use optical fiber to transmit information, no leakage, no electromagnetic interference; can transmit tens of
- hundreds of kilometers of networking applications over long distances
- The transmission bandwidth is much larger than the electrical connector, and it can be used to double the
- bandwidth with the wavelength division multiplexer.
- Small in volume and light in weight that is easy to integrate with electric slip ring, and system is easy to
- upgrade and change
- Providing the world's smallest single-channel fiber optic rotary joint, as well as double-channels, four-chan
- nels, ten-channel or even more channel for your option
- Providing photoelectric integrated rotary joint
Options:
- Fiber optic transmission type is optional, circuits of current and signal are optional
- Single mode or multi mode, single channel or multiple channel
- Shape can be customized, housing material and driving connector are optional as well
Typical Application:
- Robotics
- Material conveying system
- Rotating turret on the vehicle
- Remote control system
- Radar system
- Offshore and marine system
- High speed video, digital, analog signal transmission and control of optic fiber sensor revolving table
- Medical system
- Video surveillance system
- National or international security systems
- Subsea operating systems
