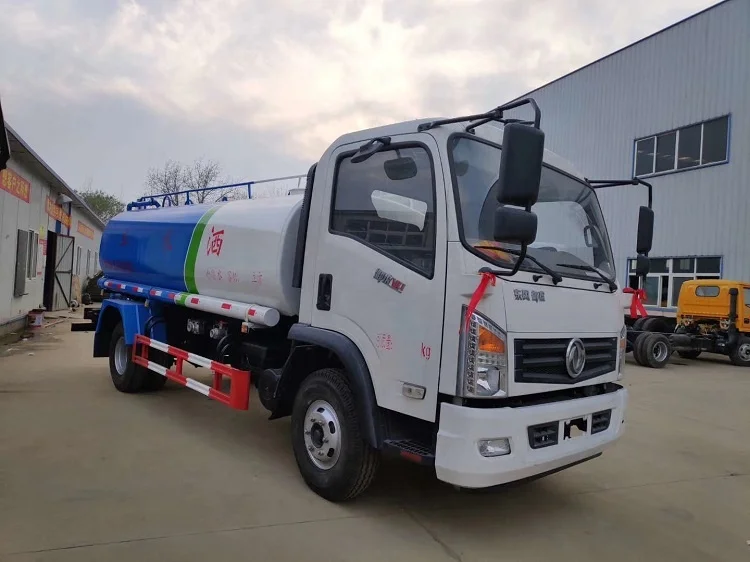

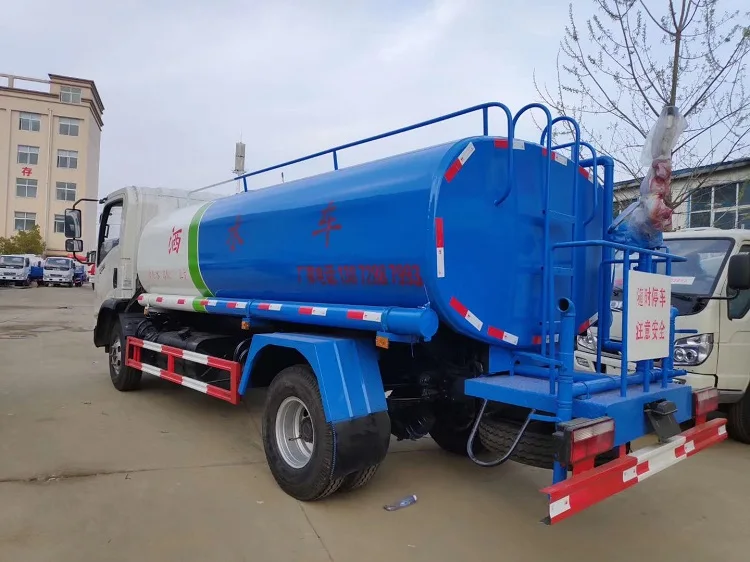

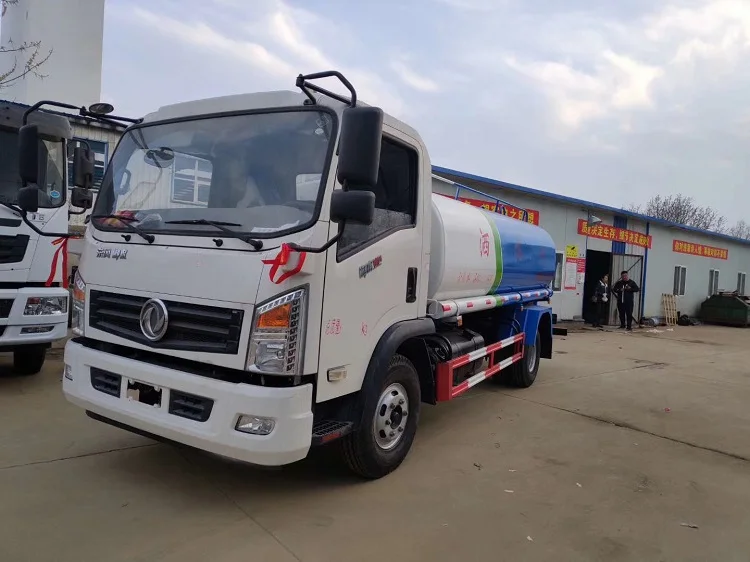

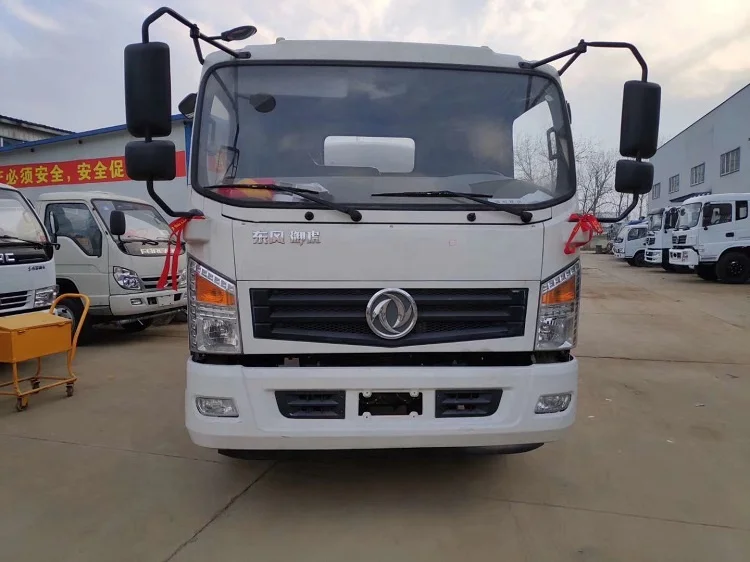

Watering Vehicle 10000 Liter Capacity Water Transporting Tank Truck
Product specification
Specifications
Item
Specifications
Item
Specifications
Truck
Name
Watering Vehicle 9000 Liter Capacity Water Transporting Tank Truck
Model
CLW5163GPSE5
Gross Weight
15600kg
Overall dimensions
7550*2500*3050mm
Curb Weight
6690kg
Wheelbase
3800mm
Approach angle
26°
Front Track
1760mm
Departure Angle
28°
Rear Track
1670mm
Front Overhang
1220mm
Number of axles
2
Rear Overhang
2150mm
Max speed
190km/h
Number of Tyres
6
Traction system
4*2
Tyre
8.25R16
Transmission
manual
Allowable Cab Passengers
3
Chassis
Brand
Dongfeng
Drive type
RDH or LDH
Model
EQ1168GLVJ
Leaf Spring
9/11+8
Upper
Volume of tank
9CBM
Tank Material
Stainless steel
Thickness
4-5mm
Loading
Water
Tank
Anti-rust coating inside tank
Color
Customerized
Engine (Motor)
Brand
Yuchai
Type
Diesel
Model
YC4E160-56
Displacement
4260ml
Horse power
160hp
Emission standard
Euro 4
Structure

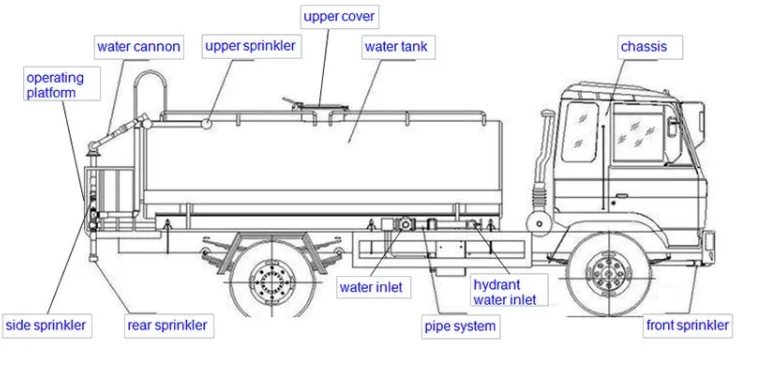

Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Equipment
Gearbox
5 forwards & 1 reverse
Steering Gear
Hydraulic steering
Clutch
Reinforced diaphragm clutch
Brakes
Dual circuit compressed air brake
Water Pump
Suction height >6m
Water cannon range
>28m
Sprinkler width
>14m
Others equipment
fire valve,water valve, and filter gauze
Remark

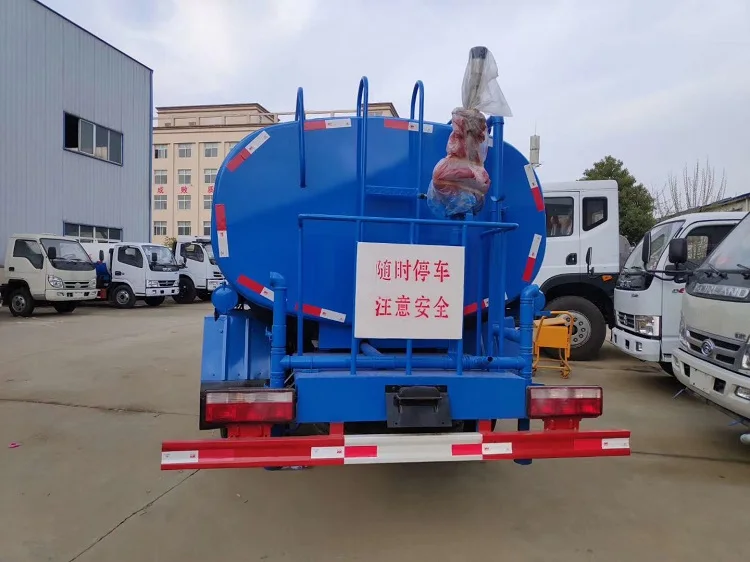

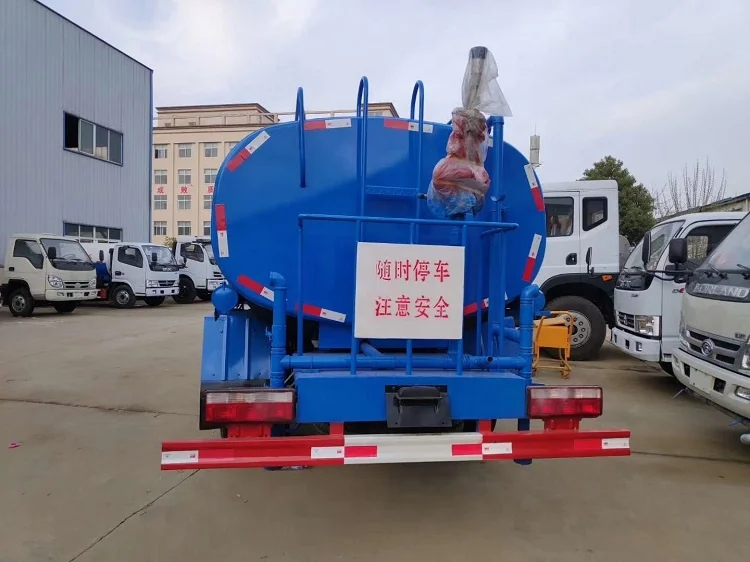

The water spraying truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tanker trucks is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of clw water truck is more than 15m and the cannon range is more than 25m.
(1)Feature rich
Default of sprinkler species diversity, equipped with duckbill before the nozzle or round head blunt mouth, cylindrical mounted behindsprinkler tuo, lateral jet lotus flower is aspersed head, which can realizeforward and sprinkle, with lateral jet, take after work platform, platform withsprinkler gun, sprinkler gun have a dc, the heavy rain, moderate rain, drizzle,adjustable, can spray pesticide fog can rotate 360 degrees, greatly enhance thevehicle applicability, improve the utilization rate of vehicles.
(2)Easy to use
(a) there are fewer blockages. The waterway is equipped withmulti-filtration device, which combines the coarse filtration with the finefiltration to minimize the blockage of pipes, nozzles and water pumps.
(b) it is convenient to add water. The built-in water pumphas the self-priming function and the filter screen protection, can pump in thepump out, the field water; The pipes are equipped with fire joints, which canbe filled with water from the fire water. The tank cover is free to switch andcan be used to add water to the tank.
(c) simple operation. The control of each function iscontrolled by electric control, one key switch, no manual.
(3)Fine design
(a) the tank is made of high-performance steel plate, whichis divided into compartments by partitions, which can effectively reduce theimpact caused by liquid in the tank.
(b) the water tank is equipped with a measuring tube, whichcan be used to check the water quantity in the tank in time to avoid the misoperation caused by insufficient water supply.
(c) the water tank is equipped with a low water level alarmdevice. When the water level is lower than the set height, there will be analarm sound.
(d) the water tank is equipped with overflow device, whichcan overflow in time to avoid overload.
(e) the upper end of the water tank is provided with a gate,which can be added directly to the water. It can also be used for maintenancepersonnel to access the tank and to climb the ladder easily.
