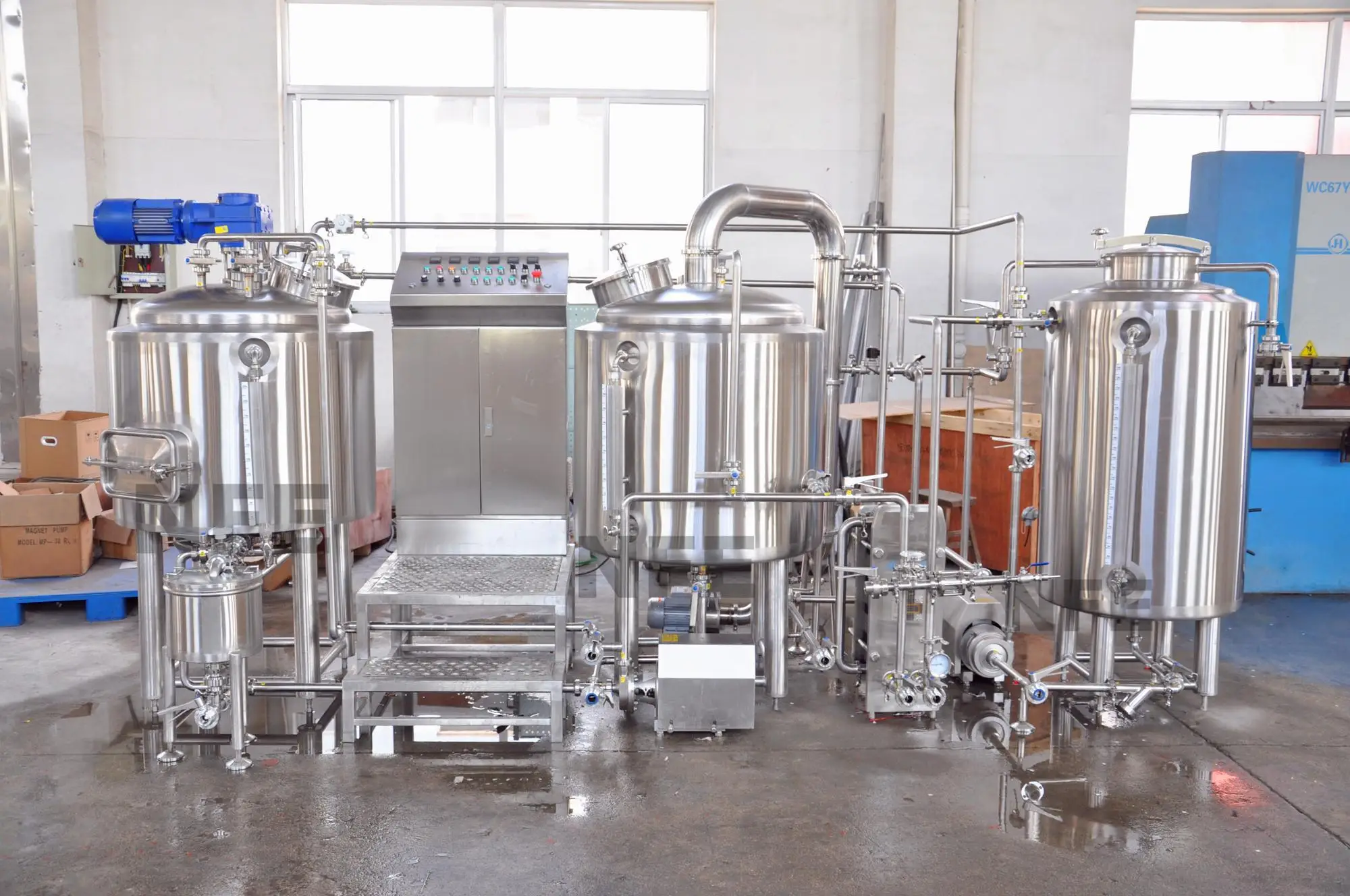

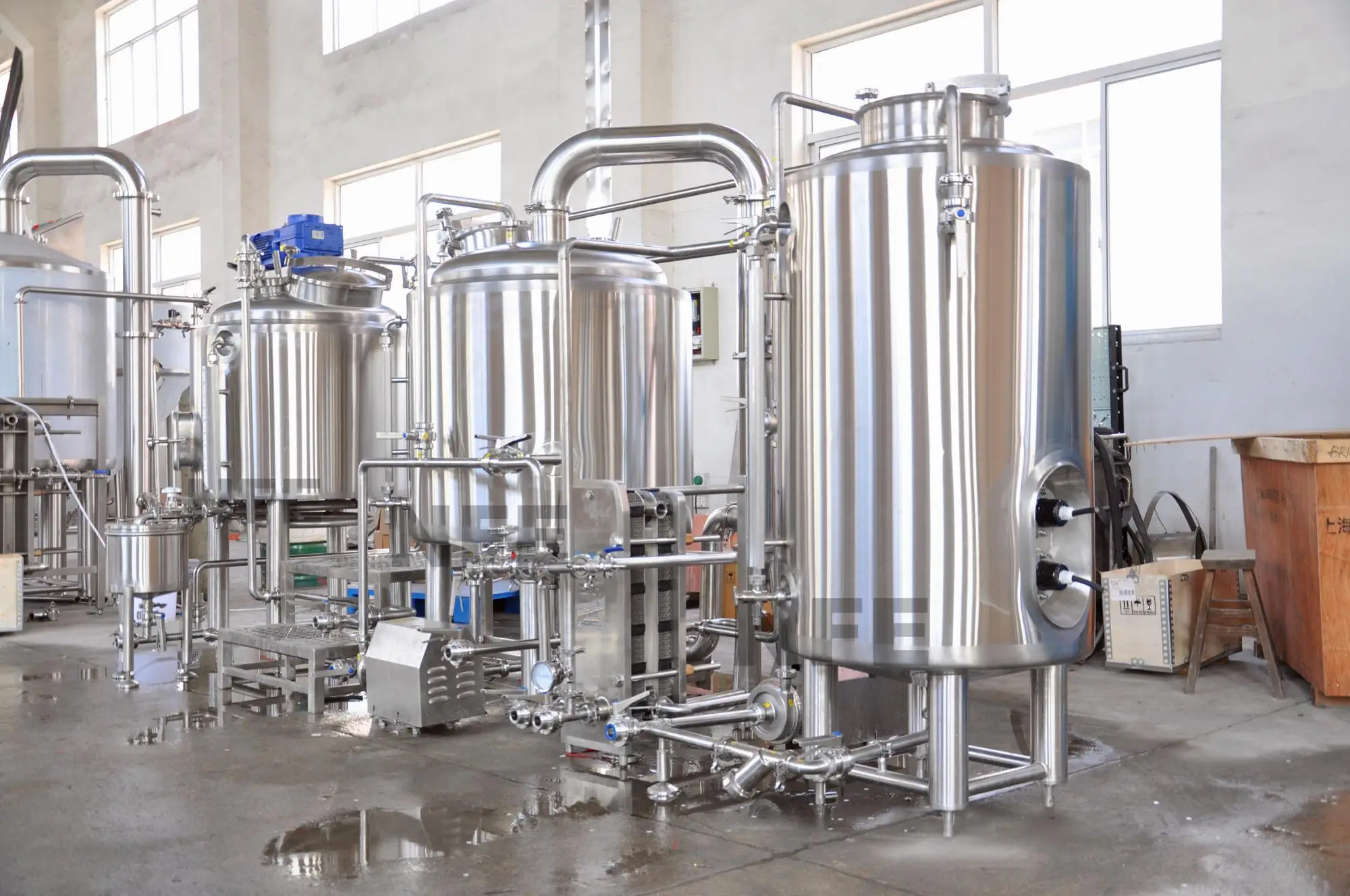

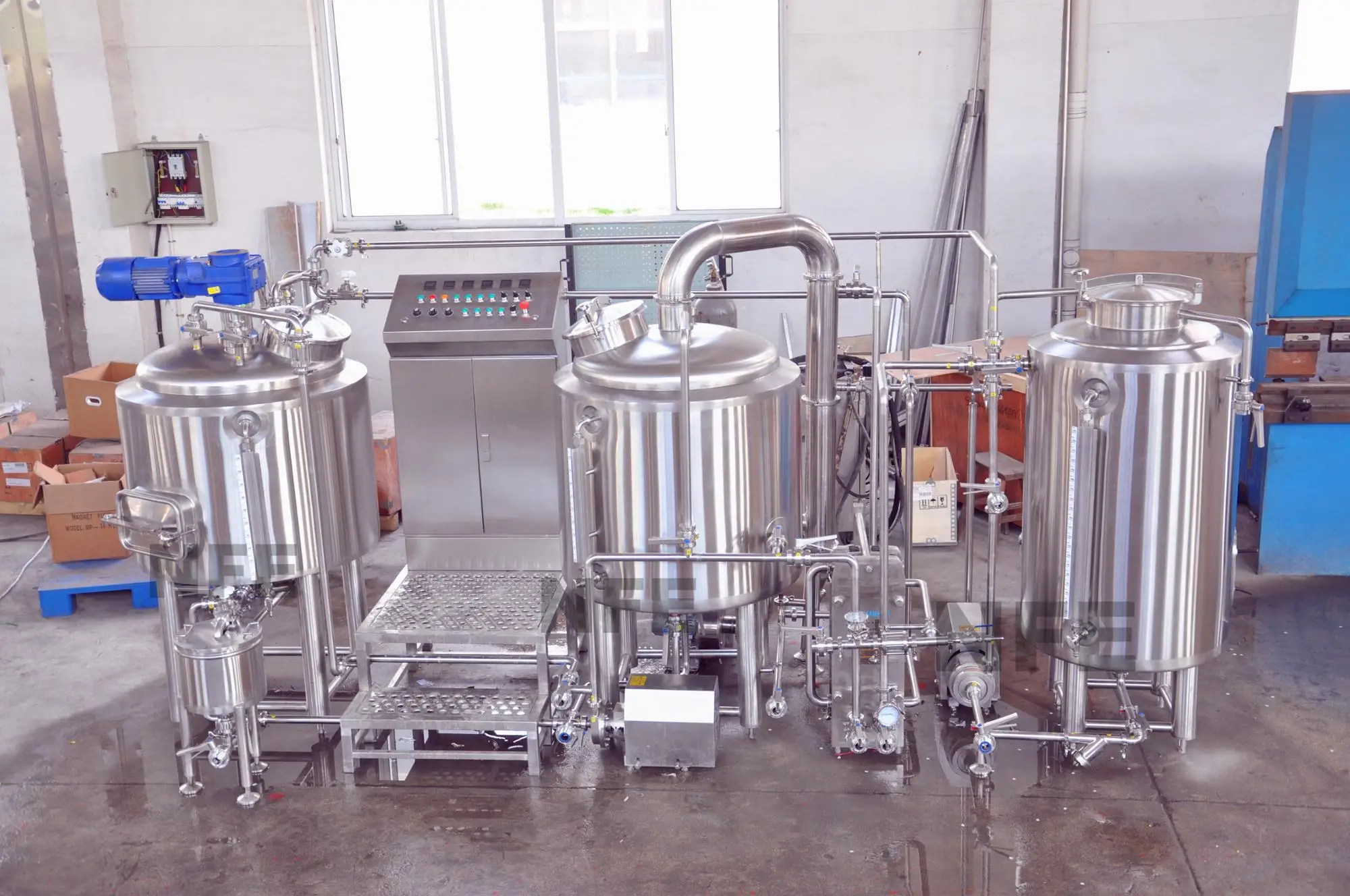

500L 2 Vessel Brewhouse Turnkey Brewery System 5BBL
US $3000-$135000
Nano Mash tun automatic kettle brewhouse restaurant pub bar hotel brewer beer equipment for sale
- Category: Other Beverage & Wine Machines >>>
- Supplier: Jinan NFE Machinery Co. Ltd.
Share on (62549787090):
Product Overview
Description
Product Description

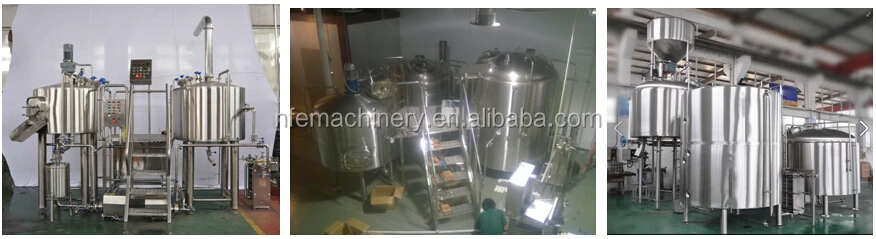

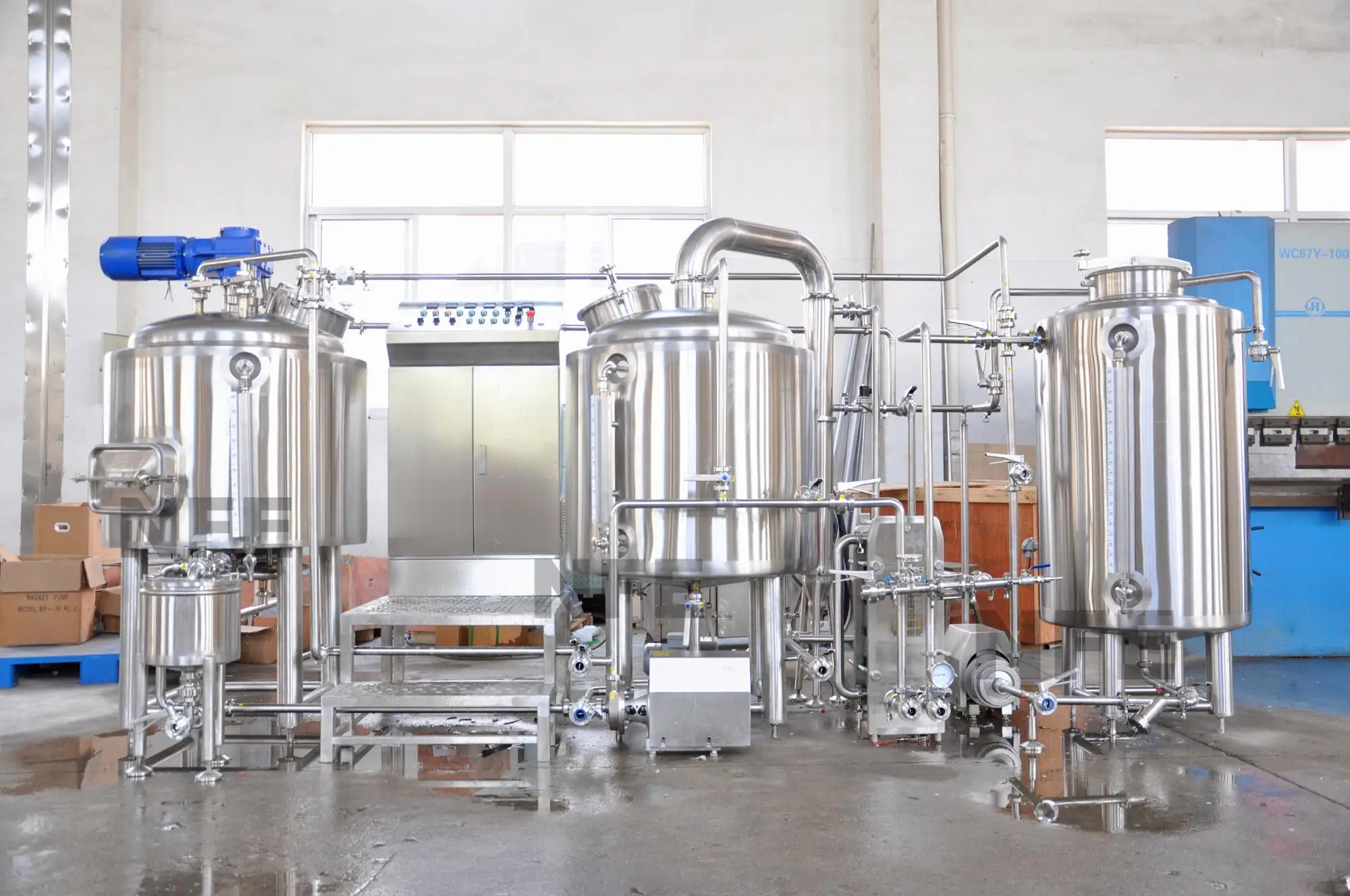

Two vessels, three vessels, four vessels brewhouse available
Different specifications meet different needs of customers

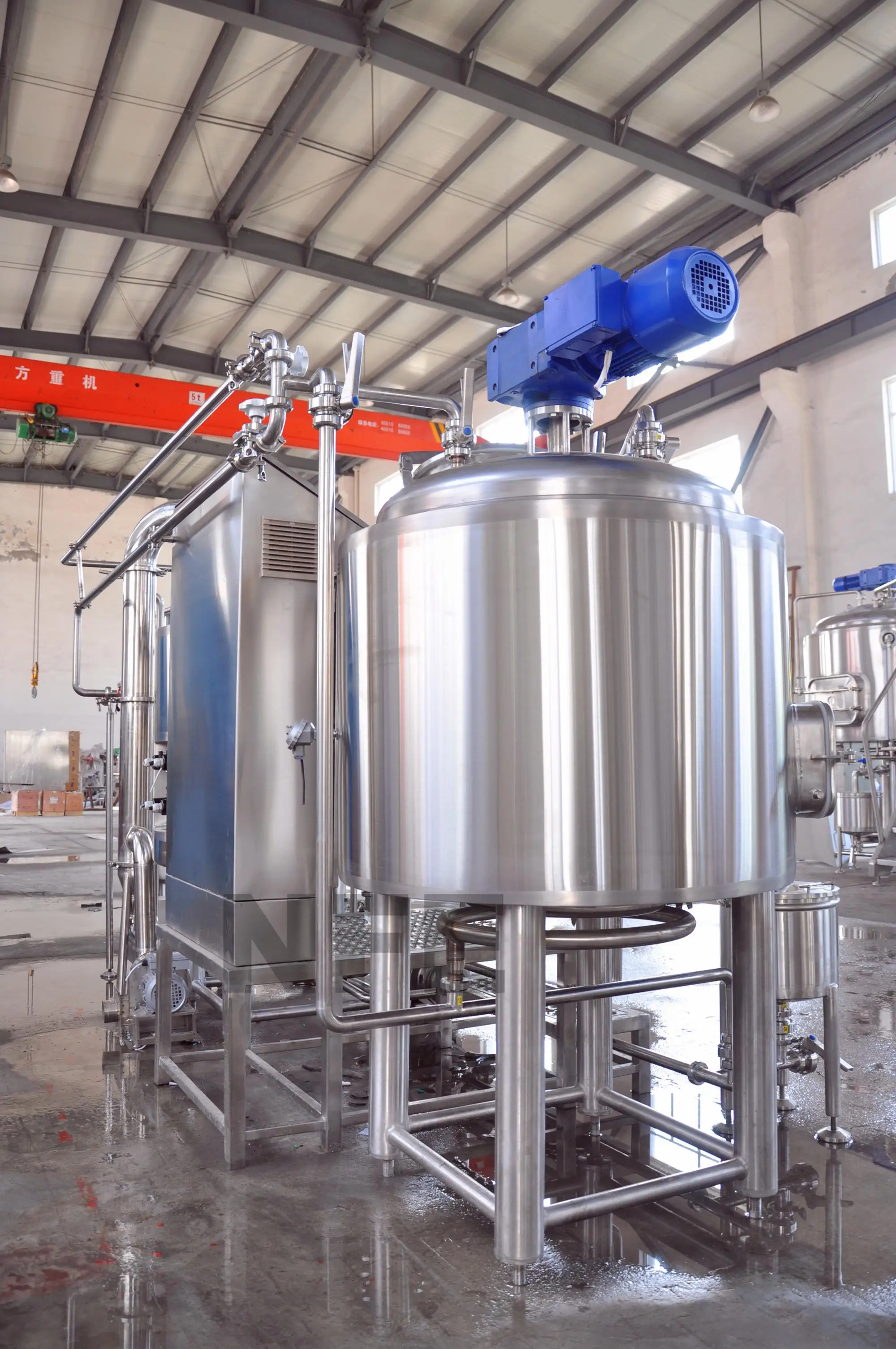

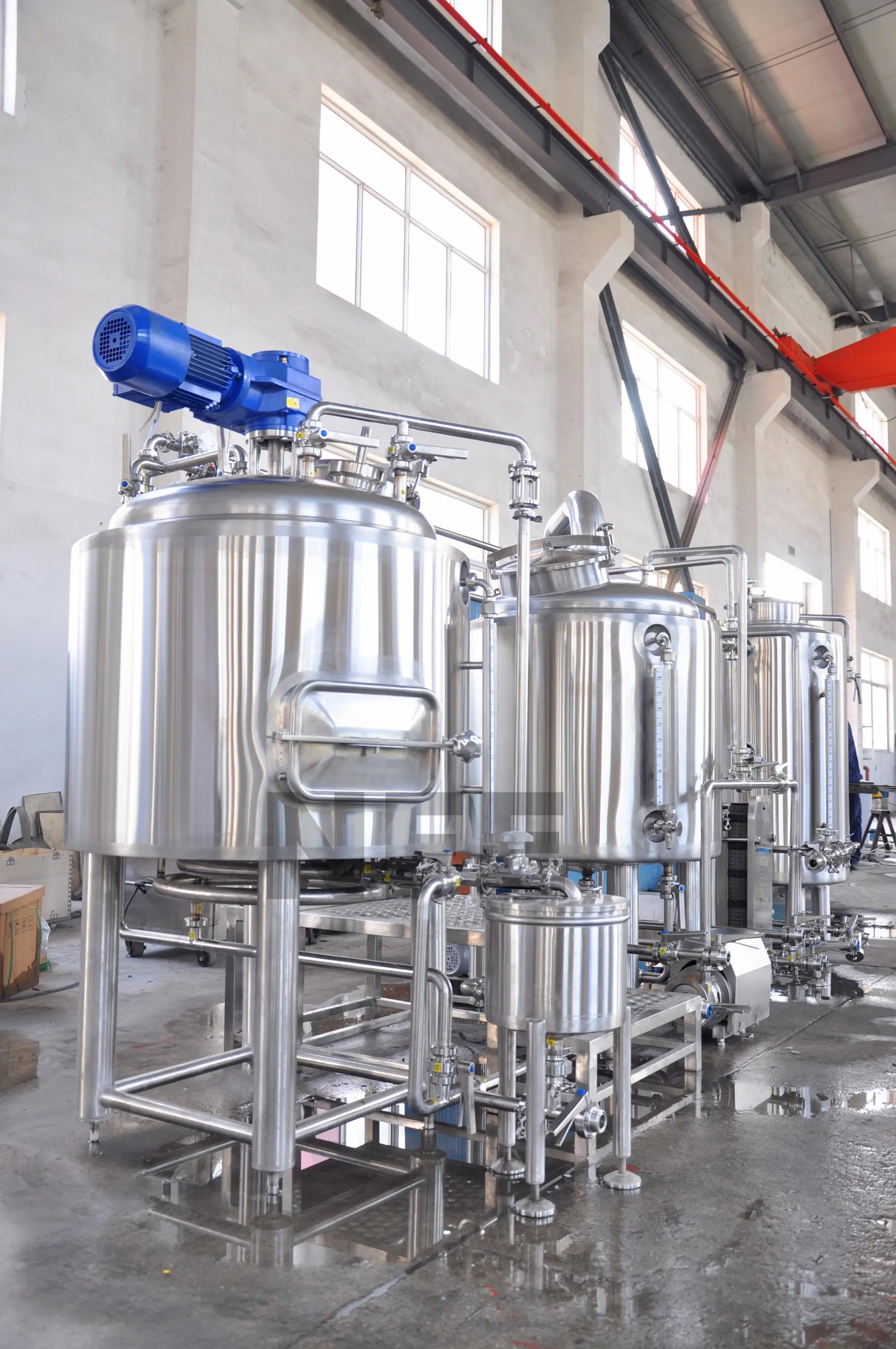

Mash tank; hydrator, mixer, steam heating jacket
Lauter tun: rake, agitator, false bottom, hydrator
Brewkettle, steam heating jacket, inner steam heating deivce; natural gas direct fire
Whirlpool tun: whirlpool entry
Pumps, processing piping, valves and fittings
MILL SYSTEM: MILL MACHINE, FLEX AUGER, GRAIN BIN, GRIST HOPPER |

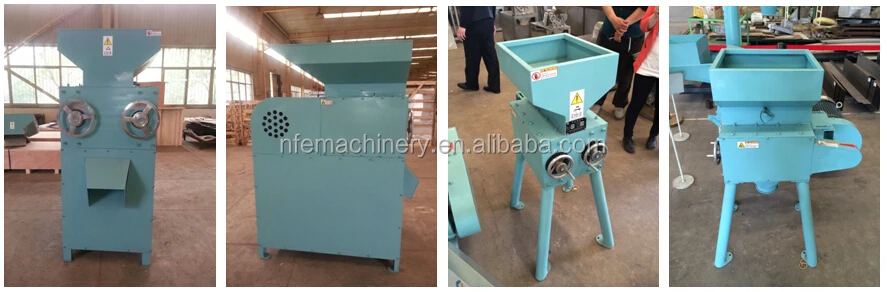

Mill Machine: 80-150kg/h, 300-500kg/h, 500-800kg/h, 800-1000kg/h |
|

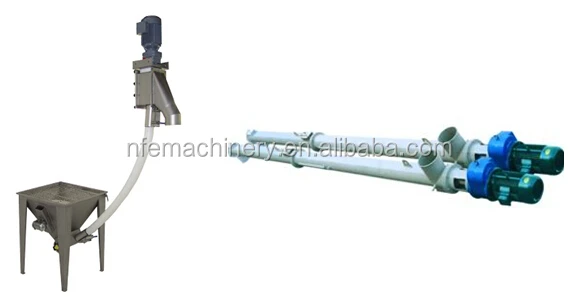

Flex Auger: PPR material pipe, stainless steel auger, motor |
|
Grist Hopper, Grain bin |
|
Brewhouse: two vessels, three vessels, four vessels, five vessels Heating medium: steam heating, natural gas direct fire, electric heating Insulation material: rock wool. Insulation thickness: 80mm/100mm Mash tank; hydrator, mixer, steam heating jacket Lauter tun: rake, agitator, false bottom, hydrator Brewkettle, steam heating jacket, inner steam heating deivce; natural gas direct fire Whirlpool tun: whirlpool entry Capacity: 50L -100HL |
|

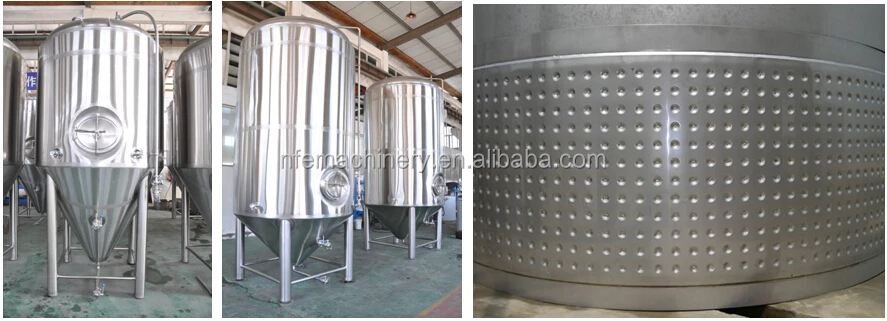

Fermentation Tank: 50L-500HL |
|

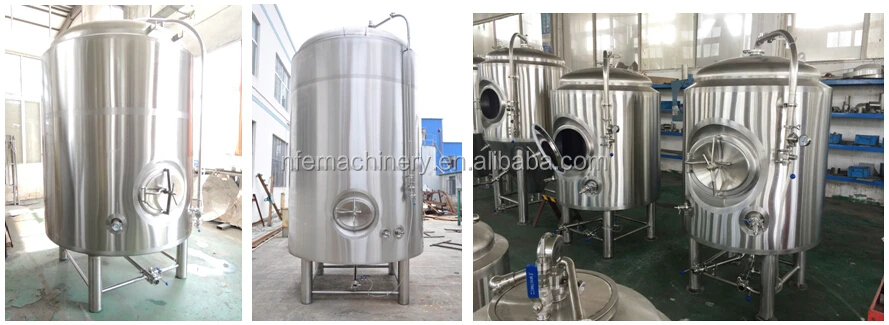

Bright Beer Tank: 50L-500HL |
|

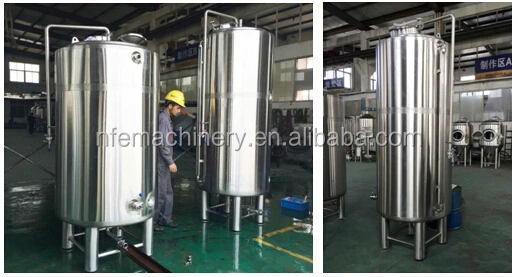

Hot Water Tank/Cold Water Tank/Glycol Tank: |
|
CIP System |
|
Packaging & Shipping
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
Our Services
We provide turnkey system, onsite installation service for brewery projects
We are preparing to supply technology service at any time, will offer equipment handbook, electrical appliance drawing and machinery drawing to customers with the equipment.
Company Information

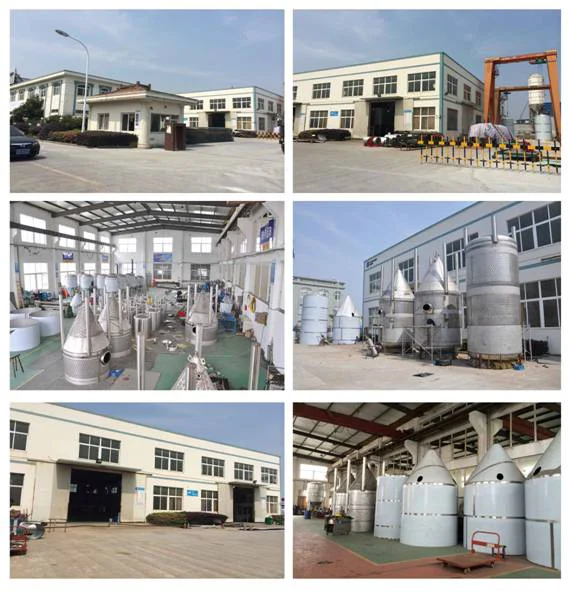

Jinan NFE Machinery Co., Ltd. is one of the leading manufacturers of beer brewing equipment, beer packaging machine, stainless steel vessels in China. NFE brewing equipment is confidant to keep pace with fast changing of international brewing market. Beer brewing equipment includes brewhouse equipment, fermentation equipment, yeast propagation equipment and cooling equipment, etc. Beer packaging line includes beer bottling line, beer canning line and beer kegs washer and fillers.
Beer brewing system’s analysis
items | NFE-0.1 | NFE -0.2 | NFE -0.3 | NFE -0.5 | NFE -1.0 | NFE -2.0 |
Production capacity | 100L/day | 200L/day | 300L/day | 500L/day | 1000L/day | 2000L/day |
floor space | 15m2 | 25m2 | 35m2 | 50m2 | 80m2 | 120m2 |
Total power | 12kw | 12kw | 12kw | 15/36kw | 22/72kw | 31/144kw |
Maximum hourly water consumption | 0.2m3/h | 0.4m3/h | 0.5m3/h | 1.0m3/h | 1.5m3/h | 2.0m3/h |
Total water used | 0.5m3/d | 1.m3/d | 1.5m3/d | 2.5m3/d | 5m3/d | 10m3/d |
Consumption of malt | 20kg | 40kg | 60kg | 100kg | 200kg | 400kg |
Consumption of hops | 60g | 120g | 180g | 300g | 600g | 1.2kg |
Yeast | 100g/1L | 200g/2L | 300g/3L | 500g/5L | 1kg/10L | 2kg/20L |
Maximum steam |
| 0.017t/hour | 0.017t/hour | 0.05t/hour | 0.10t/hour | 0.20t/hour |
