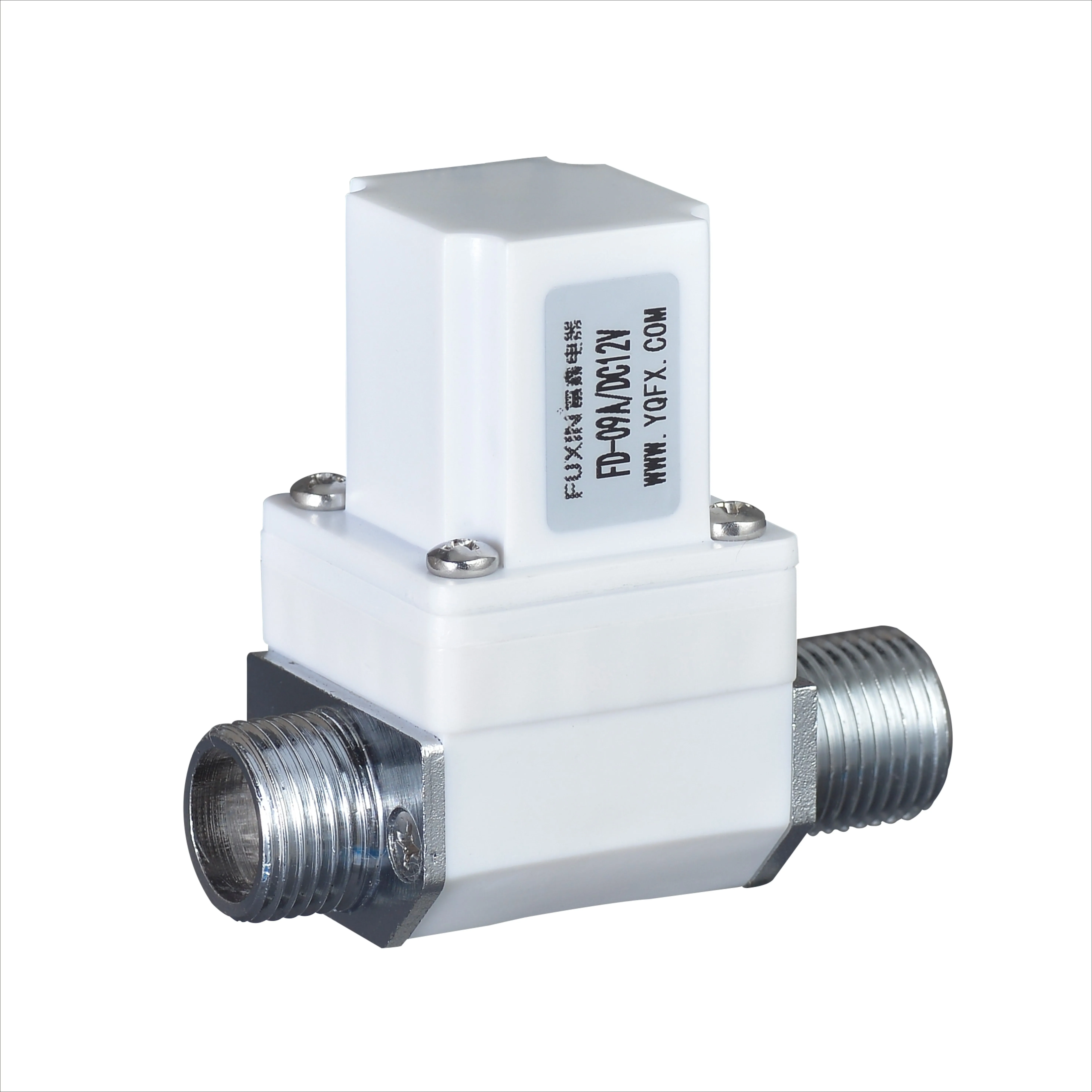

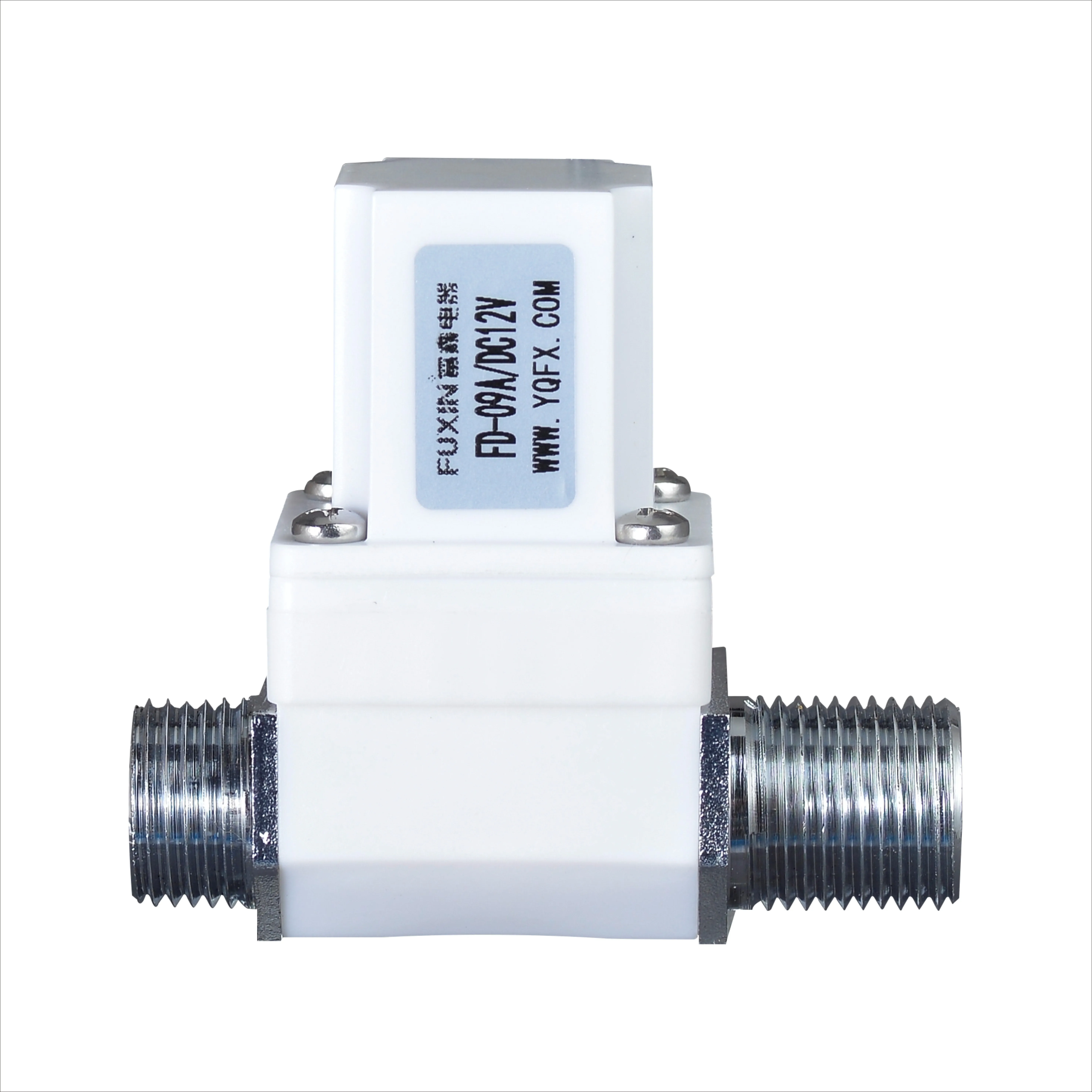

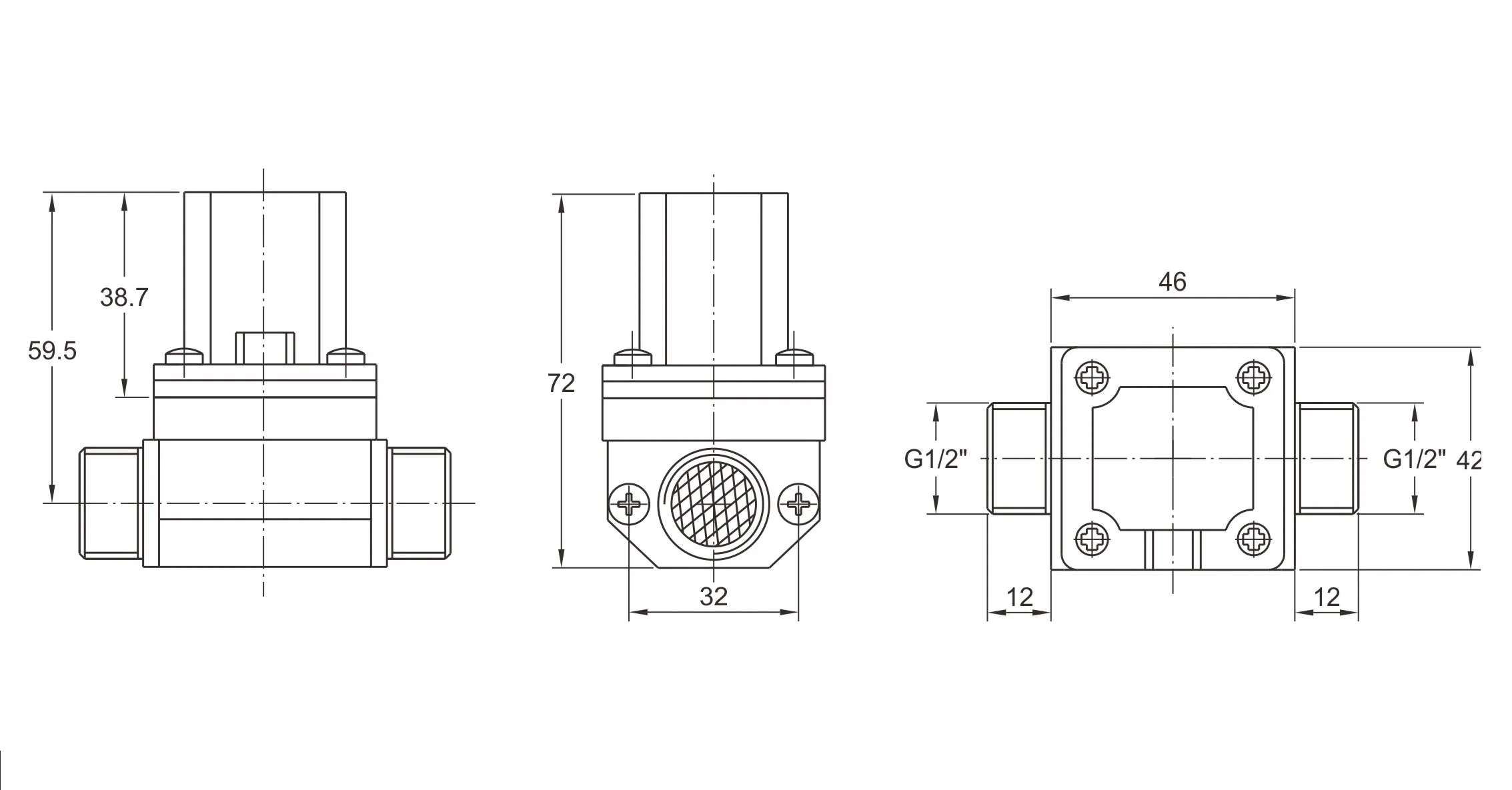

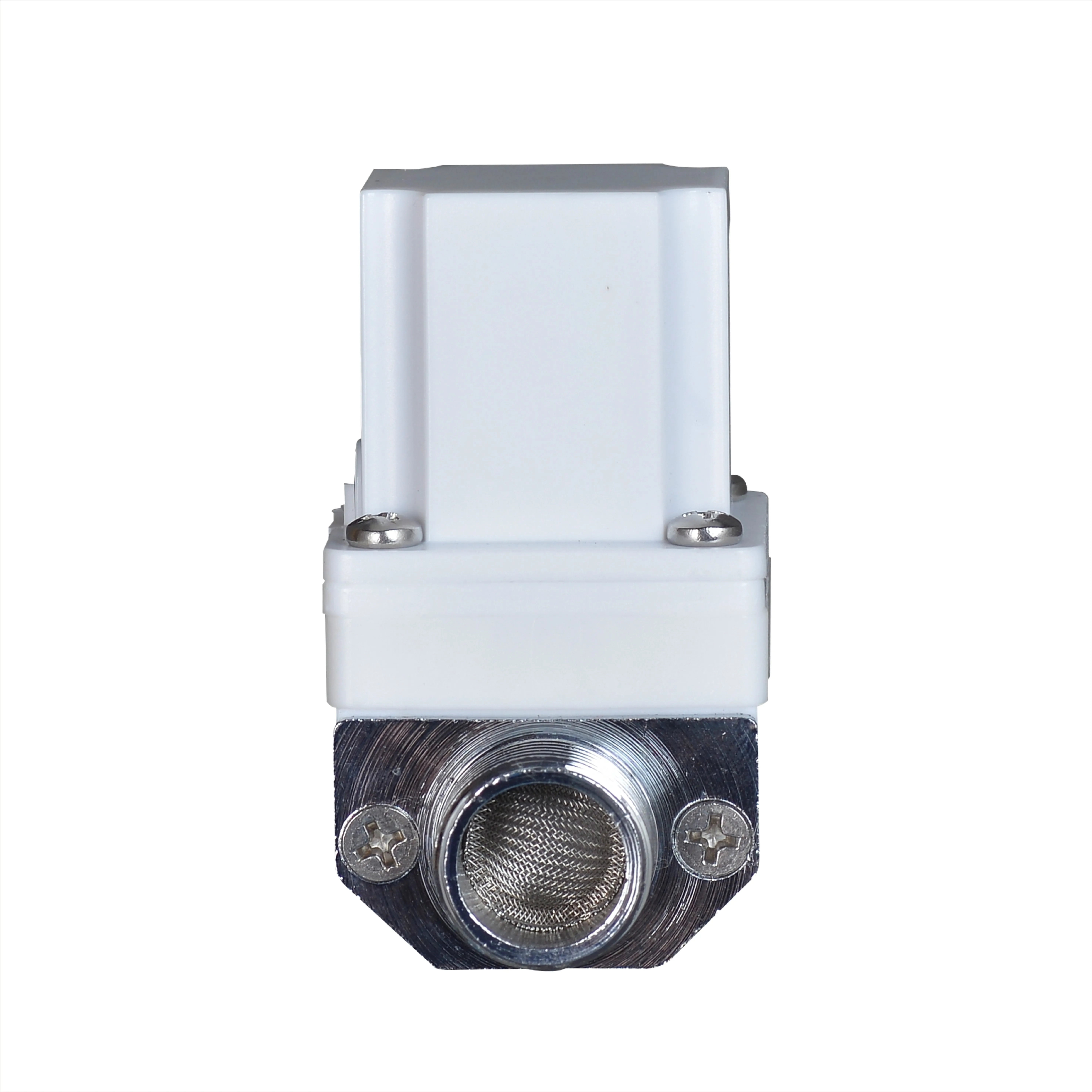

DC 1/2 Inch High Frequency Electrically Operated Direct Acting Control Solenoid Valve Latching Water Valve
- Category: Diaphragm Valves >>>
- Supplier: Yueqing Fuxin Electric Factory
Share on (62551276901):
Product Overview
Description
Products Description

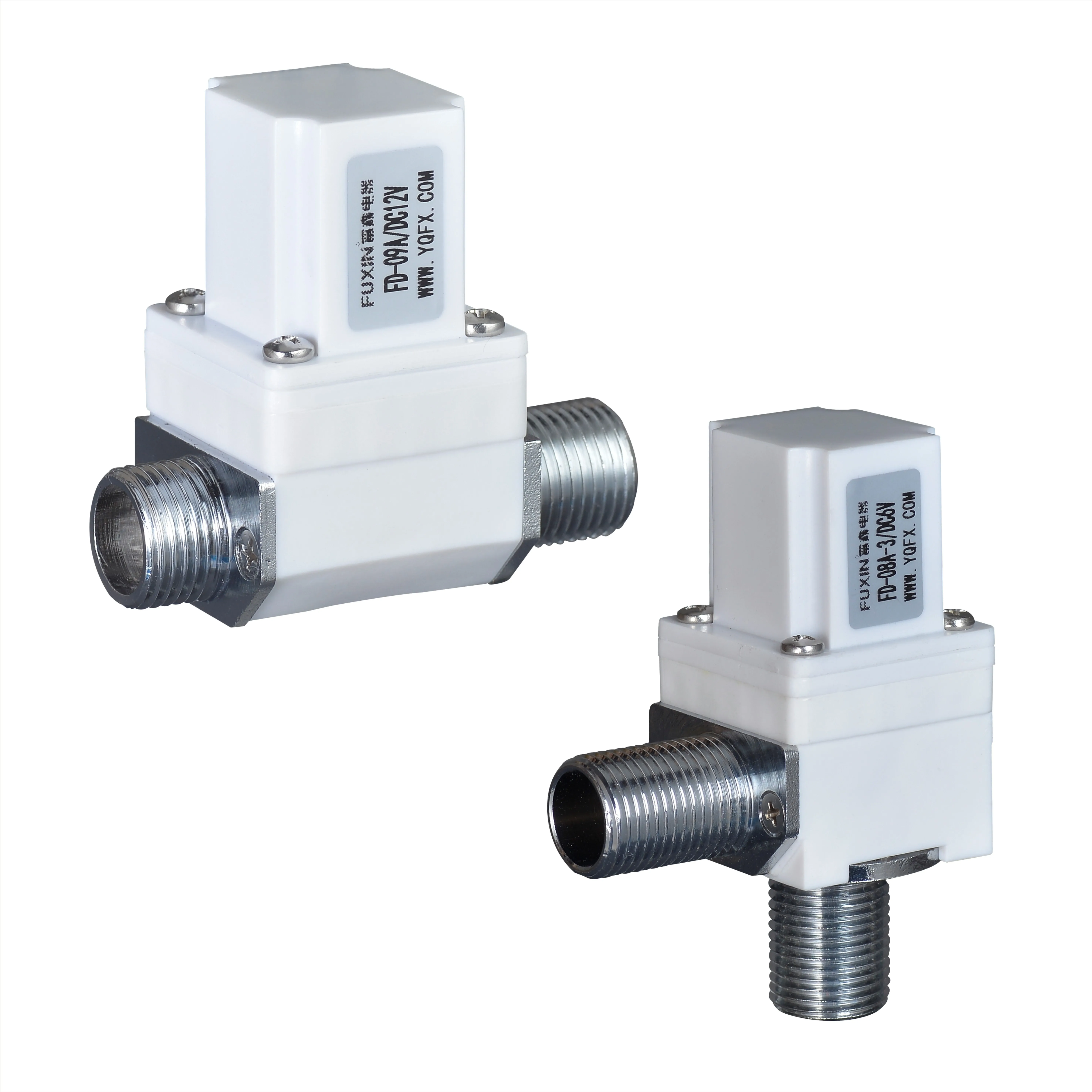

Sensor Sanitary Ware Faucet / Urinal Flushing Water Solenoid Valve FD-09A
Founded in 2001. Fuxin was mainly engaged in producing energy-saving type bi-stable pulse solenoid valve and accessories. The products are widely used in intelligent toilet automatic flushing control, induction sanitary ware, solar automatic water supply control, household appliances, washing equipment, food processing, garden irrigation, intelligent water meter and engineering water control systems, etc.
Technical Feature FD-09 series
Instruction
Instruction
Rated Voltage | DC6V | DC12V | DC24V | ||
Coil Resistance | 16Ω ±0.5Ω(20ºC) | 36Ω± 5Ω(20ºC) | 130Ω ±5Ω(20ºC) | ||
Min Current | 250mA | 300mA | 166mA | ||
Switch Mode | DC pulse(latching type) | AC and DC continuous(normal closed type) | |||
Operating Pressure | 0.02Mpa-0.8Mpa | ||||
Media Temperature | 1ºC--75ºC | ||||
Responding Time | Open ≤0.15s close≤0.5s | ||||
Service life | ≥1000000 cycles | ||||
Performance test
Strength test | Static pressure 1.6MPa | Withstand voltage pressure | 1.2MPa/5min | ||||
No-load test | Voltage 3.6V pulse width 30ms | Permissible limiting voltage | V*1.15 | ||||
High water pressure start and close | At water pressure 0.8MPa,voltage DC4.5V,pulse width 30ms,the solenoid valve can be started and closed normally | ||||||
low water pressure start and close | At water pressure 0.02MPa,voltage DC4.5V,pulse width 30ms,the solenoid valve can be started and closed normally | ||||||
Leakage upon high water pressure | 1.2MPa without leakage | ||||||
Leakage upon low water pressure | 0.02Mpa leakage≤0.1ml/min | ||||||
Electric strength | Among conductive part, mounting hole and nonconductive metal, it can withstand 1500V/50Hz,leakage current 0.75mA for 1 min without the breakdown | ||||||
Insulation resistance | The resistance between the charged part and nonconductive metal part tested by megohm meter of 500V ≥100MΩ | ||||||
Sealing test | Static pressure | Air | High pressure | 1MPa | |||
Low pressure | 0.02MPa | ||||||
Cold water | High pressure | 1.2MPa | |||||
Low pressure | 0.02MPa | ||||||
Hot water | High pressure | 0.8MPa | |||||
Low pressure | 0.02MPa | ||||||
Requirements of working environment
Temp of working environment | 1℃--60℃ | Permissible limiting pressure(water) | ≤1.2MPa |
Humidity of working environment | 35%-90% RH | Mounting direction | It is mounted in vertical. The inclination do not exceed 15 degrees |
Storage temp | -5--80℃( no freezing state) | Storage humidity | 25%--95% RH(No condensation state) |
Application Domain
Company Profile
Our Services
Our advantage:
1. Long term performance capability ≥1000000 cycles
2. Compact design
3. Optimized water hammer
4. High IP-class
5. High burst pressure
6. Cv-value optimized against low pressure
7. Low power consumption
8. Shockproof design
9. Anti acid alkali salt
10. Complete quality approvals
1. Long term performance capability ≥1000000 cycles
2. Compact design
3. Optimized water hammer
4. High IP-class
5. High burst pressure
6. Cv-value optimized against low pressure
7. Low power consumption
8. Shockproof design
9. Anti acid alkali salt
10. Complete quality approvals
FAQ
Q: Are you the factory?
A: Yes, Our factory is located in Wenzhou,Zhejiang province, China,
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed NSF,KTW,ACS,W270,TUV,CE,ROHS,ISO9001 Certificates
Q: What is the delivery date?
A: For sample order,2-7 days after the payment
For bulk order, 10-20 days after the payment
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order
Q: What are your terms of payment?
A: Paypal, Western Union, bank T.T,LC payment，etc.
Q: What's your shipment method?
A: We ship by Express, by air, by sea. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: What's your mainly market?
A: Europe,North and south American,Asia,Middle East,Africa and etc.
A: Yes, Our factory is located in Wenzhou,Zhejiang province, China,
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed NSF,KTW,ACS,W270,TUV,CE,ROHS,ISO9001 Certificates
Q: What is the delivery date?
A: For sample order,2-7 days after the payment
For bulk order, 10-20 days after the payment
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order
Q: What are your terms of payment?
A: Paypal, Western Union, bank T.T,LC payment，etc.
Q: What's your shipment method?
A: We ship by Express, by air, by sea. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: What's your mainly market?
A: Europe,North and south American,Asia,Middle East,Africa and etc.
