Product Overview

Description



Product Description






Item
Parameters
Power
5KW-220V
Tube voltage range
40 ～ 120kV, step 1kv
Tube current range
3 ~ 125mA
Exposure time
1ms ~ 10s
mAs range
0.1 ~ 250mAs
Inverter frequency
100khz
Focus size
0.6mm / 2.8mm
Tube heat capacity
75.6kHu
Head size
265mm * 255mm * 460mm
Head weight
18KG

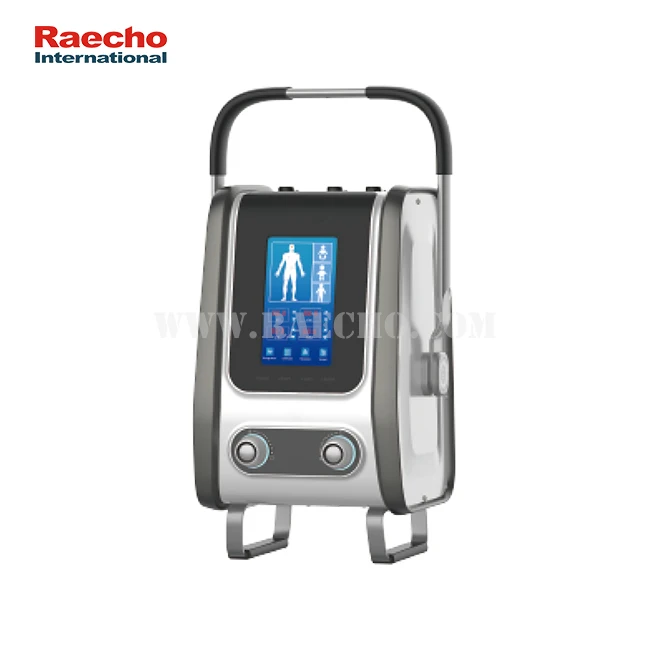

 With 8-inch large LCD display Fixed and portable




Features

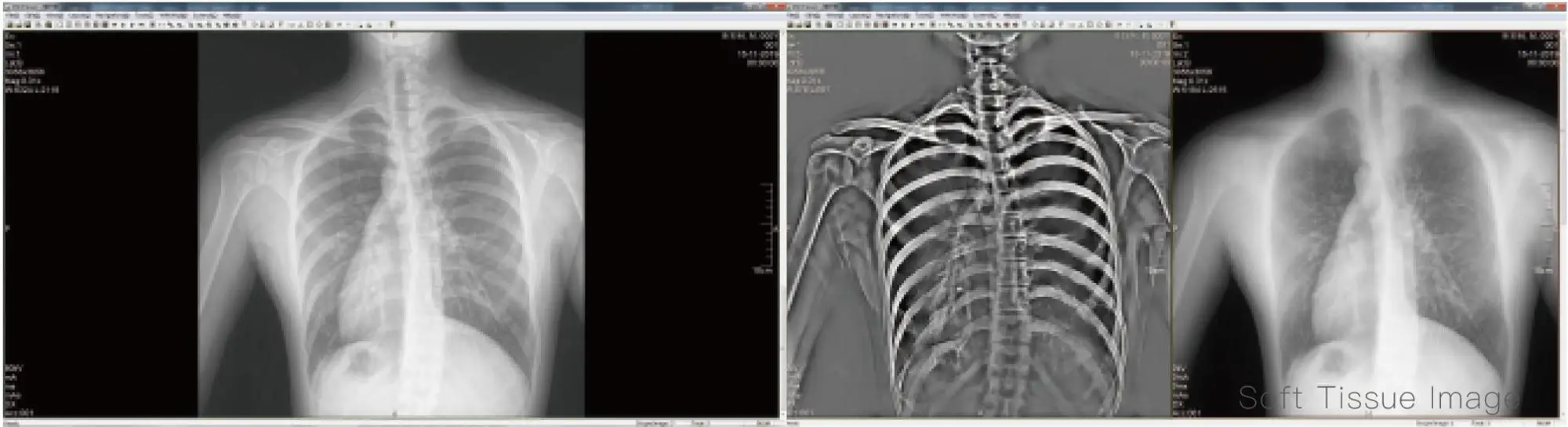

Smart-DR is a quality image acquisition and processing software wh ich was independently designed and researched by Raecho . It has obtained a number of computer copyright s issued by the National Copyright Administration and passed the IHE test organized by the Chinese Medical Equipment Association. And the compatibility reaches international standards.




Technical Parameter
Image Sensor
14 ″ × 17 ″
Detector TFT imaging board structure
non-stitched TFT
Detector pixel size
140um
Dynamic range
16bit
Spatial resolution
3.4Lp / mm
Acquisition time
3s
Imaging time
5s
The cooling method of digitalflat panel detector is natural cooling, no additional auxiliary cooling is required。

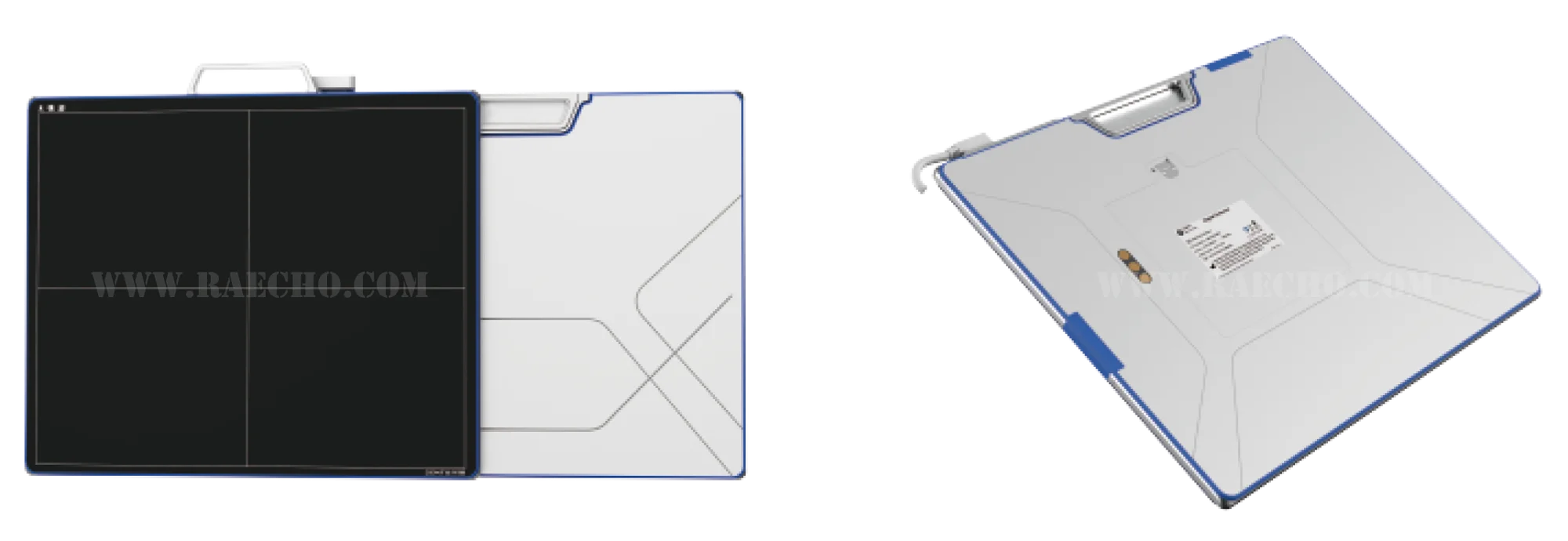

Flat Panel Detector (Wired) Standard Configuration Flat Panel Detector (Wireless) Optional
